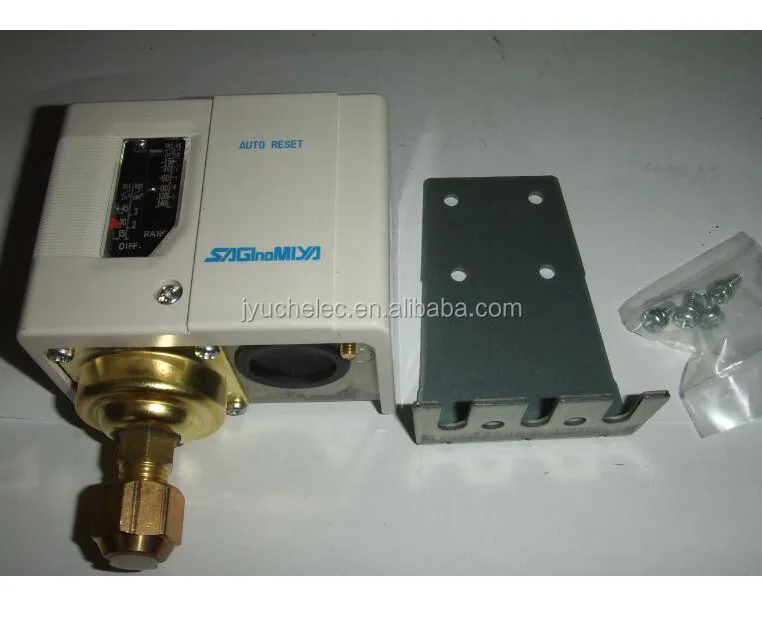

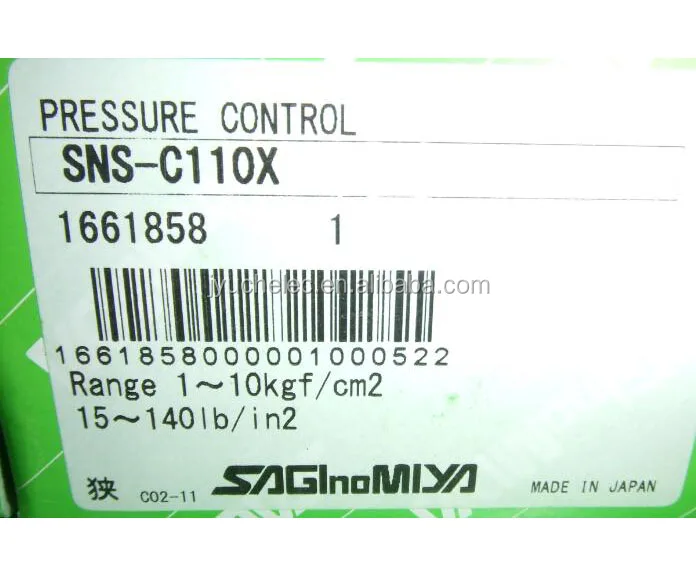

Original Pressure Switch 0.1Mpa Sns-C110X

Original Pressure Switch 0.1Mpa Sns-C110X

Main technical performance
Original Pressure Switch 0.1Mpa Sns-C110X
Working medium viscosity: ≤ 1 × 10-3m2 / S;
Original Pressure Switch 0.1Mpa Sns-C110X
Enclosure protection class: IP65;
Original Pressure Switch 0.1Mpa Sns-C110X
Ambient temperature: -10 ~ 40 ℃;
Original Pressure Switch 0.1Mpa Sns-C110X
Medium temperature: 0 ~ 80 ℃;
SOriginal Pressure Switch 0.1Mpa Sns-C110XNS-C110X
Anti-vibration performance: switching difference is fixed to max2g;

Repeatability: ± 1.6% FS;
Original Pressure Switch 0.1Mpa Sns-C110X
Electrical parameters: AC220V 3A 100VA DC220V 3A 10W, switch contact form
Original Pressure Switch 0.1Mpa Sns-C110X
Electrical lead interface: G1 / 2;
Original Pressure Switch 0.1Mpa Sns-C110X
Pressure connection interface: internal thread ZG1 / 4.
Original Pressure Switch 0.1Mpa Sns-C110X
Adjustment method

Original Pressure Switch 0.1Mpa Sns-C110X

      The instrument has the adjustment indication mechanism, the field adjustment is convenient, the scale indication precision is ± 4% FS, need precise control, may use the pressure checker to adjust.
Original Pressure Switch 0.1Mpa Sns-C110X
Example: a lubricating equipment filter working pressure of 0.4MPa, when the filter pressure at both ends of more than 0.1MPa when the alarm signal. Can choose a PKC0.25A1M differential pressure controller, the upper switching value is set to 0.1MPa, normally open contact with electrical control circuit, high and low voltage interface, respectively, and the filter into and out of phase. The specific adjustment method is as follows:
Original Pressure Switch 0.1Mpa Sns-C110X
1 Connect the controller pressure input connector to the pressure calibrator, open the watch cover, and connect the multimeter or other pointing device to the terminal block.
Original Pressure Switch 0.1Mpa Sns-C110X
2 Press the high pressure side (+ mark) pressure up to 0.4MPa, and then raise the low pressure side (- mark) pressure to 0.4MPa, either at the same time.
Original Pressure Switch 0.1Mpa Sns-C110X
3 Loosen the lock nut, raise the pressure on the high pressure side and rotate the adjustment screw so that the switch contacts operate at 0.1MPa.
Original Pressure Switch 0.1Mpa Sns-C110X
4 will reduce the pressure on the high pressure side, so that when the differential pressure dropped to about 0.09MPa switch contact reset.
Original Pressure Switch 0.1Mpa Sns-C110X
5 Tighten the lock nut and adjust the calibrator pressure repeatedly until it meets the requirements.
Original Pressure Switch 0.1Mpa Sns-C110X
Selection and installation
Original Pressure Switch 0.1Mpa Sns-C110X
1 set value is best located in the adjustment range of 20% to 80%.
Original Pressure Switch 0.1Mpa Sns-C110X
2 medium temperature is too high, in the pressure interface before the spiral cooling tube (order to be marked, I can be supporting the supply plant).
Original Pressure Switch 0.1Mpa Sns-C110X
3 when the medium viscosity should be added when the isolator (order to be marked, I can be supporting the supply plant).
Original Pressure Switch 0.1Mpa Sns-C110X

     The above is a brief introduction to SAGINOMIYA Japan's Saginomiya, SAGINOMIYA Japan.



Original Pressure Switch 0.1Mpa Sns-C110X

Original Pressure Switch 0.1Mpa Sns-C110X



Original Pressure Switch 0.1Mpa Sns-C110X





Original Pressure Switch 0.1Mpa Sns-C110X

If have any request for the Original Pressure Switch 0.1Mpa Sns-C110X ,please contact with me.
