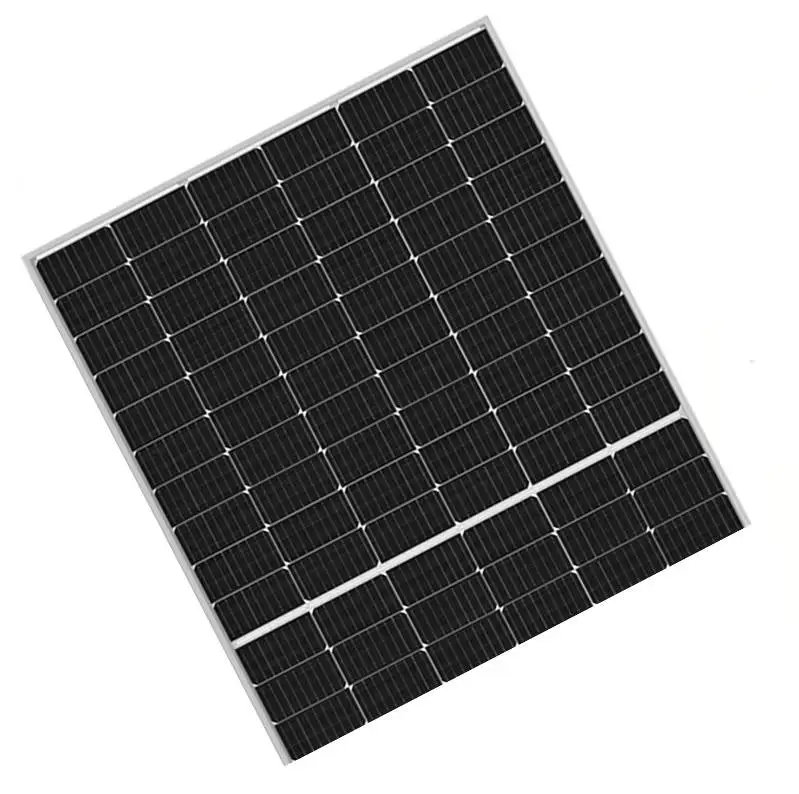

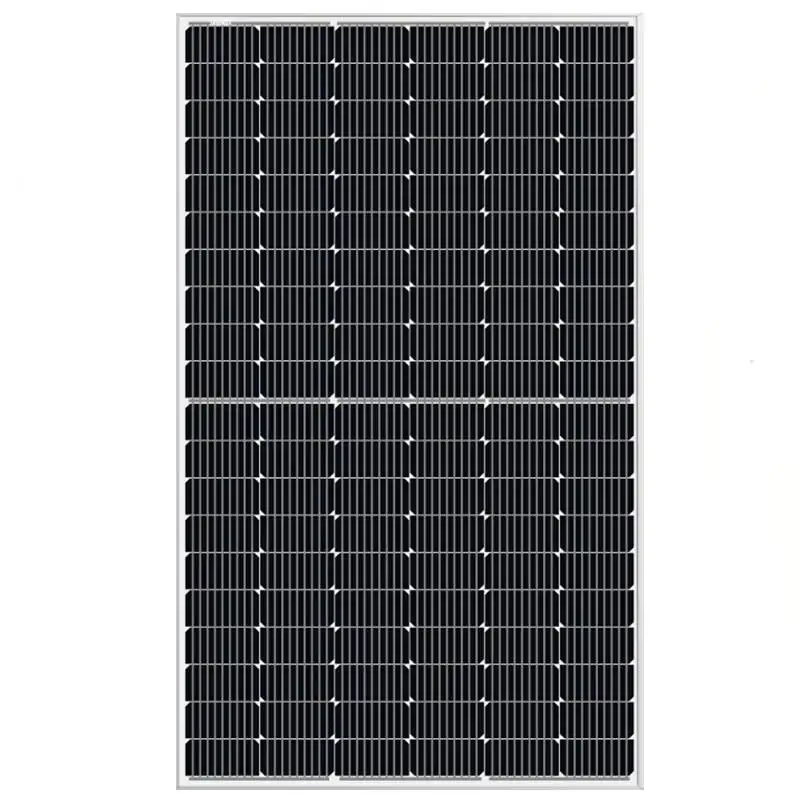

9BB моно солнечные панели 370 ватт фотогальваническая 10000
- Категория: Солнечные панели >>>
- Поставщик: Tangshan,Jingxin,Science,And,Technology,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 9272.92 $* | 9736.69 $* |
| Aug-19-2025 | 9195.28 $* | 9655.21 $* |
| Jul-19-2025 | 7714.12 $* | 8100.37 $* |
| Jun-19-2025 | 9039.30 $* | 9491.32 $* |
| May-19-2025 | 7870.39 $* | 8264.42 $* |
| Apr-19-2025 | 8883.56 $* | 9327.24 $* |
| Mar-19-2025 | 8805.5 $* | 9245.50 $* |
| Feb-19-2025 | 8727.36 $* | 9163.93 $* |
| Jan-19-2025 | 8649.16 $* | 9081.98 $* |
Характеристики
| ELECTRICAL DATA(STC) | ||||||
| Peak Power Watts-Pmax(Wp) | 350W | 355W | 360W | 365W | 370W | |
| Power Output Tolerance-P MAX (W) | 0~+5W | |||||
| Maximum Power Voltage-V MPP (V) | 33.3 | 33.5 | 33.7 | 34.0 | 34.3 | |
| Maximum Power Current-l MPP (A) | 10.52 | 10.6 | 10.69 | 10.75 | 10.67 | |
| Open Circuit Voltage-V OC (V) | 40.5 | 40.7 | 40.9 | 41.2 | 41.5 | |
| Short Circuit Current-l SC (A) | 11.02 | 11.10 | 11.20 | 11.28 | 11.37 | |
| Module Efficiencyηm (%) | 18.7 | 19.0 | 19.3 | 19.5 | 19.8 | |
| STC | Irradiance 1000w/m2,module temperature 25℃,air mass 1.5 | |||||
| TEMPERATURE RATINGS | |
| Nominal Operating Cell Temperature (NOCT) | 44℃(±2℃) |
| Temperature Coefficient of PMAX | - 0.39%/℃ |
| Temperature Coefficient of VOC | - 0.29%/℃ |
| Temperature Coefficient of ISC | 0.05%/℃ |
| MECHANICAL DATA | |

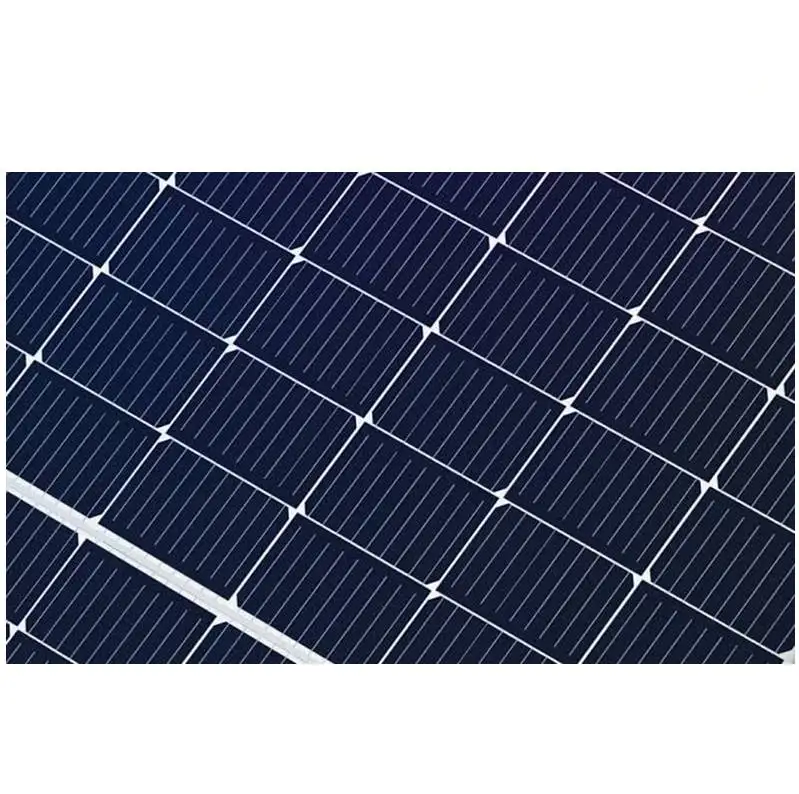

| Solar cells | 9BB Monocrystalline 166×166mm |
| Cell orientation | 120cells (6×20) |

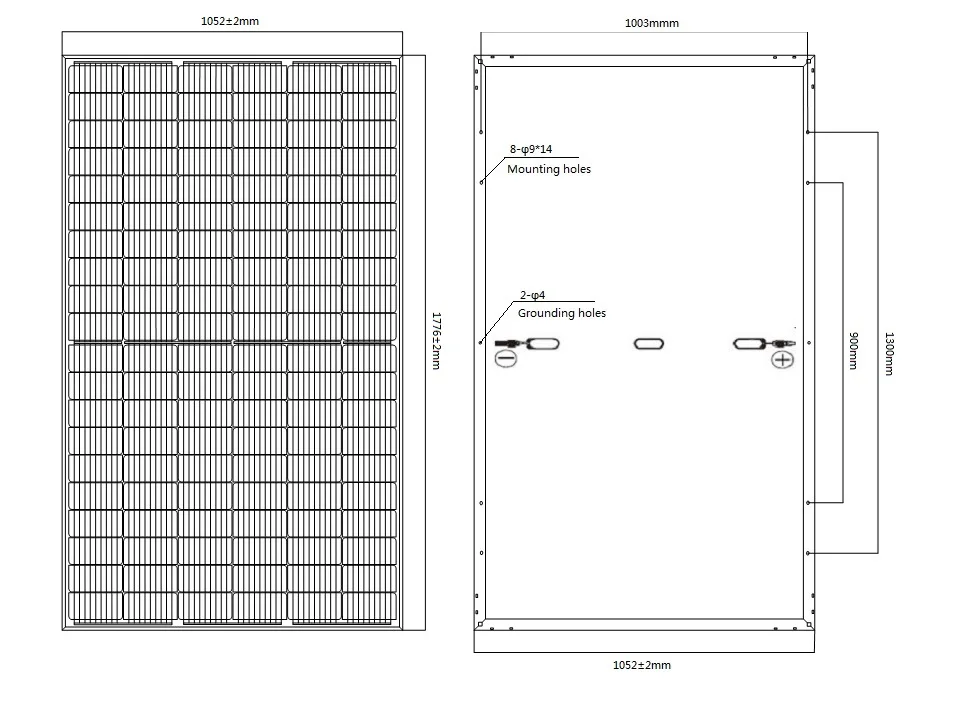

| Module dimensions | 1776×1052×35mm |
| Weight | 20.0kgs |
Glass | 3.2mm (0.13 inches), HighTransmission, AR Coated Tempered Glass |
| Frame | Silver or black anodized alunnium alloy |
| Backsheet | Silver or black |
| J-Box | IP67 rated (3 or 6 diodes) |
| Cables | Photovoltaic Technology cable 4.0mm2 (0.006 inches2), 300mm (11.82 inches) |
_______________Payment_______________
| Payment | ||||||||
| Payment Term | T/T | EXW | 30% T/T advance,paid the balance before shipment | |||||
| FOB | ||||||||
| CFR(C&F) | 30% T/T advance,paid the balance against copy of B/L | |||||||
| CIF | ||||||||
| L/C | L/C amount above 50,000usd,we can accept L/C at sight | |||||||
| West Union | Amount lower than 5000usd | |||||||
| West Union | ||||||||
| Delivery time | 7-10 working days after receiving payment for one container | |||||||
____________Related Products____________
340W Half Cell 410W Half Cell 410W DOUBLE GLASS
FAQ
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Tangshan city, Hebei province.Near Beijing and Tianjin.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will arrange time to pick you up.
3. Q: Do you provide free sample?
A: Sorry, we can supply the sample,but it is not free charge.
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do OEM.

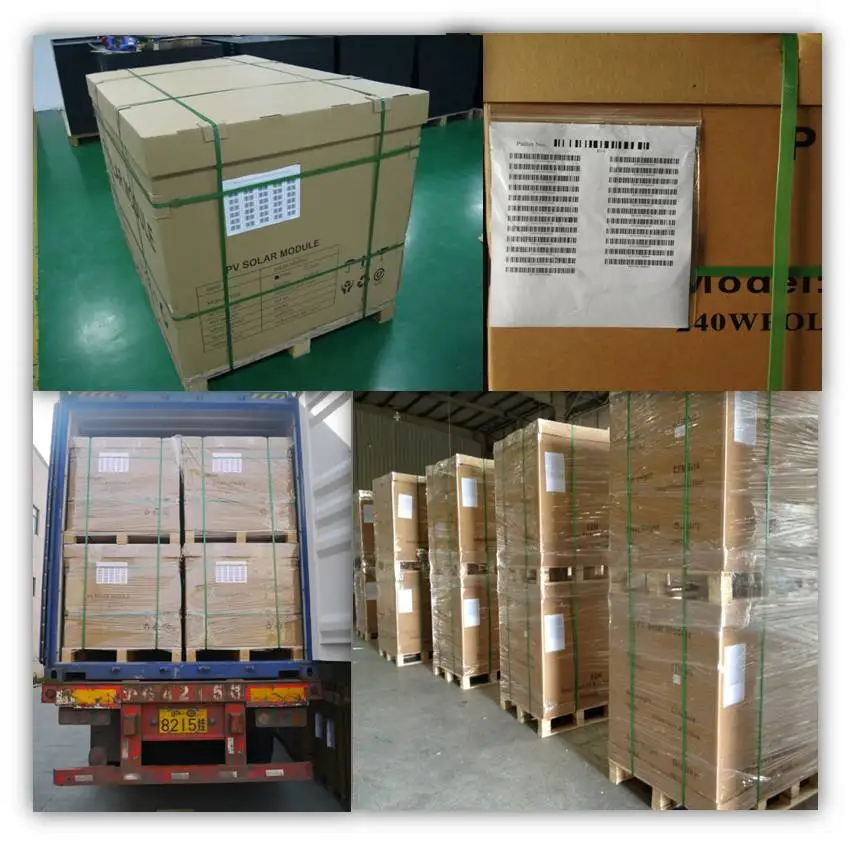

5. Q: How about the package?
A: Plywooden box pallet or carton box pallet.
6. Q: Do you accept custom design on size and package?
A: Yes, if the size and package are reasonable.
