Настольное сетевое устройство Super Mini 4LAN с Intel Celeron J1900/J1800 1 мини PCIe
- Категория: Firewall & VPN >>>
- Поставщик: Shenzhen,Armortec,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 179.45 $* | 188.5 $* |
| Aug-17-2025 | 177.22 $* | 186.83 $* |
| Jul-17-2025 | 149.26 $* | 156.51 $* |
| Jun-17-2025 | 174.12 $* | 183.68 $* |
| May-17-2025 | 152.32 $* | 160.57 $* |
| Apr-17-2025 | 171.6 $* | 180.92 $* |
| Mar-17-2025 | 170.38 $* | 179.26 $* |
| Feb-17-2025 | 168.28 $* | 176.19 $* |
| Jan-17-2025 | 167.89 $* | 175.15 $* |
Характеристики
Desktop Super Mini 4LAN Network Appliance with Intel Celeron J1900/J1800, 1 Mini PCIe slot, mSATA
Product Description
Product Features:
Integrated Intel Celeron J1900 quad core processor(2.0GHz)
Intel Bay Trail SoC platform
Built in Intel HD graphics core
1 x 204-pin single channel DDR3L 1600/1333MHz 1.35v memory, Max. 8Gb
1 x 2.5 inch HDD bay, can install HDD directly onboard, 1 x SATA header, 1 x MSATA slot (support SSD and USB WiFi)
4 x Intel 82583V GbE network
1 x 12V-19V DC_JACK in
Nano ITX Form Factor(120mm x 120mm), fanless motherboard design
Extremely mini
Product Specifications:
Model No. | NCC-BT41S | |
Form Factor | Desktop | |
Platform | Processor Options | Intel Celeron J1900 2.0GHz Quad Core |
CPU Socket | Onboard | |
Chipset | Baytrail SOC platform | |
Security Acceleration | N/A | |
BIOS | AMI SPI Flash BIOS | |
System Memory | Technology | DDR3L 1600/1333MHz |
Max. Capacity | 8GB | |
Socket | 1x 204pin SODIMM | |
Networking | Ethernet Ports | 4x GbE RJ45 Intel 82583V |
Bypass | - | |
I/O Interface | Reset Button | - |
LED | Power/Storage | |
Power Button | 1x Power button | |
Console | 1x RJ45 | |
USB | 2x USB 2.0 | |
LCD Module | - | |
Display | 1x VGA | |
Power Input | 1x DC Jack | |
Storage | HDD/SSD Support | - |
Onboard Storage | 1x m-SATA | |
Expansion | PCIe | - |
Mini-PCIe | Optional | |
Miscellaneous | Watchdog | Yes |
Internal RTC with Li Battery | Yes | |
TPM | - | |
Cooling | Processor | Passive CPU heatsink |
System | - | |
Environmental Parameters | Temperature | 0℃~45℃/ -20℃~70℃ |
Humidity | 5 ~ 90% non condensing / | |
System Dimensions | (WxHxD) | 128x41x128mm |
Weight | 1.2kg | |
Package Dimensions | (WxHxD) | 190x70x190mm |
Weight | 1.6 kg | |
Power | Type/Watts | 36W Desktop Adapter |
Input | ||
Approvals and Compliance | CE, FCC Class B | |

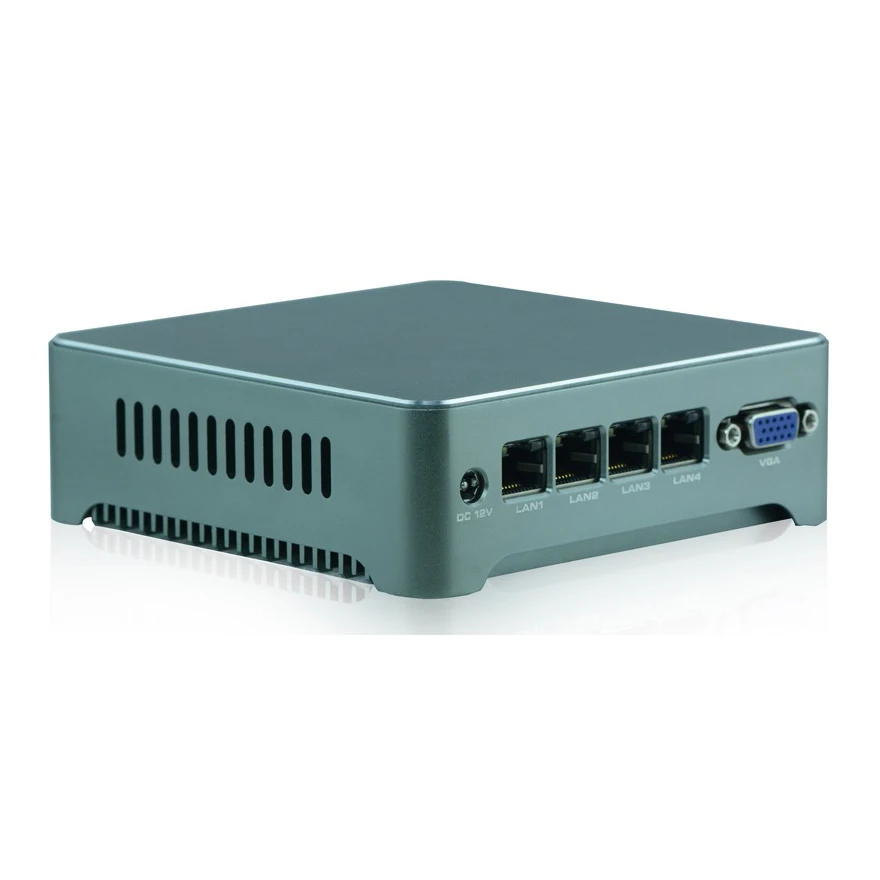

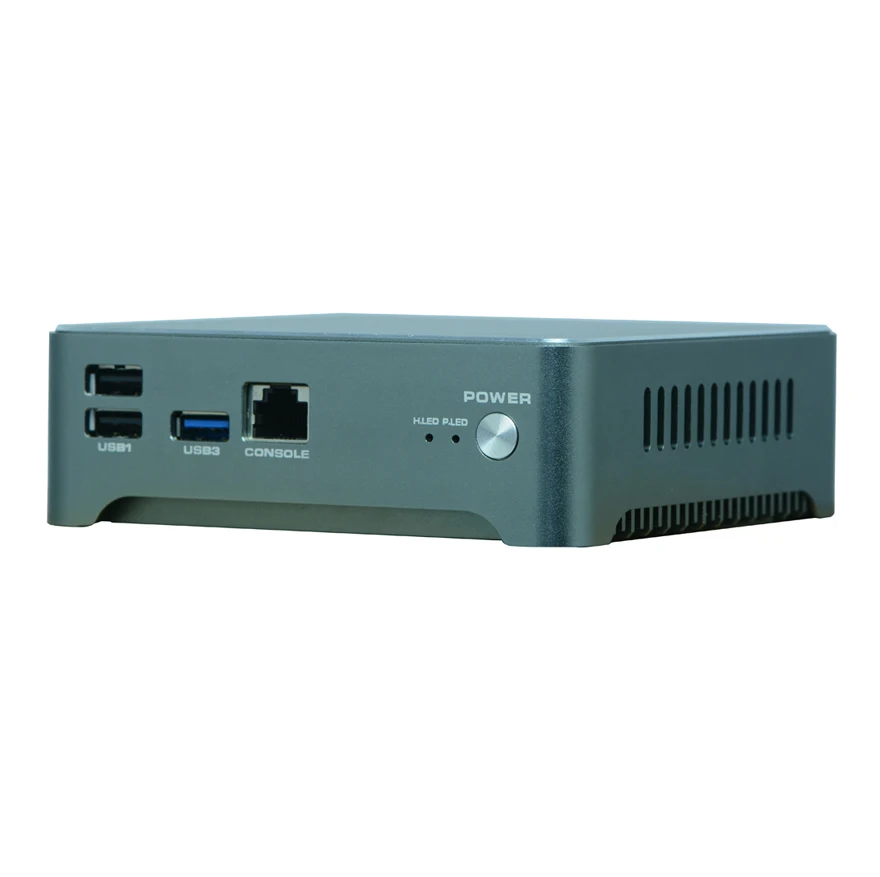

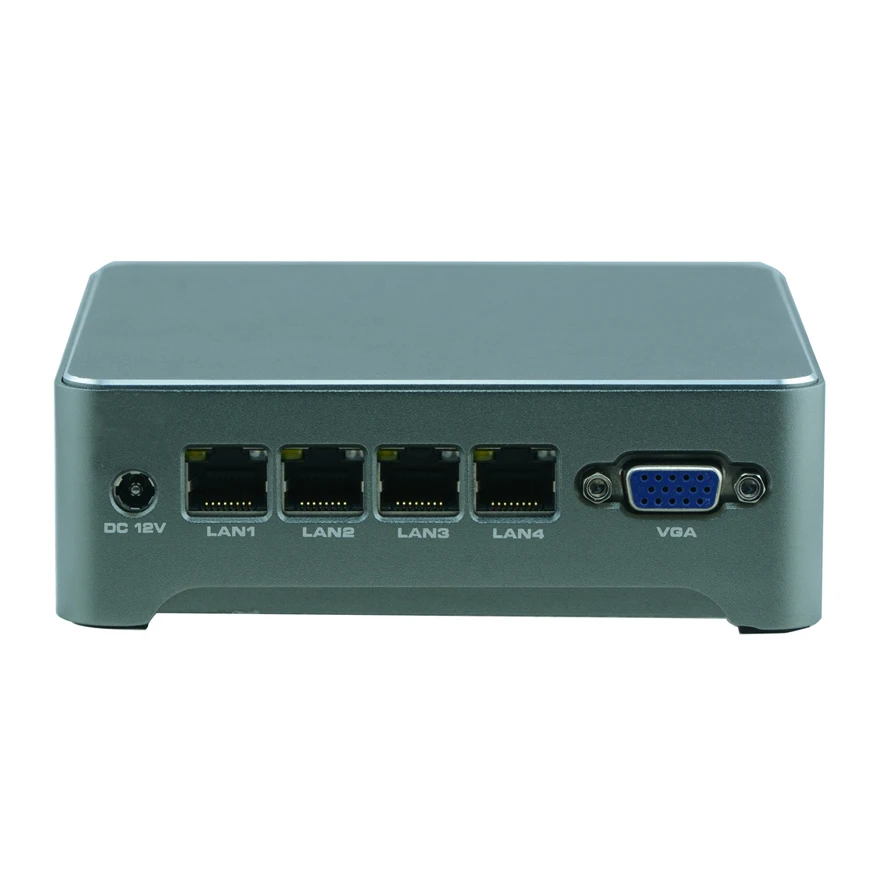

Product Show
