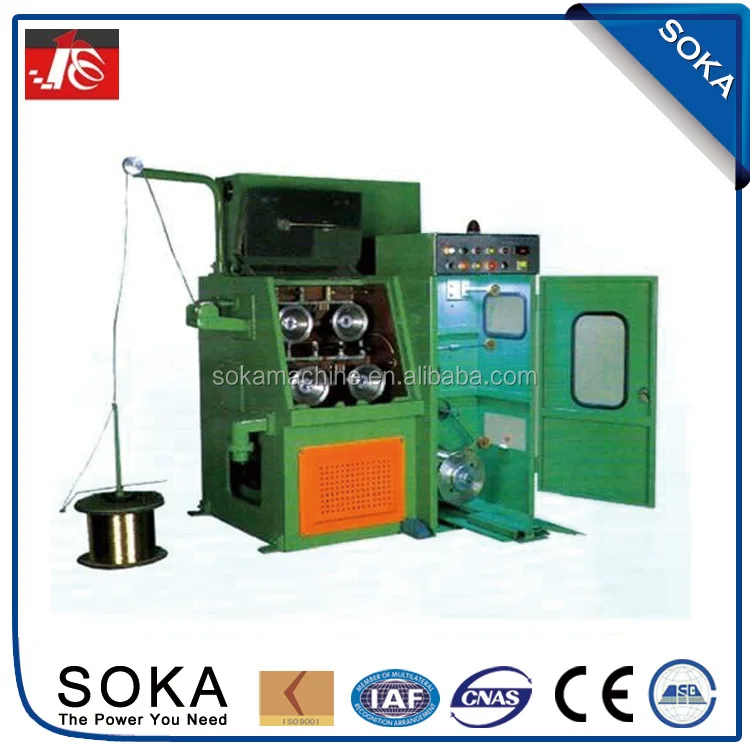

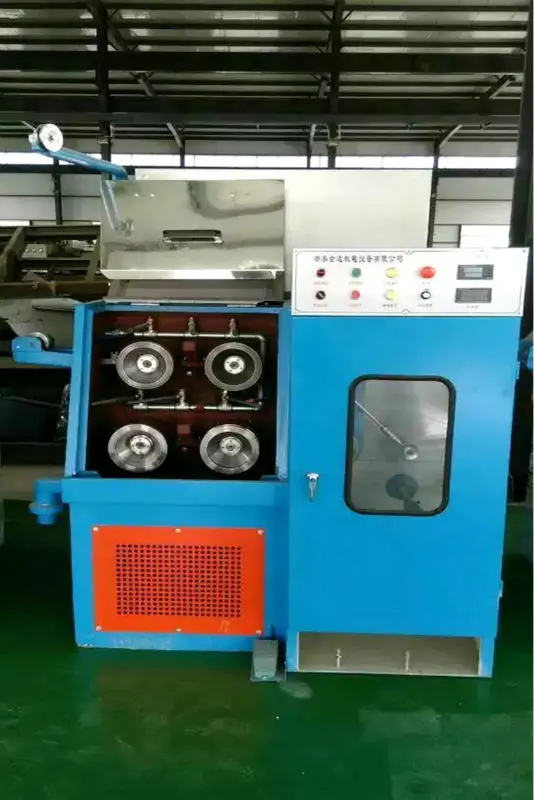

High speed small type SK-24D wire drawing machine manufacture for sale
Product Description
specifiation :
Inlet wire diameter :1.0-0.5mm
Outlet wire diameter :0.25-0.07mm
Double frequency conversion control 11+4KW
Drawing speed :35m/s
Vertical four shaft,Automatic tracking synchronous collection line
Annealer
Applicable line diameter:0.10~0.32mm bare copper wire
Speed:300MPM/Max
Winding shaft size :300mm/Max Or according to your size
Tubular furnace electric heating capacity to soften :64.5KW
Copper wire bake oven electric heating capatity:3KW
single wheel lead take wheel mechanomotive force:Torque motor1.2-1.8NM
Coiling tension:25kg.cm
About the products
1 Dual inverter control and two motors type can precisely control the spool wire tension to
reduce the slip ratio of wire to a minimum manner.

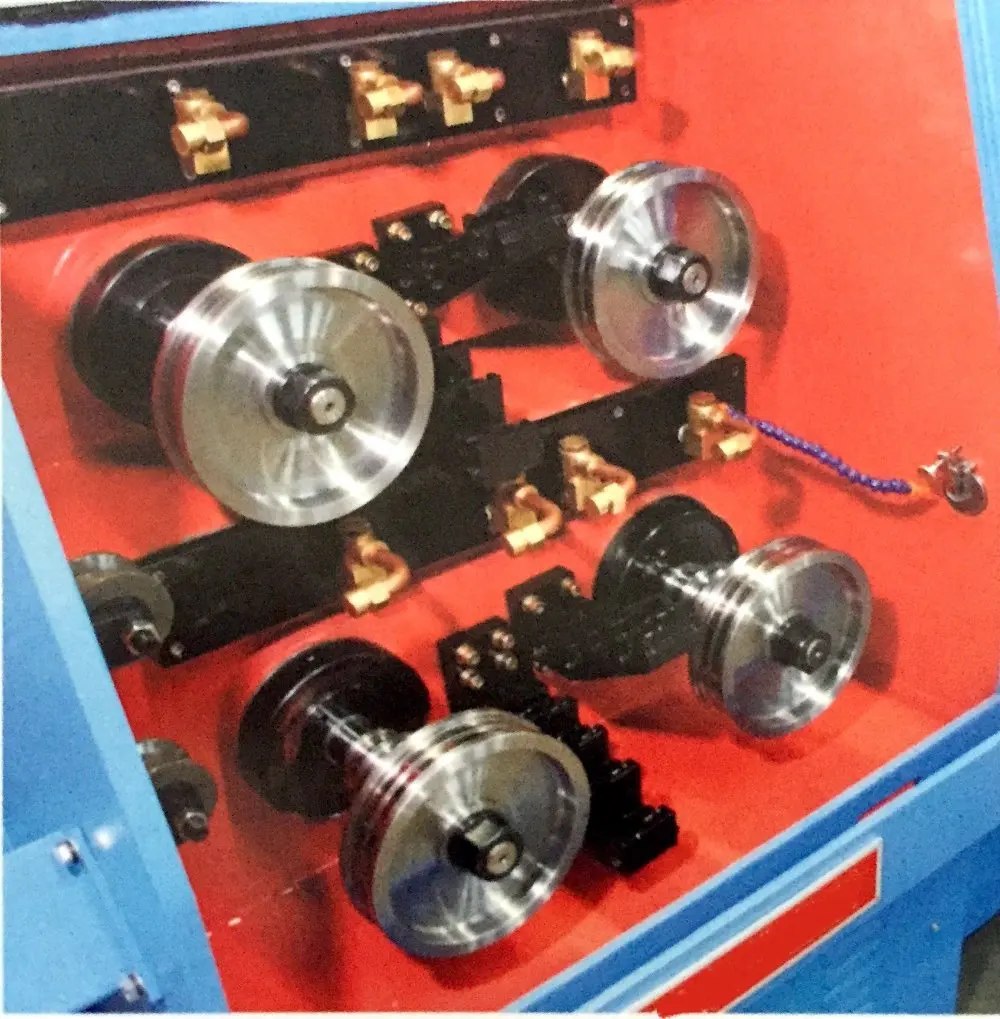

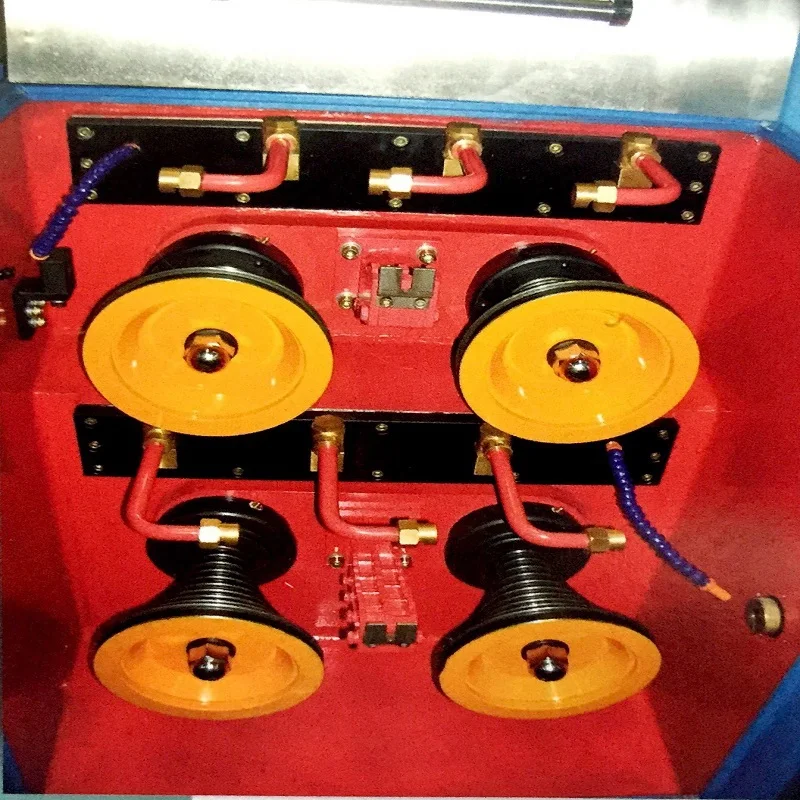

2 Drawing capstans arranged squarely to save space.
3 Continuous annealing machine control system control.
4 Convenient for maintain ,simple of word ,low noise ,energy saving.
5 Automatic annealing control eliminates hard wire scrap.
More fine wire drawing machines , as following :
Model
Drawing
Die
Inletwire
Diameter
(mm)
Outletwire
Diameter
Range
(mm)
Line
Speed
(mpm/max)
Main Motor
Power (kw)
Spooler
Motor
Power
(kw)
Machine
Dimension
(m)
Machine
Weight
(kg)
JD-24VX
24
0.14-0.45
0.025-0.08
1500
4
1.74*1.3*1.45
2000
JD-20D
20
0.05-0.12
0.05-0.12
1800
3.7
2.2
1.90*1.35*1.75
1900
JD-22D
22
0.5-1.2
0.1-0.32
2500
11
3.7
2.05*1.60*1.90
2400
JD-24D
24
0.5-0.10
0.07-0.25
2500
11
3.7
2.05*1.60*1.90
2400
JD-14D
14
0.8-1.6
0.07-0.25
1500
15
3.7
2.60*1.60*1.90
2200
Company Information
Shijiazhuang Soka Import&Export Co.,ltd is a branch of Hebei Jinda Group, mainly import &export
business trade service. Jinda group is a multi-industry, a wide range of large private enterprise, founded in 2003, registered capital of 30 million.
We Specialize in wire drawing machine, annealing machine, tinning machine, nail making machine and all
kindsof accessories. Supply professional service of design and developing, production, sales and installation
and debugging, in every aspect of product implementation of strict quality control, OEM and ODM service as
per customers’ request.
We has strong technical force, senior engineers and technicians team, introduce the lastet technology at
home and abroad, by doing better research, to make mechanical machines of good function, structure,
process, and usability, favored by domestic and foreign customers. With professional team, strict
management, superior equipment, well received in India, Egypt, Pakistan, Vietnam, Thailand, Uzbekistan etc. With after-sales service offices in more than 20 provinces and cities, supply efficient, quality and considerate
service for you.
Long history
We have 11 years manufacturer history, companying with good reputation, since our factory set up in 2003.
Supply ability:
We specialize in design machines according customers' requirements. 300 sets of
machines can be supplied per month.
Equipment working site:
You are welcomed to visit our factory, the machines can be operated on site, and you will master the usage of machines nearby
Product Process
exhibition
customer visit
FAQ
01 Q:Youproductexportedtowhichcountries?
We exported to India,Argentina ,Uzbekistan,Tajikistan Russia, Algeria, Thailand,Egypt.,Tanzania,Qatar ,Hungary, Ghana, Turkey, Bangladesh,Trinidad and Tobago,Lithuania
02 Q: If the client no any Production experience, How can help
the client?
A:we provide you with professional team is responsible for equipment installation and debugging B: training your workers operate the machines, C:Lifelong provide free technical guidance for our client D:according to your budget to help you design the ideal investment programs E:make sure the client with minimum investment and the highest return
03 Q:How about the quality and the service life of the machine ?
Concerning with every detail, every processing procedure of our products, using reliable components. Electrical appliances all adopt international famous brand (Such as Siemens, Schneider )Running test will be carried out before delivery.
The machine at least use 8-20 years, the daily maintenance of equipment and and maintenance is very important ,High configuration equipment use life more longer
04 Q:How long is your machine’s guarantee time?
Whole machine one year, electricalequipment 6 months (exceptwearingparts)
05 Q.How about the spare parts?
After we finish our deal, we will offer you a spare parts list for your reference.
Make sure we can long-term supply the relevant components of machines and the maintenace service. But after the free period of service, you need to pay some charge according on the actual situation such as travel expense,standard hour plan and the components cost (factory price).
06 Q:How many workers are needed to operate the machine?
1-4 people According to the worker's operation skill level
