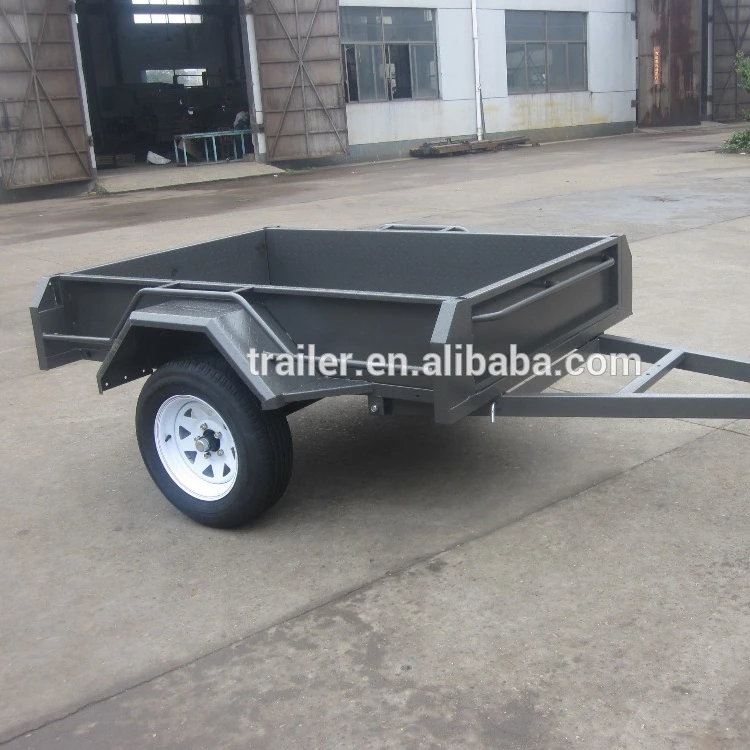

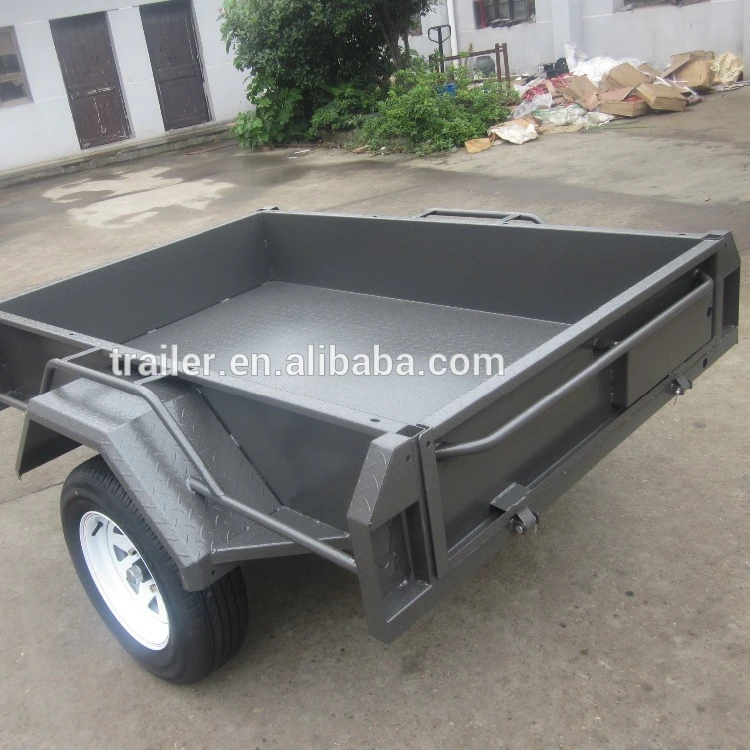

Обновленный премиум с порошковым покрытием полностью сварной ATV Утилита коробка

1\tDrawbar\t70*50*2.75mm RHS 1.2m long with 8mm safety chain and D shackle (AS4177-16).

2\tChassis\t50*50*2.5mm square tube cross members at 300mm intervals.

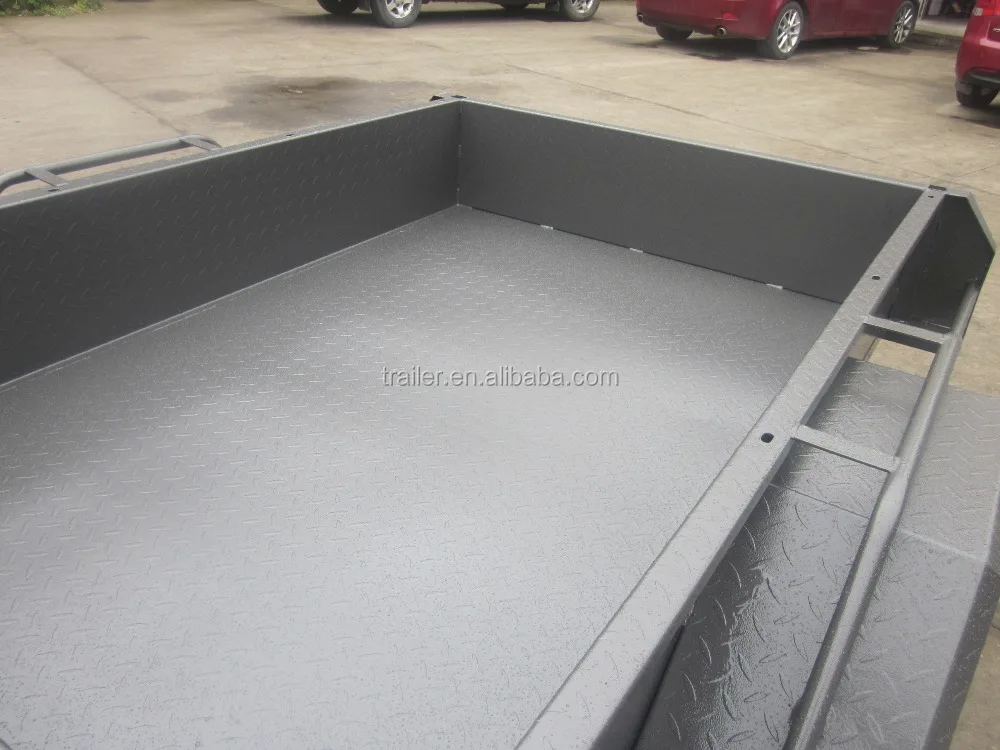

3\tFloor\t2.5mm checker plate deck, fully welded to chassis.

4\tSide Panels\t2.5mm checker plate, 300mm high.

5\tFront and Rear Gates\t2.5mm checker plate, 300mm high- removable.

6\tMudguards\t2.5mm checker plate with steps.

7\tAxil\t50mm square axle, non-braked.

8\tSuspension\t50*7mm 5 leaf heavy duty eye to eye.

9\tWheels (14 inch)\t185R14C tyre with painted rim (DOT/E-mark). Light Truck Tyres (850kg).

10\tCoupling\t50mm ball standard, non-braked coupling, adjustable to Australian standards.

11\tJockey Wheel\t750lbs 6” Jockey wheel with top winder.

12\tJockey Wheel Latch\tSwing handle.

13\tElectrical\tLED light set with 7 pin round type, and Australian Standard wiring and accessories.

14\tFinish\tPowder Coated. After welding is complete.

15\tTipping feature (Optional) .

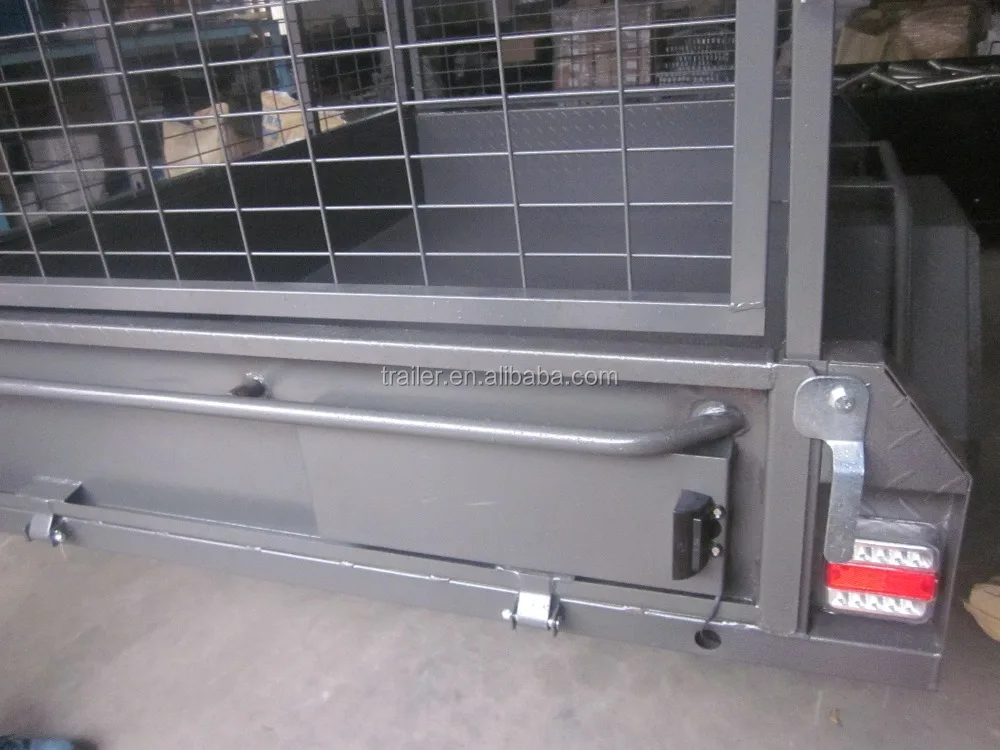

16\tCage 600mm\t600mm high hot dipped galvanised cage (removable). With 270-degree opening capability.

17\tCage 900mm\t900mm high hot dipped galvanised cage (removable). With 270-degree opening capability.

18\tWinch and Spare Tyre\tTo be winch and Spare Tyre ready.

19\tCompliance Plate (Stamped)\tTo all the relevant Australian Standards. Fully, professionally completed (except VIN number).

20\tSpare Wheel\tTo have spare wheel option (include attachment bolt). 185R14C tyre with painted rim (DOT/E-mark). Light Truck Tyres (850kg).

21\tTriangle Canvas Guide and Fittings for Attachment\tThat fit on top of the cage to allow a canvas cover to be installed. Made from 25mm round tube HD Galvanised. Four sets per trailer.

22\tAdditional load bearing trailer\tSingle axle trailer capable of carrying 1500kg, having 50mm square solid axle, suitable bearings and springs. Can be used for future breaking.

Established in 1997, we pride ourselves on being a highly experienced, professional and competent trailer and trailer parts manufacturing company.
In 2005 we certified for the ISO9001-2000 and were awarded the WMI (VIN) Certificate.
In 2012, we also got our trailers to be DOT registered in North America and Emark for European market.

1. OEM Manufacturing welcome:
2. Sample order
3. We will reply you for your inquiry in 12 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

Q1. What is your terms of packing?
A: Generally, we pack our goods in Pallets.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% against copy of Bill of Lading.
Irrevocable L/C at sight.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
