2021 Новое поступление многометровый считыватель дверей uhf rfid система контроля доступа дверные ворота с антенной
- Категория: Устройство чтения для контрольно-пропускной системы >>>
- Поставщик: Shenzhen,Hopeland,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1773.50 $* | 1862.99 $* |
| Aug-16-2025 | 1758.76 $* | 1846.42 $* |
| Jul-16-2025 | 1475.65 $* | 1549.3 $* |
| Jun-16-2025 | 1728.55 $* | 1814.57 $* |
| May-16-2025 | 1505.2 $* | 1580.15 $* |
| Apr-16-2025 | 1699.99 $* | 1784.1 $* |
| Mar-16-2025 | 1684.11 $* | 1768.73 $* |
| Feb-16-2025 | 1669.25 $* | 1752.98 $* |
| Jan-16-2025 | 1654.33 $* | 1737.63 $* |
Характеристики
Ultra-thin access control
UHF RFID portal system
i3 - integrated system
* Powered by Impinj R2000 chipset for maximum tag detection performance.
* Built-in infrared sensor, alarm light and buzzer, sensitive alarm, safe and reliable
* Support RSSI, antenna detection, online update, speed filters
* specially designed antenna to achieve a horizontal narrow beam design for accurate signal coverage with no blind spots.

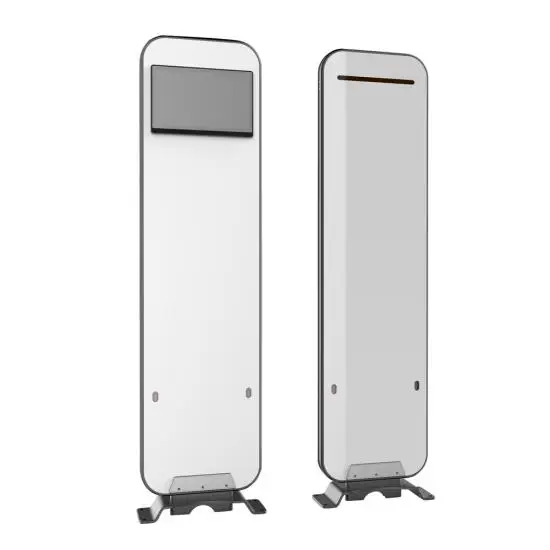

* Optional LED display to connect to an external computer via HDMI port to display apps

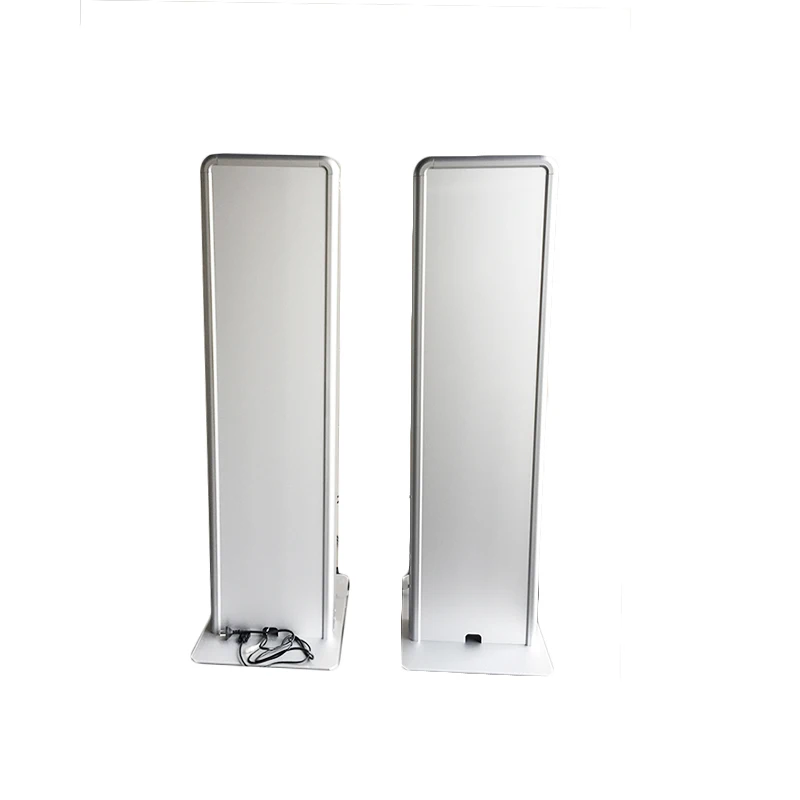

Details Images

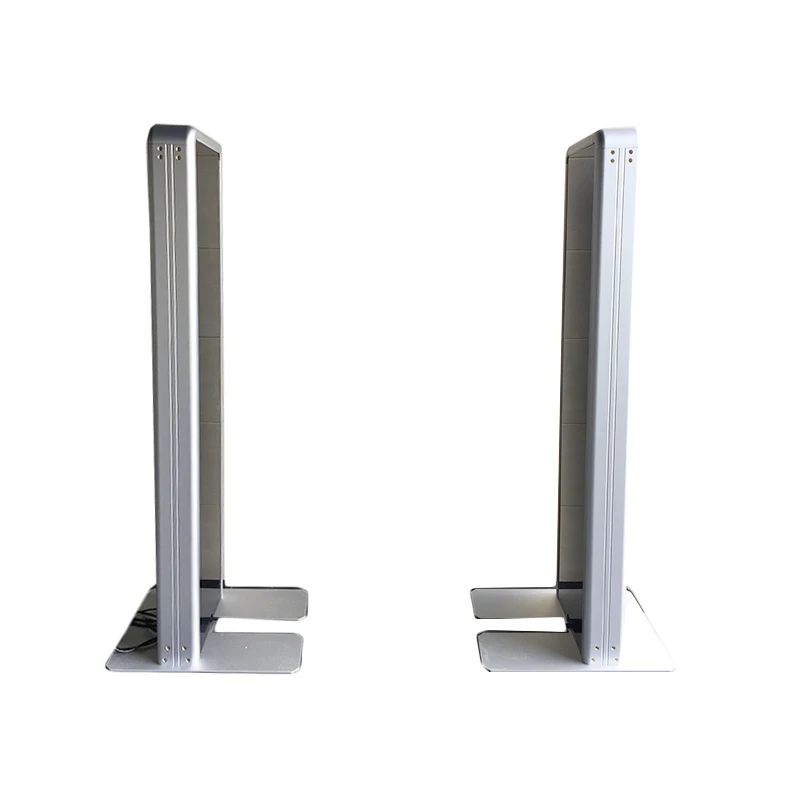

Thin and handsome design
Only 45mm thickness

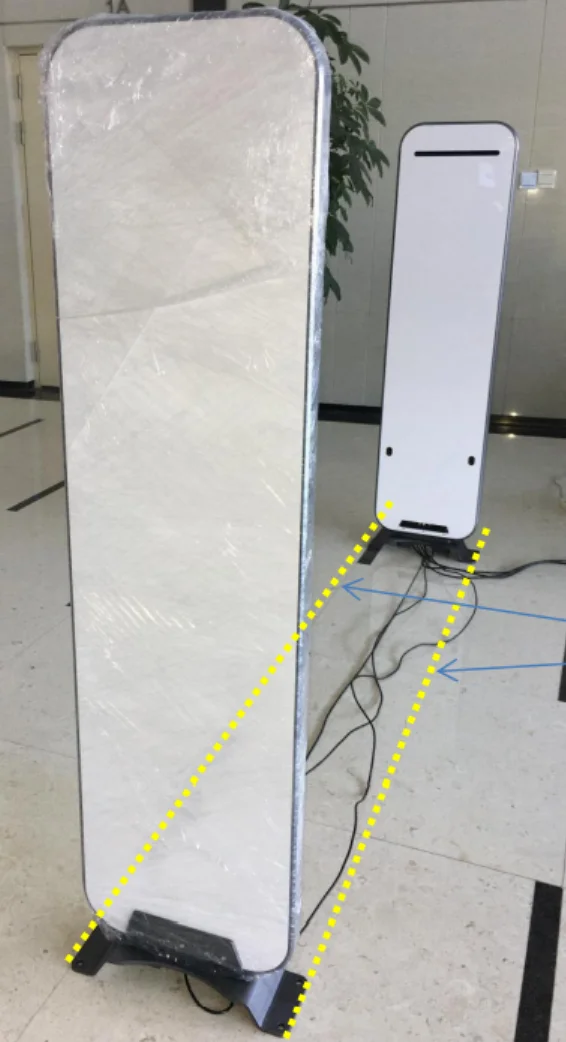

Easy installation
Light weight, easy installation, super performance
Specifications | ||
Size & N.W. | 1500mm(H)* 385mm(W)* 45mm(T), 2Pcs = 1pair about 20kg | |
Housing Material | Die-cast aluminum with plastic | |
CPU & Memory | ARM9, 400MHz；Flash 128MB; DRAM 32 MB | |
Operating System | Linux 2.6 | |
Display optional | 13.1″ TFT LED Capacitive touch screen, 1920*1080 (optional) | |
Network Characteristics | TCP/IP(RJ45) HDMI, WiFi, Bluetooth, 4G customizable | |
Power supply | DC 24V/2.5A (DC 9V ~ 30V,60W) | |
Reading Distance | 0~ ≥4m (According to Tag & Environment) | |
RFID | Protocol: ISO/IEC 18000-6B, ISO/IEC18000-6C / EPC C1G2, GEN2V2 Impinj R2000 chip, new E710 update optional Frequency: FCC / CE(ETSI) / CN(CMII) in standard Russia, Japan, Brazil, Australia, etc, special frequency band optional RF output: 0-35dBm adjustable | |
The main door includes | 1 gantry 2 narrow-beam antennas 1 set of reader 1 group Infrared Sensor 1 set Infrared Sensor Connection Wires 1 Ethernet port 1 Alarm light 1 Alarm Buzzer | |
Vice door includes | 1 gantry 2 narrow-beam antennas 1 group Infrared Sensor 1 set Infrared Sensor Connection Wires 1 Alarm light | |
API&SDK | Windows – .NET, C++ and Java SDK Android - Java Linux – Java SDK | |
Web platform optional | HttpPost, MQTT, MySQL, Microsoft SQL, | |
Customization | Supportable, tell your seller any of your requirement on this device | |
Industrial design with independent IP rights, Die-cast aluminum anti-vibration. Tough lines, simple and technological
Packages
Package size: about 163*32*52cm（single box); Gross weight: about 35kg（without wooden package）
Yes, if you need wooden package also optional
Application&Cases
Intelligent Manufacturing - warehousing
Person management - Hospital Patients
Smart Retail -24hr shop
Access control - RFID gate
Warehousing - Inventory & Track
Company Introduction
About Hopeland
A national-level high-tech enterprise passed ISO9001,ISO14001, OHSAS18001 system certifications.
Since 2009, we are specialized in R&D on RFID core technologies and more than 200 patents inventions and copyrights, while manufacturing series of UHF RFID readers, handheld terminals, Antennas, RFID Tags, Middleware, System software, etc.
Since 2009, we are specialized in R&D on RFID core technologies and more than 200 patents inventions and copyrights, while manufacturing series of UHF RFID readers, handheld terminals, Antennas, RFID Tags, Middleware, System software, etc.
To support the success of distributors, OEM/ODM, and system integrator partners, we sell products into more than 80 countries & regions worldwide with multiple certifications such as CE, FCC, SRRC, NBIT, Anatel etc. Our solutions are also widely used in areas of ETC solution, Intelligent Parking, Aviation, Smart Retail, Medical, Smart Grid, Assets Management, Warehousing & Logistic, Supply Chain, Industry 4.0 and so on.
