Машина для изготовления образцов

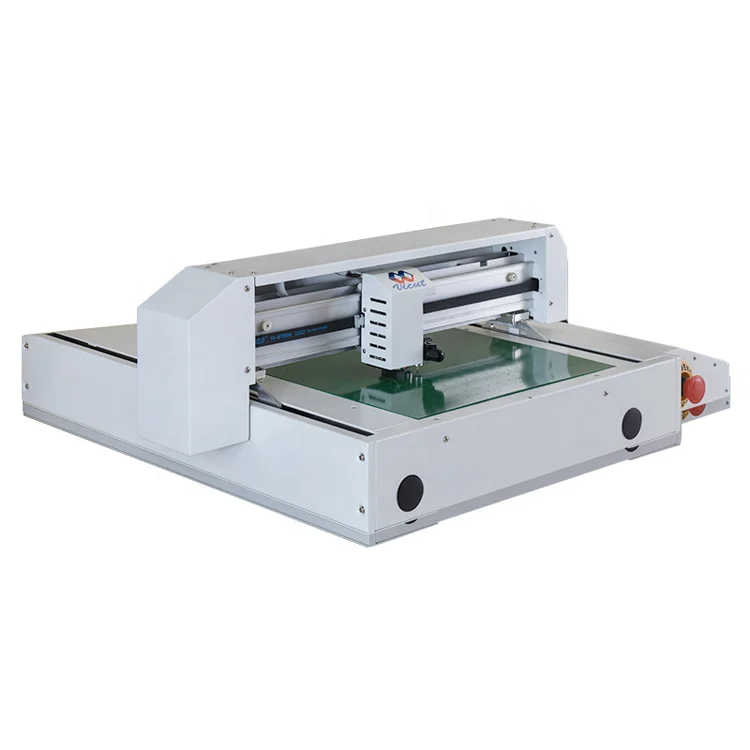

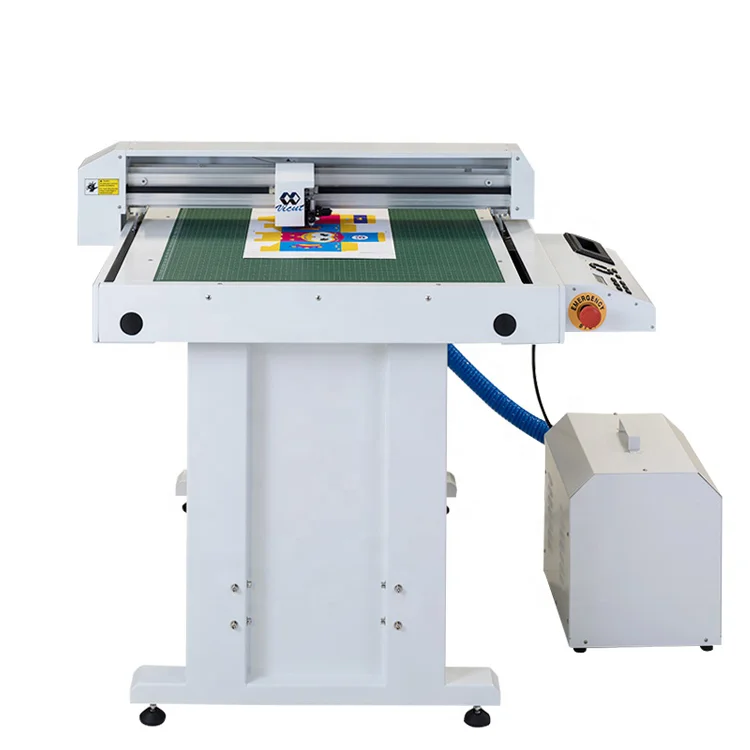

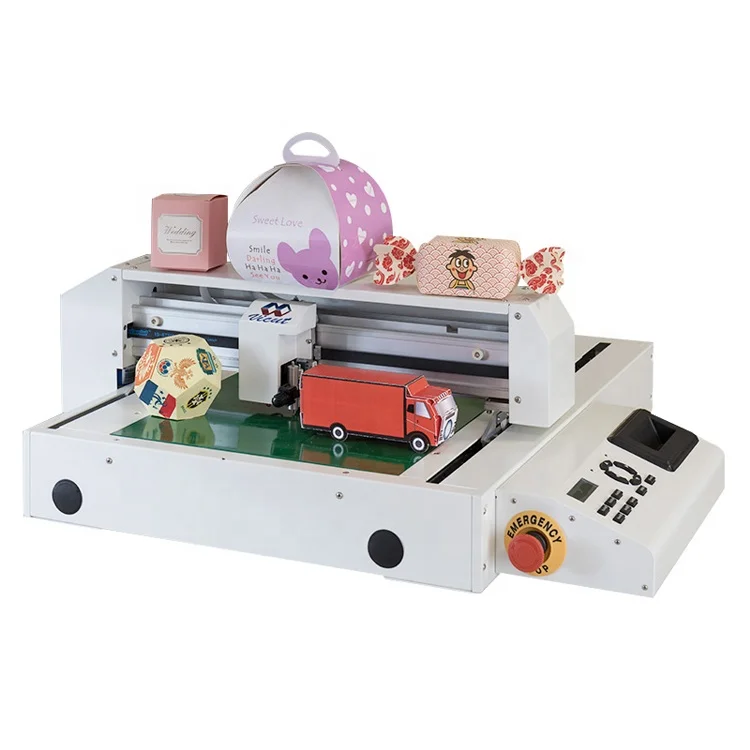

The ViCut MFC Series flatbed cutter including DragonCut Pro software is ideal for small and medium-sized production and samples of packaging, swing tickets and even labels. It can handle full cutting, half cutting, creasing and even drawing.

Application Field: DIY for Packaging, sign, graphics, pre-printing, die cutting, handbag industries etc.
Application Material: cardboard , craft paper ,plastic board ,fibrous cardboard, rubber sheet and marking film etc.
PVC : Less than 0.4mm
Reflective Film : All types
Sandblast, Hard paper :Less than 500gsm
Magnetic Media : Less than 0.5mm
PET :Less than 0.3mm, vinyl, etc.

Flatbed Cutter	VCT-MFC4560	VCT-MFC6090
Body Frame	Desktop (optional stand)	With Stand
Machine Dimension	1050x790mm(3.44x2.59ft)	1450x1380mm(4.75x4.53ft)
Effective Cutting Area	450mm x 600mm(1.47x1.97ft)	600mm x 900mm(1.97x2.95ft)

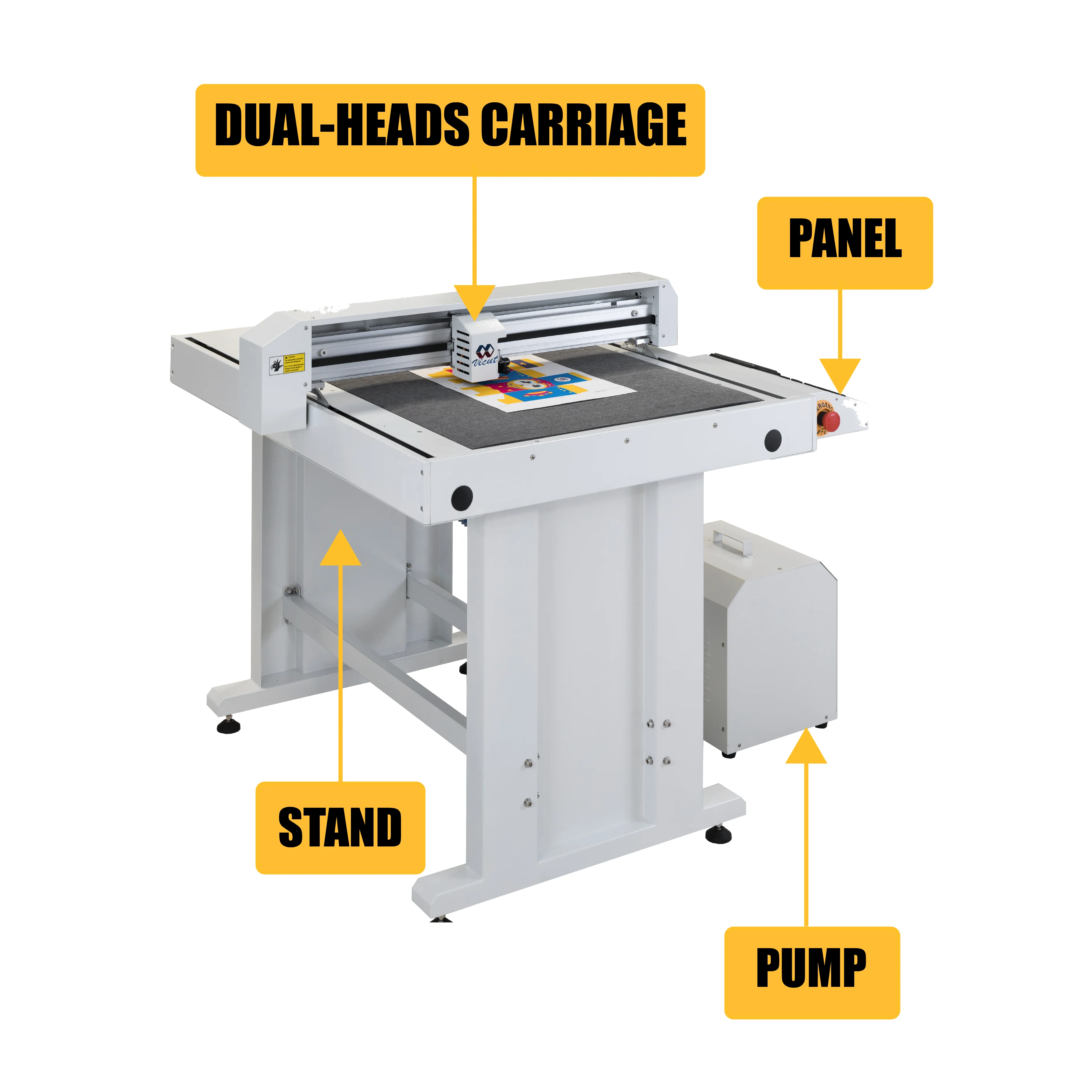

Dual Cutting Head	Blade & Ball-bearing Creasing Tool (a pen tool included)
Working Method	Contour Full Cutting & Kiss Cutting, Creasing, Drawing
Registration System	Advanced Registration Mark Sensing System (ARMS)
Cutting Software	DragonCut Pro
Interface	USB
Working Mode	PC Control, Windows 64bit supported
Mechanical Resolution	0.01254mm
Programmable resolution	HPGL0.025mm
Max. Cutting Speed	600mm/s
Max. down Force	1000g
Max. Cutting Thickness	1.2mm
Media Fixture Method	Vacuum suction with Vacuum Pump (muffler is optional for MFC6090)
Repeat Precision	≤0.05mm
Control system	Servo
Working Voltage	110V-240V optional
Working Environment	5 to 35 Degrees, no dust, flat working platform
Power	700W	1000W
N.W/G.W	44KG/72KG	70KG/100KG
Dimensions	88x100x32cm(WXLXH)	114 x 118 x 93cm(LXWXH)
Packing Size	123×100×46cm(0.57cbm)	142×131×59cm(1.1cbm)
