Многофункциональный релейный модуль с задержкой времени таймер циклом управления 12 В постоянного
- Категория: Переключатели >>>
- Поставщик: Shenzhen,Mingdewei,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.39 $* | 0.90 $* |
| Aug-19-2025 | 0.78 $* | 0.31 $* |
| Jul-19-2025 | 0.8 $* | 0.85 $* |
| Jun-19-2025 | 0.83 $* | 0.6 $* |
| May-19-2025 | 0.41 $* | 0.4 $* |
| Apr-19-2025 | 0.65 $* | 0.17 $* |
| Mar-19-2025 | 0.66 $* | 0.84 $* |
| Feb-19-2025 | 0.30 $* | 0.21 $* |
| Jan-19-2025 | 0.34 $* | 0.2 $* |
Характеристики

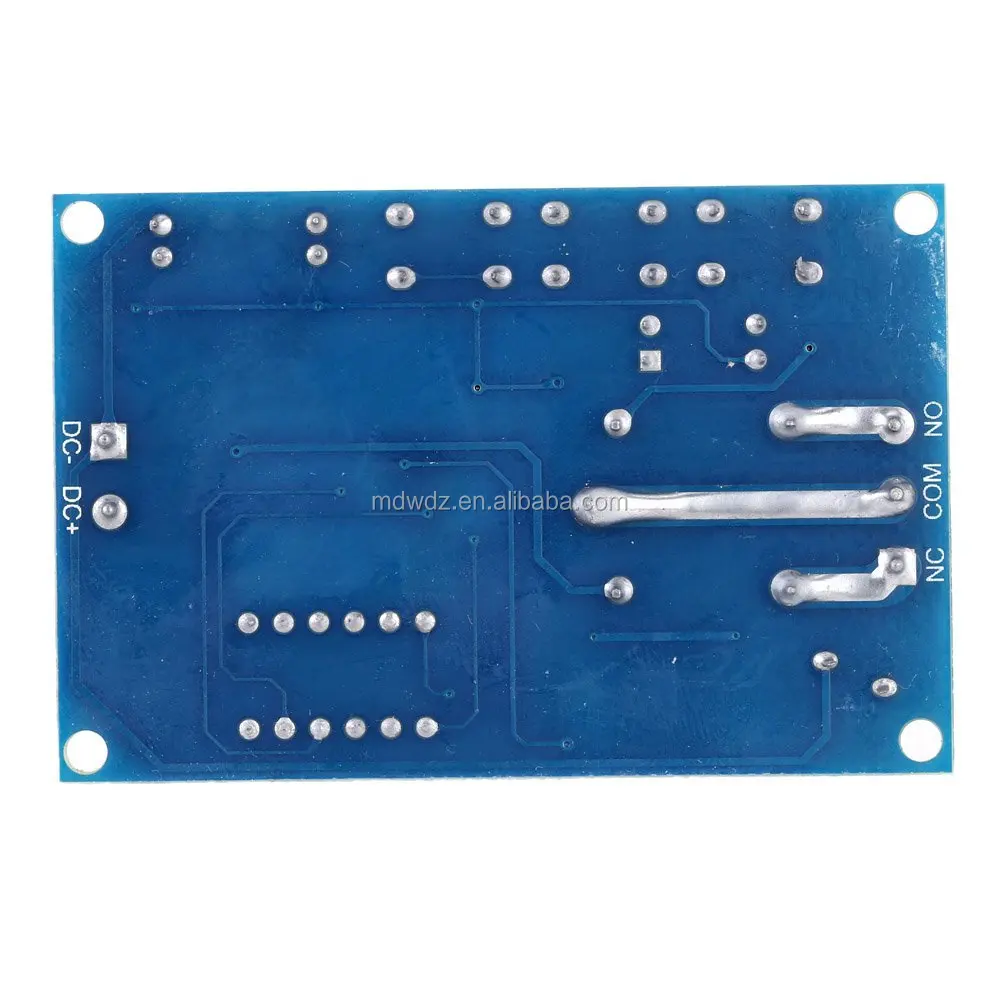

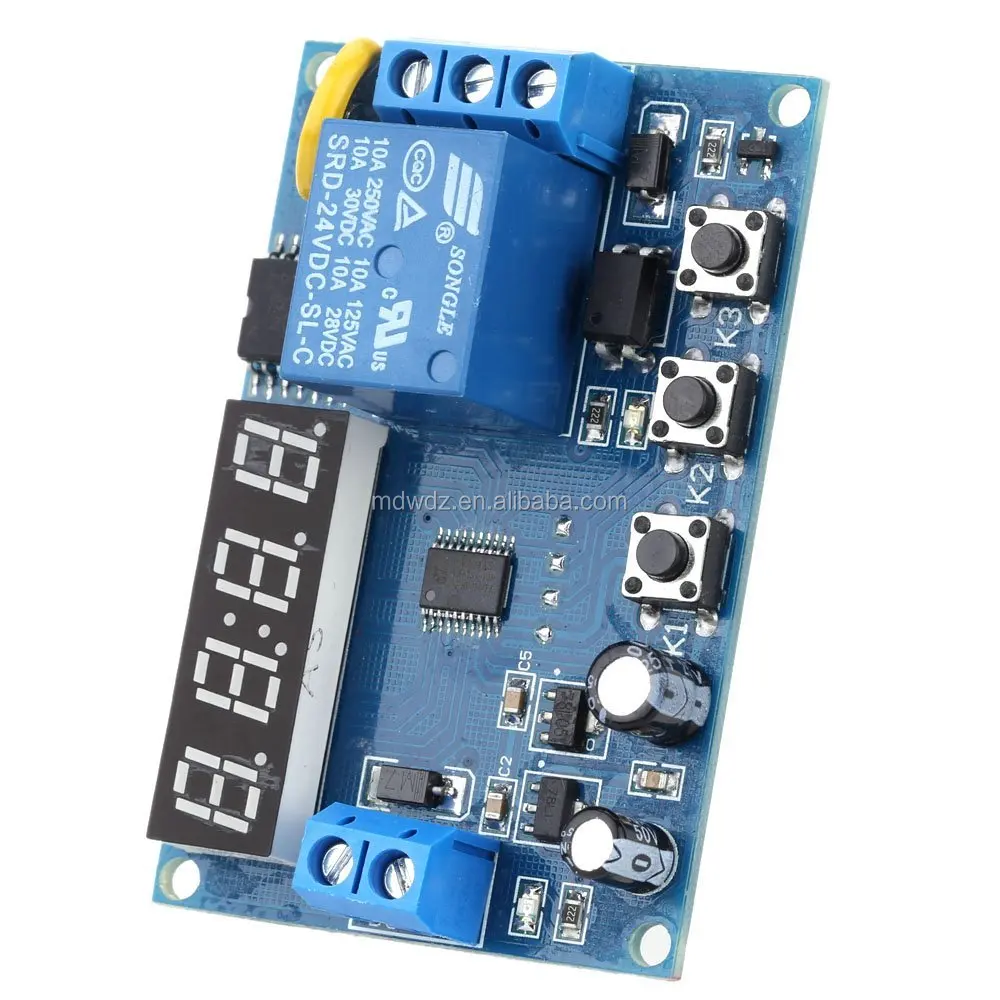

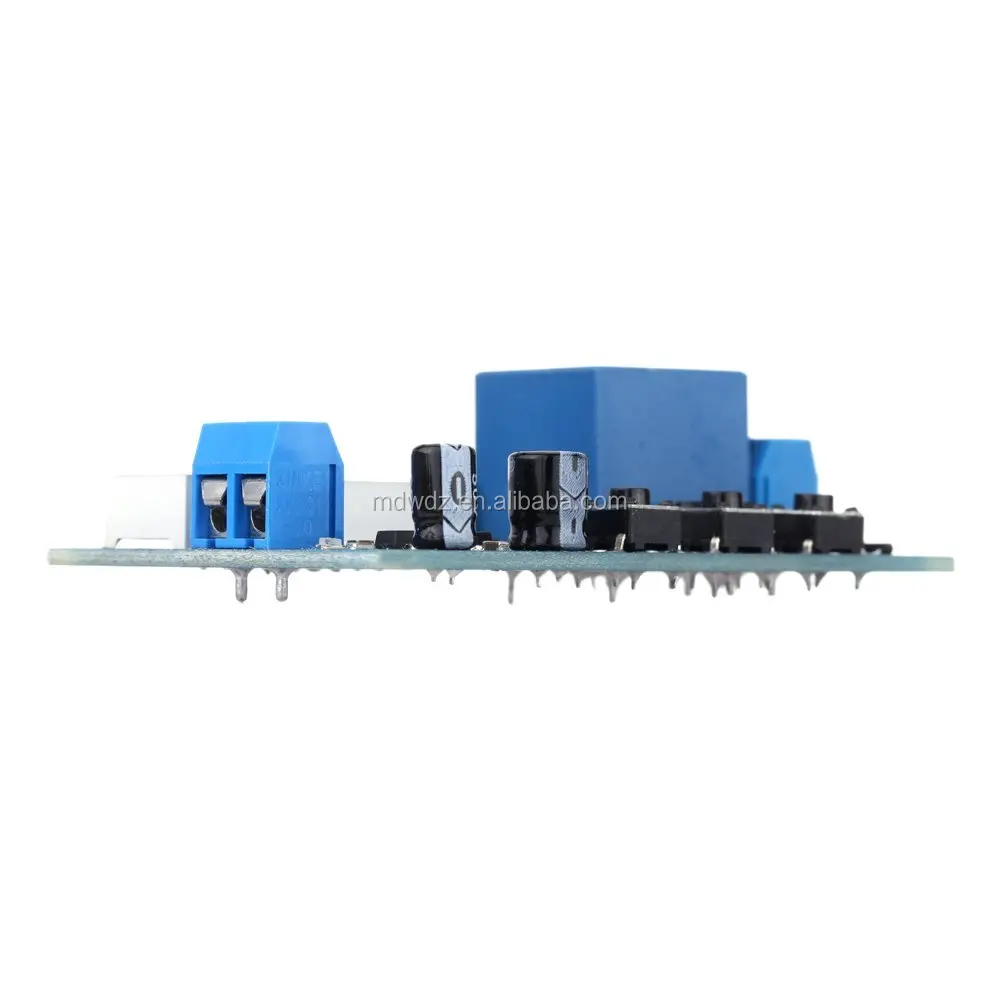

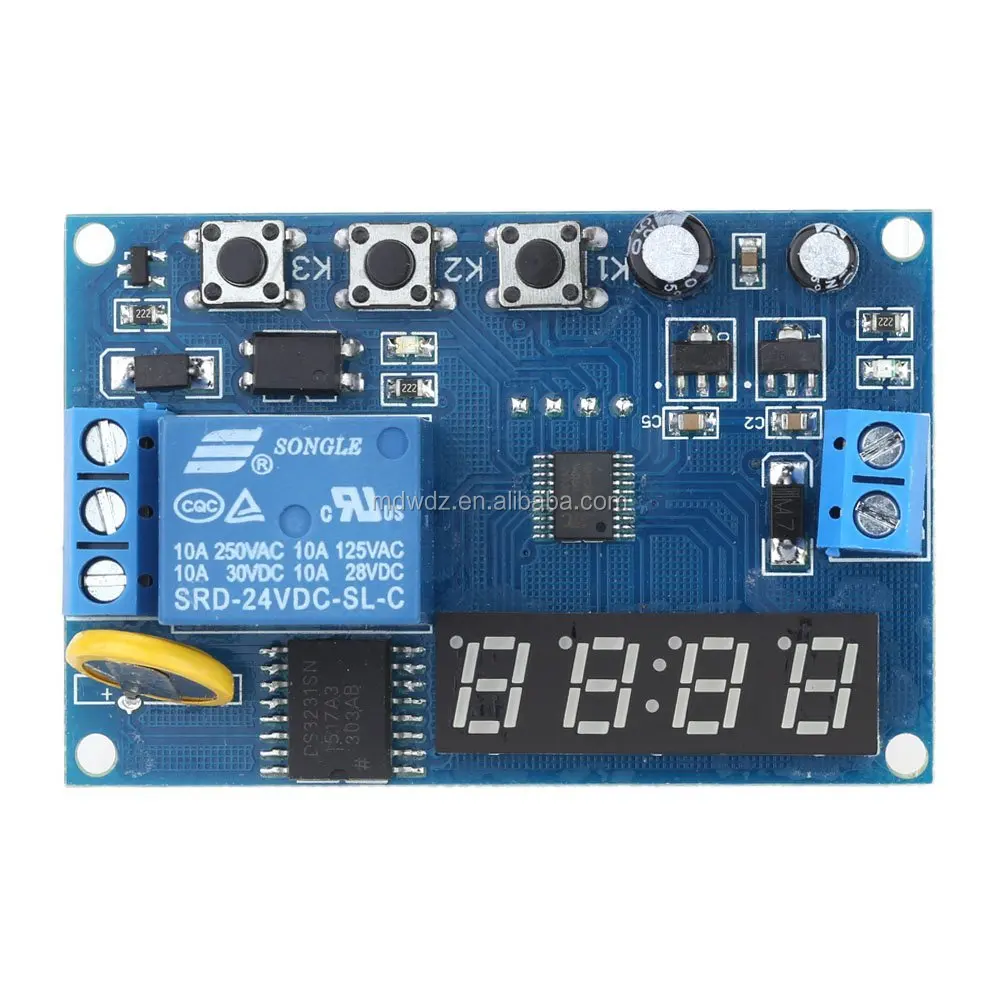

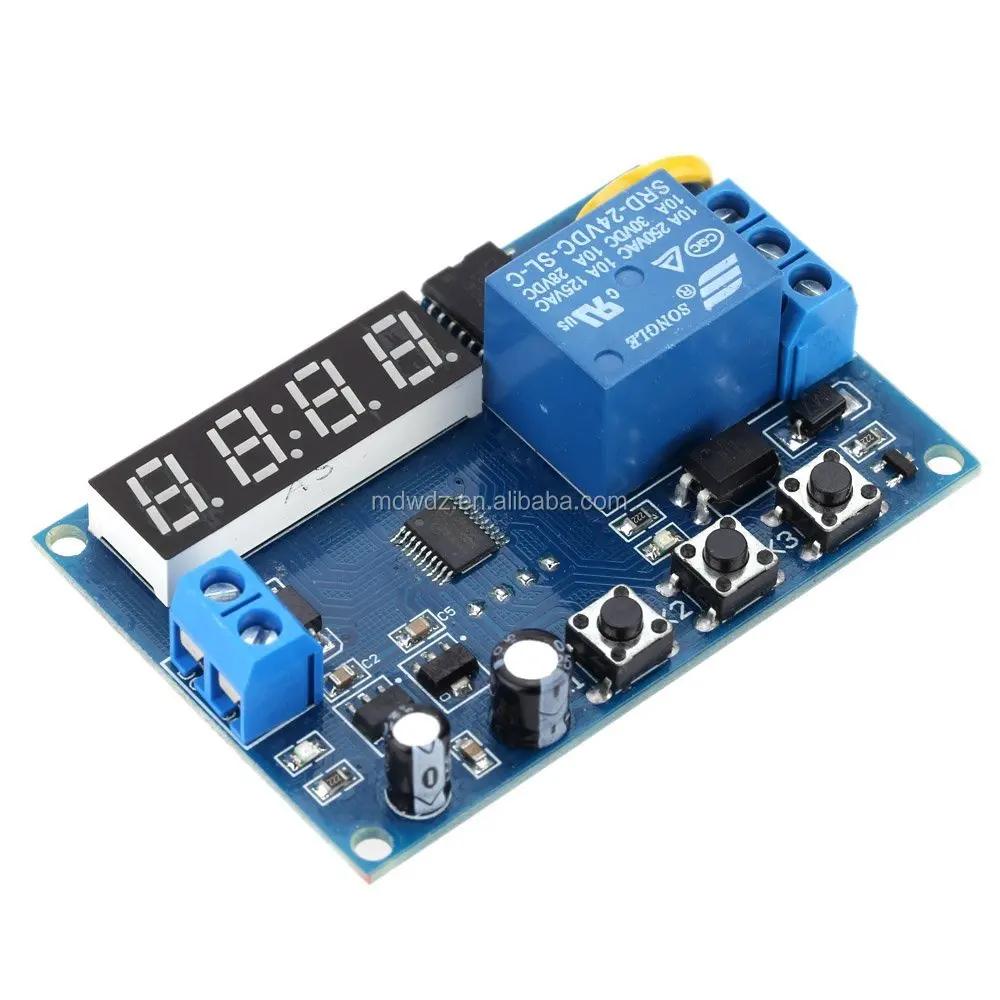

Multifunction Delay Time Relay Module Timing Switch Control Cycle Timer DC 12V
- Adopts high precision clock DS3231, stable performance, meeting the users' needs.

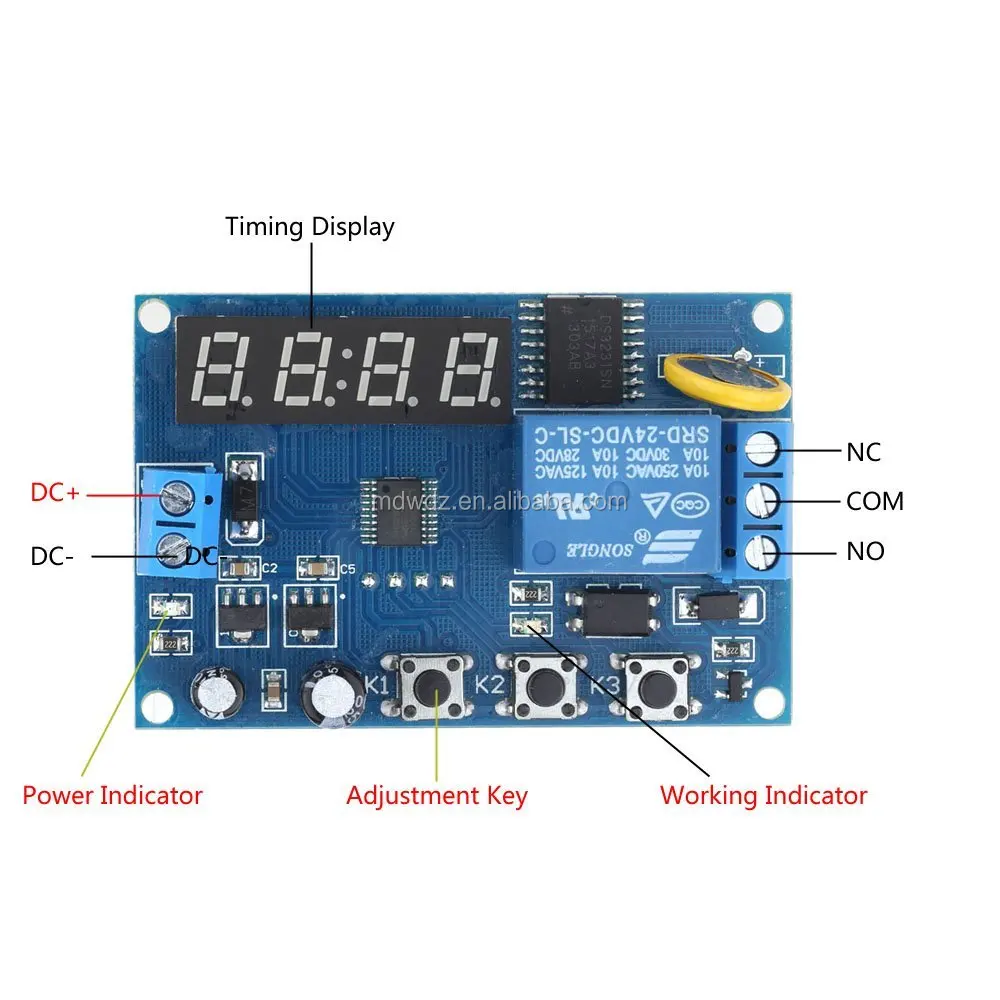

- LED 4 digits display, intelligent control, time relay function.
- The use of opto isolated input and output, enhanced anti-jamming capability and consumption.
- The last setting parameters can be memorized after power off.
- With low consumption working mode, long-press the K3 key can control the LED display.
Product description
Working modes selection: after powered on, long press K1 for 2s, later into the selection of modes: P1~4; K2 to enter the mode.
P-1: Start working time and stop working time(e.g. control bulb automatically light up at 5:00 p.m. and automatically turn off at 6:10 a.m.);
P-2: Everyday set two 1s switch signals(e.g. control load auto power on at 6:00 and power off at 18:00);
P-3: What date on and what date of(e.g. control load auto start on November 16 and stop on May 16 next year);
P-4: Set real rime: month, day, hour, minute.
Specifications:
Display: LED Digital Display
Working Voltage: DC 12V / DC 24V (Optional)
Output Capacity: Control Load Within DC 30V 5A or AC 220V 5A
Static Current: 20mA
Working Current: 50mA
Working Temperature: -40-85°C
