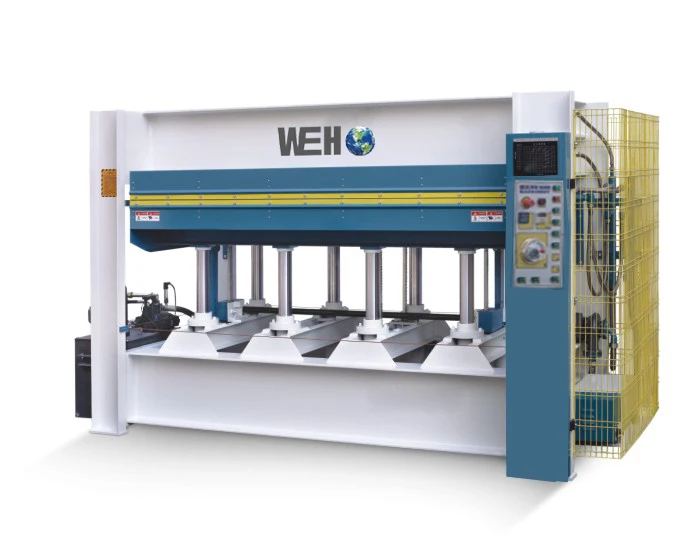

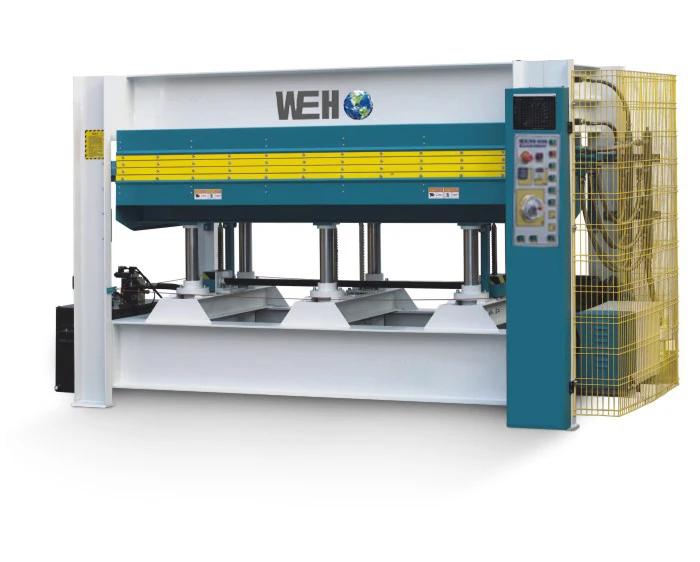

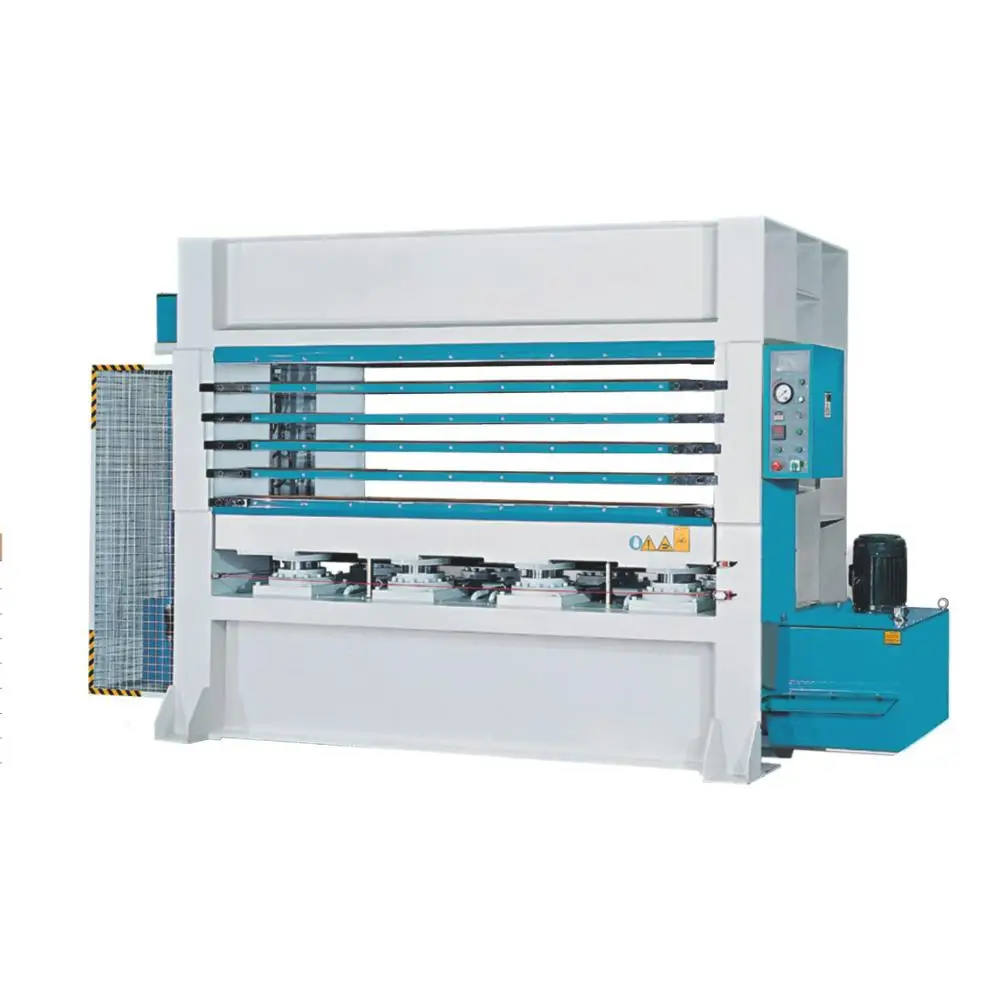

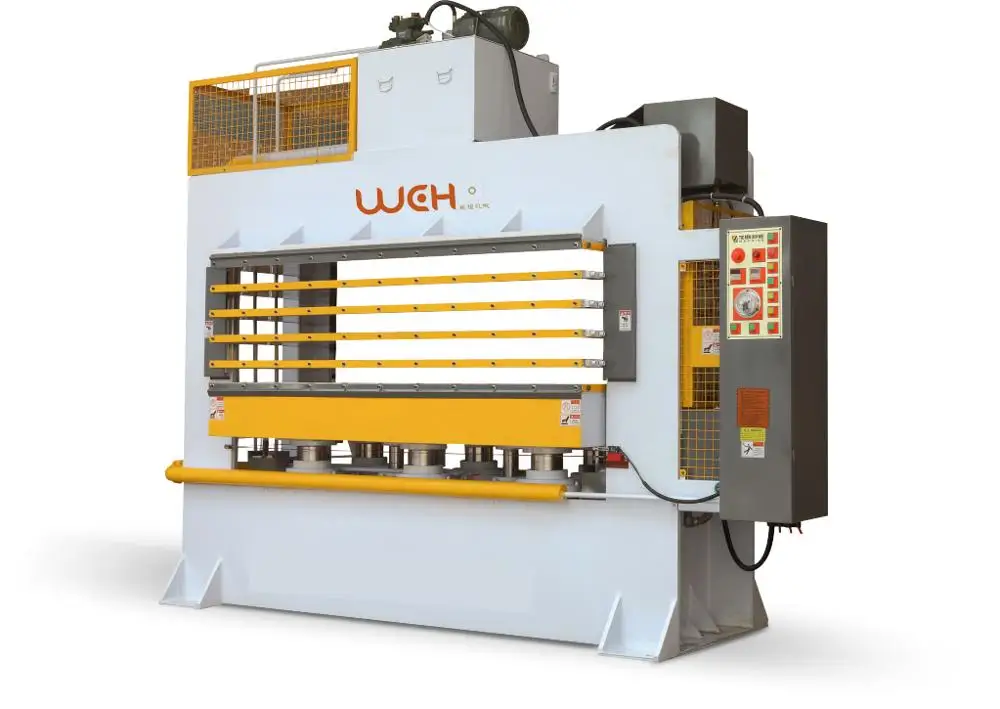

Wood laminate making Particle Board Hot Press Machine
Widely used in laminating veneer face,melamine for MDF board,plywood and other fibreboard,etc.; high-speed double-face laminating,easy to operate and maintain It’s the best choice in making veneer sheets and laminated flooring; Professional design,secure and reliable; Adopt high quality and power brand accessories,as to the main components and parts as well as all the hydraulic components.
Model

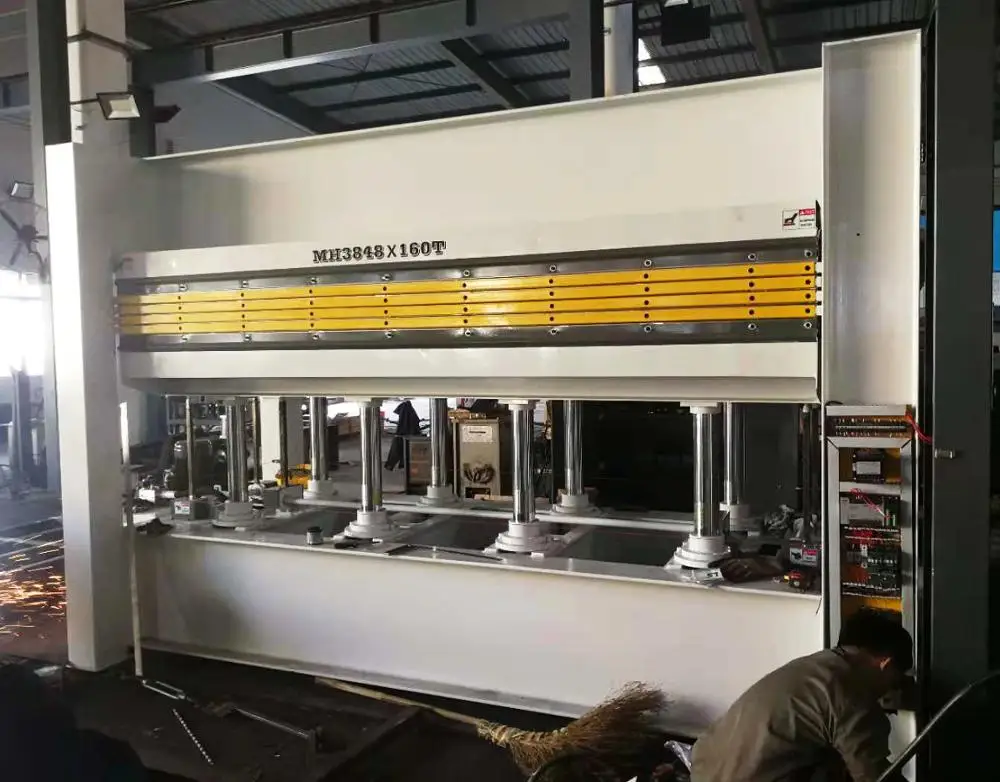

MH3848
Press platen dimensions
1300*2500*42mm
Max. total thrust
100-500T
Pressure of hydraulic
295kg/ cm2
Max. platen opening
100mm/80mm
Oil cylinder
85*8pcs
Hydraulic motor
7.5kw
Hot oil pump
2.2kw
Heating pipe power
72kw
Overall size
3700*1660*2650mm
N/W
7900kg
Particle Board Hot Press Machine for pressing veneer ,fireproofing-board ,decorating-paper and so on.
Come with solid steel heat plate board which have deep-hole drilling technic ,configure with pedal emergency switch ,quadric temperature protection device etc;
Hydraulic parts cylinders and composites are imported from Japan and Taiwan .
Heating type :
1.Electric heating with circulating heat-transmission oil (standard configuration );
2.Steam heating (optional)
3.With both electric and steam hearing ,suitable for shortage of steam area
High quality column cylinder, famous brand in China.
Safe cover with wood machine hot press is standard parts.
Origianl Taiwan Yutiea hydraulic system and hydraulic valve, strong and durable.
7.5KW 10HP motor for lift table, fast open hot platen.
Manufacturing particle board making machine from 15 years ago, full production experience for speical requirement.
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines.
Our goal is to exceed customer expectations. We’re machine factory, but service is our business.
How to buy
1. Contact WEHO sales and provide your requirents to get best solutions
2. Order confirmed, get invoice, contract from WEHO.
3. Normally, producton started against TT by 30% deposit.
4. After one week, WEHO sales inform you production state and delivery date.
5. Order finished, WEHO sales send you photos, videos and spare parts for confirmation.
6. Book shipping order, delivery the machine to your port.
How to do if I can not operate
When you get the machine, if you have operation problem, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side.
How to get spare part after warranty
After many years using, service will be important. We will always responsible for weho machines, including find problems, send spart parts, and teach you to replace the parts.
WEHO Machinery is an original equipment manufacturer, all machines can be custom built to the customer requirements. We can design and manufacture most of wood processing machines.
