Product Description

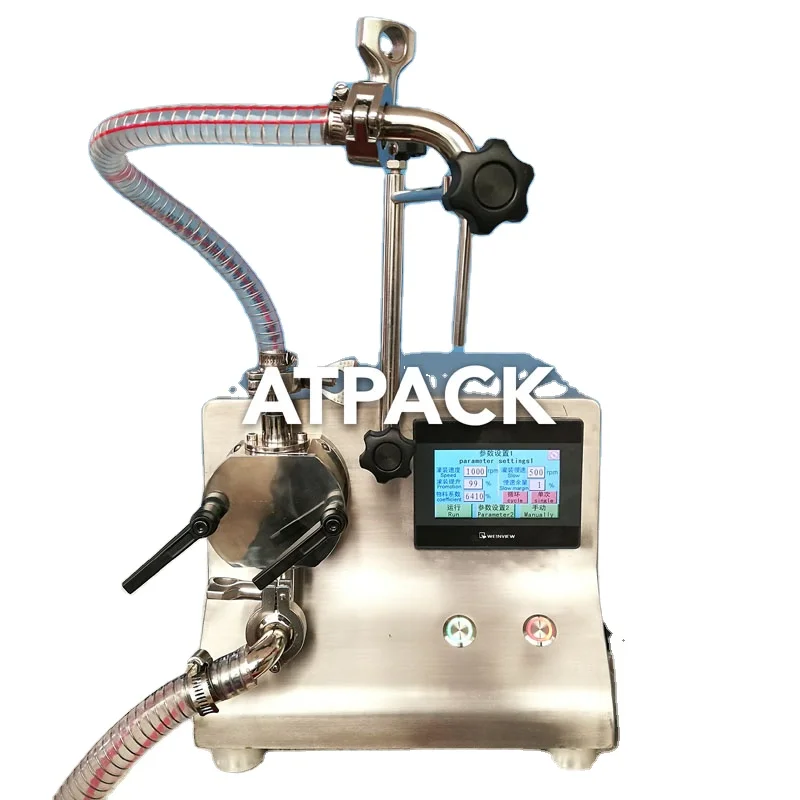

Atpack high-accuracy gear pump nail polish essential oil eliquid cigarette syrup eye drop filling machine with CE GMP



gear pump nail polish essential oil eliquid cigarette syrup eye drop filling machine

gear pump nail polish essential oil eliquid cigarette syrup eye drop filler

semi-automatic gear pump nail polish essential oil eliquid cigarette syrup eye drop filling machine





Machine Operation Video:

http://cloud.video.taobao.com/play/u/2711083401/p/1/e/1/t/1/55910147.swf







Introduction:





The filler can be designed to fill any kind of liquid or cream, from water to grease.(carbonated drinks or aerosol products aside)









Introduction:

Our Volumetric Piston Fillers are used by industries in the Food & Beverage, Cosmetics, Personal Care, Agricultural, Animal Care, Pharmaceutical, and Chemical fields.



Applications:

• Product applications include free flowing liquids to very viscous products on the same machine; accommodates wide range of container shapes in volumes from 1ml to 10L



Benefits

• high flow sanitary gear pumps

• moves anywhere easily, small footprint

• easy stored recipe driven product set-ups

• cleans up and changes over easily

• fills a wide range of products

• fills a wide range of containers

• volume adjustment is on-the-fly

• eliminates product waste

• can be integrated at a later date into a fully automatic modular system





Features:



· Our company developed the micro-computer controller filling and variable frequency drive control technology independently. So the filling precision is high and stable, and easy to operate.

· Approximate Speed: 5 - 40 pcs/min(depending on filling volume, operator speed, product density, draw length, a fill speed, among others)

· All Parts in Contact with Product are Food Grade(SUS316/SUS316L)corrosion-resistant, with reliable quality and long service life.

· Stainless Steel Construction(SS 304, 1.5mm thickness)

· Electrical-pneumatic Operation

· Fluoropolymer elastomer O-ring System

· The complete stainless steel mould enclosure

· Adjustable Volumetric Piston System with Numeric Reference Display

·  Small volume, easy to operated, convenient for cleaning and sterilizing

· No-drip Option Included and Installed

· Extremely Accurate (± 0.5%)

· Extremely Easy to Clean and Maintain

· Sanitary Stainless Steel Quick Disconnect Fittings

· Extremely Easy to Operate



System Components

• operator interface with 4 line x 20 character liquid crystal display

• 316L stainless steel positive shut-off filling nozzle

• built in automatic cycle timer for semi-automatic operation

• foot switch for manual operation

• your choice of 1ml-10L





Parameter



Model	GPF-L
Filling Range	1ml-10L
Filling Error	Within ±0.5 %
Capacity (per minute)	20-40 (for 100ml)









Optional Functions:



Heating, mixing, heating&mixing;



anti-forming nozzle, anti-splashing nozzle, hand-held nozzle, adjustable nozzle, double nozzles machine, multi-nozzle machine, lengthened nozzle(for packing machine);



easy-cleaning, ex-proof machine , automatic material transport system, standing type filling, high viscosity material filling, extremely large small filling volume, small filling line etc.







Just tell us your requirements, we will design and manufacture a most suitable machine for you!

Whatsapp/Phone: 0086-13917505479    0086-15939767387







For different containers:





For different materials:





For different filling shapes:
