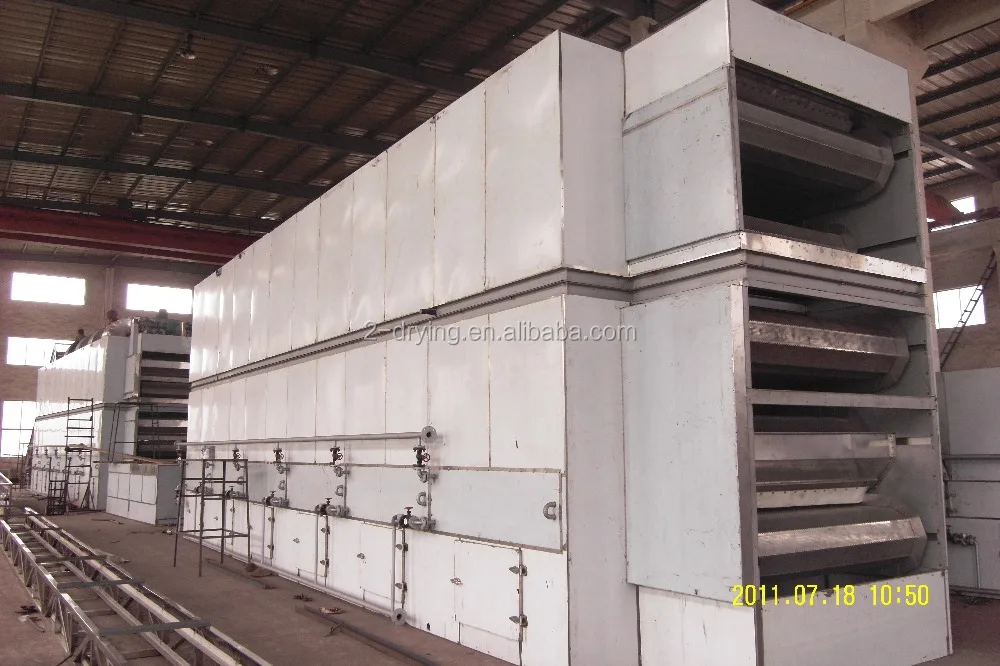

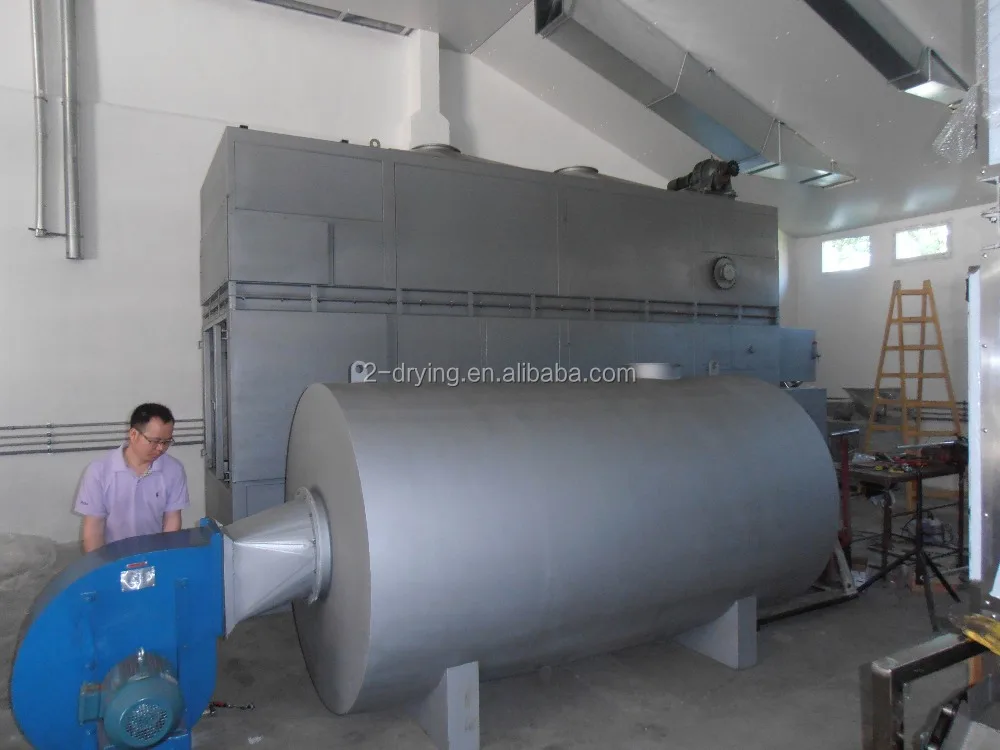

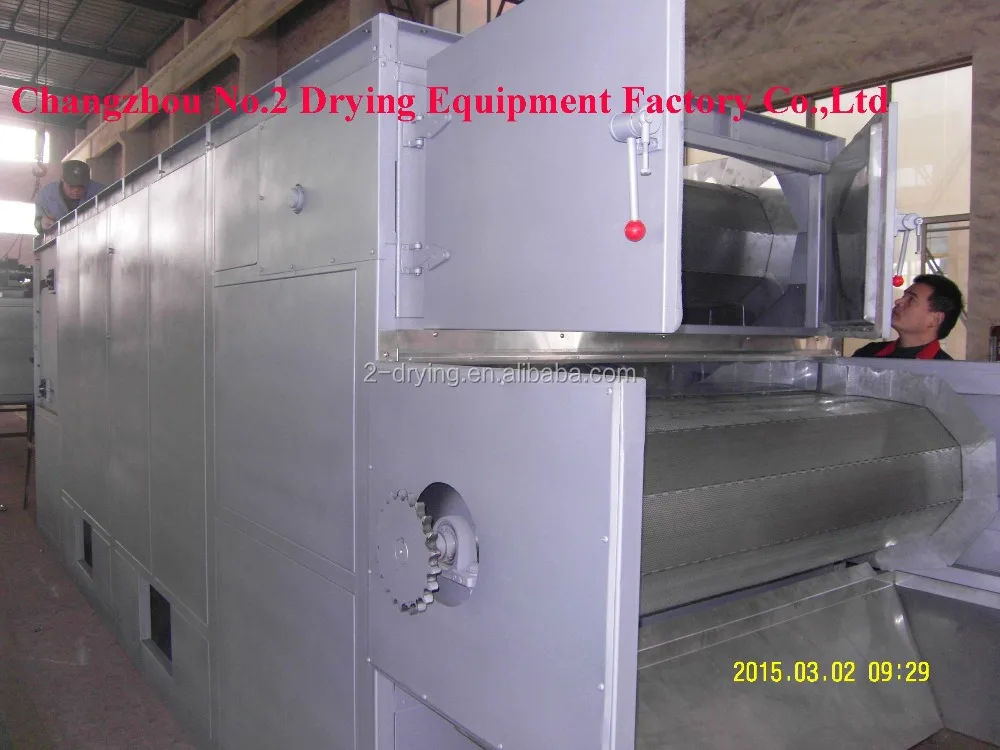

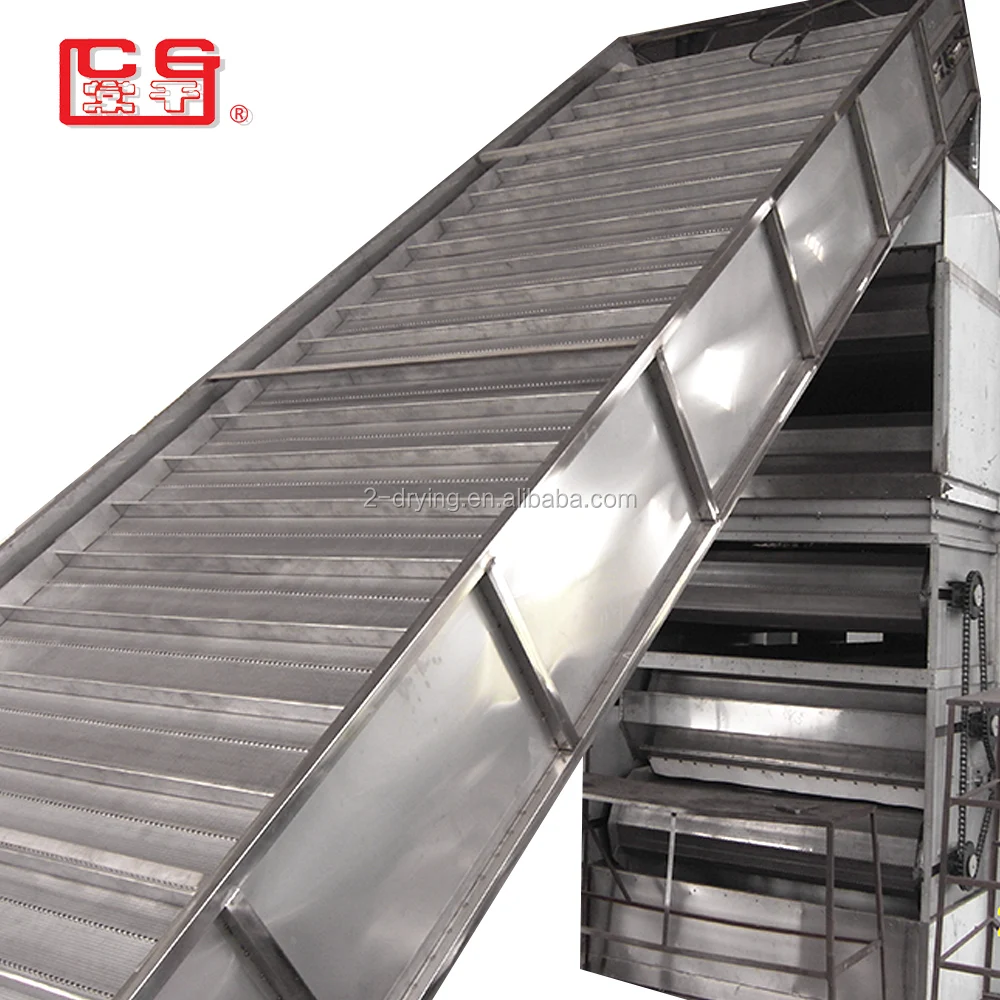

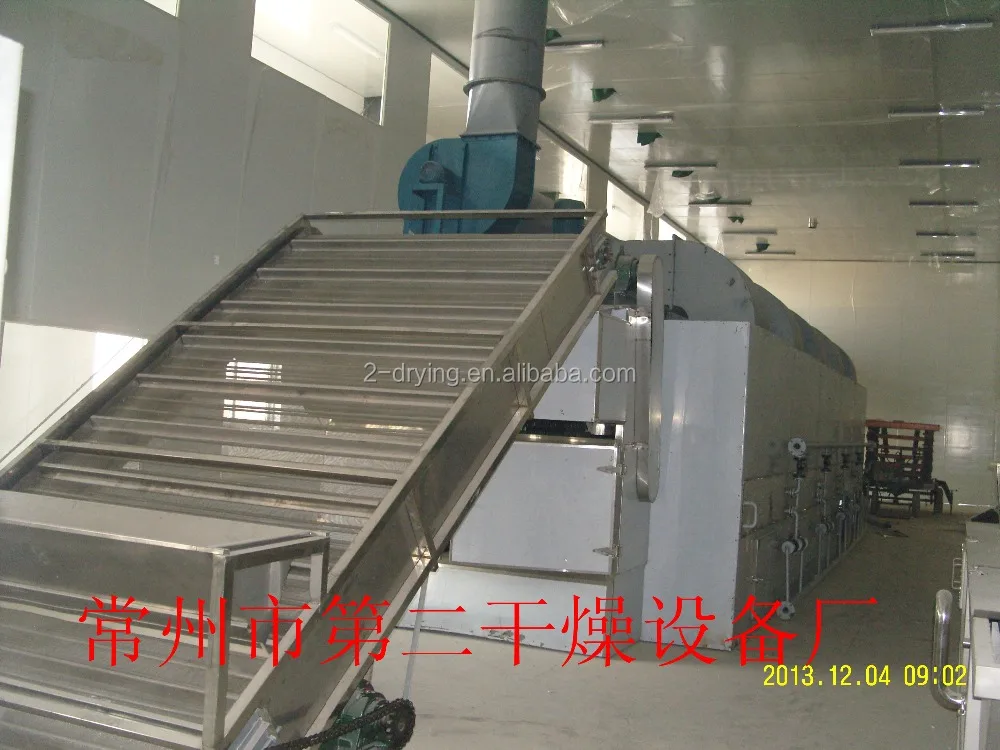

It is a special equipment on the basis of traditional net belt dryer.It has stronger pertinency,practiability and high efficiency of energey.The third generation DWT series dryer for vegetable dehydration has been developed.According to the characteristics of raw material to be dried and the process requirements of customers and combined the accumulated experience for more ten years,we have made the most suitable and the best dryer for vegetables dehydration for customers.The series equipment had won CNP,Its patent number is:ZL 99 2 29732X.
![]() |
vegetable dryer can meet to dry different vegetables such as, root, halm, leaf, tuberous root, big granule and produce in batch. Meanwhile it can maintain content of nutrition, color, etc of vegetable in most extent. The type raw materials are garlic, cushaw, giantarum, white turnip, yam, bamboo shoot, capsicum, onion, apple, etc. When operation, air will be entered into the dryer and heated through heat exchanger. Being adapted scientific and reasonable cycle method, the hot air will pas through raw materials to be dried on the bed and carry out uniform heat exchange. Under the action of cycle fan, the hot air stream inside each unit of the dryer will carry out hot air cycle. Final air with Iow temperature and high damp will be out. The whole drying process with stably and high effect will be finished |
![]() |
![]() ![]() |
vegetable Dryer Technical parameters
Type | DWT1.6-I (fed table) | DWT1.6-II (middle table) | DWT1.6-III (discharge table) | DWT2-I (fed table) | DWT2-II (middle table) | DWT2-III (discharge table) |
belt width m | 1.6 | 1.6 | 1.6 | 2 | 2 | 2 |
drying section length m | 10 | 10 | 8 | 10 | 10 | 8 |
thickness of the material to be covered mm | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 |
temperature | 50-150 | 50-150 | 50-150 | 50-150 | 50-150 | 50-150 |
Areae of heat conduction m2 | 525 | 398 | 262.5 | 656 | 497 | 327.5 |
steam pressureMpa | 0.2-0.8 | 0.2-0.8 | 0.2-0.8 | 0.2-0.8 | 0.2-0.8 | 0.2-0.8 |
drying time h | 0.2-1.2 | 0.2-1.2 | 0.2-1.2 | 0.2-1.2 | 0.2-1.2 | 0.2-1.2 |
power kw | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
overall Dim.m | 12×1.81×1.9 | 12×1.81×1.9 | 10×1.81×1.9 | 12×2.4×1.92 | 12×2.4×1.92 | 10×2.4×1.92 |
![]() |
|
