120 метров 5 1-5 9 ГГц HD видео Беспроводная связь
- Категория: Оборудование для радио и ТВ >>>
- Поставщик: Shenzhen,ST,Video-Film,Technology,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.21 $* | 0.40 $* |
| Aug-17-2025 | 0.86 $* | 0.9 $* |
| Jul-17-2025 | 0.69 $* | 0.87 $* |
| Jun-17-2025 | 0.47 $* | 0.24 $* |
| May-17-2025 | 0.55 $* | 0.71 $* |
| Apr-17-2025 | 0.11 $* | 0.9 $* |
| Mar-17-2025 | 0.67 $* | 0.23 $* |
| Feb-17-2025 | 0.8 $* | 0.14 $* |
| Jan-17-2025 | 0.66 $* | 0.15 $* |
Характеристики
120Meter HD Video Wireless Transmission, no delay, no compression
Brand: ST Video

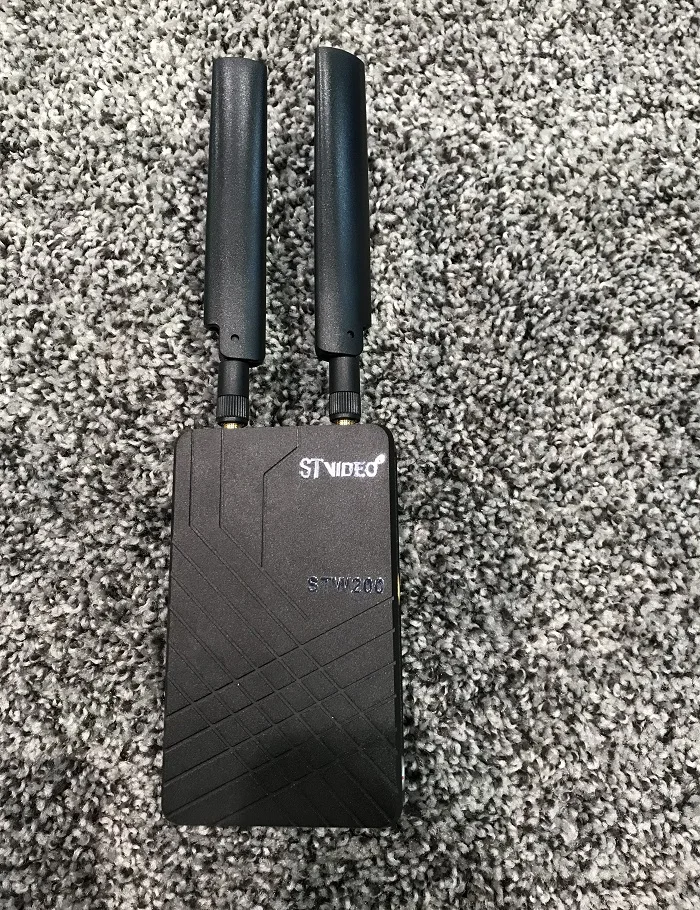

Model: STW200
Waranty: 1 year
Highlights:
Distance: 400FT (120M)
Image Quality HD 1080P60
Latency less than 1 ms
No compression
Specification of Transmitter
| ITEM | DATA | |
| Interface | SDI Input(BNC Female); HDMI Input(Type A female); 2 Antenna Port( PR-SMA male); DC input | |
| Supply voltage range | 7-36V DC | |
| Power Consumption | <6.5W | |
| Size | (L×W×H) : 115×67×23mm | |
| Mass Weight | 270g | |
| Input Video Format | HDMI: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60; HDMI Type A SDI: 3G, HD, and SD-SDI(auto-selected), SMPTE-259/274/292/296/372/424/425;1×BNC | |
| Input Audio Format | SDI embedded 2 channel 24 bit/48KHz | |
| Signal Indicator | POWER-Green; VIDEO-Yello | |
| Frequency Band | 5.1-5.9GHz, configurable with China, North American, Europe, etc | |
| Modulation Mode | OFDM 16QAM | |
| Transmission Power | Maximum 18dBm | |
| Occupied Bandwidth | 40MHz |
Specification of Receiver
| ITEM | DATA | |
| Interface | SDI Output(BNC Female); HDMI Input(Type A female); 2 Antenna Port( PR-SMA male); DC input | |
| Supply voltage range | 7-36V DC | |
| Power Consumption | <7.5W | |
| Size | (L×W×H) : 152×95×23mm | |
| Mass Weight | 355g | |
| Output Video Format | HDMI: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60; HDMI Type A SDI: 3G, HD, and SD-SDI(auto-selected), SMPTE-259/274/292/296/372/424/425;1×BNC | |
| Output Audio Format | SDI embedded 2 channel 24 bit/48KHz | |
| Signal Indicator | POWER-Green; Wireless RSSI-Blue(4LEDs); POWER/VIDEO-Yello | |
| Frequency Band | 5.1-5.9GHz, configurable with China, North American, Europe, etc | |
| Modulation Mode | OFDM 16QAM | |
| Receiver Sensitivity | -75dBm | |
| Occupied Bandwidth | 40MHz | |
| Temperature Range | 0~40°C(operating condition); -20~60°C(Storage) | |
| Compliance | FCC;CE |
