C рама пневматический гидравлический фланец litelocker клепальный пресс
- Категория: Металлургическое оборудование >>>
- Поставщик: Rsm,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.40 $* | 0.9 $* |
| Aug-15-2025 | 0.27 $* | 0.54 $* |
| Jul-15-2025 | 0.15 $* | 0.29 $* |
| Jun-15-2025 | 0.40 $* | 0.11 $* |
| May-15-2025 | 0.92 $* | 0.79 $* |
| Apr-15-2025 | 0.3 $* | 0.63 $* |
| Mar-15-2025 | 0.13 $* | 0.27 $* |
| Feb-15-2025 | 0.23 $* | 0.87 $* |
| Jan-15-2025 | 0.13 $* | 0.31 $* |
Характеристики
Clinching presses

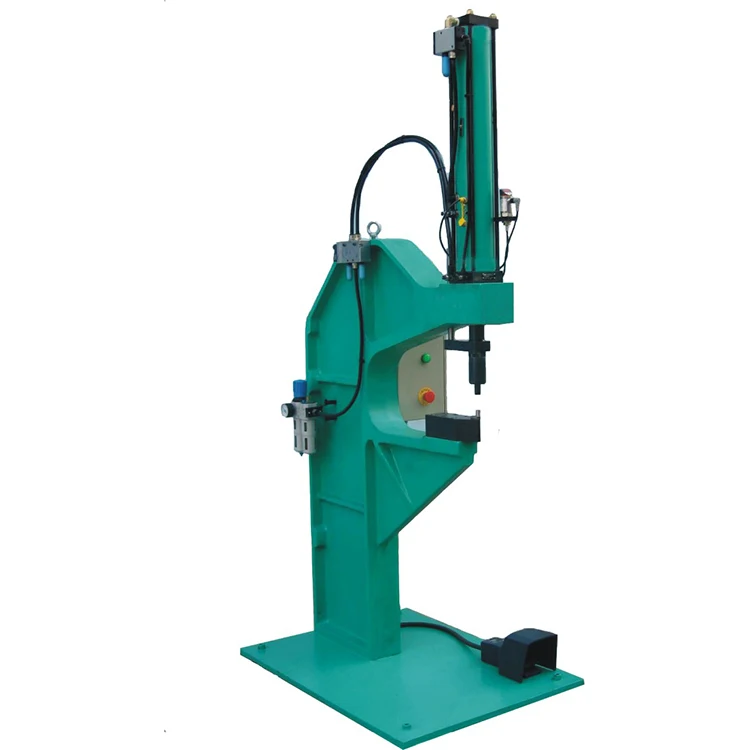

Press CEC C-Frame presses
The solid cast construction with large throat depth results in a highly versatile all-round press
Press CEU C-Frame presses
Stable welded construction with only minimum deflection, optimal flexibility in application.
The press bed is continuously height-adjustable and dismountable
Press CEJ C-Frame presses
Flexible modular system provides an universal upright press
Model | CEC08-01 | Cylinder | Pneumatic Hydraulic Type |
Color | Green/ Customed | Capacity | 76 kn/t |
Throat Depth | 500mm | Net Weight | 560KG |
Gross Weight | 630KG | Oversize | 1.15m*0.8m*2.28m |
TECHNICAL DATAS
Item No.:Clinching presses CEC08-01
Max Force for 6bar :76KN\t
Total Stroke:100mm\t
Power Stroke:12mm\t
Throat Depth:500\t
Size:1.2m*0.8m*2.2m\t
Weight:500KG\t
Power supply:220V/50W\t
Standard parts:Laser locating light, 2 sets of punch and dies, Life:Above 150000 times\t
Oil:32# hydraulic oil\t
Suitable sheetmetal plate and clinching times:From 0.5-2.5mm/pc. Below 2.0mm Plated Zn, Aluminum, Life: About 100000-150000 times. in 1.2mm stainless steel, Life: About 50000 times\t
Quality warranty:2 years, The warranty of machine:1 year
More video
Our company: https://youtu.be/WbRDSYUtw-E
Clinching presses CEC type +one point with self-clinching: https://youtu.be/5XxyWJRW9fo
https://youtu.be/lSicTMn7y7o
Insertion presses CEC type +one point with nuts/studs/standoff:
https://youtu.be/qGlcmBxG52E
Clinching presses CEU type+one point with self-clinching: https://youtu.be/nkgP_0Y98q4
Clinching presses +2 points with self-clinching: https://youtu.be/M7czIKpus-E
https://youtu.be/WS-E6U3GB2E
Clinching presses +4-6 points with self-clinching:
https://youtu.be/niPVZsLvLxA
https://youtu.be/OhDdVwJJlHY
https://youtu.be/qmlfHXegeQA
https://youtu.be/PsLVPSZ2-Kc
Clinching presses +2-4 points with self-clinching: https://youtu.be/zoCwZe_u5oA

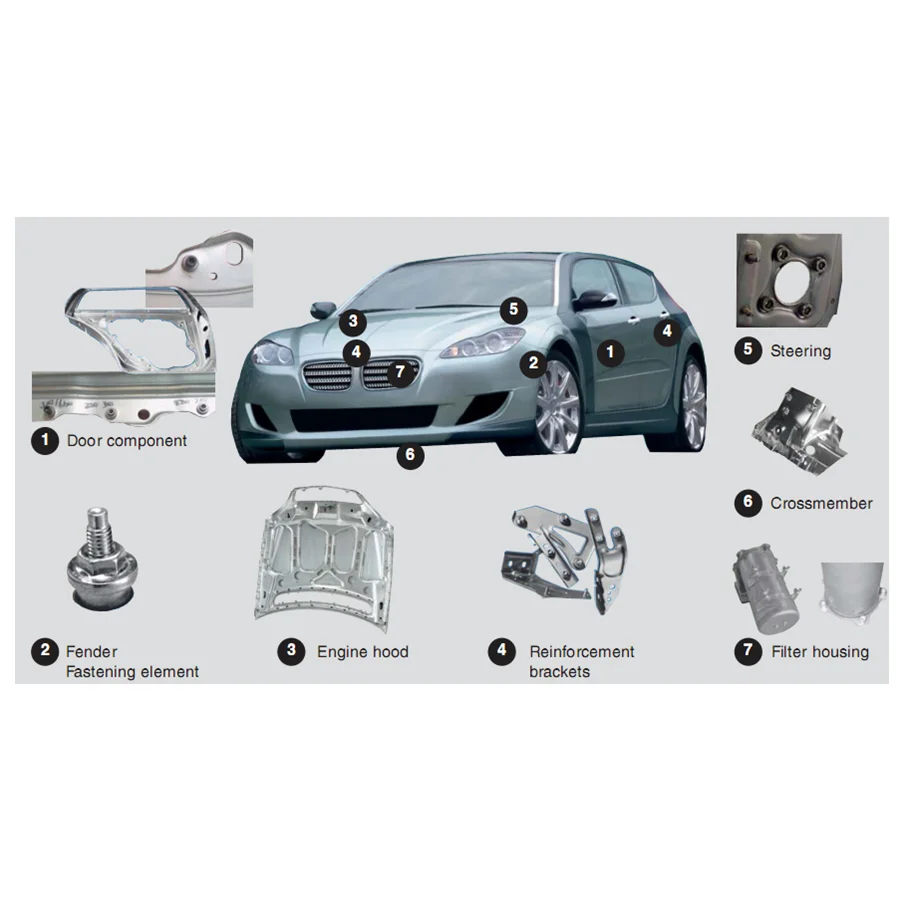

Applications
Our company
RSM MACHINERY CO.LTD is one of the world leaders for innovative products and resource sheet metal joint solution industry.Our mainly products are: Fastener insertion machine,Self-clinching machine,Self-Piercing rivet machine,Fastener elements,Spot welder,etc.
RSM sales net is cover more than 30 countries around the world and had established over 20 distributors. RSM are well-equipped todeliver timely and reliable solutions for customers wherever and whenever required.
