Новый дизельный двигатель гидравлический погрузчик на 16
- Категория: Forklifts >>>
- Поставщик: Henan,Jingcheng,Xiandai,Forklift,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.32 $* | 0.22 $* |
| Aug-17-2025 | 0.39 $* | 0.58 $* |
| Jul-17-2025 | 0.50 $* | 0.62 $* |
| Jun-17-2025 | 0.50 $* | 0.20 $* |
| May-17-2025 | 0.39 $* | 0.38 $* |
| Apr-17-2025 | 0.53 $* | 0.96 $* |
| Mar-17-2025 | 0.72 $* | 0.60 $* |
| Feb-17-2025 | 0.63 $* | 0.78 $* |
| Jan-17-2025 | 0.16 $* | 0.98 $* |
Характеристики

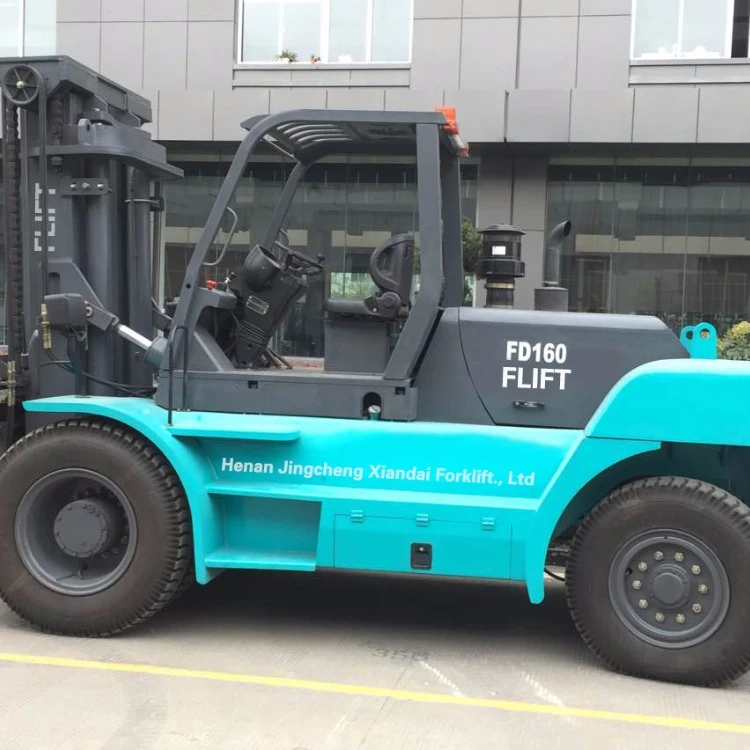

16ton 4 wheel diesel forklift trucks for sale
- 16ton 4 wheel diesel forklift trucks for sale
- trucks for sale
- 16 ton diesel forklift
Product Description
| Modle | FD16 | |
| Power type | Diesel | |
| Rated Capacity | kg | 1600 |
| Load Centre | mm | 500 |
| Lift Height | mm | 3000 |
| Fork size | mm | 1070*125*45 |
| Mast Tile Angle F/R | Deg | 6/12 |
| Front Overhang | mm | 475 |
| Ground Clearance | mm | 135 |
| Length to face of Fork | mm | 2770 |
| Overall width | mm | 1225 |
| Mast Lowered Height | mm | 2115 |
| Mast Extended Height(backrest) | mm | 4160 |
| Overhead Guard Height | mm | 2090 |
| Turning Radius | mm | 2520 |
| Min.insecting aisle | mm | 2550 |
| speed travel(Empty) | km/h | 19 |
| speed Lifting(full load) | mm/s | 440 |
| Max Gradeability | % | 20 |
| front Tire | 28*9-15-12PR | |
| Rear Tire | 6.50-10-10PR | |
| Wheelbase | mm | 1800 |
| Service weight | mm | 4150 |
| Battery | V/Ah | 12/80 |
| Engine Modle | QC490GA | |
| Manufacture | QUAN CHAI | |
| Engine Rated output/r.p.m | kw | 39/2650 |
| Engine Rated torque/r.p.m | N.m | 157/1800-2000 |
| No.of Cylinder | 4 | |
| Bore. STROKE | mm | 90*105 |
| Displacement | cc | 2670 |
| Fuel Tank Capacity | L | 60 |
| Type | Hydraulic | |
| Transimission stage | 1/1 | |
| Operating Pressure for Attachment | Mpa | 17.5 |
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Photos&Videos for your order before shipment.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Whole life-time supply for spareparts.
The following items are optional:
Tires: Pneumatic and Solid tire
Color: Yellow,red,orange, green, blue or customized.
Controller: SME/ZAPI/CURTIS
Mast: Standard wide-view 2 stage mast, wide-view 2-stage full free mast, wide-view 3-stage full free mast.
Motor: AC/DC
Certifications
FAQ
1. Can you customize and design as the clients' requirement?
Flift will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available.
2. How long is the warranty of your products?
All of products are within 1 year / 1000 working hours whichever occurs earlier.
3. Can you produce the products labeled with the client's brand?
Yes, we can. Please provide us the authorization of the brand, so we can supply the product to you on an OEM basis.
4. What's the terms of payment?
It’s our practice to accept payment by T/T 30% deposit, 70%
5. What's your procuct ranges?
We can supply the following product for you: Diesel Forklift; Electric Forklift; LPG Forklift; CNG Forklift; Electric Pallet Stacker; Electric Pallet Truck;Rough Terrain Forklift;Hand Pallet Truck; Side Loader; Three Wheel Forklift.
We also can provide attachment for you, for example, paper roll clamp; bale clamp/pulp bale clamp; carton clamp; push/pull; pushoff; rotator; block clamp; drum clamp; fork clamp; fork positioner; fork extension; side shifter.etc.
6. Can i choose the lifting height?
Yes, you can. we have three types of mast: wide view mast; wide view 2-stage full free mast; wide view3-stage full free mast.
The lifting height is from 3m to 7m, please chat with us for details and price.
