Hydraulic Power Units 24V 24Volt For Tail gate Lifting
Product Description
General Description Of Tailgate Car Lift Hydraulic Power Unit 24v 12v :
This hydraulic power unit pack are be used for tail gate car lift. With 12Volt or 24Volt hydraulic power units pack. Equiped with a high pressure gear pump,a dc motor, a multi-fuctional manifold, valves and a tank, etc. This hydraulic power unit pack is specially designed for tail gate, support the gate up-down and open-close automatically. The tight box package type designed is convenient for mounting.
Specific Drawing of Tailgate Hydraulic Power Pack Unit 12V 24V :
Model Specifications of 12V 24V Hydraulic Power Unit Pack :
Hydraulic Power Unit Model
| Motor Info
| Pump Displacement
| Tank Capacity
| Pressure
| Pressure
| Oil Port
|
HPU-30AEASAHDFKI | 12V 2KW 2500RPM | 1.7cc/r |
9 |
20 |
Horizontal
|
M18x15* |
HPU-30BBFAUBHDFKI | 24V 2.2KW 2500RPM | 2.5cc/r |

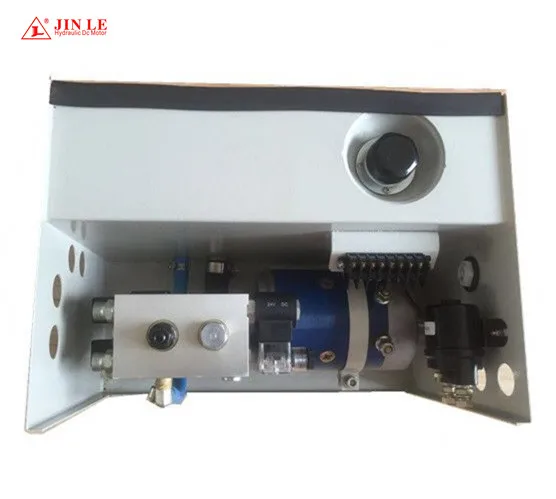

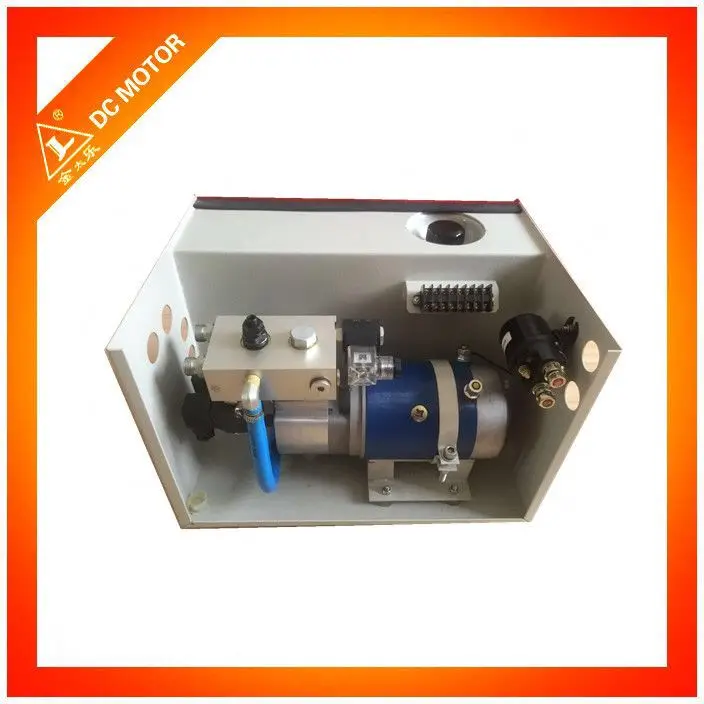

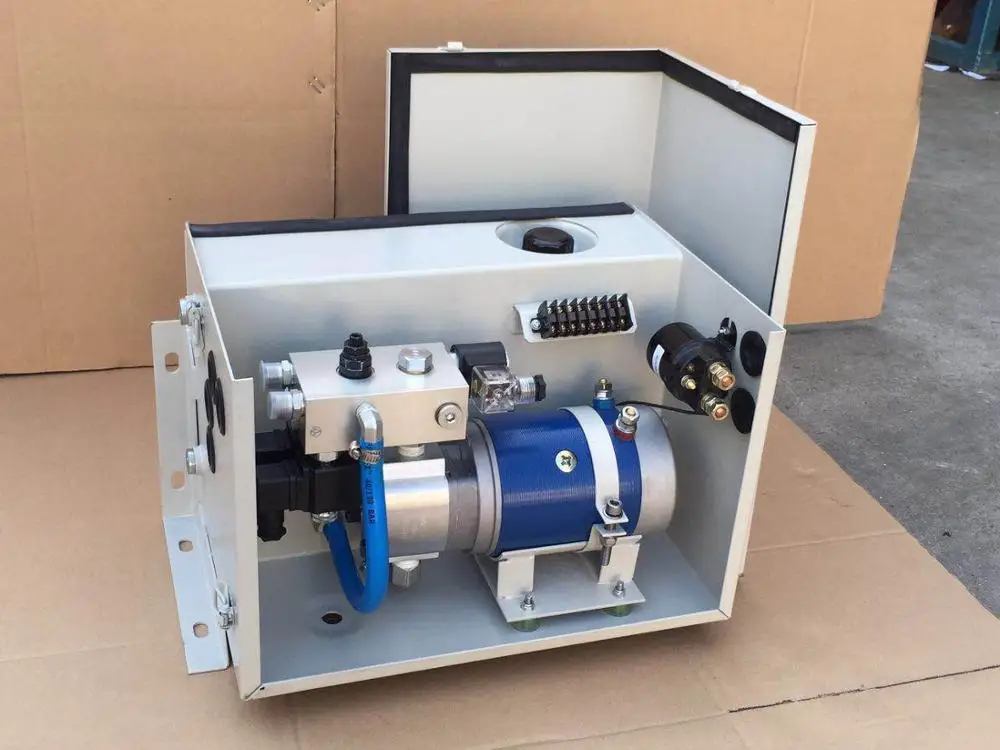

Specific Photos of Tail gate Hydraulic Power Units Pack 24v 12v :
Remark of hydraulic power unit :
For this hydraulic power unit customization service, the different pump displacement, motor power, tank capacity are available on request.
Special Note of this 12v 24v Hydraulic Power Unit For Lifting :
1. The duty of this hydraulic power unit is S3. ie: 30 seconds on and 270s off.
2. Clean all the hydraulic parts concemed before mounting the power unit.
3. Viscosity of the hydraulic oil should be 15-68 cst, which should also be clean and free of ompurities. N46 hydraulic oil is recommended.
4. This hydraulic power unit should be mounted horizontal.
5. Check the oil level in the tank after the first start of the power unit.
6. Oil changing is required after the initial 100 operation hours afterwards once every 3000 hours
FAQ
JINLE Hydraulic Power Units Pack, we provide customization service of hydraulic power unit :
Q: Do you accept hydraulic power unit pack OEM manufacturing?
A: Yes! We do accept OEM manufacturing. You could give us your samples or drawings.
Q: Can we design our own package or print our own logo?
A: Yes! You could! Package will be acording to your requirements?
Q: Could we get hydraulic power unit pack samples?
A: Yes! Definitly! The samples will be sent to you preferentially.
Q: How much time about the mass production of power unit hydraulic ?
A: The lead time of mass production hydraulic power packs unit will depend on quantity, production and so on. Often 30 days.
Q: Could I customize our hydraulic power units pack in your factory?
A: Customization of hydraulic power unit is available. You can send me your specifications and drawings of your own hydraulic power units pack.
