Характеристики
Details
| Name | Ultra thin glass edging and polishing machine with cheap price |
| Model | SY-1000-4 |
| Type | Automatic |
| Max. glass size | 1000mm |
Product Description

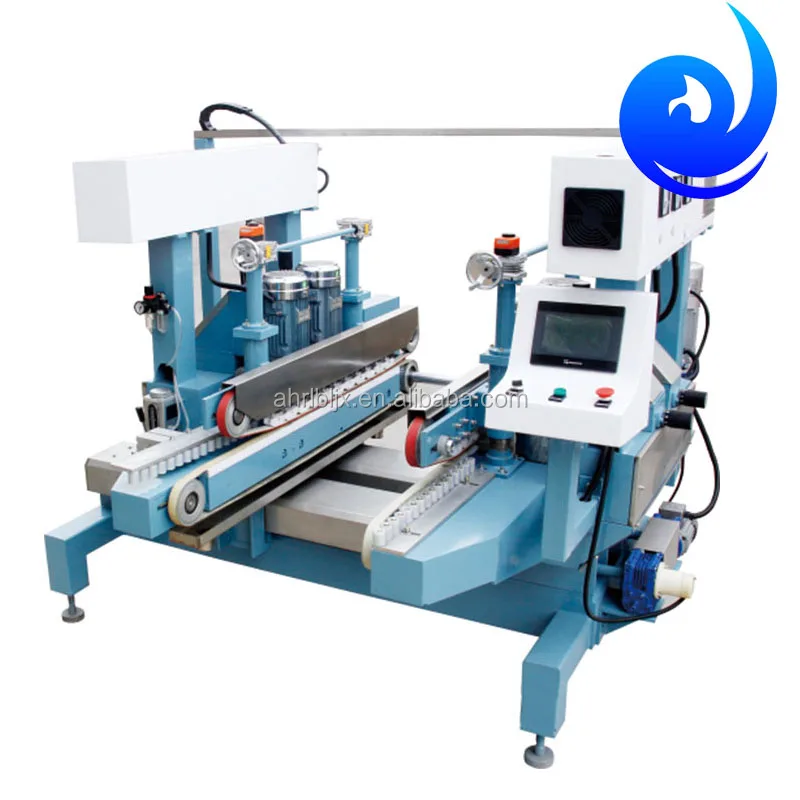

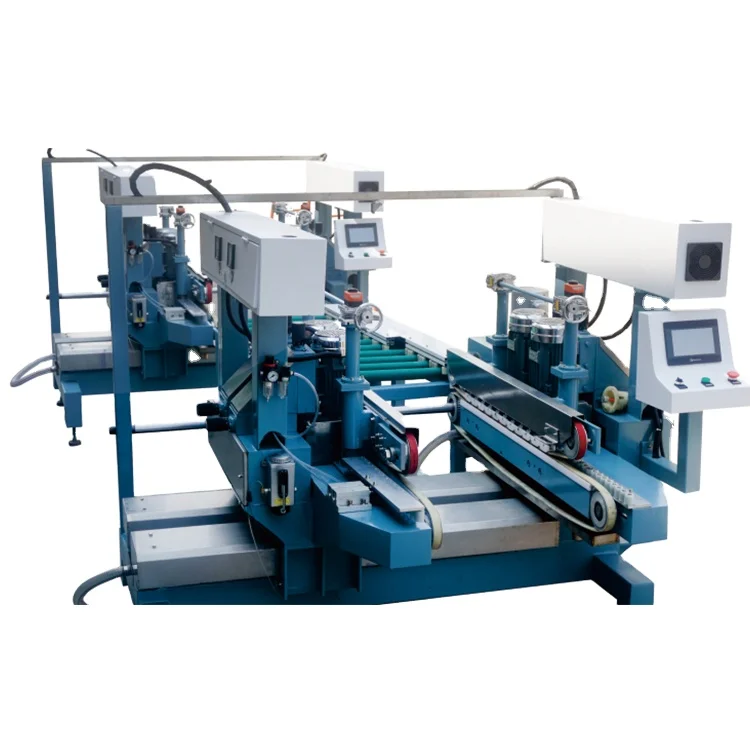

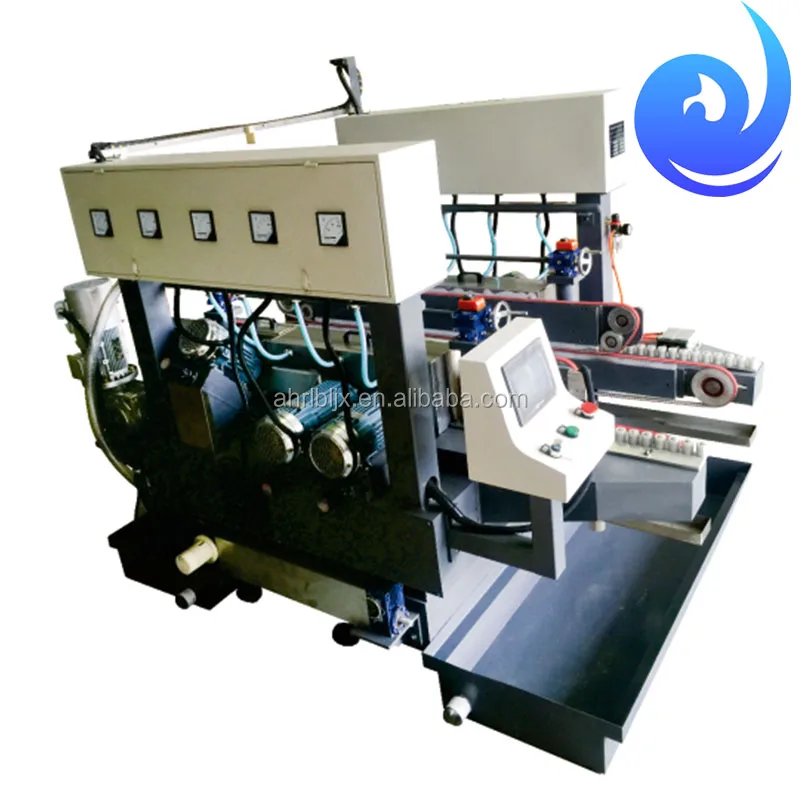

Ultra thin glass edging and polishing machine with cheap price is suitable for the grinding of flat and ultra-thin glass. For both sides of the glass edge grinding treatment, coarse grinding, round edge grinding; or rough grinding, fine grinding straight edge, complete fillet one-time, equipment adopts double linear guide, ball screw drive, to achieve the smooth running speed. To eliminate the moving gap, the opening and closing system of the equipment is adjusted automatically by digital input.
Main structure:
The machine consists of a lathe bed, a fixed grinding wheel group, a moving grinding wheel group, a lifting structure, a circulating water cooling system, a glass conveying structure, a transverse opening and closing structure, an inlet positioning structure and a control system.
Main performance characteristics:
The conveyor speed is controlled by frequency conversion, the feed speed of glass processing can be adjusted at any time, and the synchronous belt of conveyor adopts the synchronous belt of Italy PU, Other synchronous belts increase the washing function to ensure that the surface of the machined glass is free from damage and that the material is transferred with a synchronous belt, and the glass can be sent out automatically.
1, glass processing size by double imported linear guide and ball screw and reducer, adjustable glass processing width at any time, to achieve the speed and stability, eliminates moving gap, reducing resistance and wear, ensure repeat positioning and a complete set of processing parameters, and ensure the plexus glass processing size accuracy.
The device structure is solid, precise and smooth transmission system, advanced control system and strong processing capacity, suitable for electronic and electrical appliances, glass, ITO glass, glass mirror glass, automotive glass processing.
2, the whole machine grinding glass adopts PLC touch screen control, frequency conversion speed regulation, and adopts the right angle positioning correction configuration to ensure the parallel degree and diagonal precision of the grinding glass.
The main drive adopts frequency conversion motor and reducer configuration.
Equipped with glass transition bracket and spray system, ensure the working site clean and water free.
3, machine by the bed, fixed grinding wheel group, mobile grinding wheel group welding, after the use of high temperature annealing treatment, and aging treatment to eliminate internal stress, long time running without deformation, ensure the processing glass quality stability.
4, the beam with the ascension of the whole structure, which facilitates the replacement
The machine consists of a lathe bed, a fixed grinding wheel group, a moving grinding wheel group, a lifting structure, a circulating water cooling system, a glass conveying structure, a transverse opening and closing structure, an inlet positioning structure and a control system.
Main performance characteristics:
The conveyor speed is controlled by frequency conversion, the feed speed of glass processing can be adjusted at any time, and the synchronous belt of conveyor adopts the synchronous belt of Italy PU, Other synchronous belts increase the washing function to ensure that the surface of the machined glass is free from damage and that the material is transferred with a synchronous belt, and the glass can be sent out automatically.
1, glass processing size by double imported linear guide and ball screw and reducer, adjustable glass processing width at any time, to achieve the speed and stability, eliminates moving gap, reducing resistance and wear, ensure repeat positioning and a complete set of processing parameters, and ensure the plexus glass processing size accuracy.
The device structure is solid, precise and smooth transmission system, advanced control system and strong processing capacity, suitable for electronic and electrical appliances, glass, ITO glass, glass mirror glass, automotive glass processing.
2, the whole machine grinding glass adopts PLC touch screen control, frequency conversion speed regulation, and adopts the right angle positioning correction configuration to ensure the parallel degree and diagonal precision of the grinding glass.
The main drive adopts frequency conversion motor and reducer configuration.
Equipped with glass transition bracket and spray system, ensure the working site clean and water free.
3, machine by the bed, fixed grinding wheel group, mobile grinding wheel group welding, after the use of high temperature annealing treatment, and aging treatment to eliminate internal stress, long time running without deformation, ensure the processing glass quality stability.
4, the beam with the ascension of the whole structure, which facilitates the replacement
Our Services
What are we supply?
Why choose us?
Company Information
FAQ
Q: Do you supply overseas engineers service for glass edging machine?
A: Yes, Ruilong with rich experience in overseas engineers, but customers need to pay the current ticket.
Q: What’s the warranty for glass edging machine?
A: One year, If you need to increase the warranty, need extra cost.
Q: Do you provide accessories for glass edging machine ?
A: Yes, we will provide some additional loss of accessories.
