ITEM NO: CAW0026

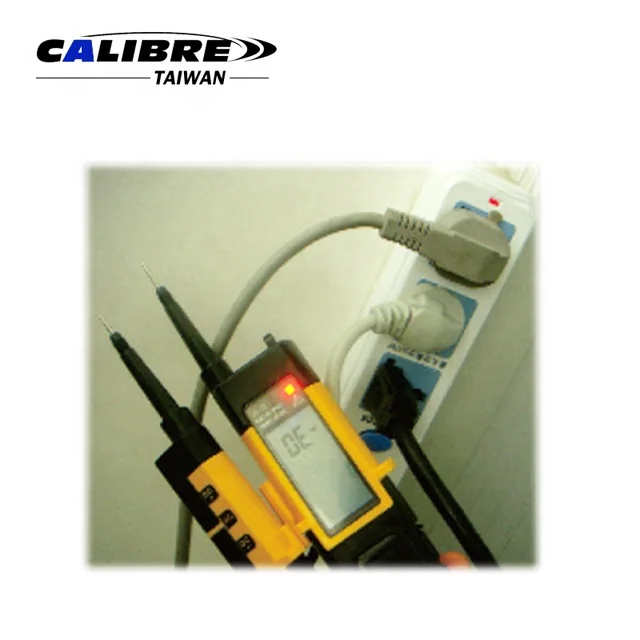

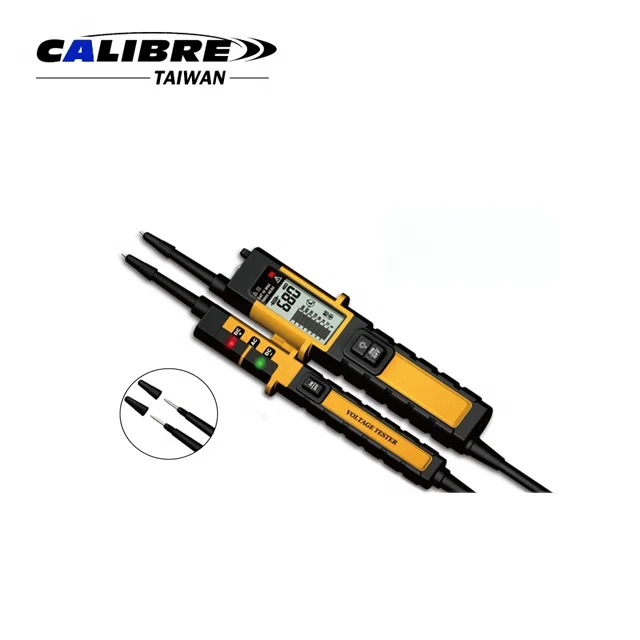

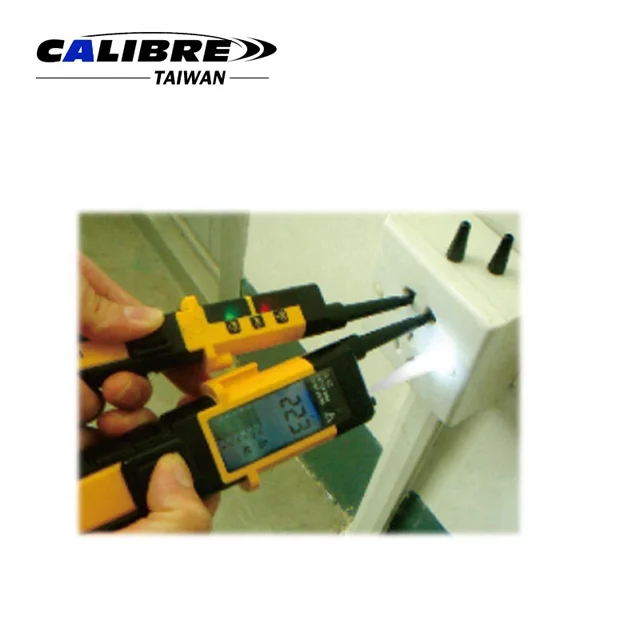

CALIBRE Multifunctional Voltage Tester

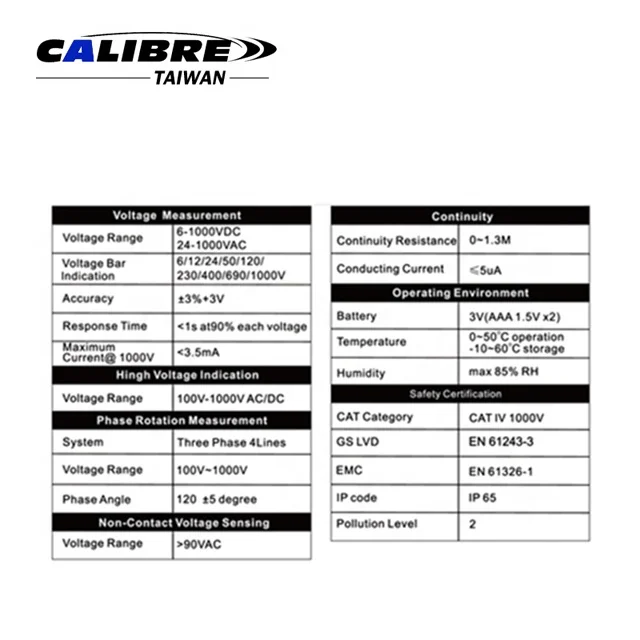

Voltage Measurement:

♦Voltage Range: 6-1000V DC, 24-1000V AC

♦Voltage Bar Indication: 6/12/24/50/120/230/400/690/1000V

♦Accuracy: ±3% + 3V

♦Response Time: <1s at 90% each voltage

♦Maximum Current @1000V: <3.5mA

High Voltage Indication:

♦Voltage Range: 100V-1000V  AC/DC

Phase Rotation Measurement:

♦System: Three Phase 4Lines

♦Voltage Range: 100V~1000V

♦Phase Angle: 120 ± 5 degree

Non-Contact Voltage Sensing:

♦Voltage Range: > 90VAC

Continuity:

♦Continuity Resistance: 0~1.3M

♦Conducting Current: ≤ 5uA

Operating Environment:

♦Battery: 3V (AAA 1.5V x 2)

♦Temperature: 0~50°C operation

♦-10~60°C storage

♦Humidity: max 85% RH

Safety Certification:

♦CAT Category: CAT IV 1000V

♦GS LVD: EN 61243-3

♦EMC: EN 61326-1

♦IP code: IP 65

♦Pollution Level: 2

Packing:

♦1Set/ Sliding Card

♦50Set/19/20KGS
