Лидер продаж настенный видеоконтроллер 16x16 светодиодный дисплей большой экран по заводской


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 0.49 $* 0.55 $*
Aug-19-2025 0.49 $* 0.9 $*
Jul-19-2025 0.29 $* 0.3 $*
Jun-19-2025 0.16 $* 0.63 $*
May-19-2025 0.99 $* 0.95 $*
Apr-19-2025 0.17 $* 0.93 $*
Mar-19-2025 0.58 $* 0.86 $*
Feb-19-2025 0.22 $* 0.39 $*
Jan-19-2025 0.66 $* 0.64 $*

Характеристики

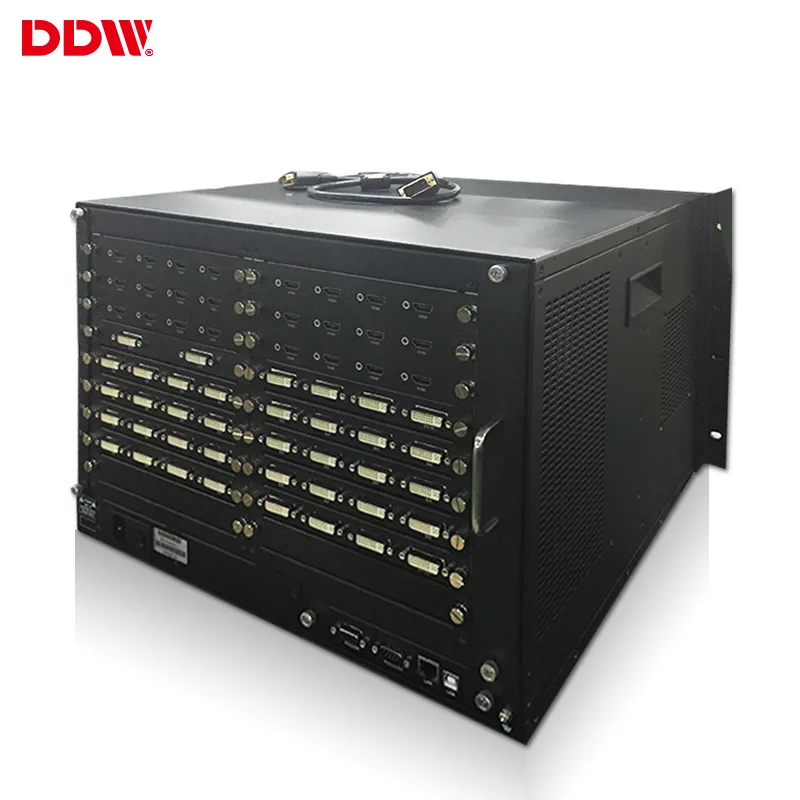

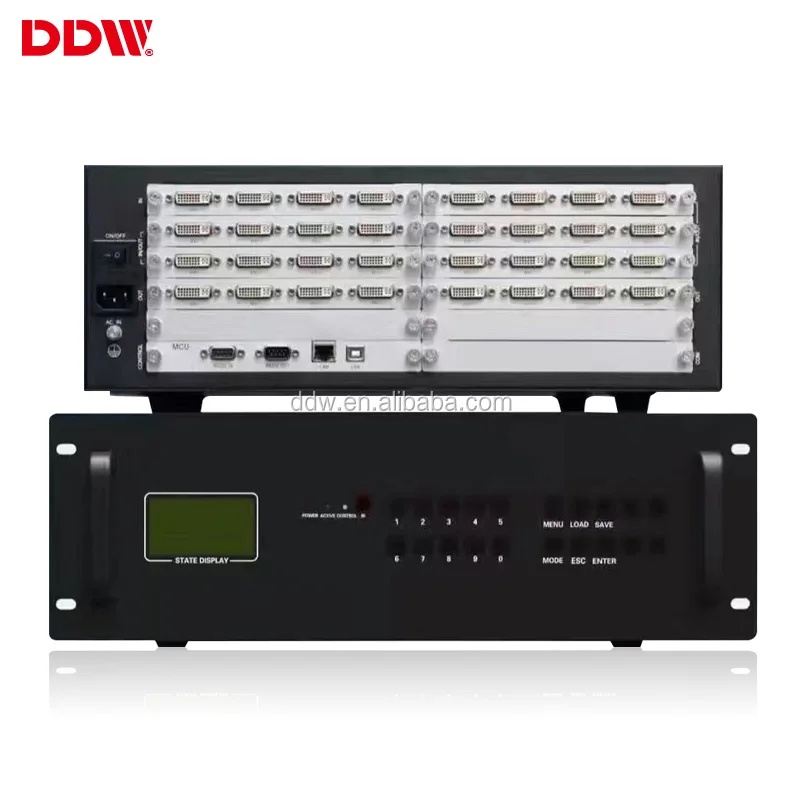

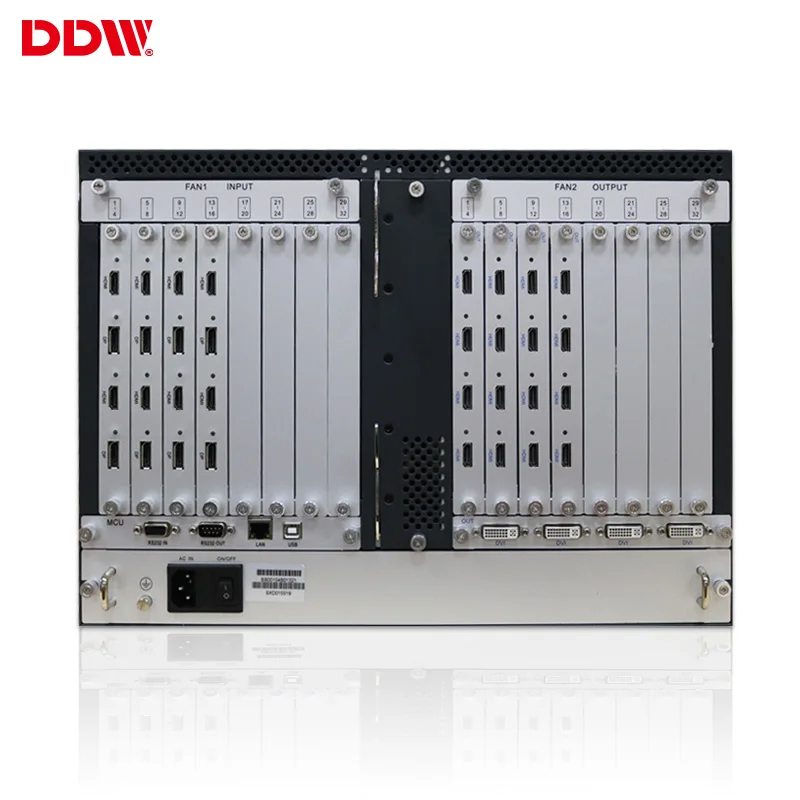

Hot sale video wall controller 16x16 led display big screen

with factory price

Product Description

1234567

Product Pecification
Parameters
Professional video wall controller Technical Specifications
Model seriesWith CBDNo CBD
Function description4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays
Input signal(optional)HDMI/DVI/VGA/AV/YPbPr
Input resolution1024x768~1080p,commonly used resolutions
Output signal formatDVI/VGA/AV/YPbPr/HDMI(DVI-HDMI converter)
Output resolutionUp to 1920*1200/60HZ
System control software Special control software
Power SupplyRedundant power supply 110-220VAC, 50/60Hz
Consumption12W/channel
Working temperature-20°C——60°C
Working Humidity5-95%
Case specification4U/6U/10U/15U standard rackmount chassis
Serial Control InterfaceRS-232,9-pin female, Type-D
Baud Rate115200
Pin configuration2=TX,3=RX,5=GND
Ethernet control interfaceRJ-45 female, TCP/IP
Ethernet control speedAuto 10M or 100M,Full-duplex or half-duplex
Working time365*7*24hrs
Technical specification of input/output connectors
VGA/RGB inputInput: 15pin HD D-Sub, female
Sync mode: HV independent sync
Color Depth: 32bit/pixel
Resolution: 640*480/60HZ—1920*1200/60HZ
Input impedance :75Ω
Video inputInput connector: BNC
Detecting: full-format auto detecting
Input impedance :75Ω
VGA or DVI outputResolution:1024*768/60HZ-1920*1200/60HZ
Color depth: 32bit/pixel
Output impedance:75Ω
SignalsConnectorsType
Composite VIDEO inputBNCfemale
VGA input15 pin HD D-Subfemale
VGA output15 pin HD D-Subfemale
DVI output24+5 or 24+1 standardfemale
AUX RS-2329-pin D-Subfemale
Main RS-2329-pin D-Subfemale

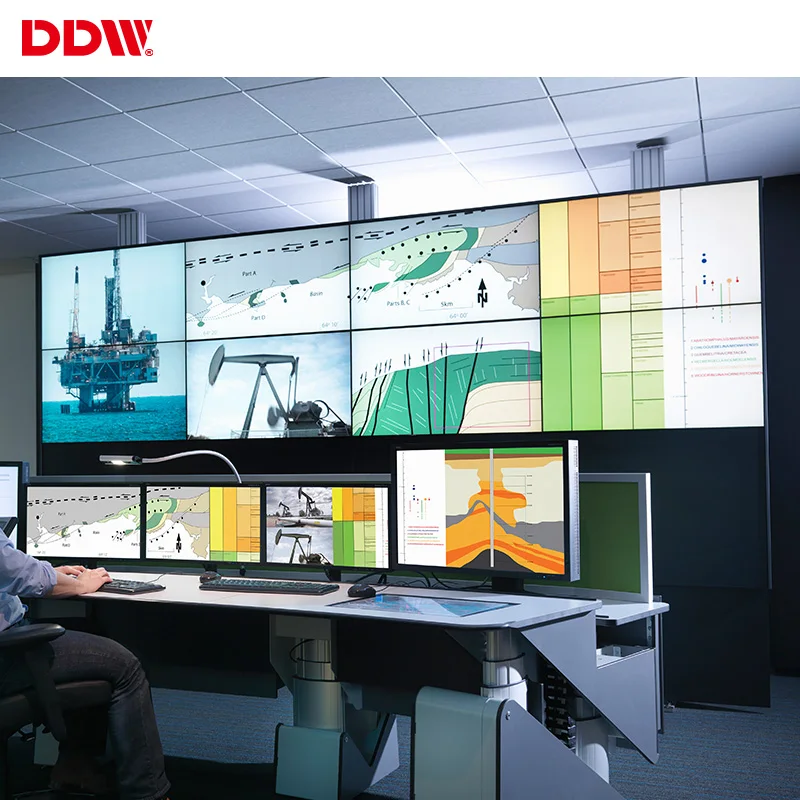

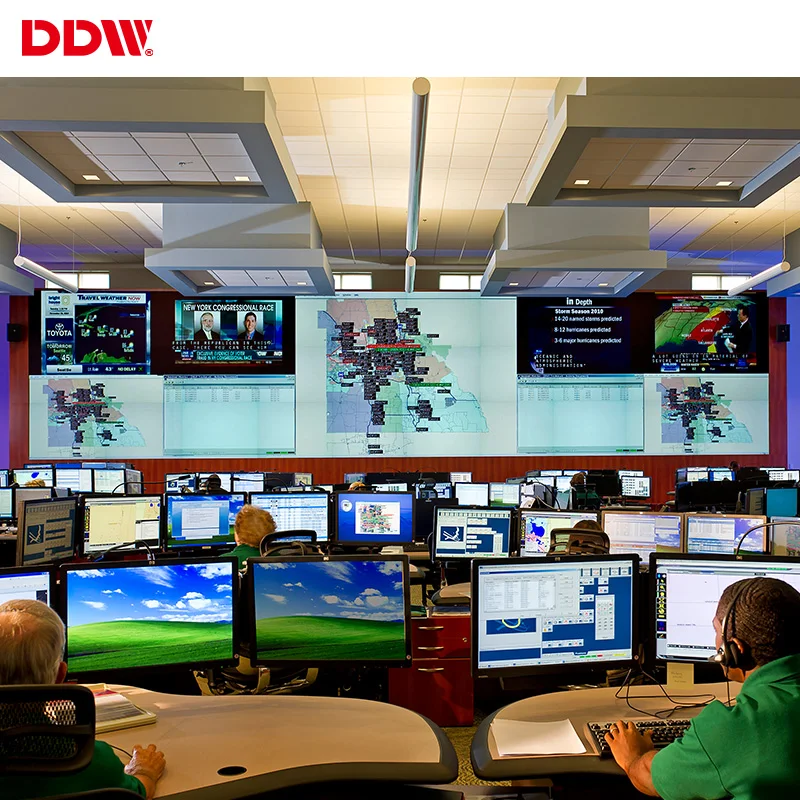

Professional video wall controller can be widely used for: monitoring, directing, scheduling system, public security, fire, military, weather, rail, and aviation monitoring system, video conferencing, query systems.
Company Information

1+

Production Flow

2

EXPOS AND PARTNER

3

Certifications

4

FAQ



1. Q: Are you a manufacturer or trading company?
A:We are a manufacturer who has been specializing in producing LCD display for years.



2. Q: How does your factory do regarding quality control?
A:Quality is priority.DDW people always attach great importance to quality controlling from the

very beginning to the very end. We focus on every detail ,Our factory has gained ISO9001, ISO14001, CE, RoHS authentication.



3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product .



4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.


5. Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days according to the size and quantities
of your order.


6.Q:what brand of screen are you using?
A:we are using Samsung,LG,AUO and CHIMEI screen.


7.Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.


8.Q:if you are not online,how can i get contact with you?
A:if i am not online,please kindly check the following contact information,you can send me email,you can call me or skype me,i will reply you ASAP
