1.  General introduction



LPCB certification, known as Loss Prevention Certification Board certification, is the standard of UK's security and fire safety, holding the LPCB certification is equivalent to that the products meet the British standard.



LLT Fire resistant cable aims to be customer’s first choice to keep safe from the fire situation, by designing, developing the latest technology products with high quality and reliability.Your requirements in fire protection in any commercial or industrial setting will be met. LLT lpcb approved cables will fire resistant , fire alarming, power suplling.

Best material makes the best quality, choose LLT, choose a safeguard. LLT has been approved ISO9001, ISO 14001, UL, VDE, ROHS. LPCB.....



2.  LPCB Standards on fire resistant cable:

BS 6387,  BS 7629-1,  EN 50200 ,  BS 5839-1 Clause 26.2d,



1) BS 6387 Performance requirements for cables required to maintain circuit integrity under fire conditions

 C – Resistance to fire at 950ºC for 3 hours
 W - Resistance to fire and water at 650ºC for 30 minutes and
 Z - Resistance to fire and mechanical shock at 950°C for 15 minutes

2)  BS 7629-1 Method of test for resistance to fire of unprotected small cables for use in
emergency circuits.

3) EN 50200 British Standard Specification for 300/500V fire resistant cables having low
emissions of smoke and corrosive gases when affected by fire.

4) BS 5839-1 states ‘standard fire resisting cables’ should meet the PH30 classification when tested in accordance with EN 50200 and additionally the 30 minute survival time when tested in accordance with Annex E of that standard.



Note:  LLT FR - Multi core cables meet all the standards in LPCB requirements.



3.  Cable structure:



Specs	Core	Conductor	Insulation	Shielding1	Shielding2	Earth wire	Sheath
2x1.0	2	1.13mm bc	Silicone E12	Mica Tape	Fiberglass tape	1.13mm bc	LSNH
2x1.5	2	1.38mm bc				1.38mm bc
2x2.5	2	1.78mm bc				1.78mm bc
3x1.0	3	1.13mm bc				1.13mm bc
3x1.5	3	1.38mm bc				1.38mm bc
3x2.5	3	1.78mm bc				1.78mm bc
4x1.0	4	1.13mm bc				1.13mm bc
4x1.5	4	1.38mm bc				1.38mm bc
4x2.5	4	1.78mm bc				1.78mm bc

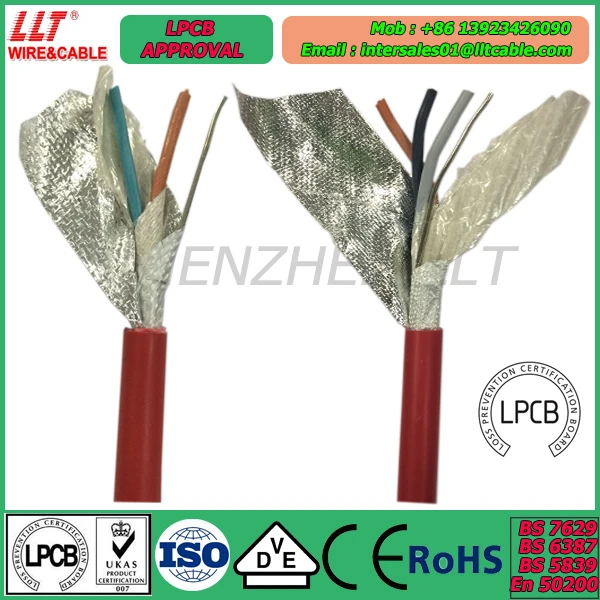

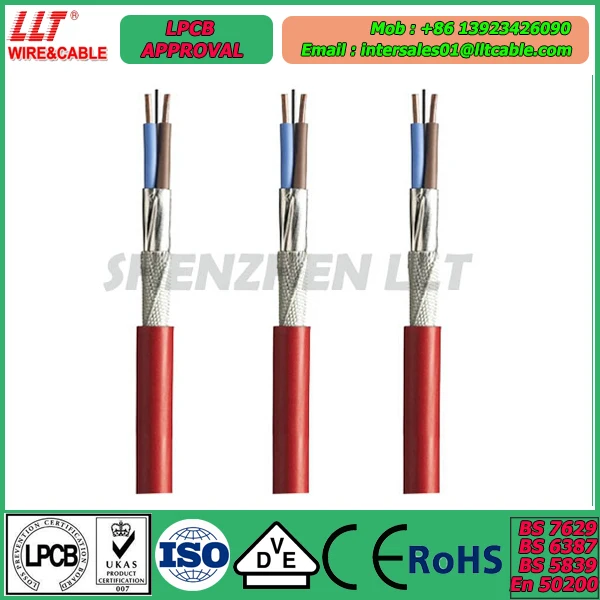

4.  Fire resistant cable pictures:



5.  LLT Production range:



Fire resistant cable, Elevator cable TVVB, Drag chain cable, EV cable, Fire alarm cable, Network cable, Speaker cable, all Control cable series...



LPCB approved fire resistant cable range:



6.  LPCB approved cable performance & application:

Resistance to fire at 950ºC for 3 hours, LSNH outer jacket keeps the low smoke without toxic gas, remaining the integrity of the circuit, ensuring people enough survival period in the fire disaster,



1.Water Spray
2.Sprinkler System
3.Fire Alarm System
4.Dry Riser
5.Valves
6.Foam Systems
7.Smoke Detector
8.Exit Light
9.Fire Men Garments

7. Certificate:

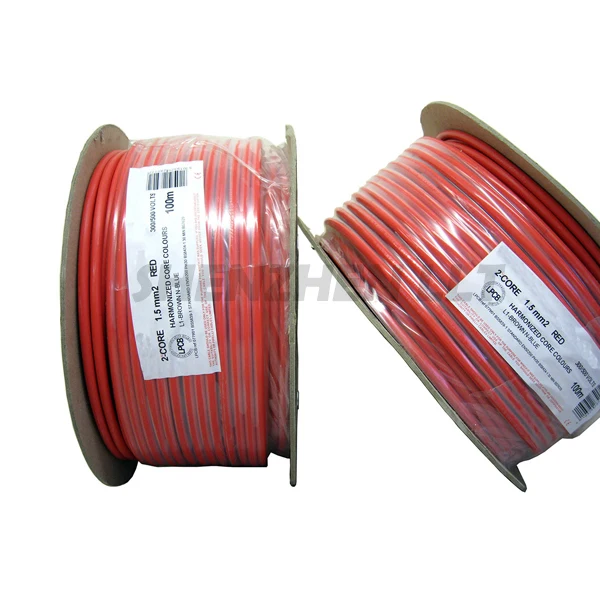

8.  Packaging & Shipping

1) Packing Lengths:100m/roll other lengths available according to client's request.

2)packing: Wooden reel, plastic reel, and paper reel available.

3) Other packing available according to client's request.





9.  FAQ



Q: Are you a factory or trading company?
A: We are a 16 years factory with more than 10 engineers.

Q: Where is your factory located? How can I visit there?
A: Our factory is located in N0.83 Pingxin North Road, Pinghu Town, Longgang District, Shenzhen, Guangdong China. You can fly to Guangzhou airport or Shenzhen airport directly. All our clients, from home or abroad, are warmly welcome to visit us!

Q: How can I get some samples?
A: We are honored to offer you samples according your inquiry

Q: How does your factory do regarding quality control?
A: "Quality is our culture. We always attach great importance to quality controlling from the very beginning to the very end.

Our factory has gained VDE, CE, UL, RoHS, CCC,ISO,LPCB authentication.
