SY-1500-6 односторонняя горизонтальная шлифовальная машина для кромок стекла с прямой

  Anhui Ruilong glass machinery co.,ltd focus on intelligent glass machinery and relevant automatic machinery . we are also one of the comprehensive new enterprises that provide the research and development,production,sale , technology service and  After-sale maintenance and other services .The company covers an area of 40000 square metres  , total investment more than 200 million yuan(31 million dollar), existing staff 80 people.

  So far Ruilong has been won the recognition award in Anhui province industrial design competition ,Bengbu city first sets of major technical equipment certification enterprise specialization, arts and new certification enterprises, Bengbu city Internet and information fusion development demonstration and many kinds of honorary certificate .

   Our company research and development design ,production and sales of main products are: loading and uploading for all kinds of glass machine, CNC glass cutting machine ,Semi-automatic glass cutting machine, double or single sides glass grinding machine, various types of ultra-thin glass cutting machine and  grinding machine, normal ,convex ,ultra-thin glass cleaning machine, glass rod,brick,tube, bottle and optical material cutting machine, glass transmission table, glass drilling machine, Top level intelligent cold glass processing line and all kinds of non-standard automation equipment and  etc .

   As a key investment enterprise in the Longzihu area, we trying to business development as well as positive response One Belt And One Road ; 4.0 industrial ,power industrial ,manufacturing strong province of  various national and provincial strategyUnder the keen concern of the party and government, under the support of relevant functional departments, the Ruilong is through continuous efforts and enterprising, explaining the belongs to own heart spirit and Chinese craftsmen to make new style. In the future we will make persistent efforts continued ascension, establish a sound and efforts to improve the business process, in order to succeed at an early date to build industry leading brand, become the industry standard makers and guidance in the development of industry Inheritance, The century-old foundation begins with the first step, and the day progresses into perfection, Ruilong people are on a mission to get the final glory and let the dream come true .

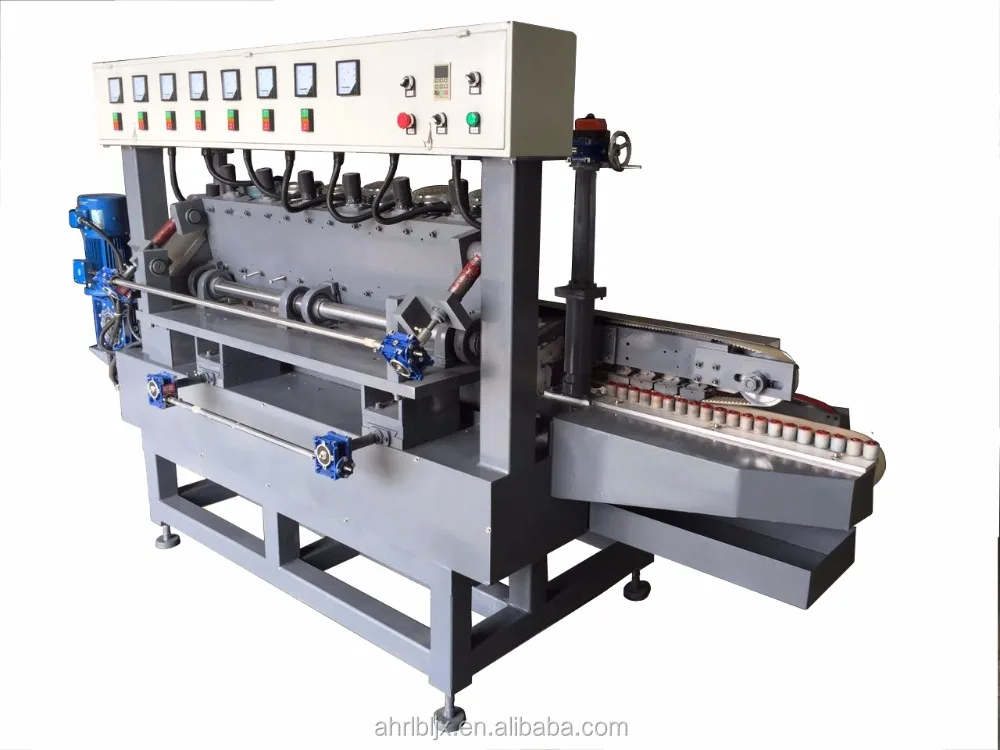

SY-1000-6 Unilateral horizontal glass straight line edge grinding polishing machine

Horizontal unilateral linear glass edge grinding machine is a precise and efficient glass processing equipment, can fill the big, small glass grinding function, more widely applicable to small and medium-sized glass grinding, and low cost, the single-phase electric work, the operation is simple.
Horizontal unilateral glass edge grinding machine for conventional glass, especially ambry door plank, king kong door plank, sanitary ware, hollow, spell mirror, Mosaic, and other industries use.

Parameter

Machine parameters

Weight: 850kg

Dimension: 2900*1700*1550mm

Motor: special grinding motor 2.2KW, 1.1kw

Power : 10.2KW

Voltage: 380V

Process parameter

1 Processing glass size: 50*50mm--15000*1500mm (Extended bracket can grind a larger size)

2 Chamfer width 0-3mm

3 Chamfer angle 45 degrees

4 Glass thickness : 2-15mm

5 Grinding amount: 0-2mm

Configuration

1 GB square tube welded frame. Motor base is cast iron.

2 Motor: New East Asia

3 Belt: Shanghai

4 Plate: spring steel production

5 Electrical: Greatwall or Chint products

6 Wheel: Nanhua Quality BD round

    Voltage: 380v, 50HZ

7 8kw Power : 10.2kw

8.Feed speed: 0.5m/min ~ 5m/min stepless

9. Process range:

 a)Max. gridning amount: 3mm

b)angular maximum grinding width: 2.5mm

c)angular angle: 45°

d)glass dimensions:. max: 2000 × 1500 min: 50 × 50

e)glass thickness: 2~19mm

f)precision: parallelism plus or minus 15s/m; diagonal plus or minus 50s/m

What are we supply?

Q: Do you supply overseas engineers service for glass polishing machine?
A: Yes, Ruilong with rich experience in overseas engineers, but customers need to pay the current ticket.

Q: What’s the warranty for glass polishing machine?
A: One year, If you need to increase the warranty, need extra cost.

Q: Do you provide accessories for glass polishing machine?
A: Yes, we will provide some additional loss of accessories.
