TK-7Y регулятор солнечного нагрева воды под давлением
US $10.00-$30.00
Самый продаваемый термосифон Южная амресия солнечный водонагреватель для
- Категория: Solar Water Heaters >>>
- Поставщик: Haining,Sunfull,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.15 $* | 0.8 $* |
| Aug-15-2025 | 0.38 $* | 0.56 $* |
| Jul-15-2025 | 0.95 $* | 0.61 $* |
| Jun-15-2025 | 0.95 $* | 0.87 $* |
| May-15-2025 | 0.95 $* | 0.56 $* |
| Apr-15-2025 | 0.56 $* | 0.65 $* |
| Mar-15-2025 | 0.19 $* | 0.66 $* |
| Feb-15-2025 | 0.38 $* | 0.15 $* |
| Jan-15-2025 | 0.95 $* | 0.34 $* |
Характеристики

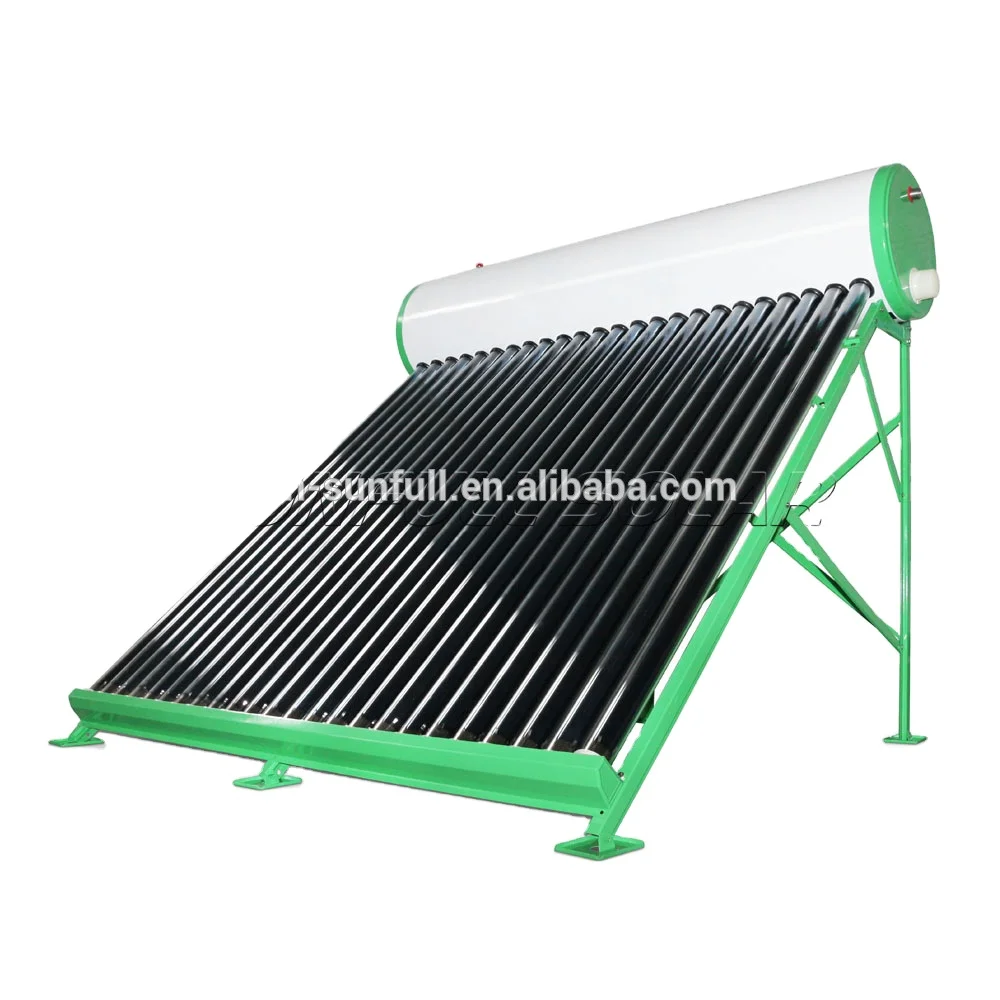

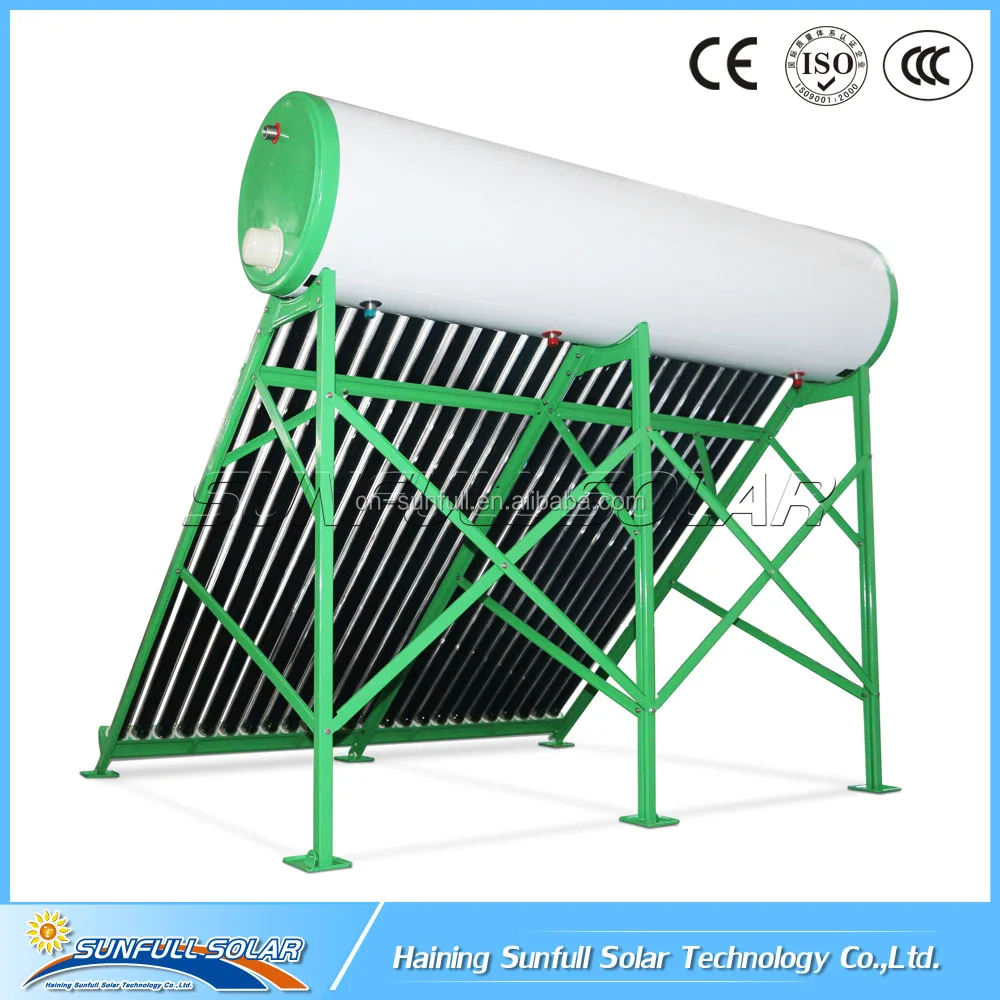

SRCC SK certificate Thermosiphon rooftop solar water heater
Specifications
Certificate: CE,ISO,RoHS,CCC,EN12975
Best performance& low price
Long life span 10 years warranty
15 years export experience
Specifications
1.Inner tank
Material: Food grade SUS304-2B stainless steel
Thickness:0.4mm-0.5mm
Diameter: Normally 360mm
2.Outer tank
Material: SUS201 stainless steel or Painted Steel
Thickness:0.31mm-0.4mm
Diameter:Normally 460mm
3. Insulation layer
Material:High density polyurethane foam
Thickness :50-65mm
Heat preservation :72 hours

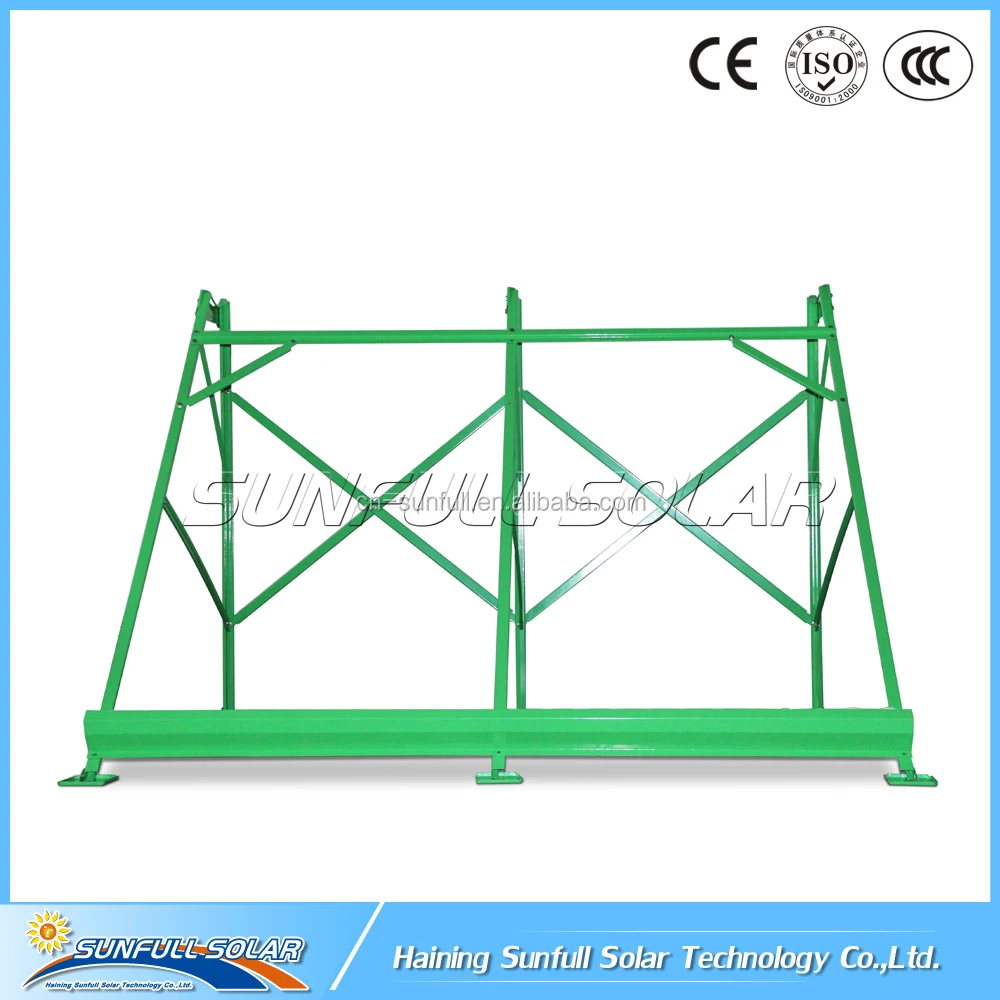

4.Frame
Material: SUS201 stainless steel or painted steel or aluminium alloy
Angle:0-45 degree
5.Optional accessories
Electric heater, magnesium bar, intelligent controller
6.Warranty
Using life of wholesystem:10 years
Non-pressurized solar water heater series
| Model | Capacity (Liter) | Tube specification | Tube quantity | Packing size(CBM) | Loading quantity(Sets) | ||
| 20'GP | 40'GP | 40'HQ | |||||
| SF-NPCS58-12 | 120 | Φ58mm*1800mm | 12 | 0.432 | 66 | 136 | 160 |
| SF-NPCS58-15 | 150 | Φ58mm*1800mm | 15 | 0.540 | 53 | 109 | 128 |
| SF-NPCS58-18 | 180 | Φ58mm*1800mm | 18 | 0.648 | 45 | 91 | 106 |
| SF-NPCS58-20 | 200 | Φ58mm*1800mm | 20 | 0.720 | 40 | 82 | 96 |
| SF-NPCS58-24 | 240 | Φ58mm*1800mm | 24 | 0.864 | 32 | 68 | 80 |
| SF-NPCS58-30 | 300 | Φ58mm*1800mm | 30 | 1.080 | 26 | 55 | 64 |
| SF-NPCS58-32 | 320 | Φ58mm*1800mm | 32 | 1.152 | 24 | 51 | 60 |
