Растягивающаяся мембранная конструкция теневой навес стальная рама водонепроницаемая тканевая кровельная система тент для бассейна
- Категория: Plastic Building Materials >>>
- Поставщик: Guangzhou,Pente,Tent,Decoration,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.49 $* | 0.87 $* |
| Aug-16-2025 | 0.57 $* | 0.35 $* |
| Jul-16-2025 | 0.10 $* | 0.54 $* |
| Jun-16-2025 | 0.83 $* | 0.69 $* |
| May-16-2025 | 0.12 $* | 0.35 $* |
| Apr-16-2025 | 0.49 $* | 0.8 $* |
| Mar-16-2025 | 0.77 $* | 0.33 $* |
| Feb-16-2025 | 0.96 $* | 0.22 $* |
| Jan-16-2025 | 0.22 $* | 0.89 $* |
Характеристики
Product Description
Tensile membrane structure shade canopy steel frame waterproof fabric roofing system awning swimming pool cover tents
Material:
Q235 Steel Frame
Inspection standard: GB/T3091-2008
| Steel code | Size (mm) | Cemical composition | Yield Point | Tensile Strength | Elongation | ||||
| C | Si | Mn | P | S | Mpa | Mpa | δ | ||
| Q235B | 114*3 | 0.15 | 0.15 | 0.37 | 0.016 | 0.018 | 290 | 390 | 26 |
| Q235B | 89*3 | 0.13 | 0.14 | 0.37 | 0.022 | 0.024 | 295 | 375 | 27 |
| Q235B | 140*5 | 0.14 | 0.15 | 0.41 | 0.022 | 0.022 | 285 | 380 | 28 |
| Q235B | 219*7 | 0.16 | 0.12 | 0.36 | 0.018 | 0.024 | 285 | 385 | 25 |
| Q235B | 87*4 | 0.13 | 0.16 | 0.36 | 0.018 | 0.022 | 290 | 385 | 26 |
| Q235B | 60*3 | 0.12 | 0.16 | 0.42 | 0.018 | 0.020 | 280 | 380 | 27 |
PVDF Cover
| Technical profile | ||
| Technical | Technical Date | Executive Standard |
| Base Fabric | High Strength Low Yarn polyester Yarn | DIN EN 60001 |
| Yarn count(yarn/cn) | 1100dtex | DIN ISO 2060 |
| Weave Style | 12/12/yarn/cm | DIN EN 1049-2 |
| Weight of Base Fabric (G/SQM) | Dyeing Cloth | |
| Total Weight (G/SQM) | 1000G/SQM | |
| Total thickness(mm) | 0.8mm | |
| Tensile Stregth(N/5cm) | 4400/4200N/5cm | DIN EN 1421 |
| Tear Strength(N) | 600/550N | DIN 53363 |
| Adhesion(N/5cm) | >120N/5cm | IVK 3.13 |
| Threshold Temperature | (-30)℃---(+70)℃ | DIN EN1876-1 |
| Light Transmission | 5% | |
| Acoustical Weakening Index | 15dBA | |
| Surface Treatment | Double layer PVC ,clean by itsself | |
| Flame Retardancy | DIN 4102B1 GB8624 B1 | |
| Quality Management | DINEN ISO9001
| |
Advantages
A. Cost efficiency
Tensioned membrane architecture offers both the structure and the roofing shell in one. Depending upon the requirements, shaped fabrics under tension can span large areas at dramatically reduced costs compared with conventional roofing systems. They are also erected more efficiently reducing costs even further.
B. Design Freedom
Being a flexible and highly formable systems, tensile fabric membranes are able to be formed into breathtakingly spectacular designs. This allows architect to do things unthinkable with conventional construction materials. A well designed tensile structure instantly adds to a buildings aesthetics, giving it notoriety whilst improving its functionality.
Application:

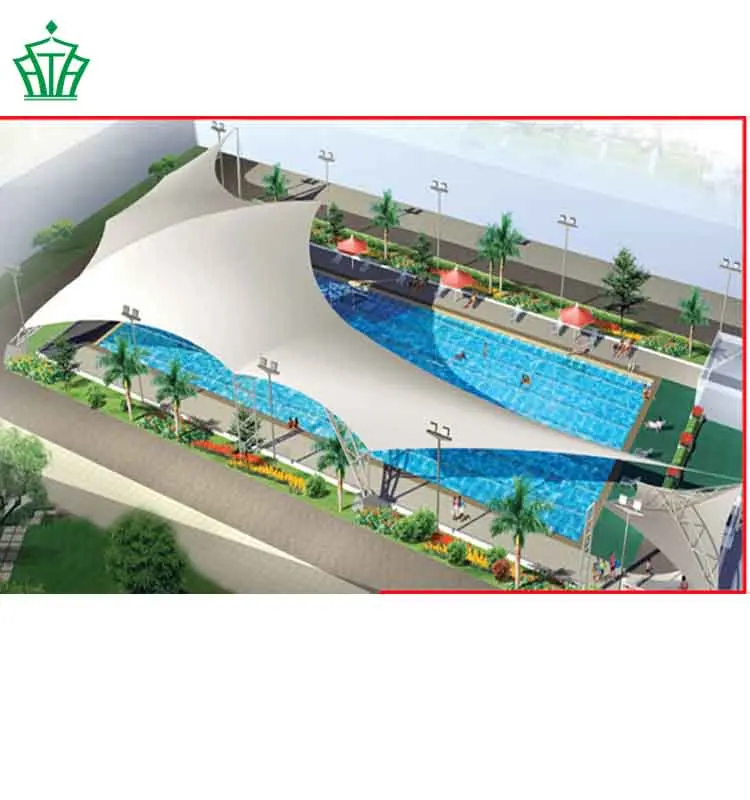

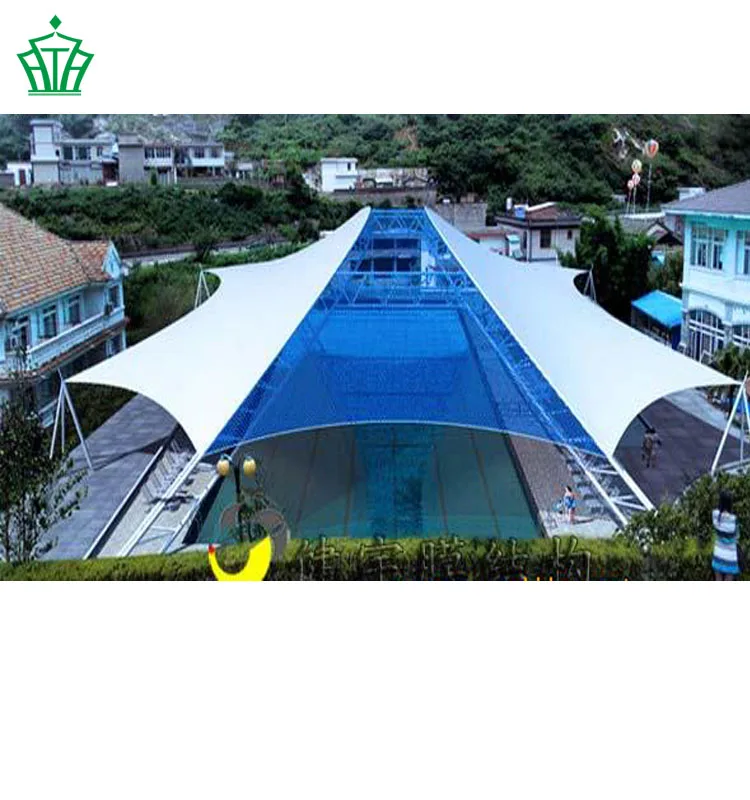

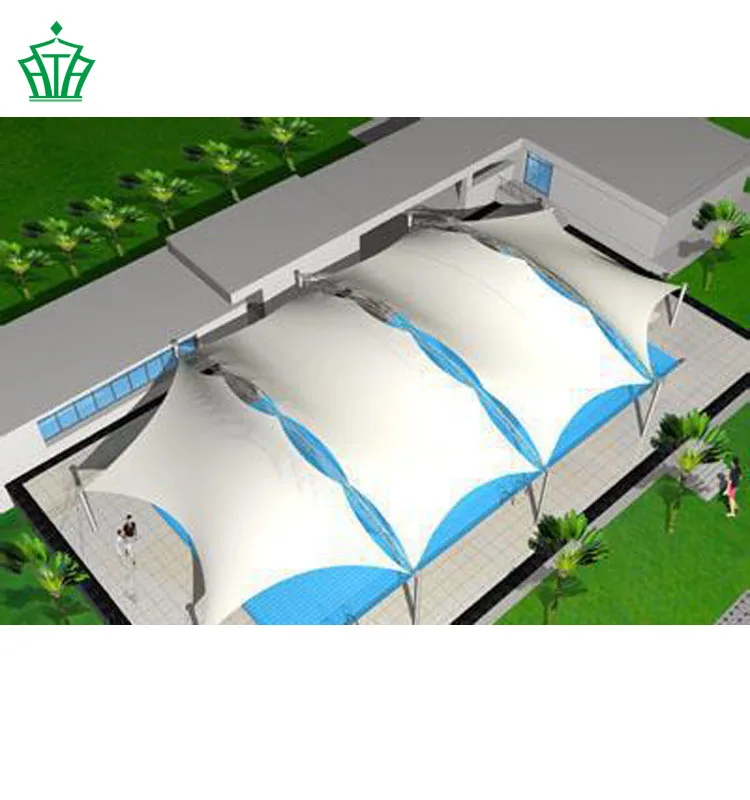

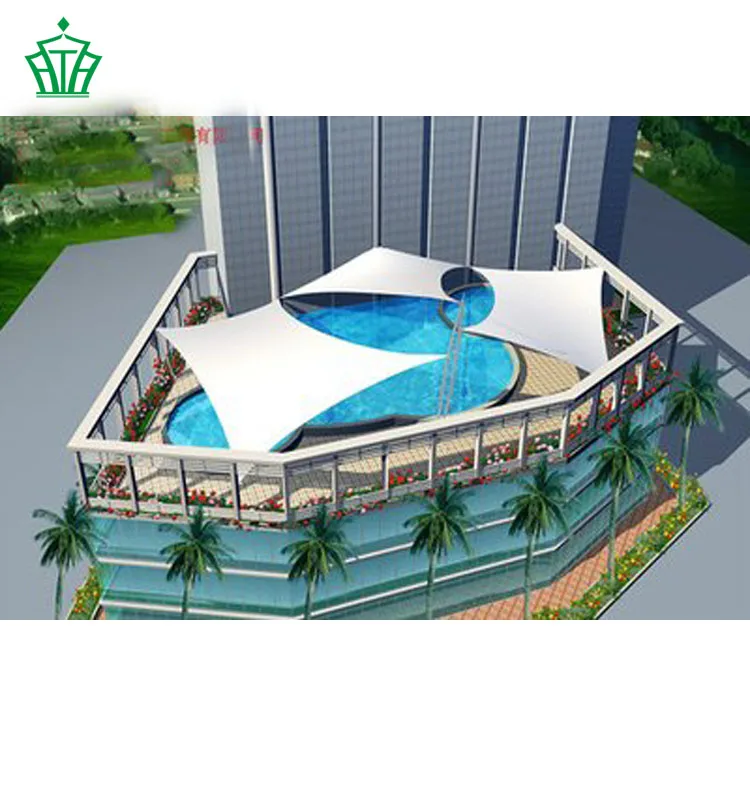

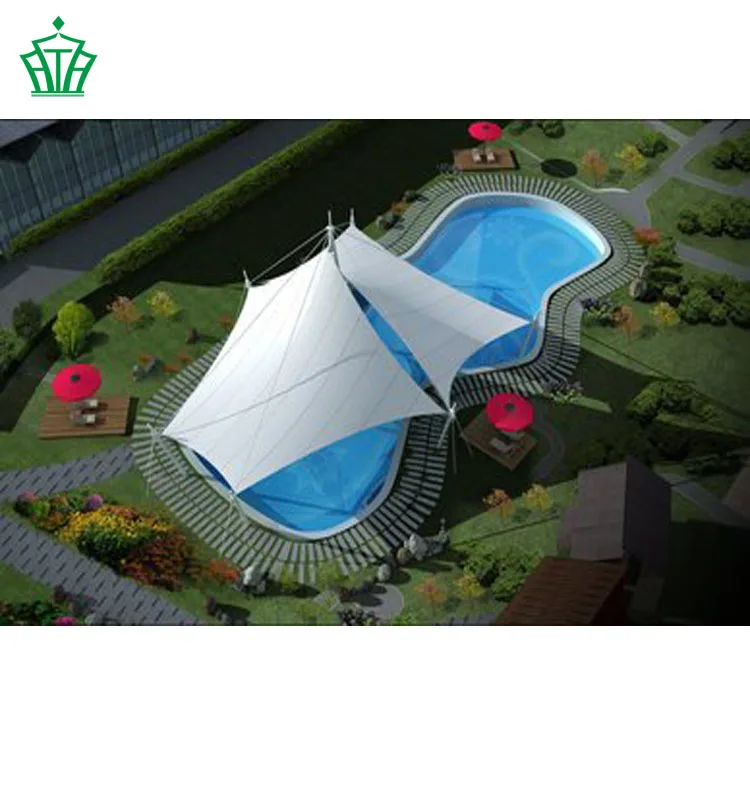

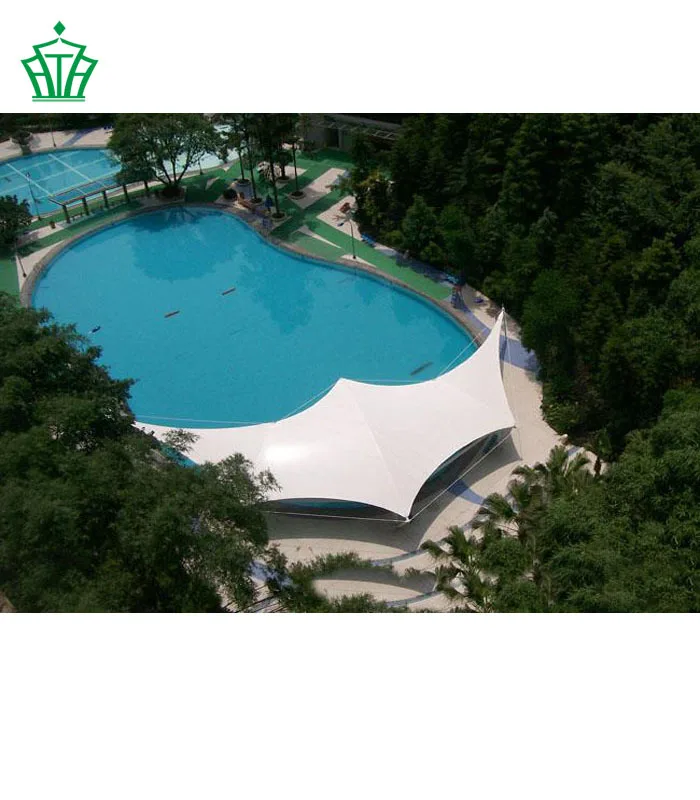

This kind of Tension membrane structures can be widely used in seasonal or permanent structuresfor indoor sports and recreational facilities as gymnasiums, stadiums, swimming pools,
cafeterias and food courts, exhibition and conventional centers, canopies
and vehicle parkings, etc
Features:
1,High strength and intensity but light weight
2,Waterproof, UV resistance, heat insulation,anti-aging, Transmittance ect.
3,Moisture proof, smoke proof, soundproof self-cleaning, beautiful view
4,Modern design, Easy to install
5, used in seasonal or permanent structures for indoor sports and recreational facilities as gymnasiums, stadiums, swimming pools, cafeterias and food courts, exhibition and conventional
centers, canopies and vehicle parkings, etc
