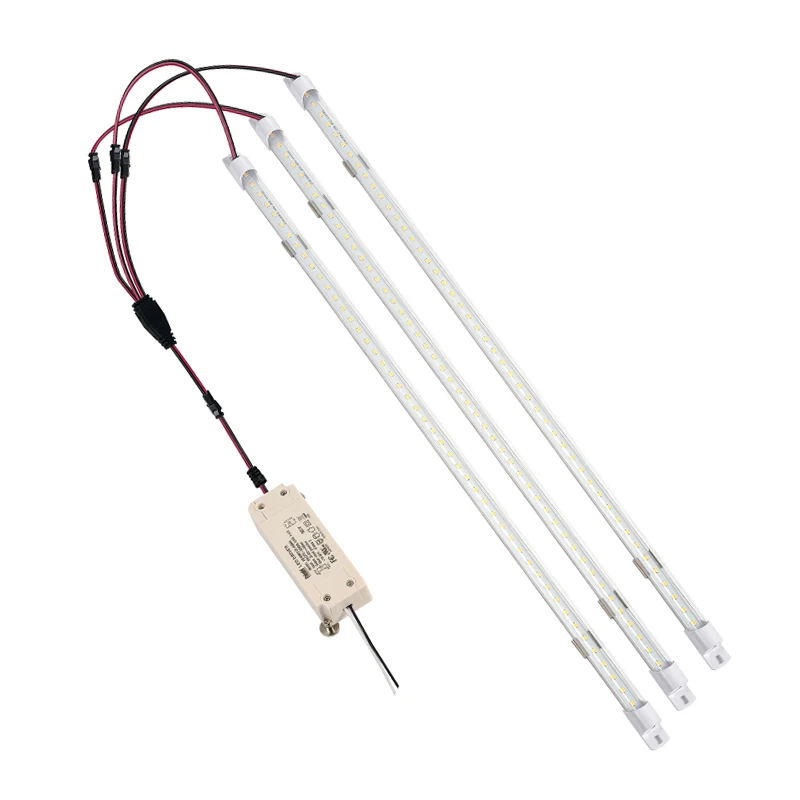

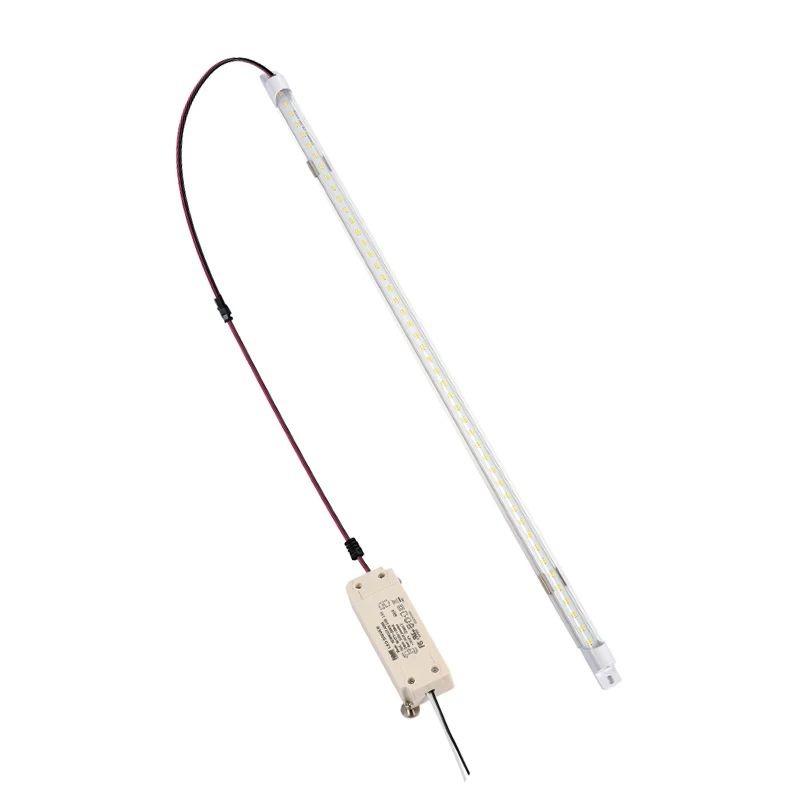

2ft 4ft DLC Approved Magnetic LED linear Strip Light 12w 18w 140lm/W economic Troffer Retrofit Kit
Magnetic led troffer retrofit kit strip description:
Easy-to-Install

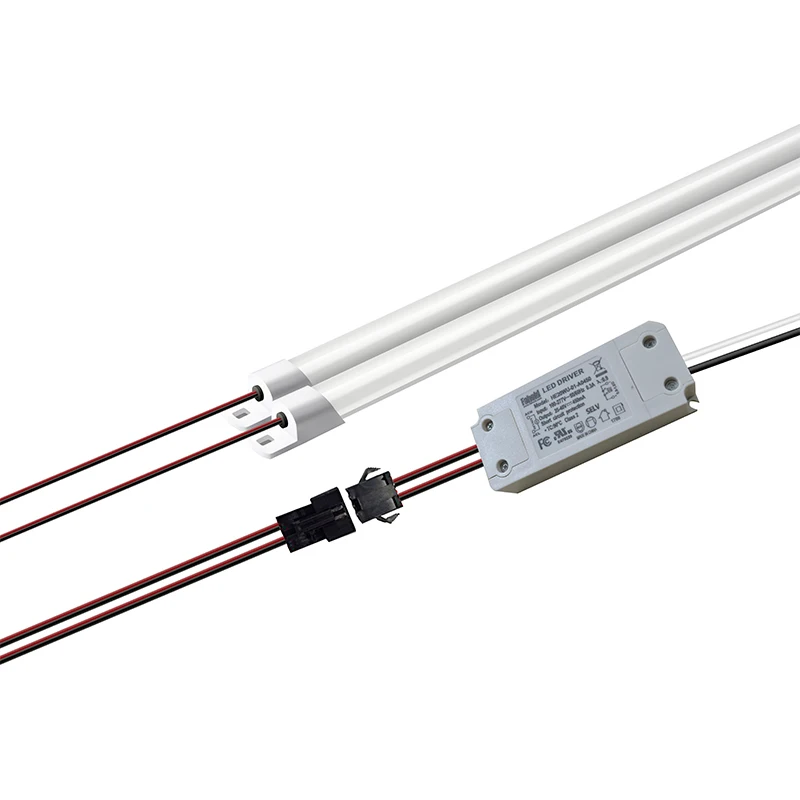

This Retrofit kit installs in 3 or 4 minutes, with only your bare hands. Just pop off the ballast cover, disconnect power from the ballast, connect power to the LED driver, and plug the driver into the LEDs.

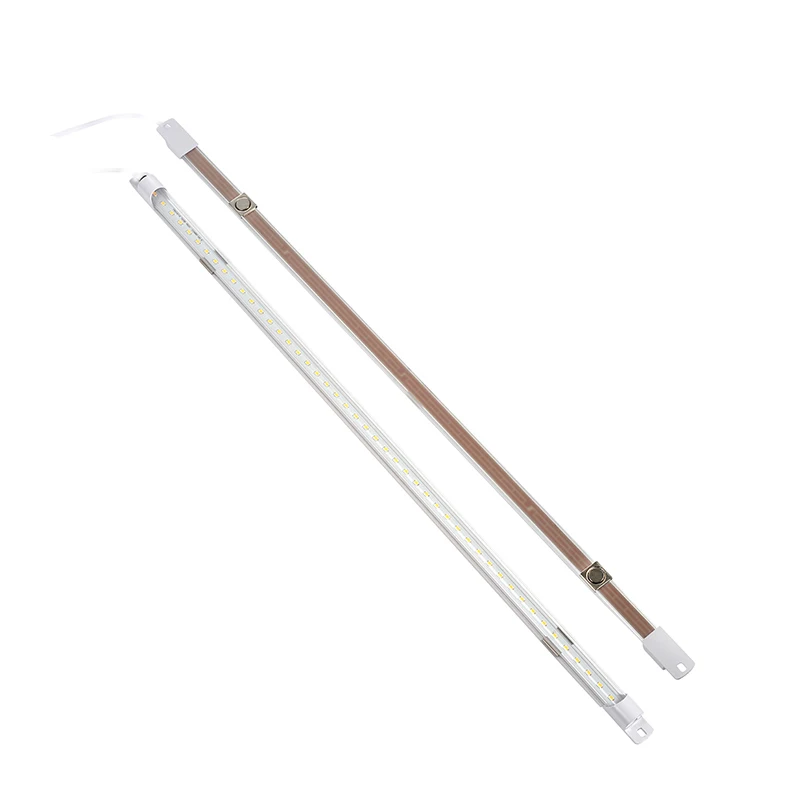

The LEDs and the driver are magnetic backed, so they literally attach themselves to the troffer body in seconds.
Incredibly Efficient
The special thermally conductive magnet attaches the kit both physically and thermally to the troffer or strip light, thus becoming an actual component of the fixture, truly making it an LED fixture, as opposed to many other solutions that simply hang some sort of LED light component inside the troffer box. The entire body of the troffer becomes the heat sink for the LEDs, making them operate extremely cool, which dramatically extends their lifespan.
Features:
• Voltage: AC100-277V/60Hz
• Lumen Efficiency: 150Lm/W LED
• Power Factor:up to 0.998
• CCT:3000, 3500, 4000, 5000K,6000K
• CRI (Ra): >82
• Mounting method: Magnetic led strips and driver, quick-connect
• Replacements: Retrofit 2’ x 2’, 1’ x 4’, and 2’ x 4’ “troffer” style fixtures
• Dimmable is also available
• 9W 18W 36W are available
• 5 year warranty • Operating temperature -40 F to 140 F
• Dimmable with 0-10v dimmer

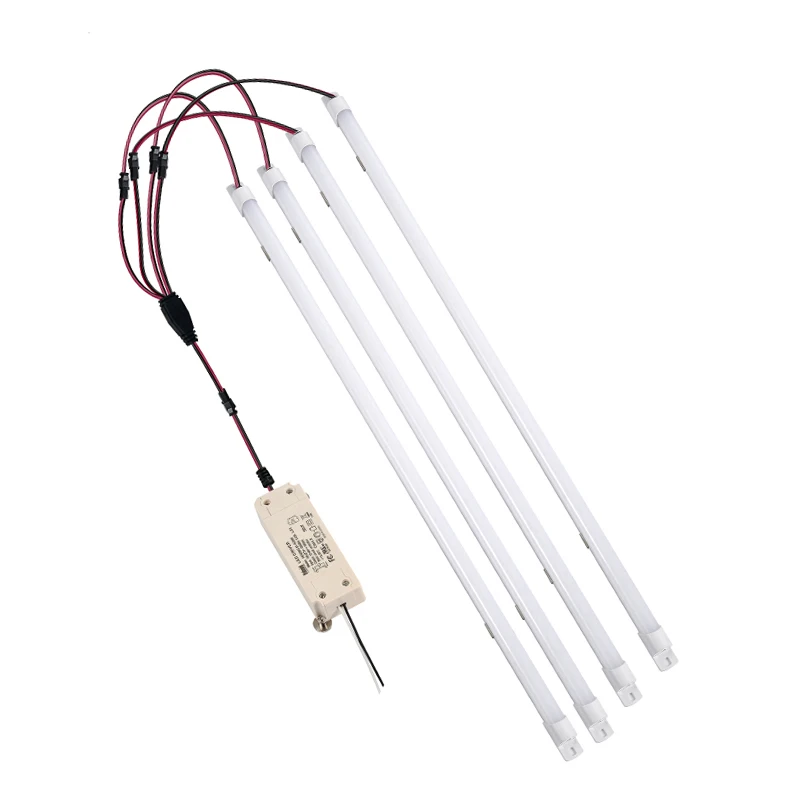

• One driver 1-4 strips are optional
Application of Magnetic LED strip retrofit kit
Magnetic LED troffer retrofit strip installations:
Our Company:
Our shipment
1. By Express: such as DHL, UPS, TNT, FEDEX etc. The dispatch time is about 3-5 days.
2. Air Freight: when your order more than 100kgs which will be more economical than express. 3. Sea Freight: we will update sea freight once we know your sea port where goods will be delivered. 4. Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items.
Packing Information
Why choose us ?
1. ARK lighting focus on LED troffer retrofit kit, led linear high bay, led tube,a professional manufacturer,
Since 2007.
2. Our main customers:Hong Kong metro, General Electric, Siemens.
3. Products are with DLC, VDE, TUV, SAA certificates.
4. Two factories as wide as 21000 square meter, 250 workers, 40,0000 pcs per month capacity.
Our services
1, Excellent customer service,All inquiries will be response within 24 hours.
2, The Certifications we claimed could quiry by any time.
3, Oversea office provide technical support and 5 years warranty.
4, Products will get ready and shipping out on time.
5, Installation Instructions available upon request.
