Однофазный вольтметр-амперметр с панелью 96x96 мм
- Категория: Измерители мощности >>>
- Поставщик: Zhejiang,Fengdeng,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 11.97 $* | 11.90 $* |
| Jul-16-2025 | 9.47 $* | 9.7 $* |
| Jun-16-2025 | 11.73 $* | 11.29 $* |
| May-16-2025 | 11.50 $* | 11.31 $* |
| Apr-16-2025 | 9.7 $* | 9.30 $* |
| Mar-16-2025 | 11.22 $* | 11.87 $* |
| Feb-16-2025 | 11.34 $* | 11.34 $* |
| Jan-16-2025 | 11.63 $* | 11.98 $* |
Характеристики
digital power factor meter power meter COS meter electric meter multi-functions meter
Product Description
Function
- Measure : Single phase Voltage & Ampere & Wattage (V/ A/ W)
- A new generation of programmable intelligent instrument, measurement, alarm, transmitting, communication at an organic whole
- Suitable for replacing pointer meter
- Carries on the real-time measurement and display, overrun alarm output according to the set of measurements, to analog output of measured data, and through the RS - 485 communication interface with PC to realize networking, can be widely used in power monitoring, industrial automation, intelligent power distribution system and so on switchgear.
Feature
- True RMS measurement, high accuracy, can normally measure the distortion waveform
- Programmable ratio, voltage and current can be set freely
- Simple wiring scheme
- High input impedance of the signal input, the input impedance > 2 m Ω
- Perfect input and output protection function, high reliability.
- Modular structure design can facilitate the implementation of output functional configuration
- The product has a lifespan of more than 7 years
Model | Phase | Display | Panel(mm) | Measuring | RS-485 |
DS5210-UIP | 1 | LED | 96x96 | V A W | No |

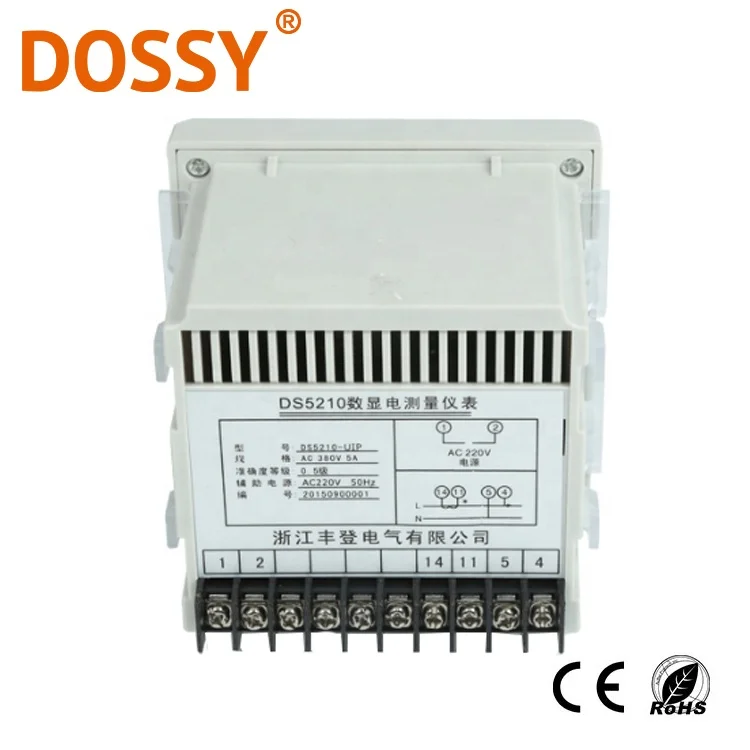

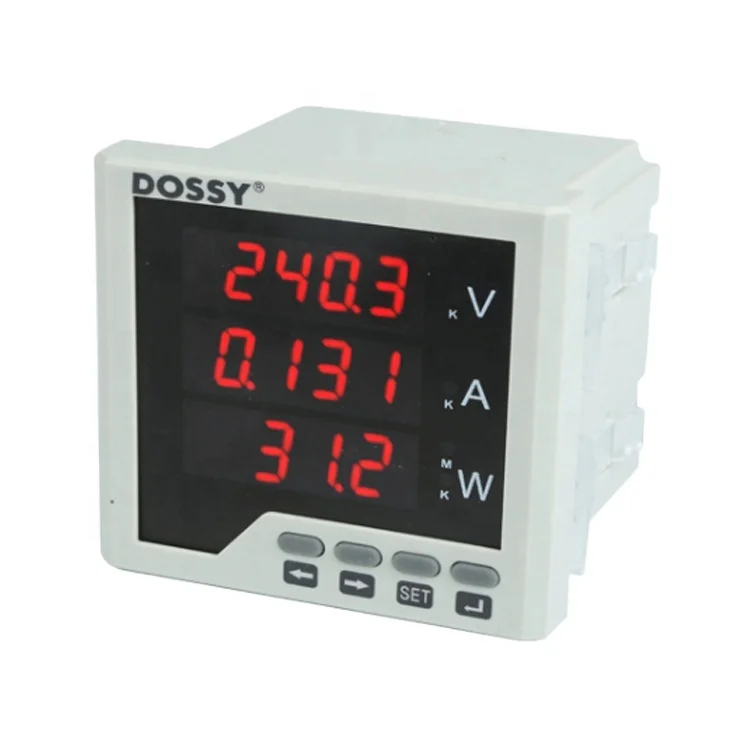

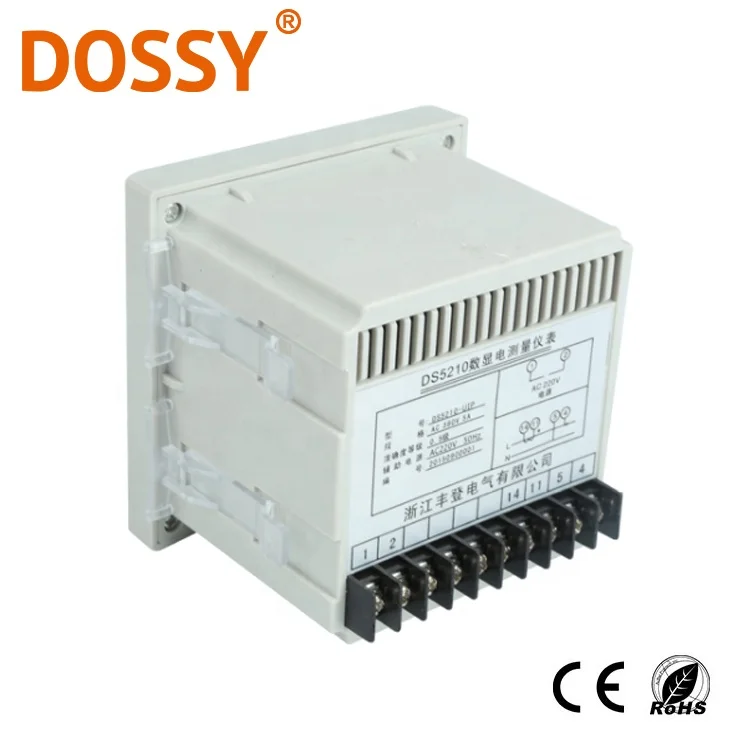

Product Display
Technical Parameters
Technical Parameter
Electrical feature | |||
Accuracy | 0.5 Class | ||
Data update | 3 times/ second | ||
Power supply | AC153-265V,50/60Hz | ||
Nominal input | AC Voltage | AC 57.7V,100V,220V,380V,500V | |
AC Current | AC 1A,5A,0-9999A | ||
Allowable Overload | Continue:1.2 times, Instantaneity:Voltage 2times/5s, Current10times/5sDisplay “HHHH”when exceed the rated value | ||
Measuring range
| Voltage | 10-600V AC | |
Current | Standard 0.05-5A , ≥5A need use Current transformer | ||
Wattage | 0.5-9999KW | ||
Phase | 1 Phase | ||
Display range | 0-9999KV(with transformer) | ||
| 0-9999KA(with X/5 CT) | ||
Display mode | 4 bit digital tube LED display, automatic decimal point shift | ||
Environment | |||
Temperature | Operation:-25~55°C,Storage:-25~50°C | ||
Humidity | ≤93%RH,Non-Dewfall ,Non corrosive gas | ||
Altitude | ≤2500m | ||
Safety Characteristics |
| ||
Insulation strength | Input and auxiliary power supply AC2.5kV,1min | ||
Insulation Resistance | >100MΩ | ||
Heat resistance and flame retardant | Terminal:960°C,Case:650°C,actuation duration:30s | ||
Electromagnetic Compatibility | |||
Electrostatic discharge immunity | 4 Grade(GB/T17626.2) | ||
Electrical fast transient pulse group immunity | 2 Grade(GB/T17626.4) | ||
Surge (impact) immunity | 4 Grade(GB/T17626.5) | ||
Model Selection
Model | Phase | Display | Panel(mm) | Measuring | RS-485 |
DS5210-3I | 3 | LED | 96x96 | Current (AAA) | No |
DS5210-3U | 3 | LED | 96x96 | Voltage(VVV) | No |
DS5210-UIP | 1 | LED | 96x96 | Voltage & Current & Wattage (V/ A/ W) | No |
DS5210-UIF | 1 | LED | 96x96 | Voltage & Current &Frequency (V/ A/ Hz) | No |
Related Products
Company Information
FAQ
Q1: Are you a factory or trading company ?
A1: Yes,We are the factory which have 15 years manufacture history.
Q2: How to choose Meter?
A2: To choose a Digital Meter , you should consider the points below:
a. Mounted type ( Panel type or Din-rail type)
b. Panel Size c. Phase ( Single phase or Three phase ?)
d. Measuring function ( Voltage/ Current /Frequency / Wattage/ Energy and so on)
Q3: How long is the warranty?
A3: We Guarantee 1 years warranty.
Q4: Can you tell me the normal Digital Panel Meter?
A4: Accoring to the panle size :
96x96mm, 80x80mm, 72x72mm, 48x48mm, 96x48mm.
According to the Function:
Ampere Meter,Voltage Meter, Frequency Meter, Wattage Meter, Ampere&Voltage&Frequency Meter, Ampere&Volateg&Wattage meter
Q5:Can you tell me the normal Din-rail type Digital Ampere & Voltage Meter
A5: Suitable for 35mm Din-rail
According to Function: Voltage Meter, Frequency Meter, Wattage Meter, Ampere & Frequency meter, Voltage & Frequency Meter
Q6: What is the delivery time?
A6: Sample lead time:3-5 days
Mass production Delivery lead time: 1 -3 weeks(Depend on the quantity)
