Характеристики

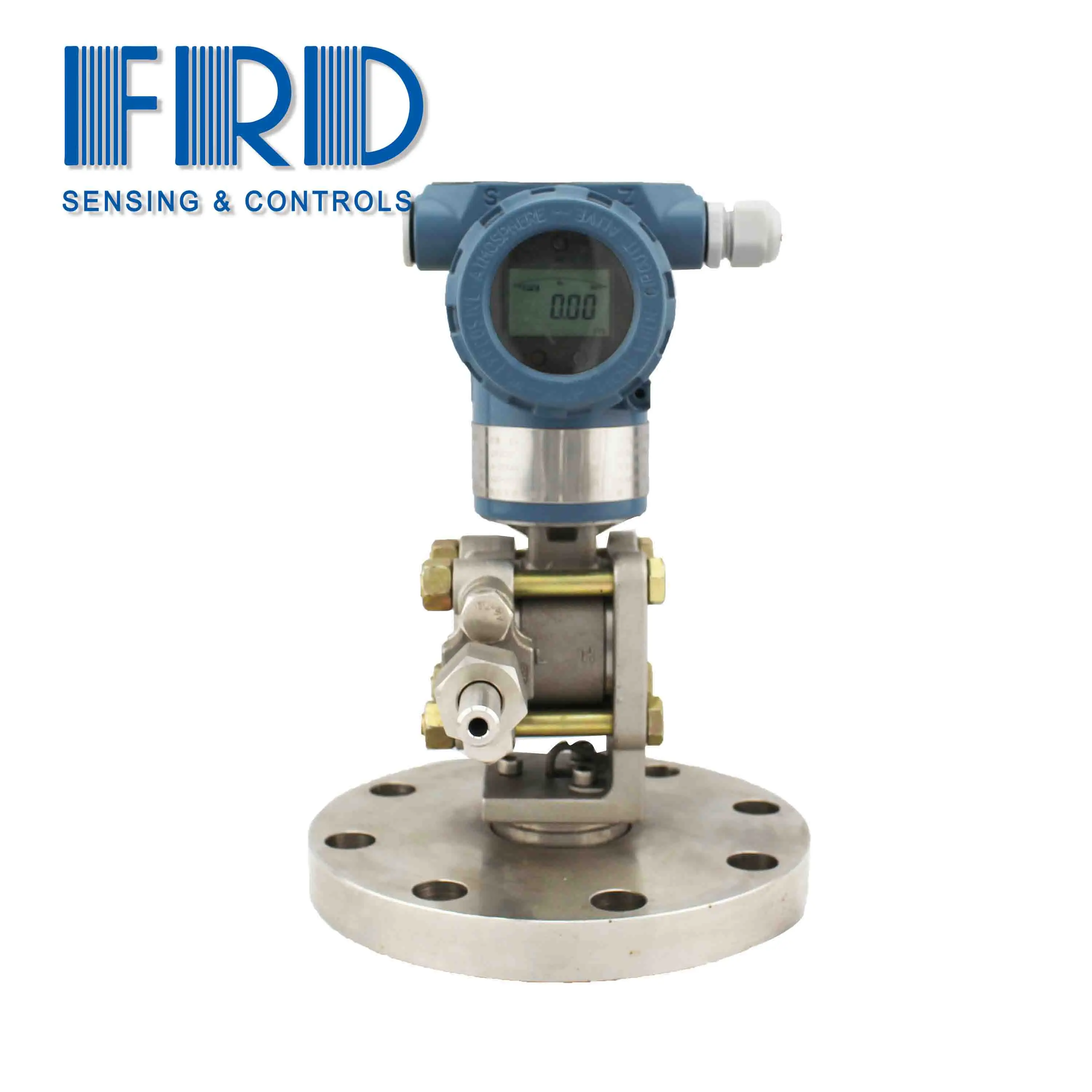

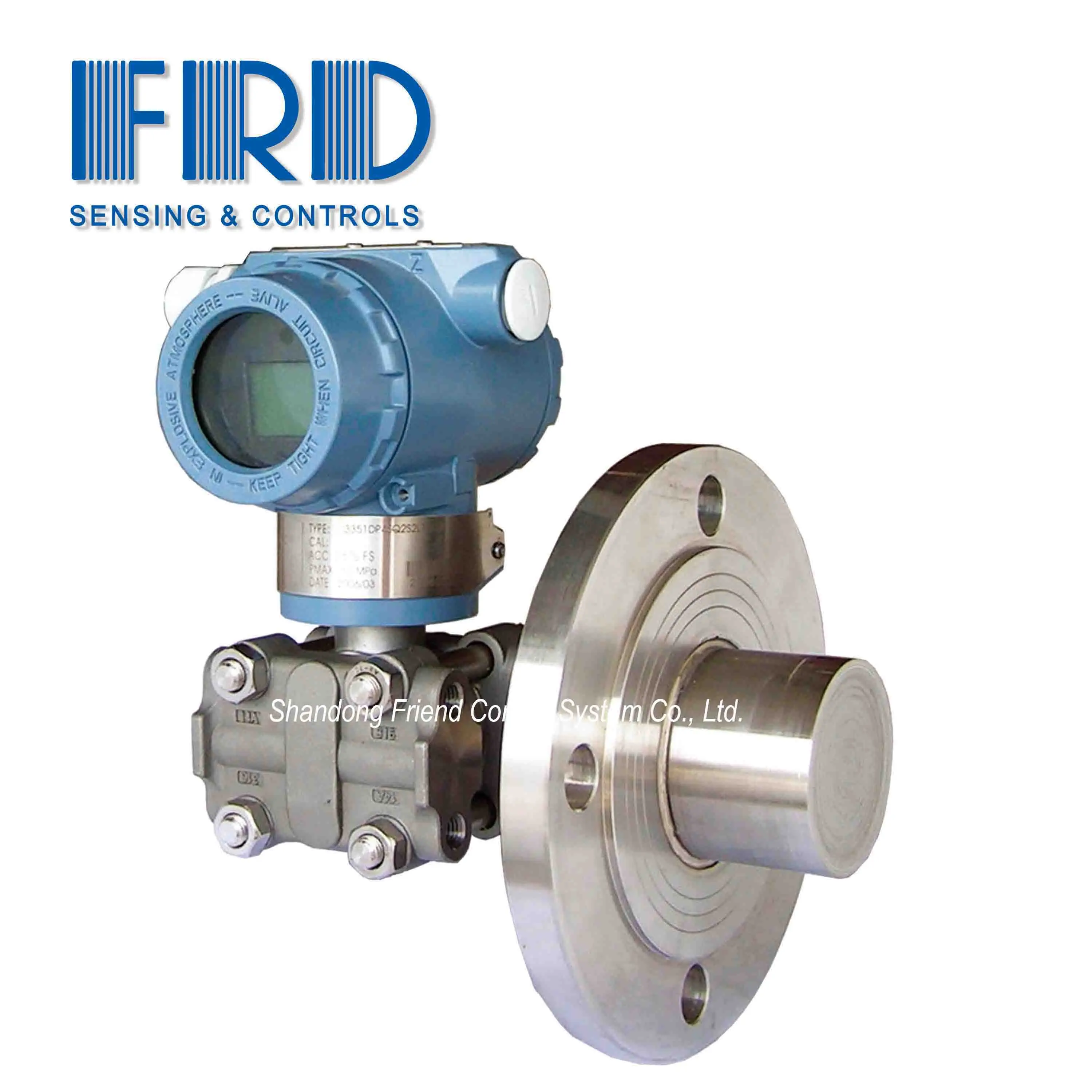

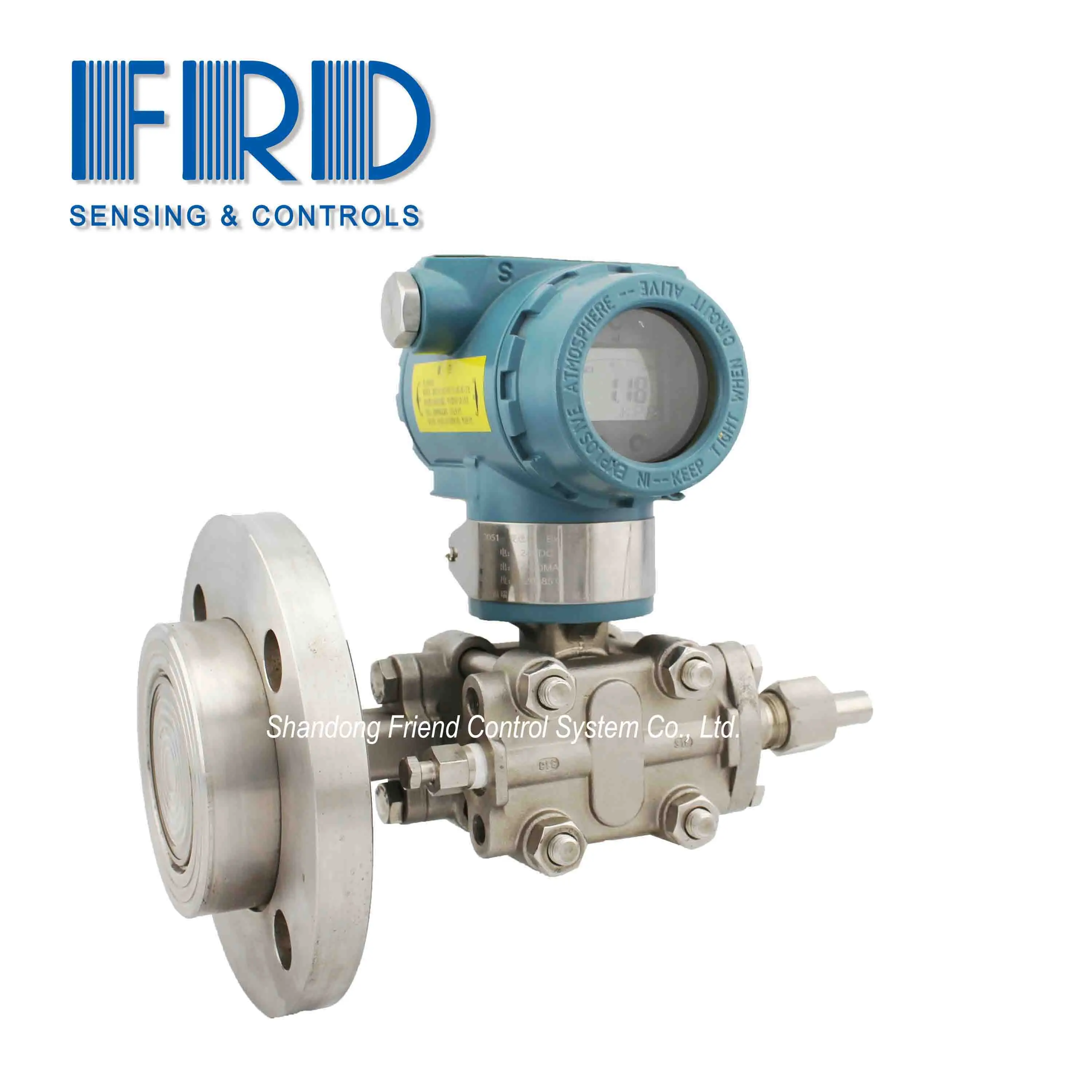

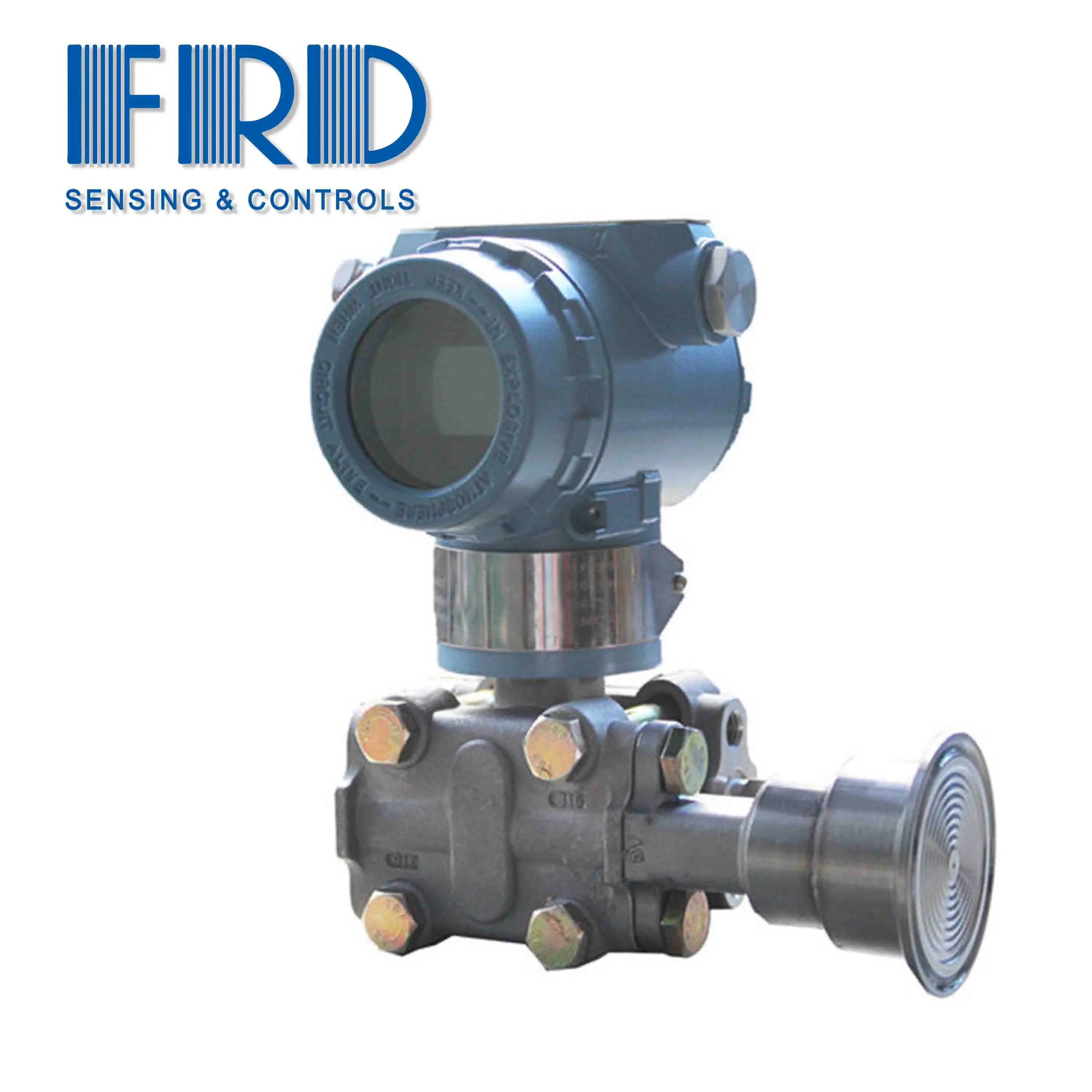

FD 3051 LT Intelligent Capacitive Differential Pressure Transmitter

Direct,Side,flush, plug-in Installation type optional

FD3051 LT 1.jpgFD3051 LT 2.jpg



Product Description



Intelligent Pressure Transmitter Description

The differential pressure level transmitter FD3051LT is suitable to measure liquid, gas, or steam flow as well as liquid level, density and pressure. FD3051LT outputs a 4~20mADC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications.



Product Feature
Zero automatic adjustment
Direct,Side,flush type, plug-in Installation optional
Software compensation, fault self diagnosis
Fieldbus, HART protocol communication
No pressure is introduced when the range is changed



Technical Parameters



ModelFD3051 LT
Measuring Range0~0.06Bar...0.4Bar..2Bar....40Bar(optional).
Pressure TypeGauge pressure,Negative pressure
Isolating DiaphragmSS316L,Hastelloy,Tantalum
Turn down ration40:1
Output signalTwo Wire 4~20mADC, 4~20mADC with HART
Temperature DriftZero Drift:0.5%FS/50ºC     Span Drift:0.7%FS/50ºC
Power Supply9-45V DC,24V DC
Accuracy0.25%,0.5%
Stability±0.1%×Span /3 years
Power Supply Effects±0.001% /10V (12~36V DC)
Medium Temperature Limits-40 to 300°C
Ambient Temperature Limits-40 to 85°C
Storage Temperature -40°C to 100°C
Electromagnetic CompatibilitySee EMC Performance Table
Explosion ProtectionNEPSI : Ex dIIC T6, Ex iaIIC T4
ConfigurationDigital communication or local key adjustment.
Electrical ConnectionM20x1.5,1/2''NPT Cable entry
Process ConnectionDirect,Side,flush, plug-in Installation type optional Flange
DisplayLCD,OLED Display
Housing MaterialAluminum with Epoxy Resin Coat
Process Material316/304 Stainless Steel
Fill fluidSilicone oil/Fluorinated oil
Protection LevelIP67
Name Plate and Tag:304 stainless steel



Products Details

FD3051LT  222.jpg



Dimensions and Electrical Connection

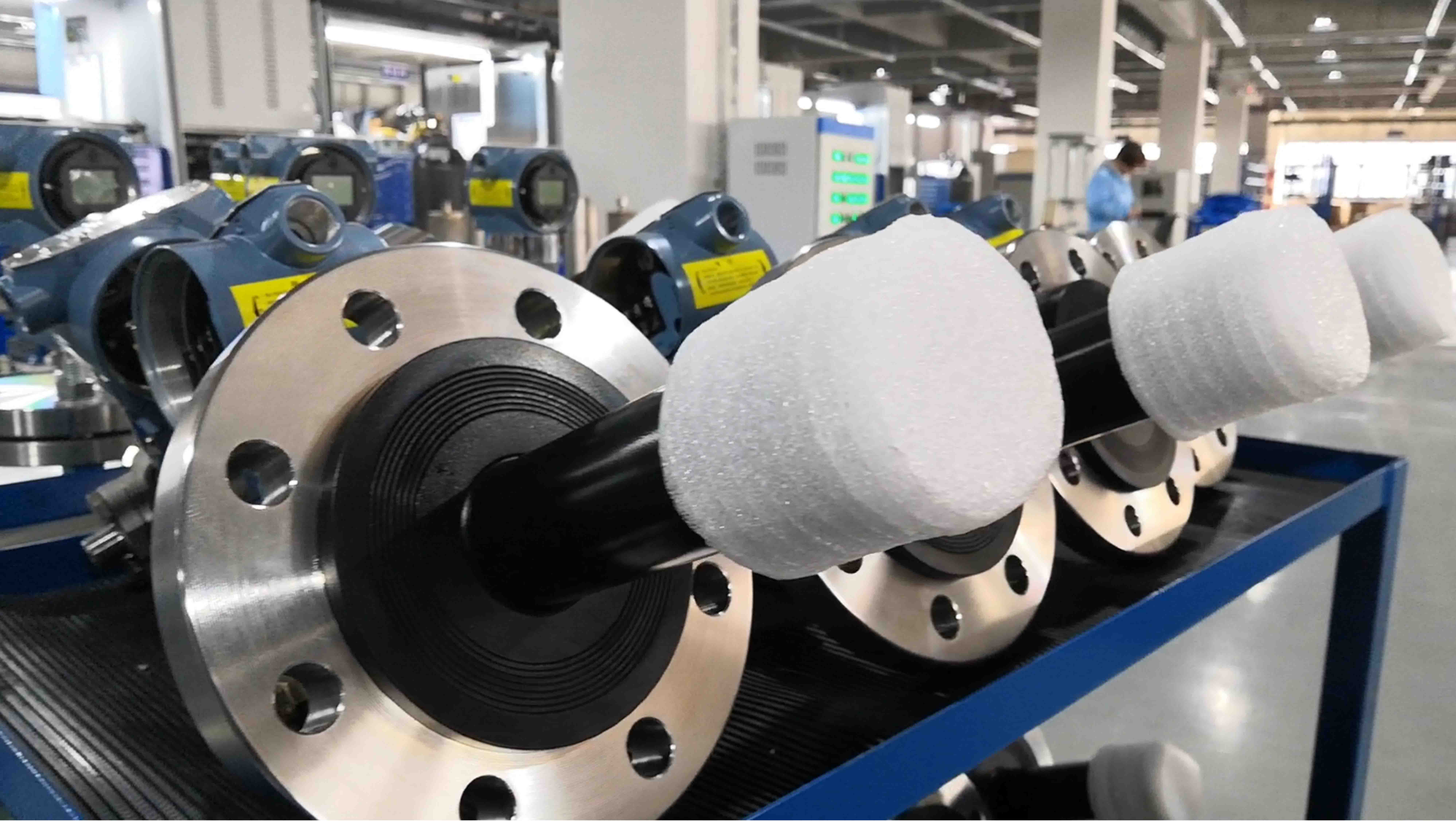

 Packaging & Shipping
