Характеристики
6Low frequency 3 Phase Power Supply 30kva 45 kva online 60kva 80 kva UPS 100 kva
Product Description
1. Online double-conversion
2. DSP technology guarantees high reliability
3. True galvanic isolation transformer design
4. Control designed to withstand all kinds of loads
5. Intelligent battery management to prolong battery lifecycle
6. Redundant fan design and independent ventilation enhance durable operation under harsh environment
7. Adjustable battery numbers
8. Accept dual-mains input
9. Parallel operation with up to 4 units (option)
10. Variety of communication options available
11. Optional 7" touch LCD
2. DSP technology guarantees high reliability
3. True galvanic isolation transformer design
4. Control designed to withstand all kinds of loads
5. Intelligent battery management to prolong battery lifecycle
6. Redundant fan design and independent ventilation enhance durable operation under harsh environment
7. Adjustable battery numbers
8. Accept dual-mains input
9. Parallel operation with up to 4 units (option)
10. Variety of communication options available
11. Optional 7" touch LCD
| Model | GL33 10K | GL33 15K | GL33 20K | GL33 30K | GL33 40K | GL33 60K | GL33 80K | GL33 100K | GL33 120K | |
| CAPACITY | 8 KW | 12 KW | 16 KW | 24 KW | 32 KW | 48 KW | 64 KW | 80 KW | 96 KW | |
| INPUT | ||||||||||
Nominal Voltage | 3 x 380VAC/400VAC (3Ph + N) | |||||||||
Acceptable Voltage Range | 305VAC ~ 460VAC | |||||||||
| Frequency | 50/60 Hz ± 10 % | |||||||||
| INVERTER | ||||||||||
Nominal Voltage | 3 x 380VAC/400VAC (3Ph + N) | |||||||||
| Precision | Stationary: ±1% ; Transitory: ±5% (load variations 100-0-100%) | |||||||||
| Frequency | 50/60 Hz synchronised ±1 % With mains absent ±0.1 Hz | |||||||||
Max. Synchronisation Speed | ±1 Hz/s | |||||||||
| Waveform | Pure Sinewave | |||||||||
Total Harmonic Distortion (THDv) | < 2% (Linear Load) ; < 5% (Non-linear Load) | |||||||||
Phase Displacement | 120º ±1% (balanced load) ; 120º ±2% (imbalances 50% of the load) | |||||||||
Dynamic Recovery Time | 3 cycles at 98 % of the static value | |||||||||
Admissible Overload | 110% for 10min; 150% for 60sec ; >160% for 200ms | |||||||||
Admissible Crest Factor | 3:1 | |||||||||
Admissible Power Factor | 0.6~1 (inductive or capacitive) | |||||||||
| Imbalance Output Voltage @ 100% Unbalanced Load | <1% | |||||||||
Current Limit | High overload, short-circuit: RMS Voltage Limit ; High Crest-Factor current: Peak Voltage Limit | |||||||||
STATIC BYPASS | ||||||||||
| Type | Solid state | |||||||||
| Voltage | 3 x 380VAC/400VAC (3Ph + N) | |||||||||
| Frequency | 50/60 Hz | |||||||||
Activation Criterion | Microprocessor control | |||||||||
Transfer Time | Zero | |||||||||
Admissible Overload | 150% for 1 hour; 180% for 30sec; >200% for 200ms | |||||||||
Transfer to Bypass | Immediate, for overloads above 160% | |||||||||
| Retransfer | Automatic after alarm clear | |||||||||
MAINTENANCE BYPASS | ||||||||||
| Type | Without interruption | |||||||||
| Voltage | 3 x 400V (3Ph + N) | |||||||||
| Frequency | 50/60 Hz | |||||||||
| Overall Efficiency (Line mode) | Line Mode | 90% | 91% | 92% | 93% | |||||
| Battery Mode | 90% | 91% | 93% | 93% | ||||||
BATTERY & CHARGER | ||||||||||
Battery Type and Numbers | 12VDC x 32 pcs (29~32 pcs adjustable) | |||||||||
Nominal Battery Voltage | 384 VDC (Based on 32pcs batteries) | |||||||||
Charging Method | CC/CV | |||||||||
Charging Current | Default 10A, Max. = Capacity / Battery Voltage | Default: 10A. Max. 40A | ||||||||
Charging Voltage | 432 VDC (Based on 32pcs batteries) | |||||||||
| PHYSICAL | ||||||||||
| Dimension D x W x H (mm) | 656 x 405 x 817 | 656 x 405 x 941 | 821 x 432 x 1159 | 975 x 554 x 1286 | 975 x 635 x1326 | |||||
| Net Weight (kgs) | 118 | 120 | 179 | 241 | 278 | 400 | 471 | 573 | 650 | |
Our Services
1. OEM&ODM services acceptable.
2. 1% pcb board provided .
3. Lots of cooperated agent for shipping by sea or by air.
4. 1year warrenty , if it is quality problem , we will provide the parts for free .
Little hint:
1.In the warranty period the machine has a problem, please contact the sales staff, we will be responsible for customer service.
2.Exceed the warranty period, improper operation and man-made damage, we will still give help and support,We will provide spare parts at a cost price.
3.According to the customer's needs, we can provide unconventional, but the cost may be slightly higher than the traditional machine.

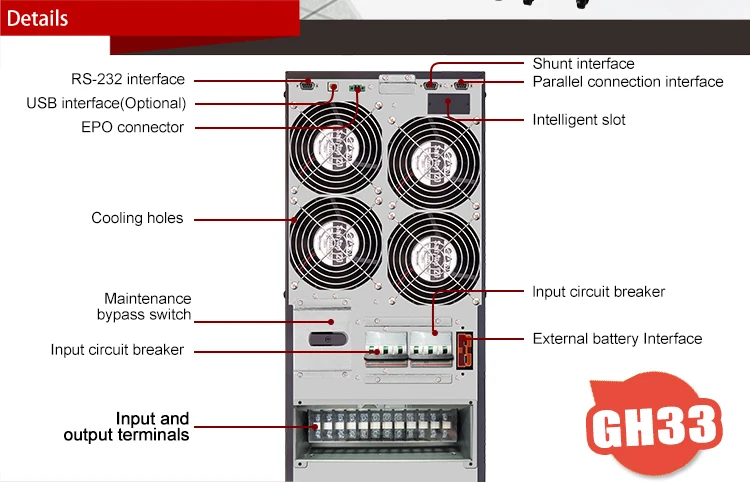

Detailed Images
