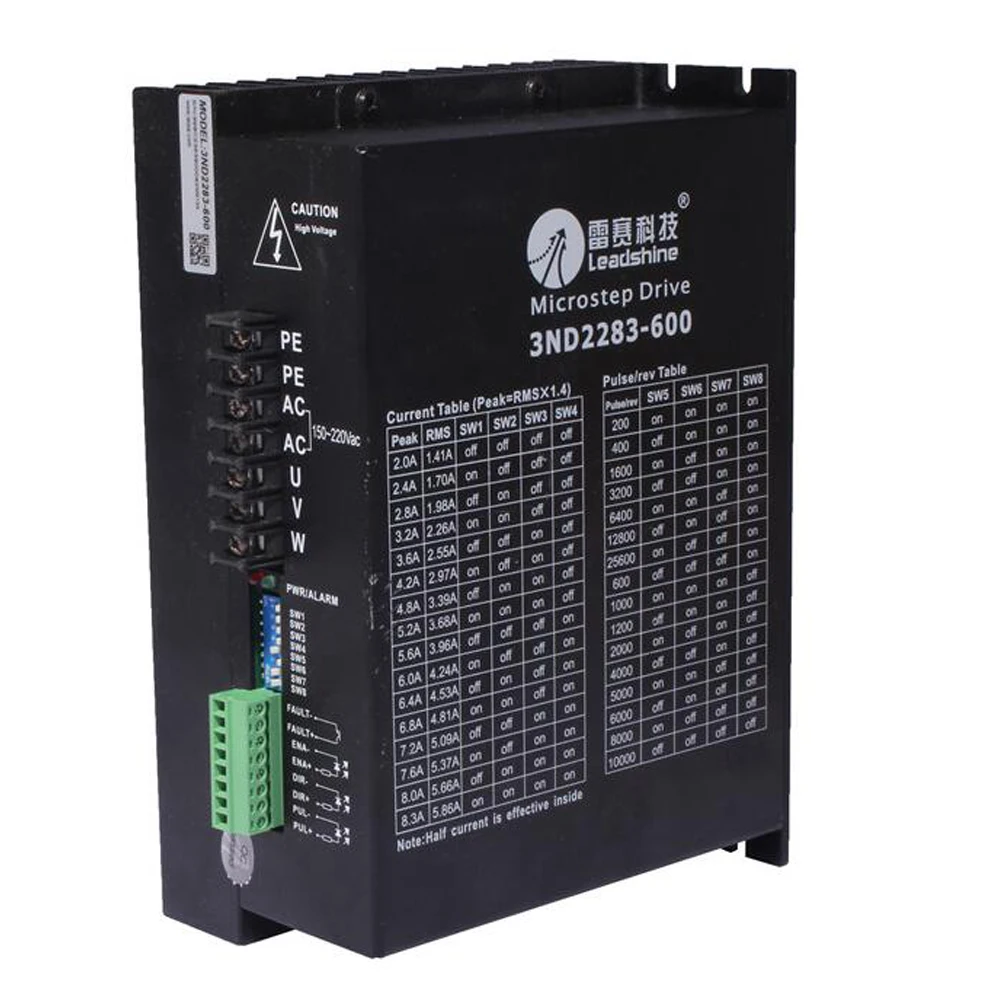

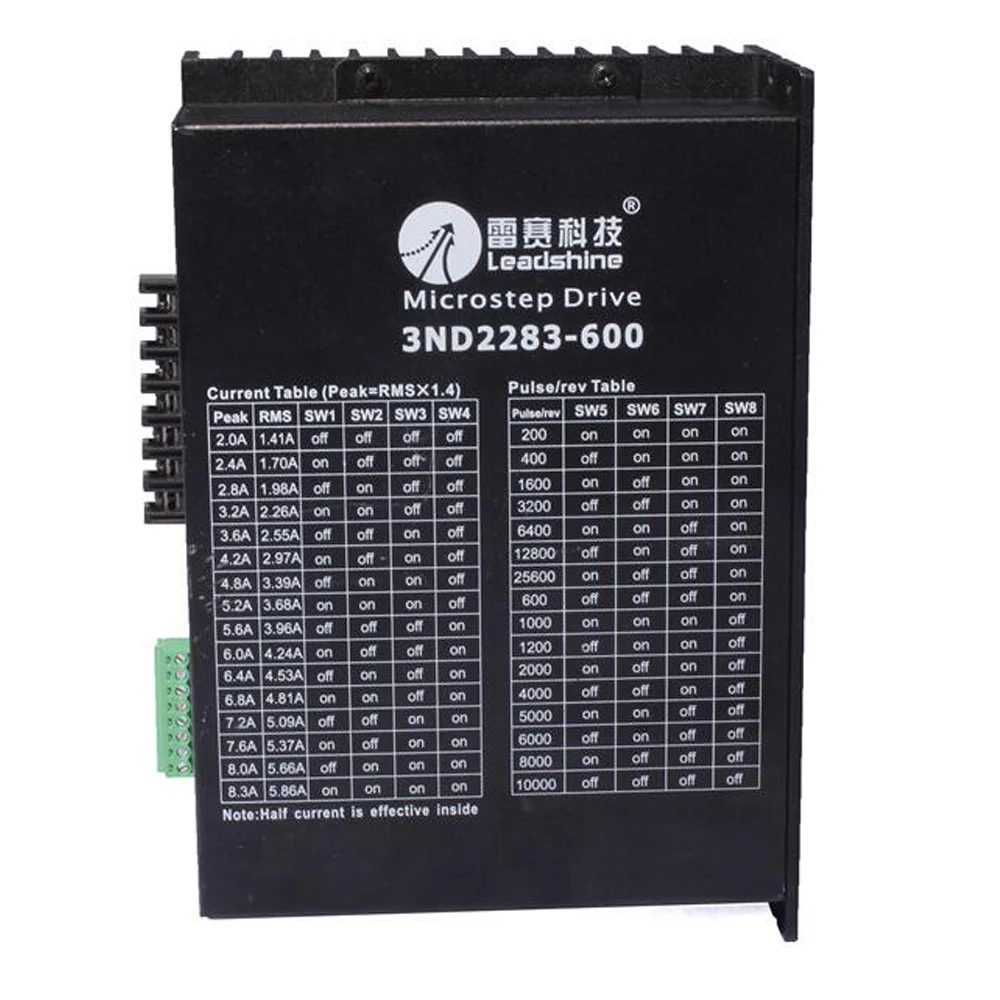

Leadshine 3ND2283-600 3 фазы Драйвер шагового

      3ND2283 is the latest launch of a company with precision current control technology designed high-segment stepper motor driver, suitable for driving the various brands of 86-110 three-phase hybrid stepper motor. As a result of the use of advanced anti-noise control method, can significantly reduce the motor running noise and vibration, making the stepper motor running noise and smoothness close to the level of servo motor. Compared to most other subdivided drives on the market, the calorimetry of stepper motors and drives drops by 15-30%.

*High performance, low price, low noise, high speed torque
* AC servo drive principle, with AC servo operation characteristics, three-phase sinusoidal current output
* Supply voltage up to 150-220VAC
* Output current peak up to 8.2A (mean 5.8A)
* Segmentation accuracy up to 16 files optional
* Can drive 3, 6-wire three-phase stepper motor
* With overvoltage, undervoltage, short circuit, overheating and other protection functions
* Optical isolation differential signal input, impulse response frequency up to 250KHz
* With single / double pulse function, fault signal output function
* Has energy consumption braking function
