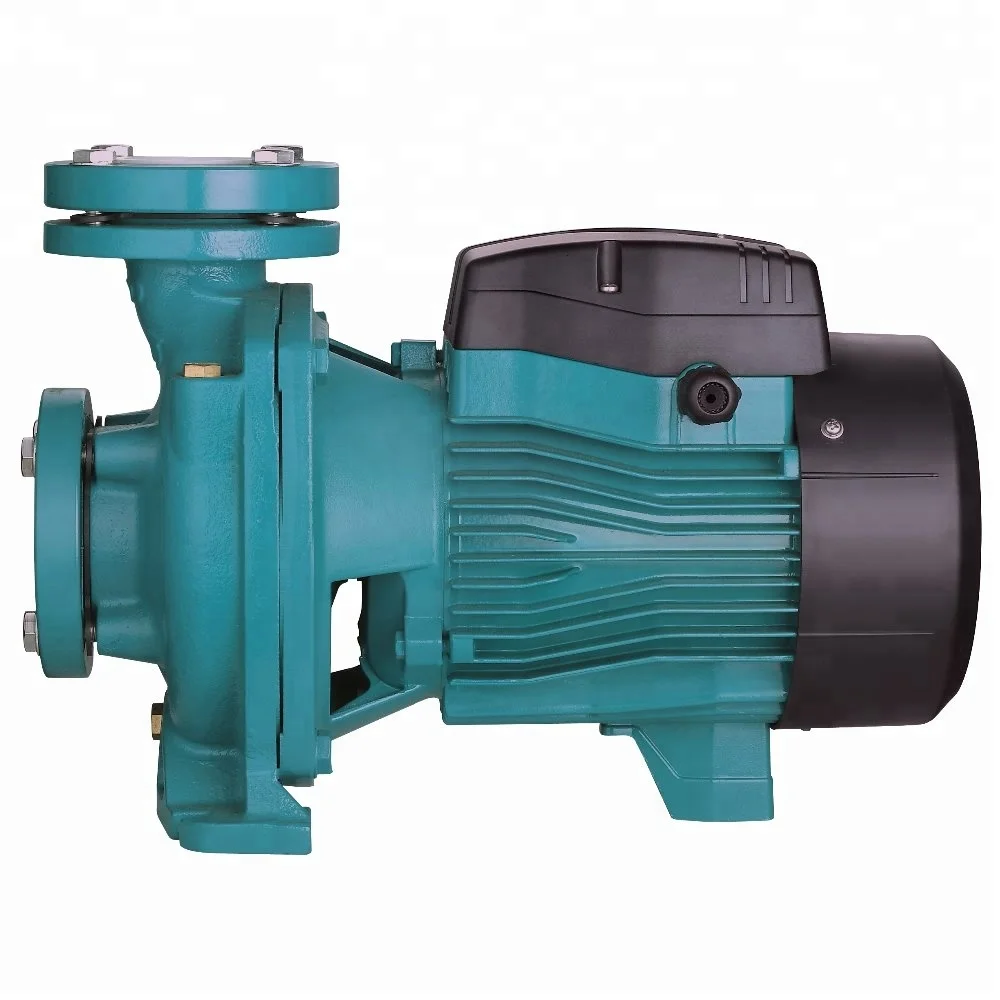

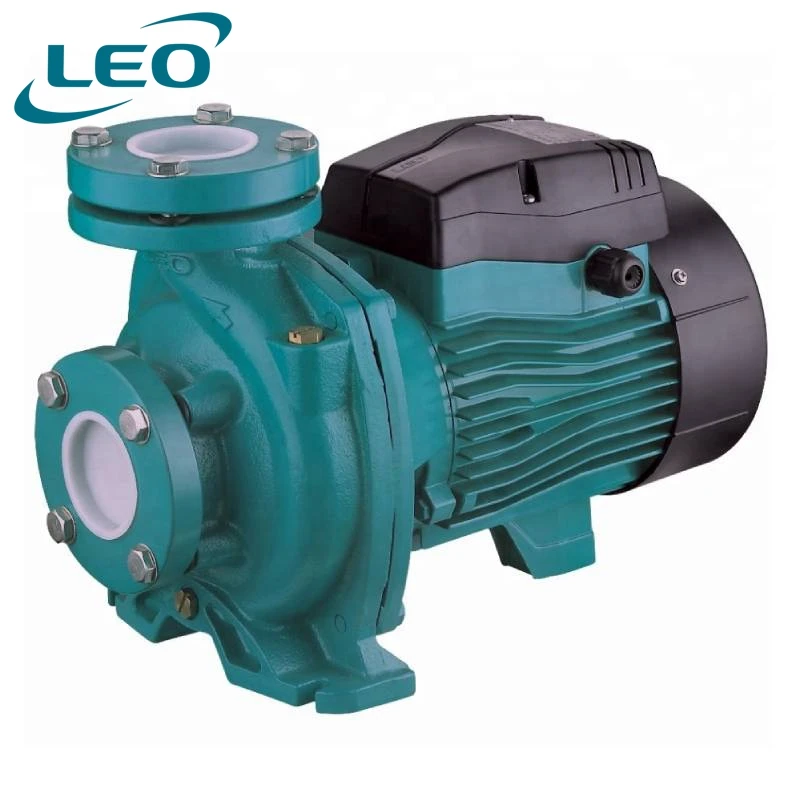

LEO ACm-BF Series 2&3&4 Inches Cast mechanical seal Iron Centrifugal Water Pump 1.1kw 1.5kw 2.2kw

Applications:

1. Transfer clean water or other liquids similar to water in physical and chemical properties
2. Suitable for Industrial use and urban water supply ,Pressure boosting for high buidings and fire fighting,garden irrigation,long-distance transfer,heating ventilation and air controlling, circulation and pressure boosting for cold and hot water
And supporting equipment etc.

Identification Codes:

 Motor:

 1. Buit-in thermal protector for

     single phase motor(≤1.5KW)

 2. IE 2 motor

   (Three phase, power ≥ 0.75KW)

 3. Max. Ambient temperature:+40℃
 4. Protection class:IPX4
 5. Insulation class:F
 6. Copper winding
 7. C&U bearing

1. Cast iron pump body and support
under special anti-rust treatment

2. Max. Liquid temperature:+60℃
3. AISI 304 shaft
4. Max. Suction:+8m

To Know Leo

      LEO Group (got listed in Shenzhen Stock Exchange with stock code 002131) is a national high-tech enterprise engaged in R&D, design, manufacture, sales and service of all series pumps and systems. LEO is the first listed company in Chinese pump industry, one of the drafters of pump industry standard and the vice president of drainage and irrigation machinery branch of China Agricultural machinery industry association as well. "LEO" has been identified as "China Famous Brand" by the State Administration of Industry and Commerce. It is mentionable that LEO has the only stateauthorized technical center in pump industry.

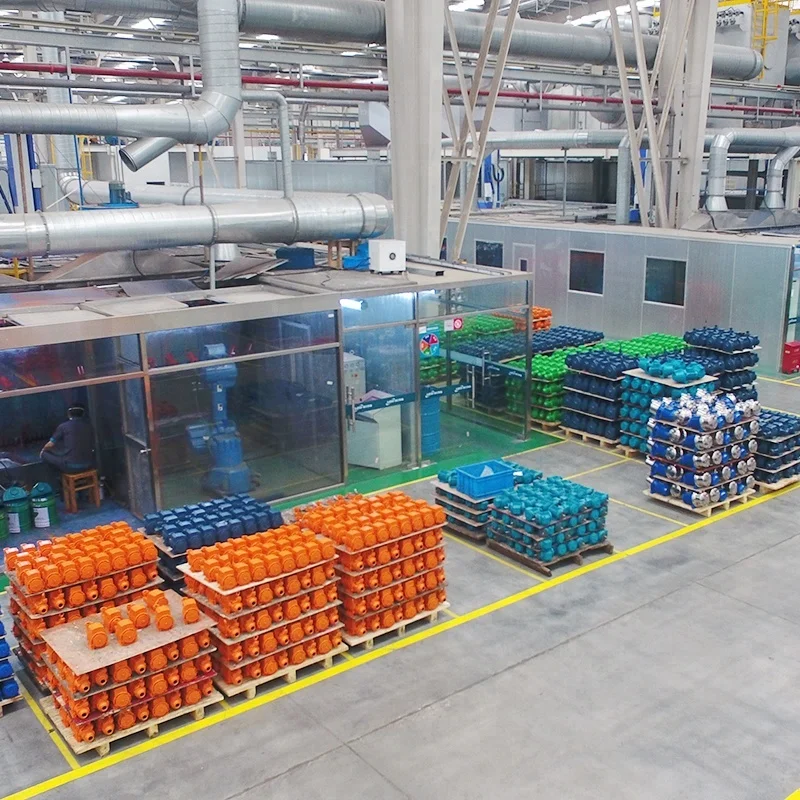

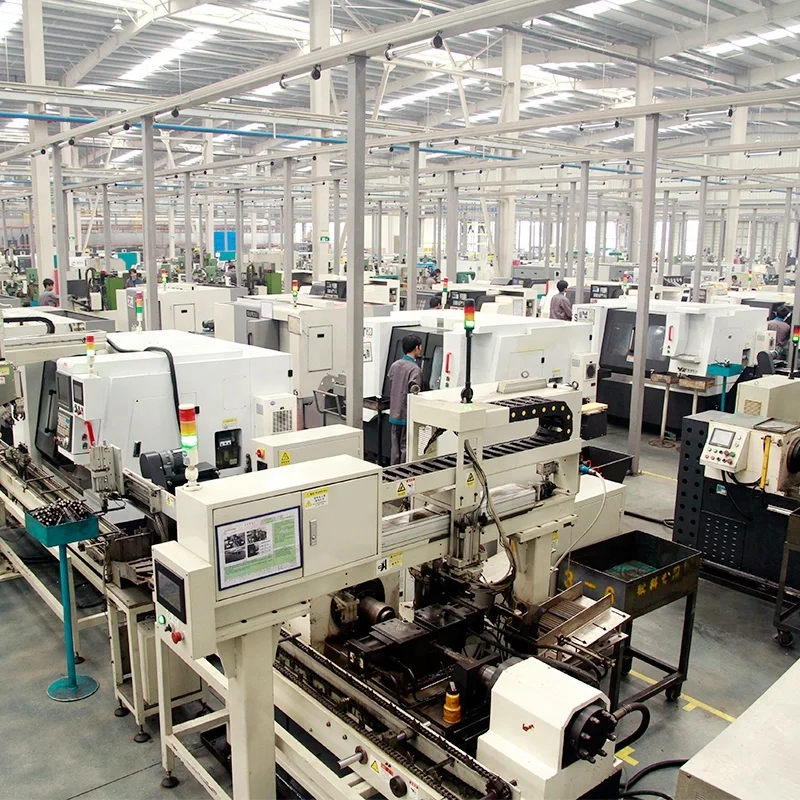

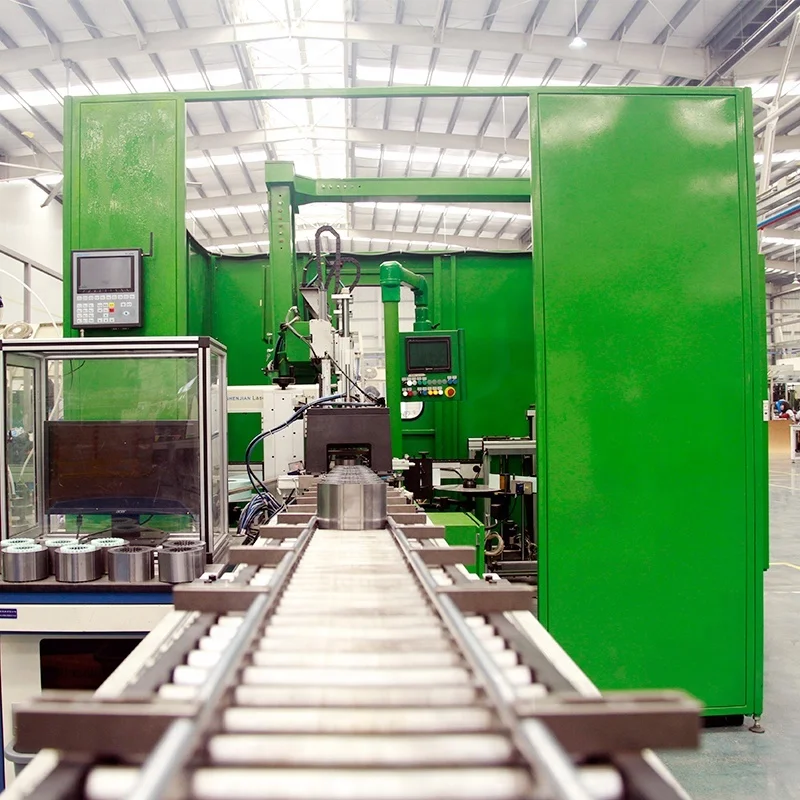

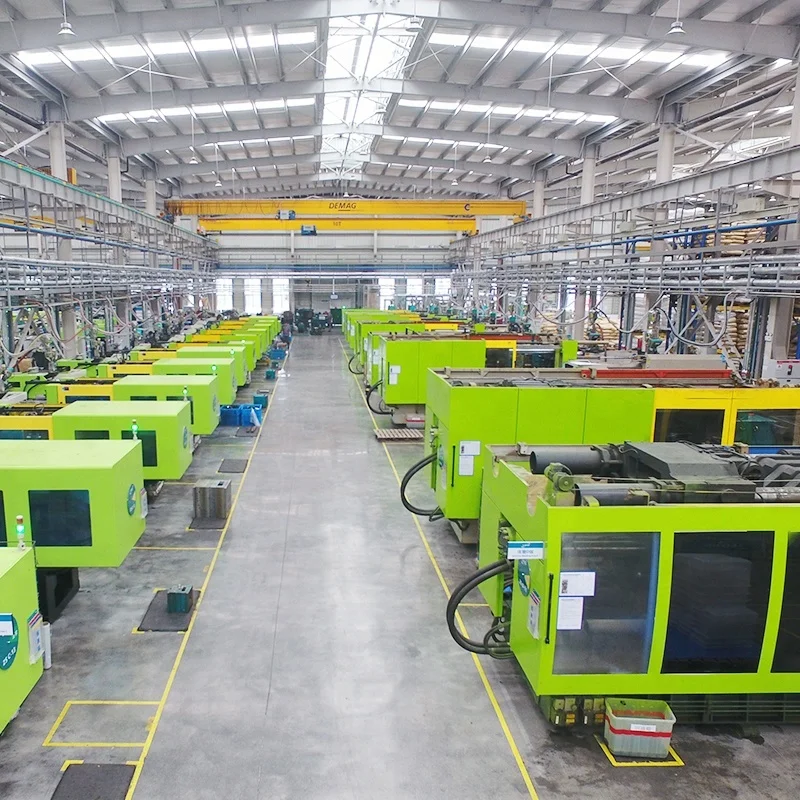

     LEO has currently two industrial groups respectively for industrial and civilian applications. With four manufacturing bases in Wengling of Zhejiang, Xiangtan of Hunan, Wuxi of Jiangsu and Dalian of Liaoning, LEO possesses a solid foundation to become a world-class pump and system solution provider rapidly.

     With over 70 years' professional technology, LEO will continue her consistent creativity and development ability in each pump for human's health.
