Hord мини Тип Цифровой дисплей LED Сигналы индикатора света с измеритель напряжения переменного тока





1. Model:

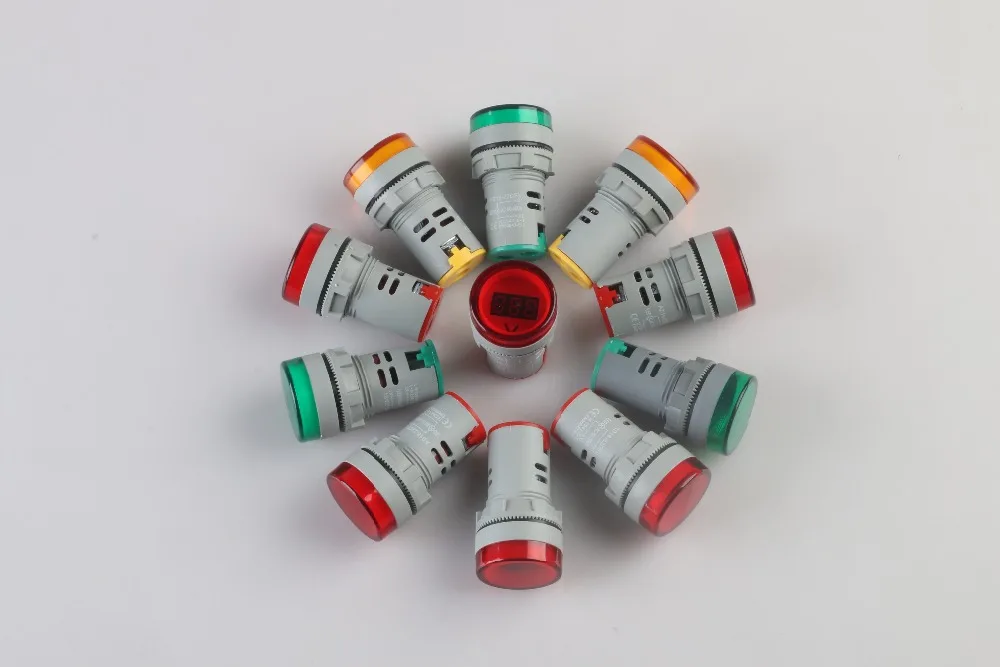

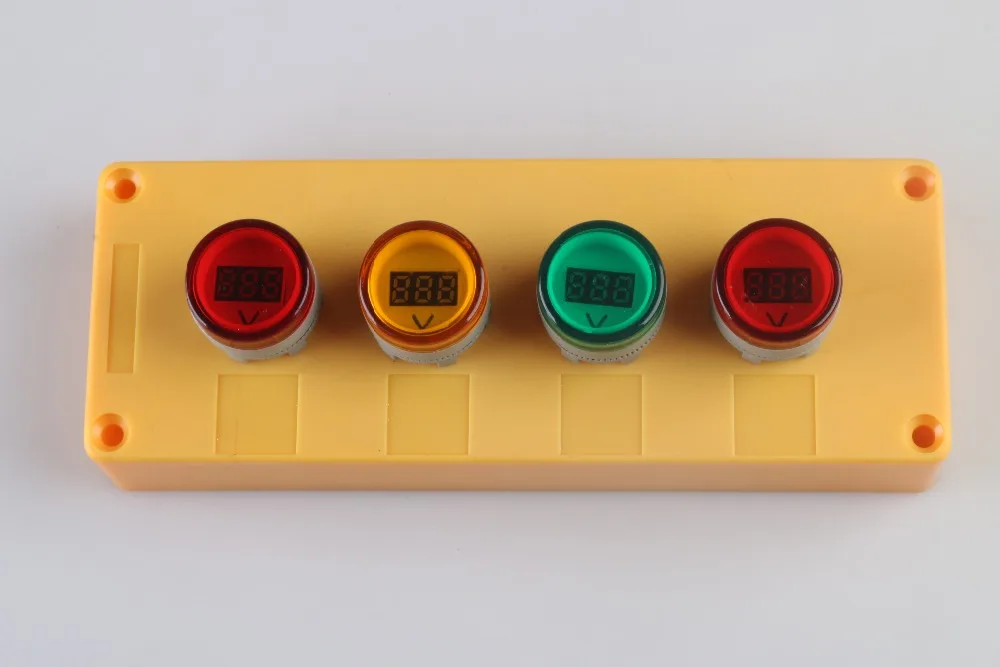

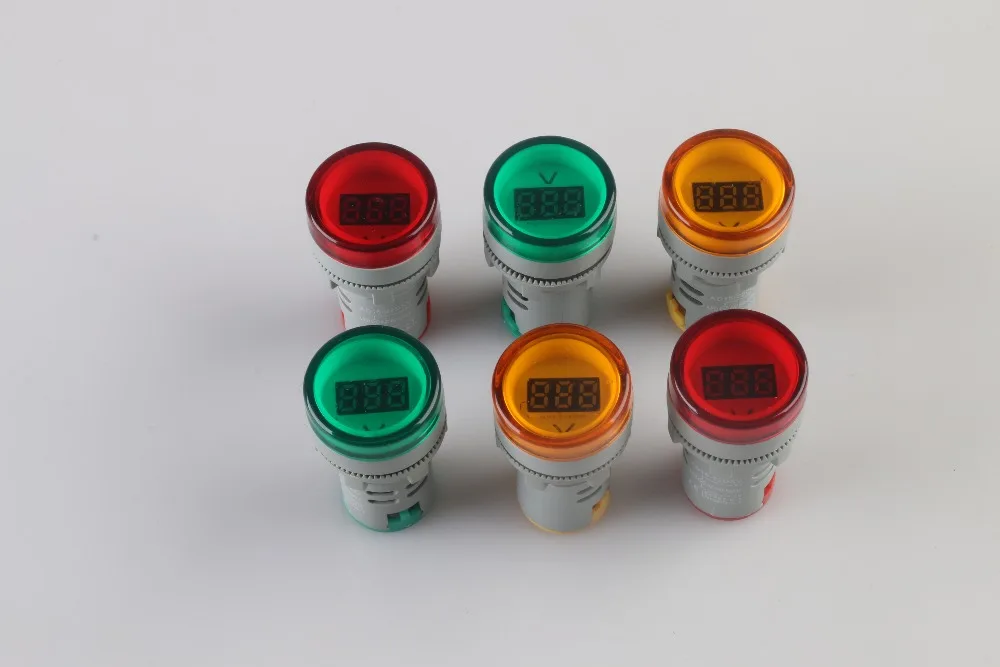

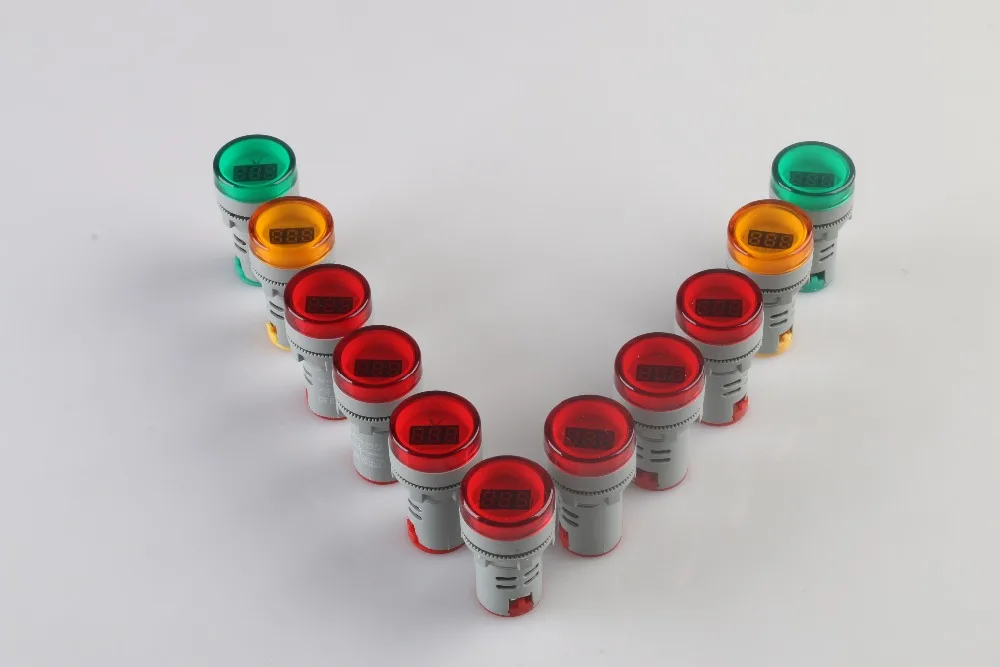

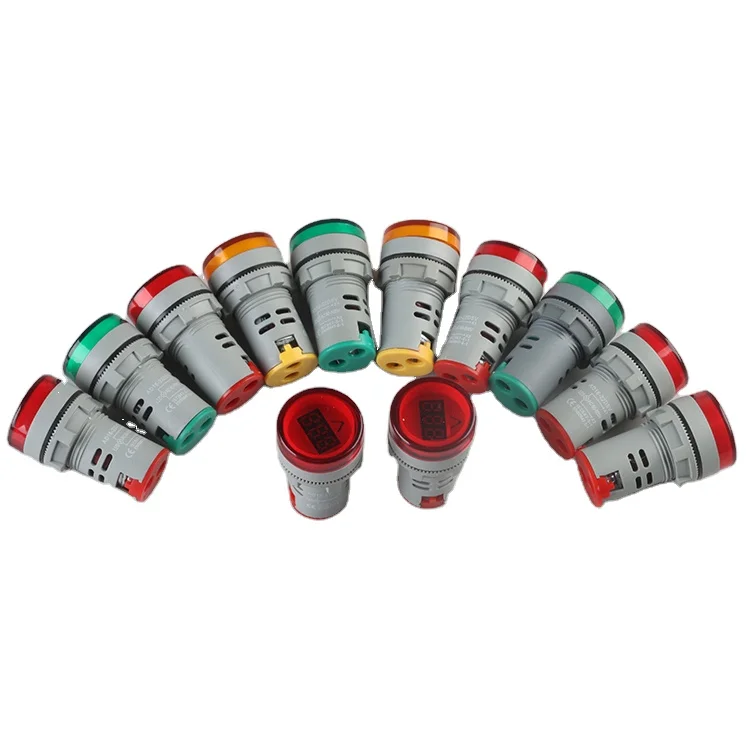

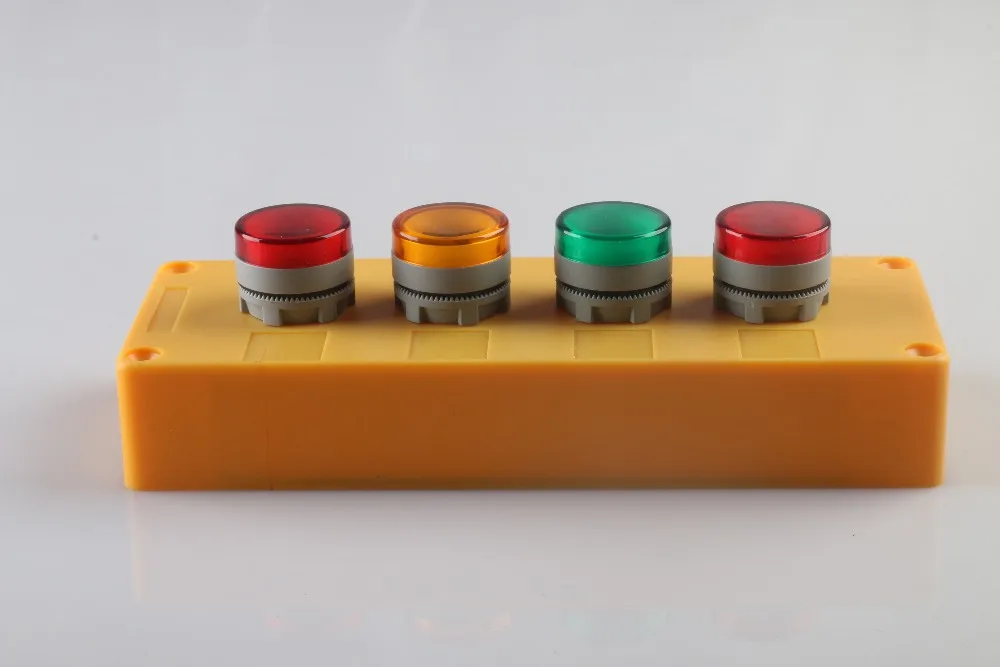

AD16-22DSV Mini digital Ac voltmeter.



2. Features:
Lens Material: Palstic;
Lighting Source:  LCD;
Color of indicator head: R-red, Y-yellow, B-blue, G-green, O-orange, W-white;
Volt.: 50V--600V;
Nature of supply: AC ;
Rated Temp : T90;
Life of continuous working: Typically over 30,000 hours. The end of life for a digitron is not usually a sudden failure;
Certification: ISO9001,  CE, EMC, CQC, CCC,ROHS;
Reasonable price and efficient services.



3. Main technical parameters
Environmental Temperature: -25+55;
Working under vibration frequency 2-80Hz,acceleration at 0.7g;
Relative Air Humidity: ≤98%;
Pollution rank is three grade and installation category is III;
Protection Degree: Head IP65(OEM could be IP67);
Voltage of working frequency: 2.5kV (AC valid value), 1min;
Leakage Index: CT1≥100;
Frequency: AC 50-60Hz



Type	Mini digital voltmeter
Input Voltage	10-600V
Color	Red, Orange, Blue, Green ,White
Diameter	22mm
Life	≥30,000h
Brightness	≥60cd/Square Meters
Lamp Body Material	Plastic
Beam Angle	360°
Colors	red /green /yellow /white
Certifications	Certifications ISO9001, CE, CQC, ROHS, etc.
