              perforated   Noise barrier/ soundproof wall/ soundproof fence

perforated   Noise barrier/  soundproof wall Introduction

perforated   Noise barrier is also called sound bar rier, soundproof wall due to its great noise absorption property. It is generally made of high density metal sheet resisting over 30db noise through punching, and has louver hole, micro hole, etc.

perforated   Noise barrier/  soundproof wall Specifications

Panel type:	shutter type, punching type,transparent .
Material:	outer: aluminium or galvanized sheet  inner: glass fiber/rock wool
Colors:	clear, blue, green, opal, brown,bronze,etc.
Metal plate thickness:	0.5-1.2mm
Noise barrier components:	Inner side +Interlayer+outer side +Post+accessories
Panel thickness:	80mm, 100mm,120mm
Panel Size:	Height: 0.5m-1.0m/piece, or as requested   Length: 2.0-3.0m/piece, or as requested popular size: 2500x500x80mm, 2500x500x100mm, 2000x500x50mm etc.
H-post:	100x100x6x8mm, 125x125x6.5x9mm, 150x150x7x10mm, 175x175x7.5x11mm.
Flange plate:	250x250x10, 300x300x10, 350x350x10, 400x400x10mm etc.

 perforated   Noise barrier/  soundproof wall  Technical features:

1) Impact strength: 850J/m ,the impact strength of solid PC sheets is 250 times that of glass, 20-30 times of  PMMA sheet

2) Light transmission: 80%-90% for different thickness of clear color

3) UV resistance: with our 50μm thickness UV layer ,the sheet can filter 99% ultraviolet radiation in sunlight

4) Specific gravity: 1.2 g/cm

5) Specific heat:1.16J/kgk
6) Temperature: -40oC to 120oC

7) Heat conductivity:2.3-3.9 W/m2   oC

8) Tensile strength:>60N/mm2

9) Flexural strength:100N/mm2

10) Modulus of elasticity: 2,400mPa

11) Tensile street at break: >65mPa

12) Elongation at break:>100%

13) Heat deflection temperature:140oC

 14) Coefficient of thermal expansion: 0.065 mm/moC

15) Soundproof index:  6mm--29dB,8mm--31dB,10mm-32dB 12mm--34dB

 perforated   Noise barrier/  soundproof wall Application

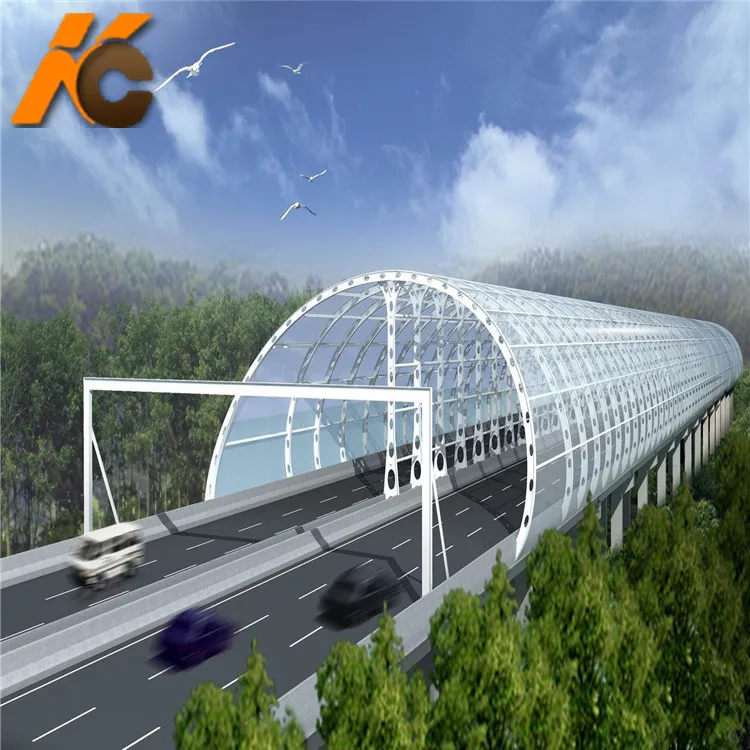

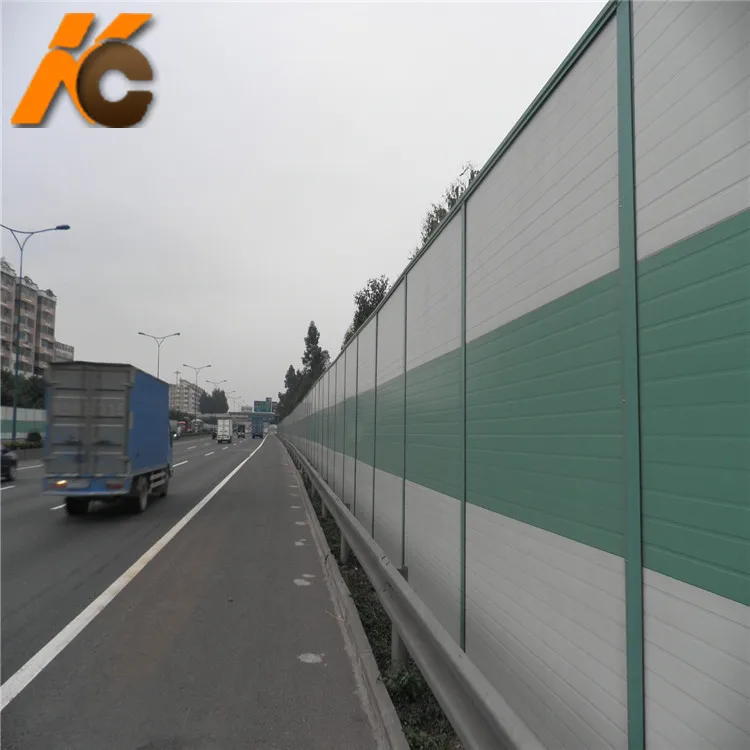

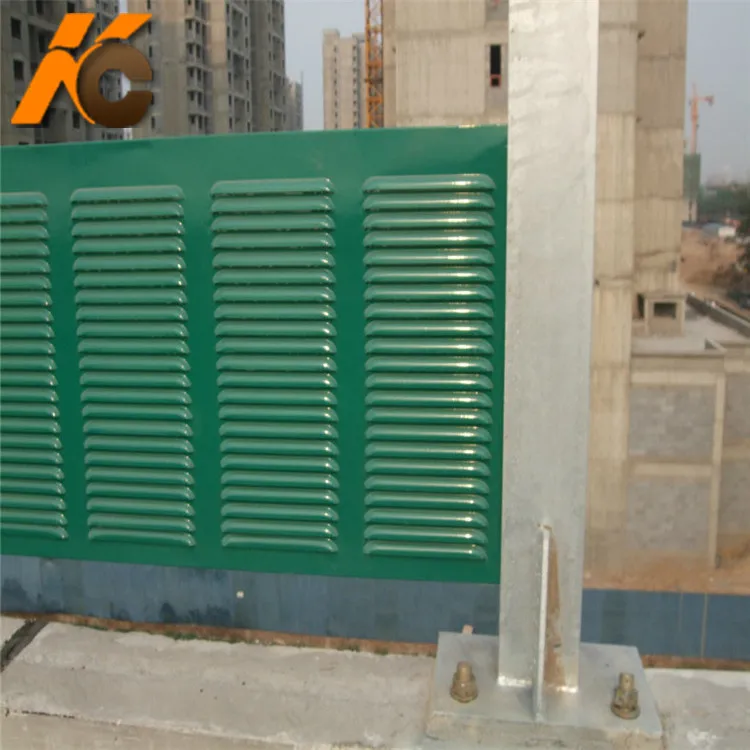

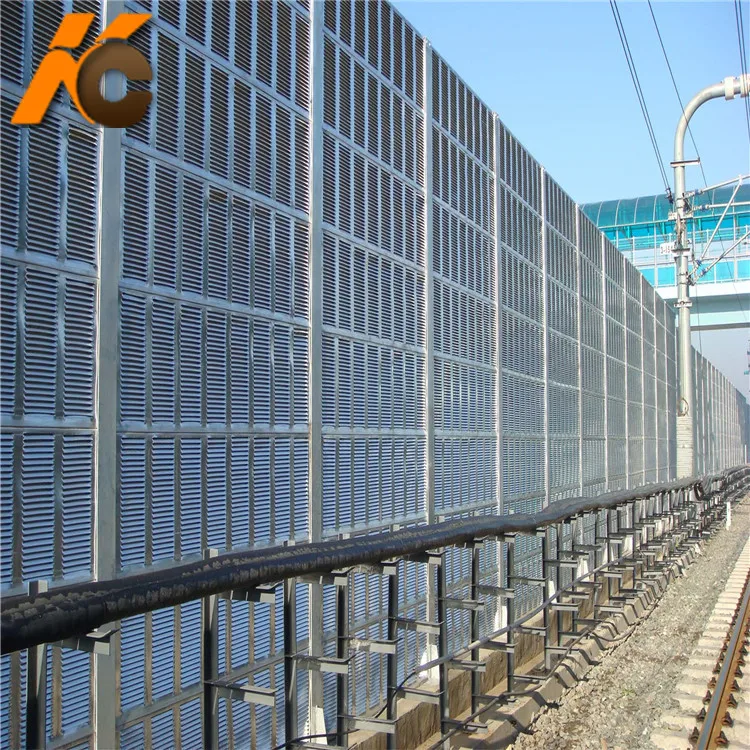

• Noise barrier helps in absorbing the noise generating from vehicles on a heavy vehicular traffic area, such as expressway, railway, bridge, urban rail transit noise barrier.
• Noise barrier has proven to be effective in absorbing noise and providing an excellent solution to reduce noise for residential areas near to the busy roads, and also for schools, hospitals.
• Noise barrier can also reduce the mechanical noise, such as the air condition, cooling towers.
