Чип 0805 1 чип серии высокой яркости T0.8mm типа SMD LED
US $0.02-$0.05
8 пин PLCC 5050 rgbw СВЕТОДИОДНАЯ лента smd холодный
- Категория: Светодиод SMD >>>
- Поставщик: Shenzhen,Huanyu,Dream,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.35 $* | 0.13 $* |
| Aug-15-2025 | 0.54 $* | 0.40 $* |
| Jul-15-2025 | 0.55 $* | 0.99 $* |
| Jun-15-2025 | 0.12 $* | 0.51 $* |
| May-15-2025 | 0.71 $* | 0.57 $* |
| Apr-15-2025 | 0.45 $* | 0.68 $* |
| Mar-15-2025 | 0.69 $* | 0.45 $* |
| Feb-15-2025 | 0.95 $* | 0.32 $* |
| Jan-15-2025 | 0.97 $* | 0.39 $* |
Характеристики
Specification
Dimension
Model No. | HYZM-SMD5050RGBR | Power | 0.2W | ||
Lumens | Red:1200~1500mcd Green:1500~2000mcd Blue:400~600mcd | ||||
Color Temp | Red:620~625nm Green:520~525nm Blue:460~465nm | ||||
Voltage | W/G/B: 3.0~3.4v Red: 2.0~2.4v | Current | 20mA | ||
Chip Brand | Sanan | Chip Size | B:8mil, G:8mil,R:10mil | ||
Lifespan | 50,000 hours | Warranty | 3 years | ||
Applications | 1,LED Lighting industry（Tube,Panel Light,Ceiling Light,Bulb light etc) 2,Landscape lighting （LED Strip,Wall washer lamp,Garden light etc) 3,Plant grow Lamp 4,Sterilization and Disinfection 5,Money detector | ||||
Product Description
8-pins PLCC 5050 rgbw led smd cool white
Electrical / Optical characteristics rgbw led smd cool white
Absolute Maximum Ratings (TA=25ºC)
Item | Symbol | Absolute Maximum Rating | Unit |
Forward Current | IF | 20 | mA |
Pulse Forward Current | IFP | 150 | mA |
Reverse Voltage | VR | 9 | V |
Power Dissipation | PD | 350 | mW |
Operating Temperature | Topr | -40ºC To +85ºC | °C |
Storage Temperature | Tstg | -40ºC To +85ºC | °C |
Soldering Temperature | Tsld | Reflow Soldering: 260ºC Hand Soldering : 350ºC | for 10sec. for 3sec. |
1/10 Duty Cycle, 0.1 msec Pulse Width. rgbw smd 5050
Initial Electrical/Optical Characteristics (TA=25ºC) 5050 rgbw smd led
Symbol | Item | Units | Min. | Typ. | Max. | Test Conditions |
VF | Forward Voltage | V | 3.0 | 3.4 | IF=20mA | |
IR | Reverse Current | uA | - | - | 5 | VR=5V |
2θ | Viewing Angle | º | - | 120º | - | IF=20mA |
ø | Luminous flux | lm | 22 | 24 | IF=20mA | |
TC | Color Temperature | k | 6000 | 6250 | 6500 | IF=20mA |
RA | Color Rendering Index | Ra | 70 | 80 | IF=20mA |
Cautions 8-pins PLCC 5050 rgbw led smd cool white
1)Soldering Conditions
Number of reflow process shall be less than 2 times and cooling process to normal temperature is required between first and Second soldering process.
2)Static Electricity
It is recommended that a wrist band or an anti-electrostatic glove be used when handling the LEDs.All devices, equipment and machinery must be properly grounded.Damaged LEDs will show some unusual characteristics such as the forward voltage becomes lower, or the LEDs do not light at the low current. Criteria : (VF > 2.0V at IF=0.5mA)
3)Moisture Proof Package
It is recommended that moisture proof package be used .
4)Storage
Before opening the package ,The LEDs should be kept at 30°C or less and 70%RH or less. The LEDs should be
used within a year.
5)After opening the package, The LEDs should be soldered within 24 hours (1days) after opening the package.
Main Material made in China Huanyudream company
Color Standard/ Wavelenth
Different color with different Wavelength, we can supply the eccurate wavelength as your requiement

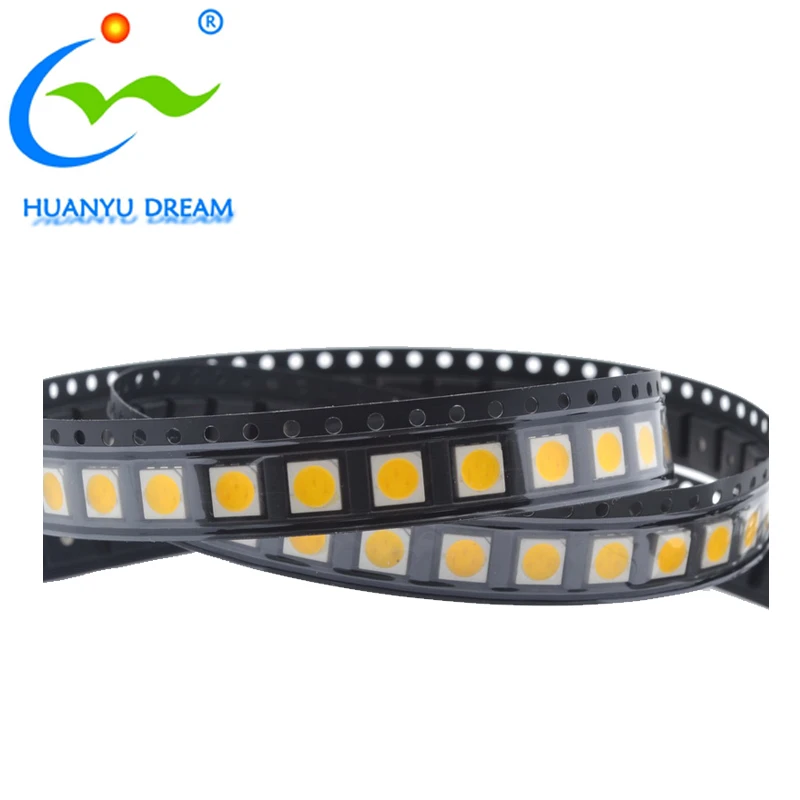

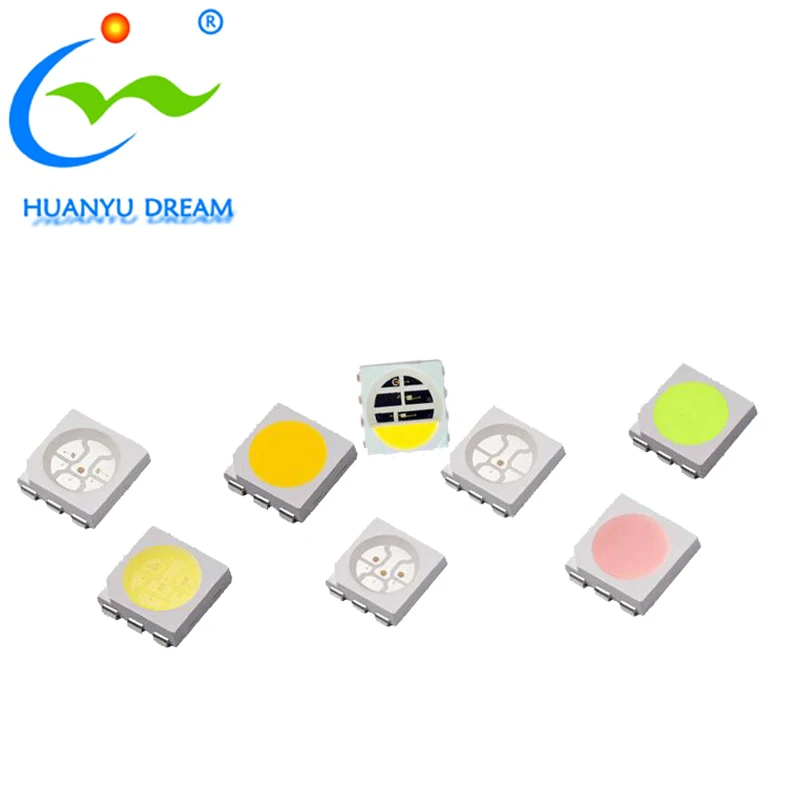

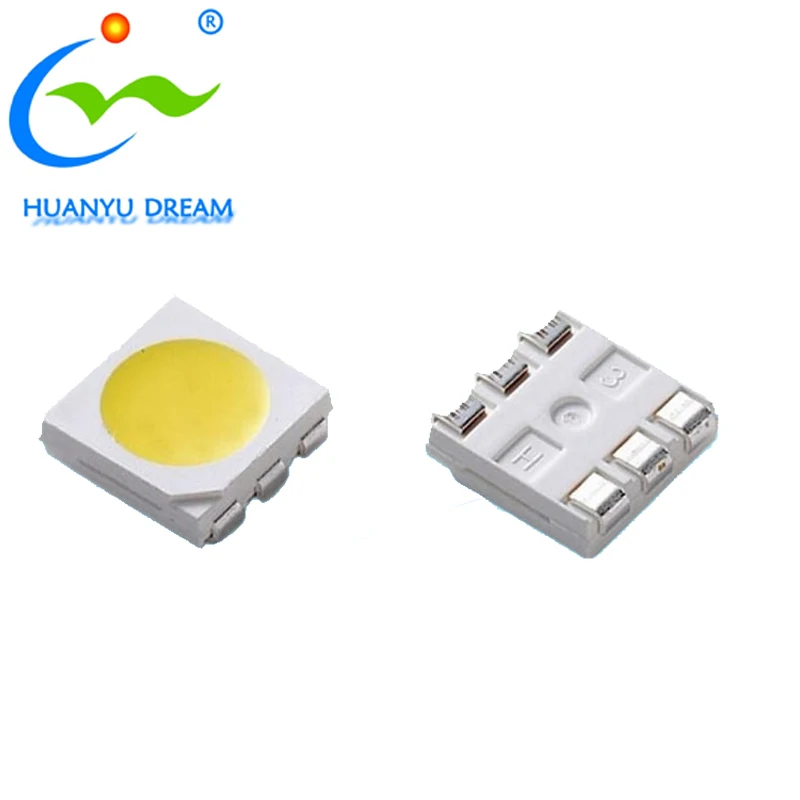

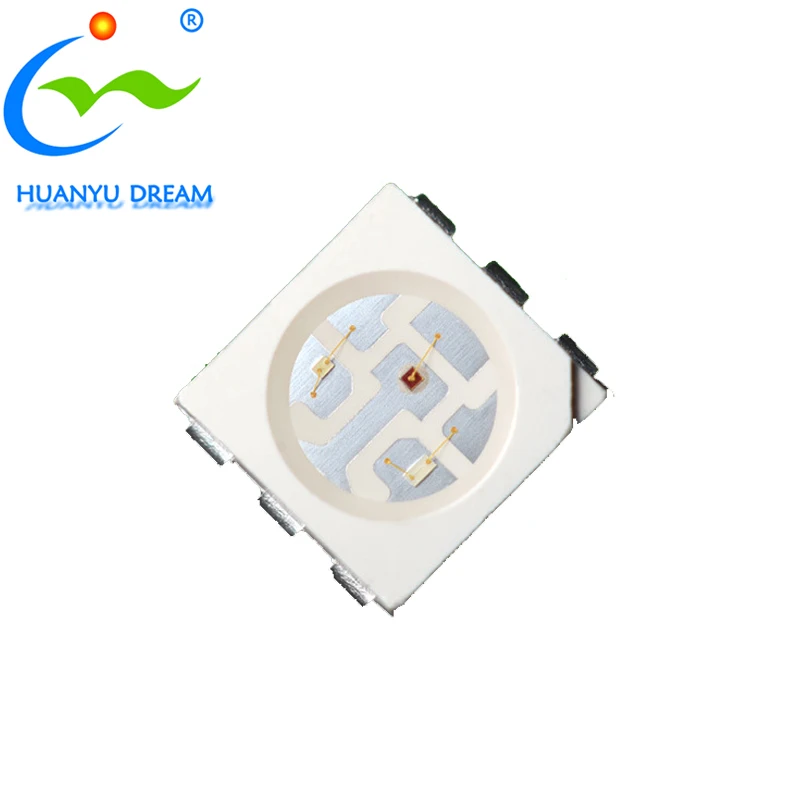

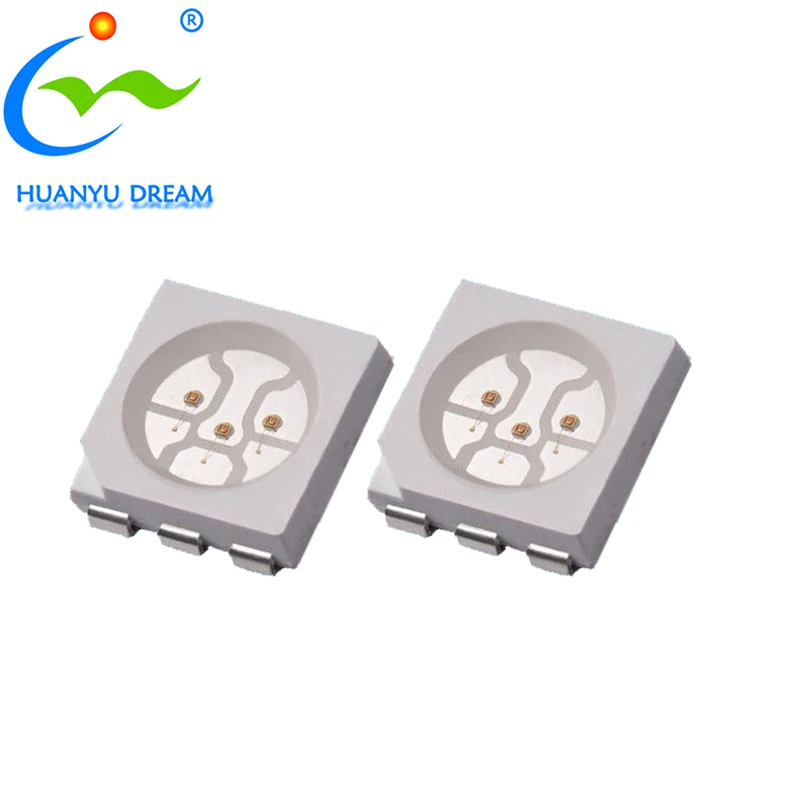

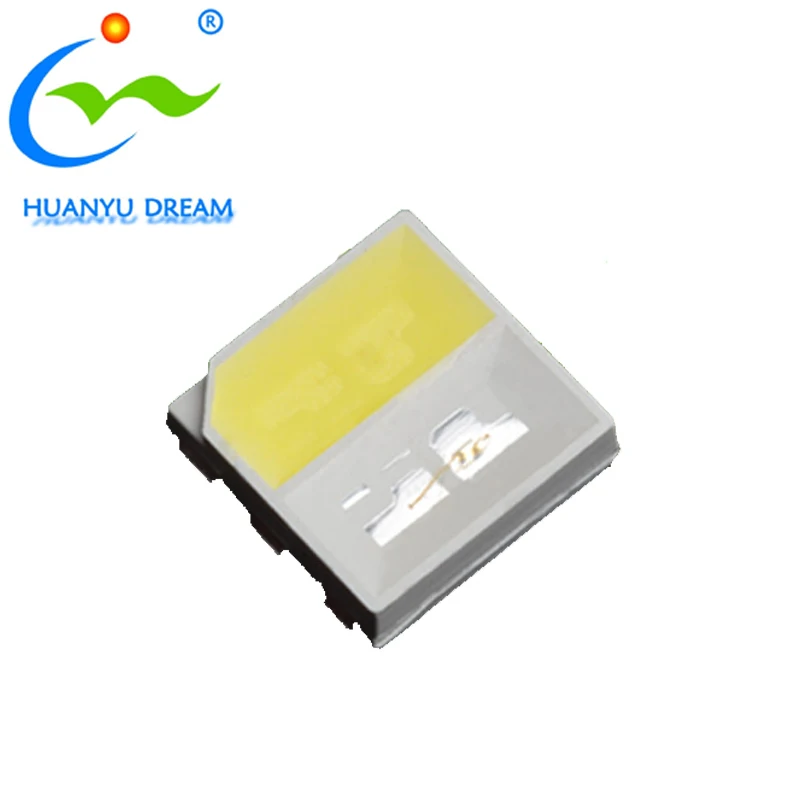

Product Pictures
Factory Show
We own the LED special dust-free, anti-static workshop.
Formed a number of world-class United States ASM automatic machine crystalline solid,
ASM automatic soldering machines, H120 automatic LED light colour scanner,100% sure our quality is best.
High strength aging laboratory
Company Information
Huanyu Dream Technology is a professional manufacturer of SMD LED Chip, supply mainly products such as SMD5730, SMD 2835,SMD5050, SMD3528, SMD 3014,SMD4014, High power 1w 3w LED etc.
Our LOGO has been registered as a Trademake, please identified our Logo when you looking for the products,
and factory local in Shenzhen city Guangming district, welcome to visit us!
Customer Reviews
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-3 days, mass production time needs 3-7 days according order quantity .
Q3. Do you have any MOQ limit for led light order?What's the Payment way ?
A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
