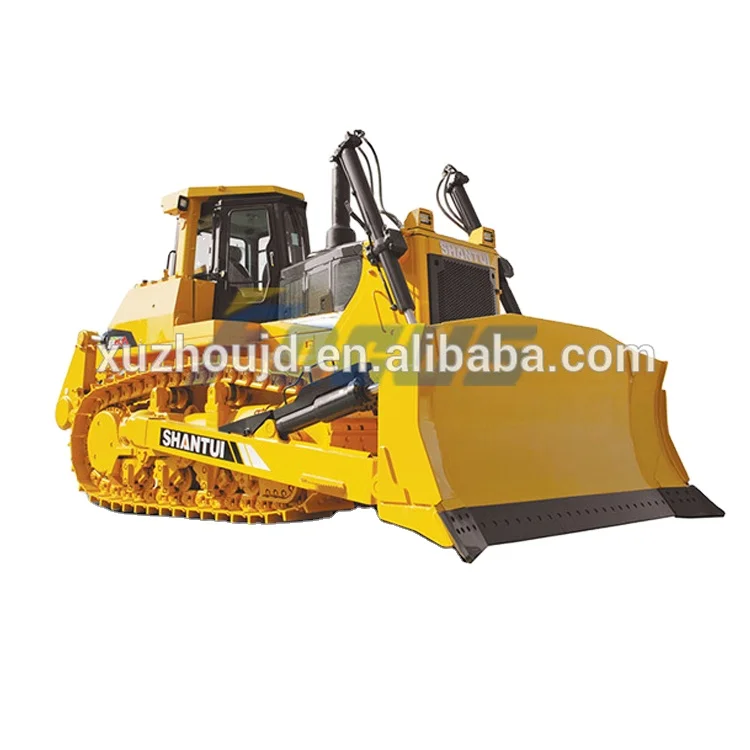

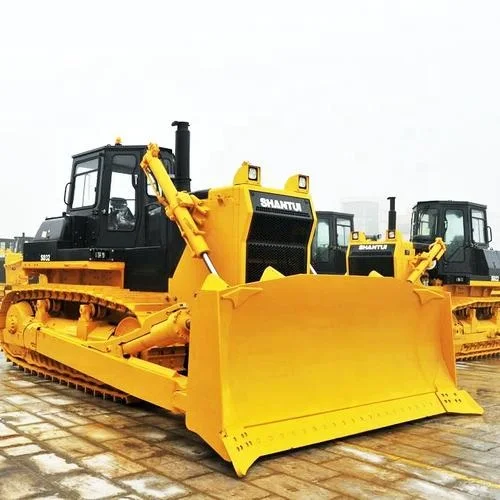

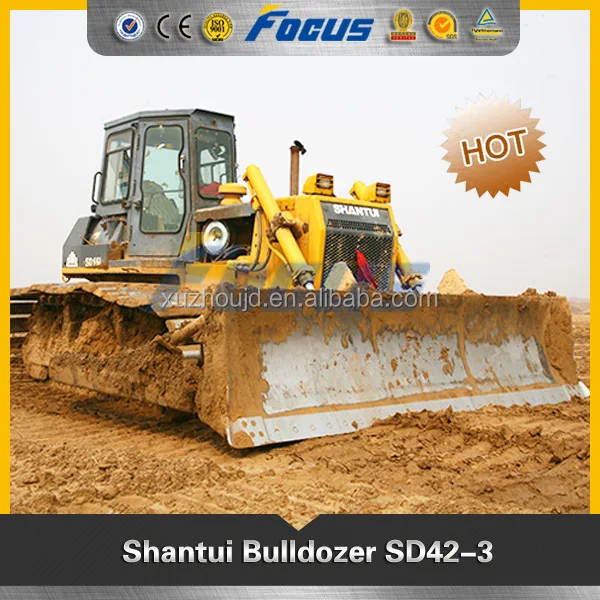

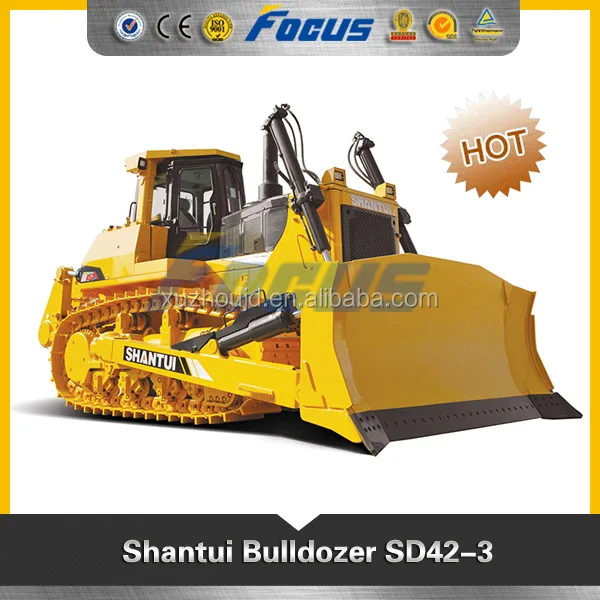

Shantui SD42-3 420hp big Construction Machine Bulldozer



Main parameters:

Blade capacity 16CBM

Operating weight:53000kgs



Main configuration

 KTA19-C525  engine, 310/2000 kw/rpm



OUR SERVICE

* Warranty: We supply one year warranty for all the machines we exported, during the warranty, if there is problem caused by machine quality without improper operation, we will supply the replace genuine parts by DHL to clients freely to keep the machine in high efficiency work.

* Spare Parts: We have 7years experience on machine and spare parts supplying, we are efforts to supply Genuine spare parts with good prices, quick response and professional service.



ITEM	UNIT	SD42-3
L×W×H (Ripper not included)	mm	9630×4315×3955 (Ripper included)
Operating weight (Ripper not included)	t	53 (Ripper included)
Engine	-	Cummins  KTA19-C525
Rated power	kW/rpm	310/2000
Gradeability	°	30
Blade type	-	Semi-U blade
Blade width	mm	4315×1875
Dozing capacity	m3	16
Ma× drop below ground of blade	mm	700
Lift height of blade	mm	1545
Ripper type	-	Single ripper
Ripping depth of ripper	mm	1400
Lifting height of ripper	mm	1130
Number of carriers (each side)	-	2
Number of track rollers (each side)	-	7
Number of track shoes (each side)	-	41
Width of track shoe	mm	610
Track gauge	mm	2260
Ground length and ground pressure	mm/MPa	3560-0.123
Pitch	mm	260.35
Forward speed	km/h	0–3.7
		0–6.8
		0–12.2
Reverse speed	km/h	0–4.4
		0–8.2
		0–14.8





Shantui SD42-3 420hp big Construction Machine Bulldozer
