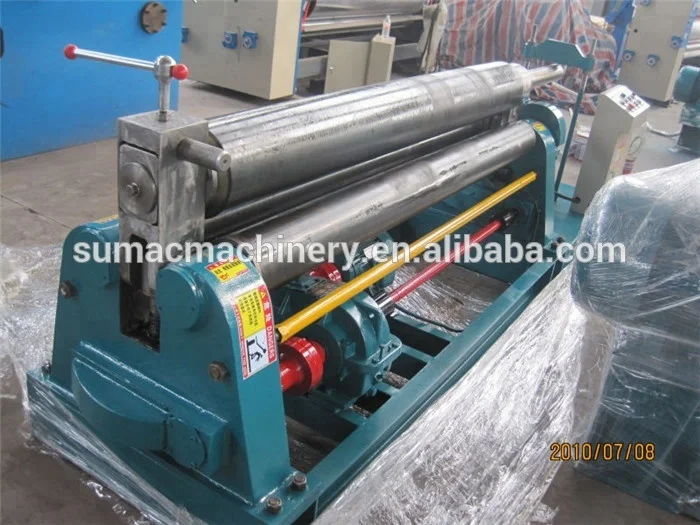

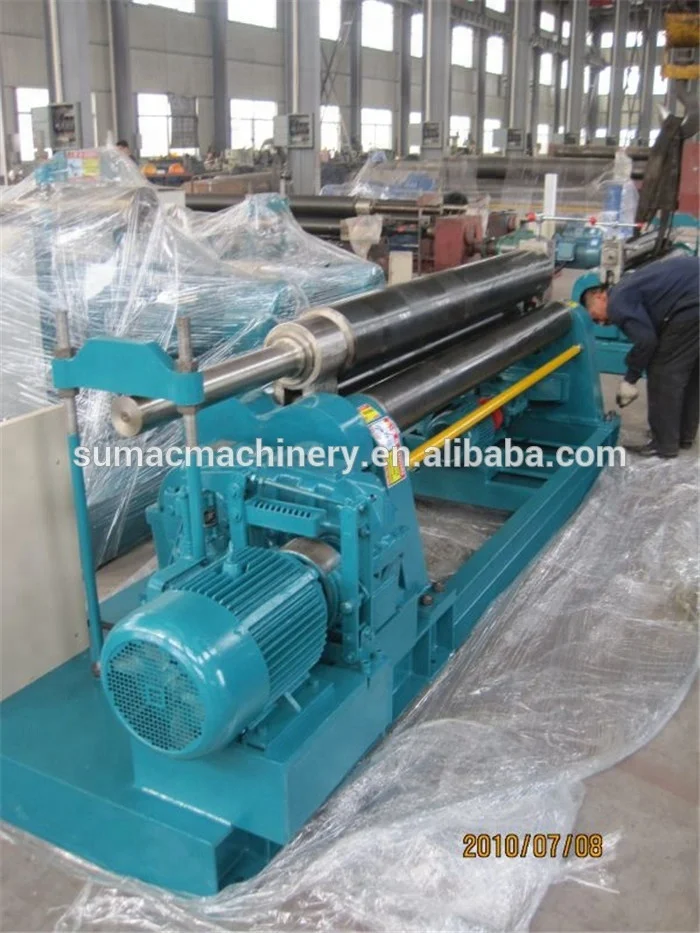

3-Roller Mechanical symmetrical steel plate rolling machine

Ⅰ. Introduction:

This machine structure pattern three roller symmetrical type. The top roller do the vertical lifting movement in the central position of the two bottom rolls. It's transmitted by screw nut and worm gear. Two bottom rolls are main drive rolls. They rotate by the meshing between the output gear of gear box and the bottom roller, supply the torque for bending plate. It has such features as compact structure, easy operation and maintenance. Extended shaft for profile bending.

Ⅱ. Working principle:

Ⅲ. Technical data:

Model	Max. Bending thickness (mm)	Max. Bending width (mm)	Yield limit (Mp)	Coiling speed (m/min)	Top roller diameter (mm)	Bottom roller diameter (mm)	Central distance (mm)	Main power (kw)
W11-4x1500	4	1500	245	5	150	140	200	4
W11-4x2000	4	2000	245	5	160	150	220	4
W11-6x1500	6	1500	245	5	160	150	220	4
W11-6x2000	6	2000	245	5	170	160	220	5.5
W11-6x2500	6	2500	245	4.5	180	170	250	5.5
W11-8x1500	8	1500	245	5	170	160	220	5.5
W11-8x2000	8	2000	245	4.5	180	170	250	5.5
W11-8x2500	8	2500	245	4.5	240	180	280	7.5
W11-12x2000	12	2000	245	4.5	240	180	280	7.5
W11-12x2500	12	2500	245	4.5	260	220	320	11
W11-12x3000	12	3000	245	4	280	240	360	11

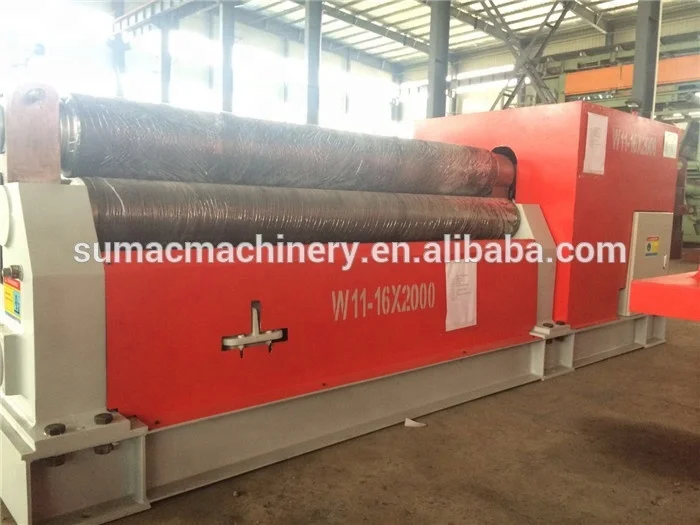

W11-16x2000	16	2000	245	4.5	260	220	320	11
W11-16x2500	16	2500	245	4	280	240	360	11
W11-16x3000	16	3000	245	4	340	270	440	15

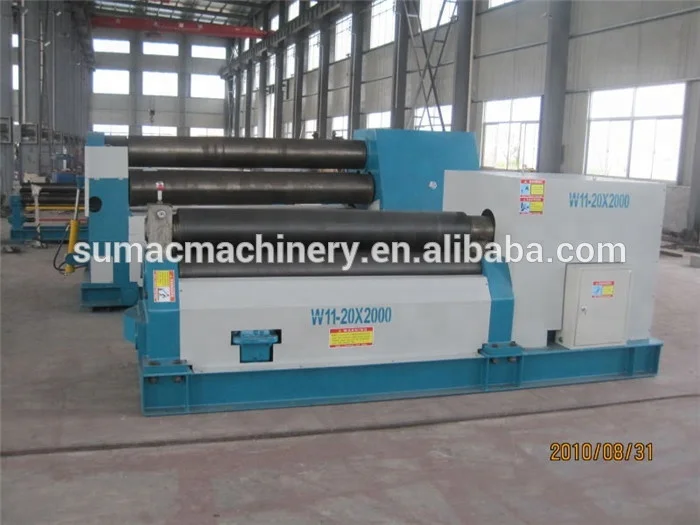

W11-20x2000	20	2000	245	4	280	240	360	11
W11-20x2500	20	2500	245	4	340	270	440	15
W11-25x2000	25	2000	245	4	340	270	440	15
W11-25x2500	25	2500	245	4	370	280	480	22
W11-30x2000	30	2000	245	4	370	280	480	22
W11-30x2500	30	2500	245	4	420	360	550	30
W11-30x3000	30	3000	245	4	450	390	600	30
W11-40x2500	40	2500	245	4	500	400	600	37
