2021 4 канала amplificadores аудио рro class d мощность усилитель с USB/
- Категория: Усилитель >>>
- Поставщик: Guangzhou,Baolun,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.78 $* | 0.98 $* |
| Aug-17-2025 | 0.83 $* | 0.73 $* |
| Jul-17-2025 | 0.66 $* | 0.2 $* |
| Jun-17-2025 | 0.89 $* | 0.97 $* |
| May-17-2025 | 0.89 $* | 0.58 $* |
| Apr-17-2025 | 0.16 $* | 0.41 $* |
| Mar-17-2025 | 0.58 $* | 0.54 $* |
| Feb-17-2025 | 0.43 $* | 0.89 $* |
| Jan-17-2025 | 0.24 $* | 0.15 $* |
Характеристики
Products Description

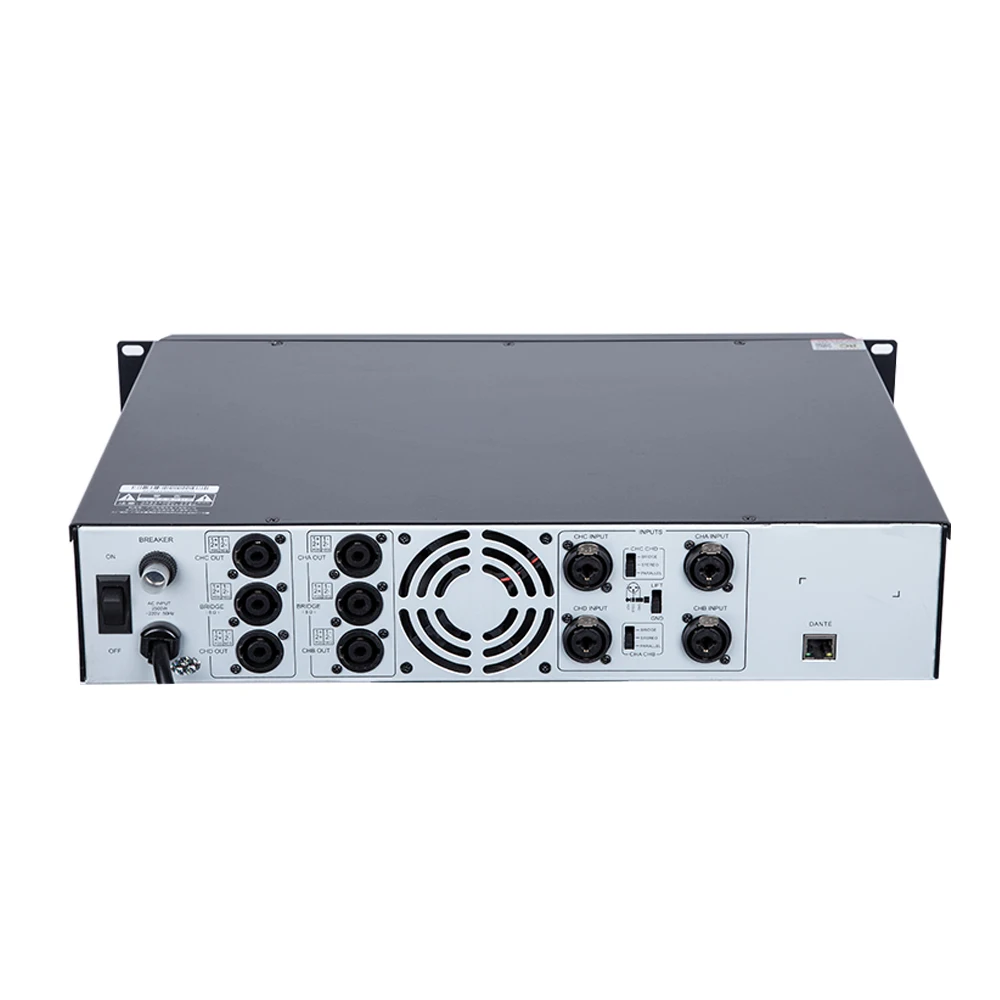

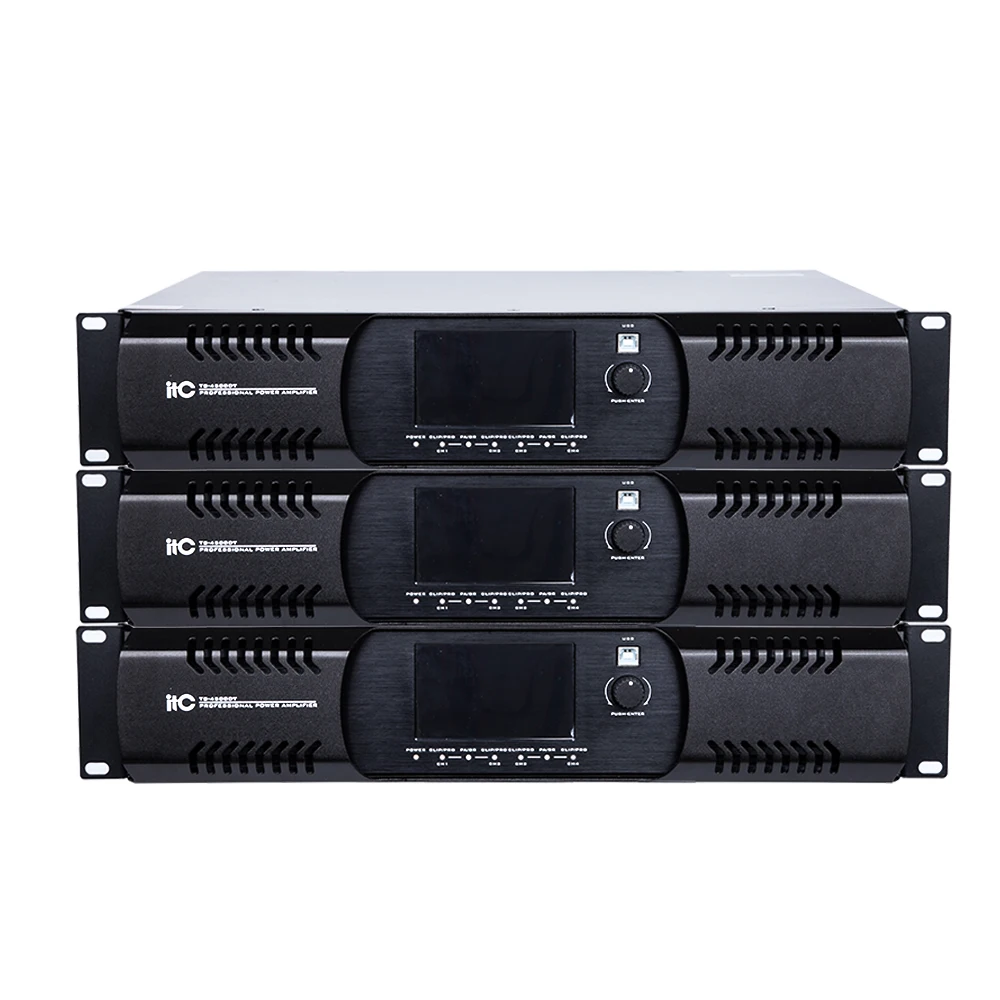

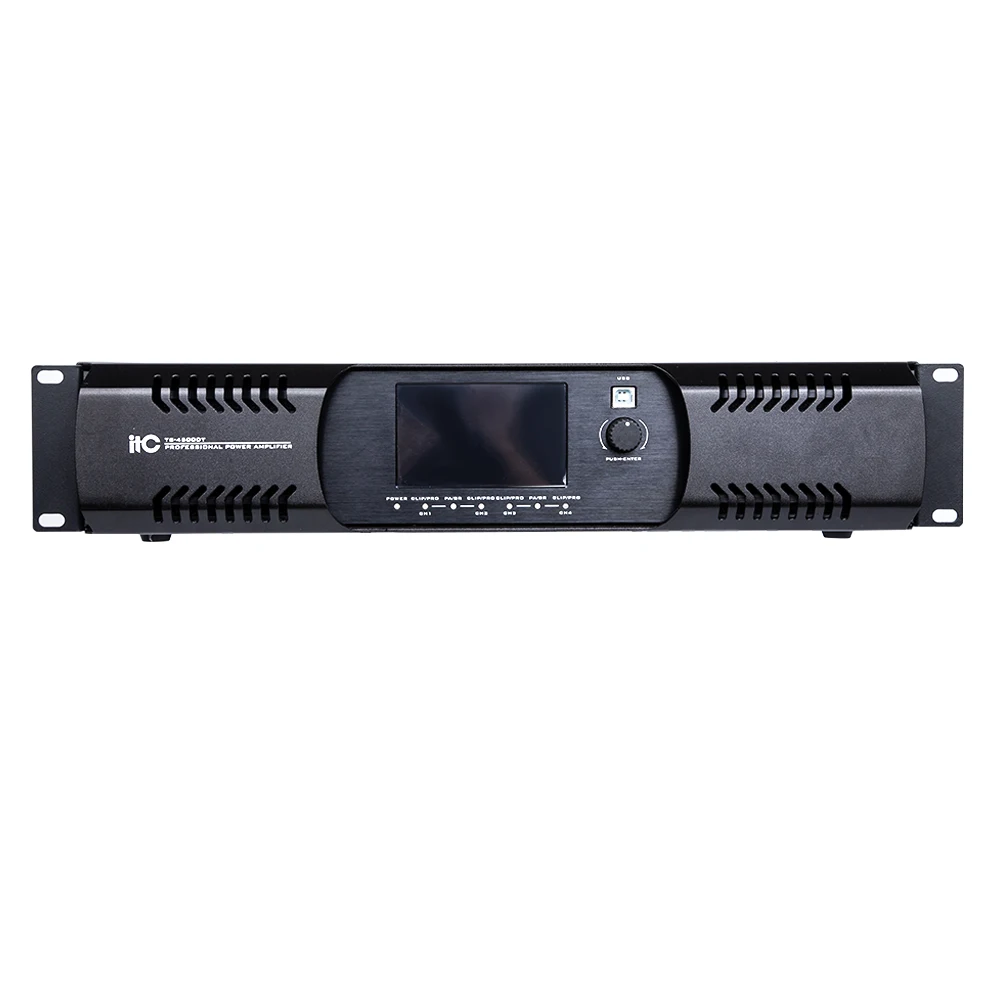

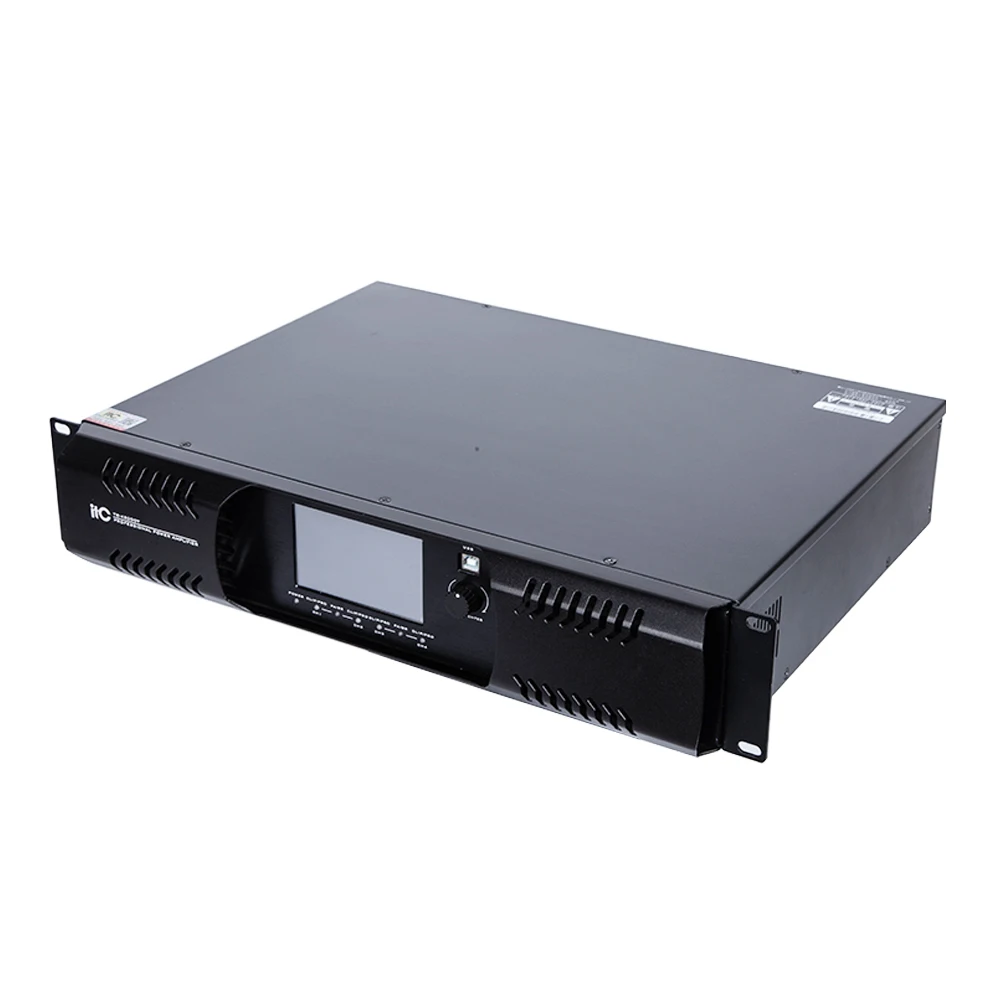

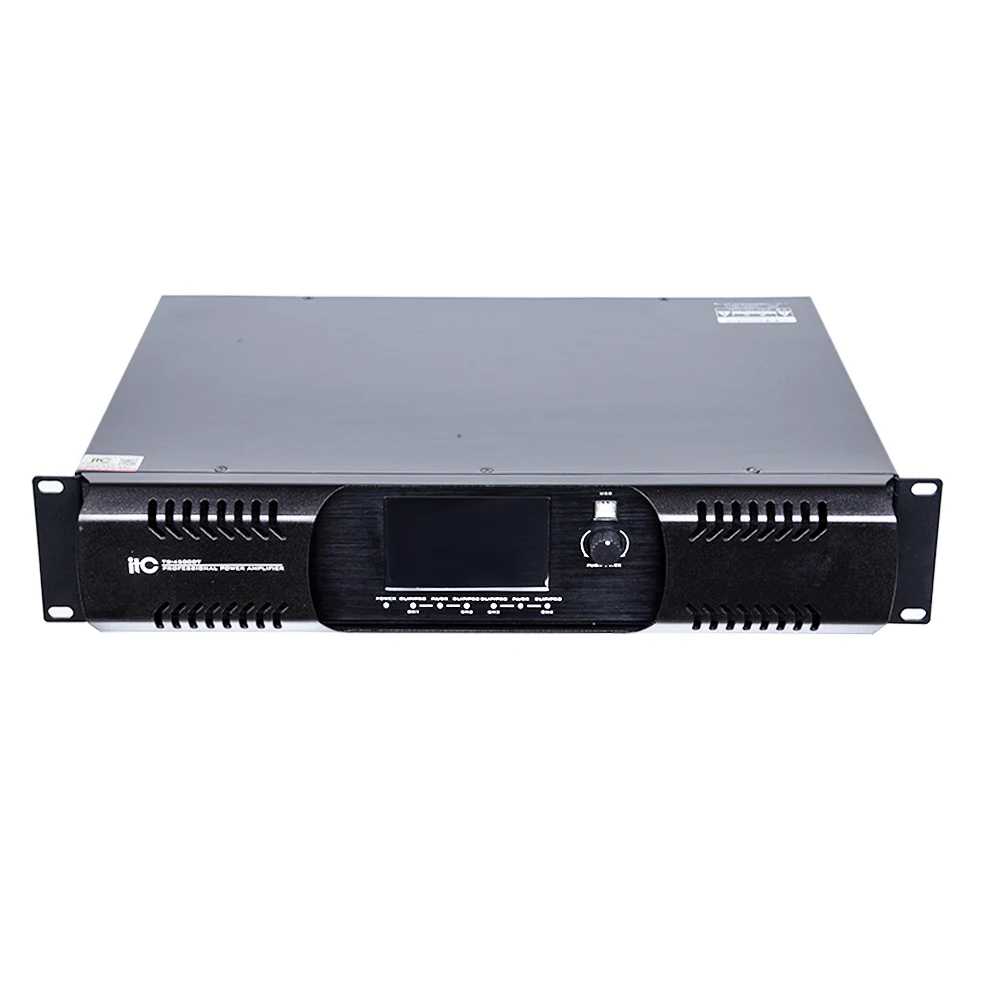

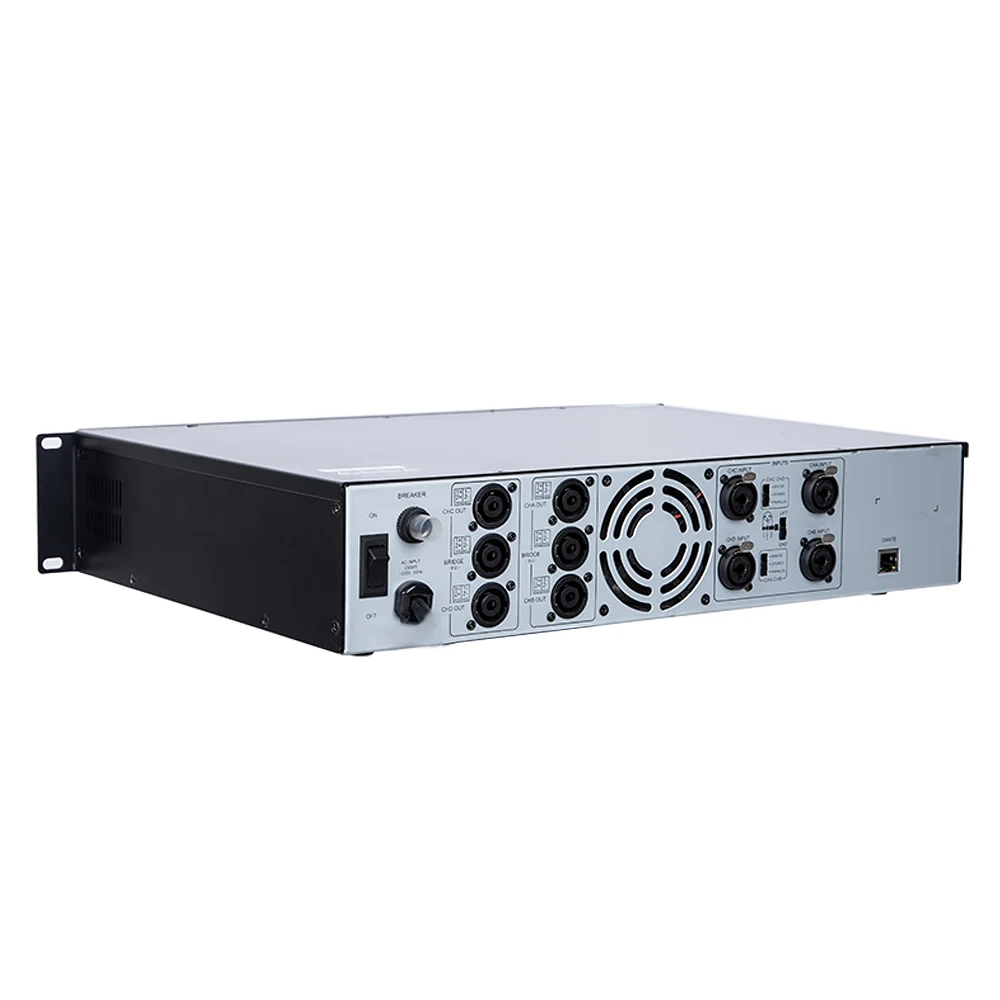

4-channel Professional Digital Amplifier TS-4500DT
The latest class-D amplifier, with small distortion and high efficiency, is used in large theater, outdoor performances, stadium, sports venues, clubs, nightclubs, entertainment bars, leasing, auditorium, banquet hall, Concerts and so on.
Model | TS-4500DT |
Output power (20-20KHz / THD≤1%) | Stereo / parallel 8Ω × 4: 350W × 4; Stereo / parallel 4Ω × 4: 500W × 4; Bridge 8Ω × 2: 1000W × 2 |
Connecting interfaces | XLR, TRS interface |
Voltage gain (@ 1KHz) | 34.4dB |
Input sensitivity | 0.775V |
Input impedance | 10kΩ unbalanced, 20kΩ balanced |
Frequency response (under 1W power) | 20Hz-20kHz / + 0 / -2dB |
THD + N (at @ 1/8 power) | ≤0.05% |
SNR(A-weighted) | ≥90dB |
Damping coefficient (@ 1KHz) | ≥200 @ 8 ohms |
Resolution (@ 1KHz) | ≥80dB |
Protection method | Overcurrent protection, DC protection, short circuit protection |
Indicator light | Power supply, protection, distortion |
Cooling method | Fan cooling |
Powered supply | ~ 220V 50Hz |
Maximum power consumption | 2500W |
Size (LxWxH)（mm） | 483×360×88 |
Weight | 10.5Kg |
Digital Signal Processing
High-performance 32-bit floating point DSP chip processor, 96KHz sampling frequency, 24-bit A/D and D/A.
DANTE Network
Support DANTE network transmission protocol,low-latency DANTE network audio transmission, 4 sending channels, 4 receiving channels, network audio expansion.
ARM operating system works with 4-inch touch screen.
TS-4500DT can be connected with computer through USB / RS45 interface.
More convenient for users with different demands to adopt simple interfaces, namely standard XLR + TRS1/4" composite input
interfaces.
interfaces.
Product Feature
* Adopt switching power supply for high efficiency; it is soft-started to prevent large current from being absorbed into the power grid and interfering with other appliances.
* Effective power supply harmonics suppression meets EU green power standards.
* Intelligent peak clipping limiter can enable the safe operation of power module and speaker system;
* It is more convenient for users with different demands to adopt simple interfaces, namely standard XLR + TRS1/4" composite input interfaces.
* There are three levels of input sensitivity optional in two-channel amplifier, which can easily accept wide range signal source input.
* Stereo or bridge operation mode is optional for different occasions.
* With input grounding pin grounding and suspension control.
* High-performance 32-bit floating point DSP chip processor, 96KHz sampling frequency, 24-bit A/D and D/A.
* ARM operating system works with 4-inch touch screen.
* User-friendly PC software supports multiple simultaneous control.
* Each output channel supports 8-band parameter equalization, electronic frequency division, delay, limiter, gain, polarity and other functions
* It can be connected with computer through USB / RS45 interface.
* With overvoltage protection, undervoltage protection, over temperature protection, overcurrent protection, DC protection, output short circuit protection, temperature control fan, etc.
* Effective power supply harmonics suppression meets EU green power standards.
* Intelligent peak clipping limiter can enable the safe operation of power module and speaker system;
* It is more convenient for users with different demands to adopt simple interfaces, namely standard XLR + TRS1/4" composite input interfaces.
* There are three levels of input sensitivity optional in two-channel amplifier, which can easily accept wide range signal source input.
* Stereo or bridge operation mode is optional for different occasions.
* With input grounding pin grounding and suspension control.
* High-performance 32-bit floating point DSP chip processor, 96KHz sampling frequency, 24-bit A/D and D/A.
* ARM operating system works with 4-inch touch screen.
* User-friendly PC software supports multiple simultaneous control.
* Each output channel supports 8-band parameter equalization, electronic frequency division, delay, limiter, gain, polarity and other functions
* It can be connected with computer through USB / RS45 interface.
* With overvoltage protection, undervoltage protection, over temperature protection, overcurrent protection, DC protection, output short circuit protection, temperature control fan, etc.
