Водонепроницаемый трансформатор для освещения бассейна 12 В переменного тока 105

Описание и отзывы

Трекер стоимости

Характеристики

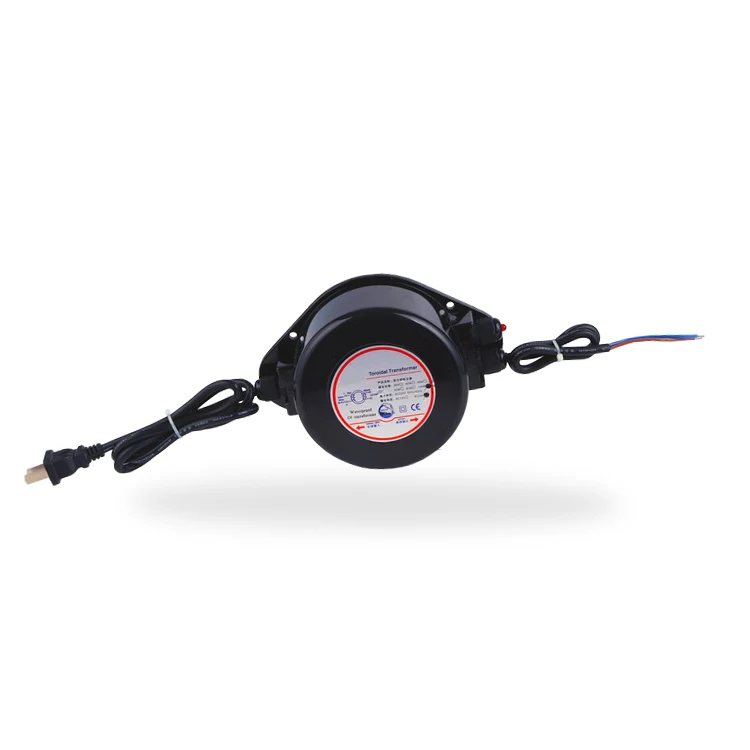

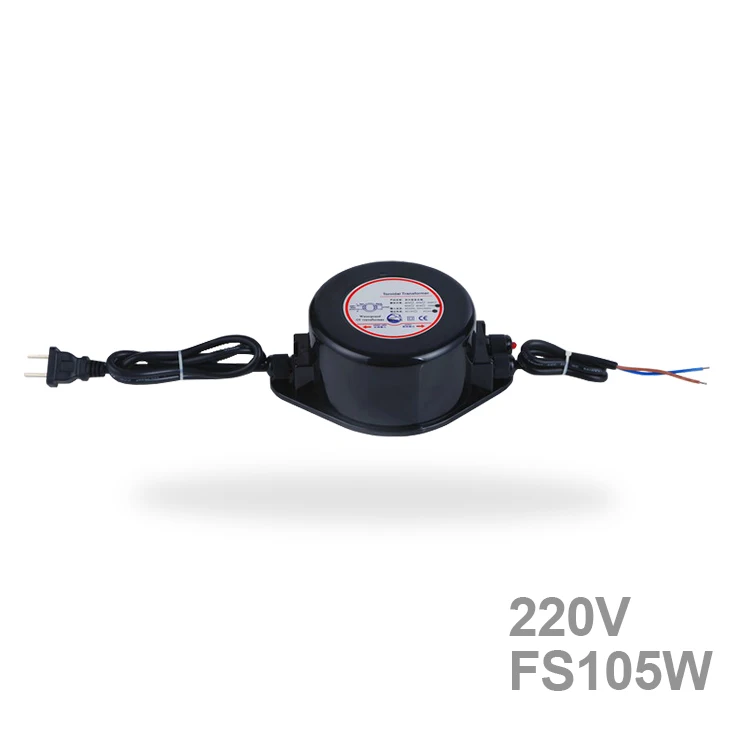

220V input voltage AC12V output voltage 105W waterproof toroidal transformer



Specifications:



HG-12AC-105W-FS Product Features Long-life Fully encapsulated epoxy resin Safety Dustproof, moisture-proof and waterproof High efficiency Higher energy conversion efficiency Outdoor Anti UV and cold resistant material High standard Double insulated enameled wire winding High quality Standardized winding process and welding level Electrical characteristics Full Loading Power 105W(MAX) Input Voltage AC220V±10% No Load Voltage AC12.5V±2% Frequency 50Hz/60Hz Full Loading Current 8.75A(MAX) Shape Parameters Product volume L165mm*W120mm*H60mm Hole distance 106*58mm(Center distance) Pore size 5mm G.w./pc 2.18kg IP rating IP67

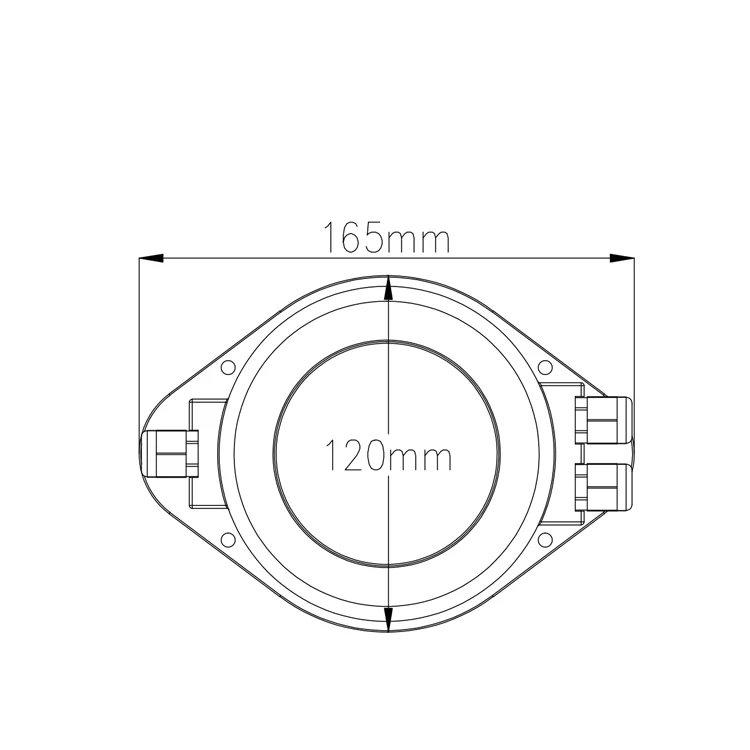

Dimension:







FAQ:



1. Q: When can I get the price?

A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices, please call us or tell us in your email so that we will give priority to your inquiry .



2, Q: Do you accept the OEM&ODM?

A: Yes,OEM or ODM service are available.



3, Q: May I get samples to test quality and how long can I get them?

A: Yes, quote of sample is same as normal order and can be ready in 3-5 days.



4, Q: What is the MOQ?

A: One piece is OK. Because any order is from sample.



5, Q: Can you accept small trial order?

A: Yes, no matter large or small trial order, your needs will get our full attention. It’s our great honor to cooperate with you.



Our service:



1. For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We own well-trained and passionate sales & after- sale services who can speak fluent English language.
3. We offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.



R&D team:



1.Two wires of RGB synchronous controller has the Patent number:

2.Two wires of DMX controller and decoder is also invented by our R&D team. And it saves the most cost of the cable from 5 wires to 2 wires. The effect of DMX is same.

3.All molds of our swimming pool light and underwater light is made by ourselves.

4.Quality is always our life to our R&D team and our manufacturer.
