SC-2200 части намоточного оборудования панель

Категория: Запчасти текстильных станков >>>
Поставщик: Quanzhou,Machtric,Automation,Equipment,Co.,Ltd.

Цена:160,00 $ - 170,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	190.24 $*	200.77 $*
Aug-16-2025	189.95 $*	198.95 $*
Jul-16-2025	158.69 $*	166.95 $*
Jun-16-2025	186.71 $*	195.86 $*
May-16-2025	162.6 $*	170.97 $*
Apr-16-2025	182.95 $*	191.27 $*
Mar-16-2025	181.18 $*	190.21 $*
Feb-16-2025	179.50 $*	188.97 $*
Jan-16-2025	178.83 $*	187.75 $*

Характеристики

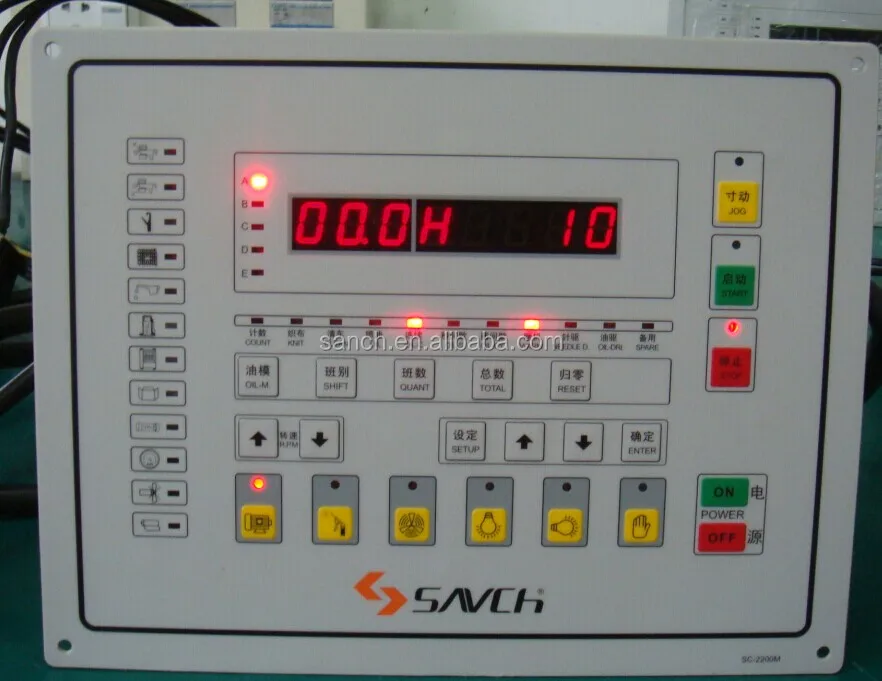

SC-2200 Textile Machine Parts Control Panel With Or Without Function Of Yarn Measuring

Product Description

Item	Descriptions
Model	SC-2200
Key parts	Microchip MCU & DSP dual core calculation chip
certification	CE,ISO9001/14001,OHSAS 18001
Control Mode	N/A
Advantage and functions	1.Adopt DSP CPU core as the digital control system, integrate monitoring,control and speed regulation.
	2.Simple operation, 4~40mA current output, could match all the general inverters.
	3.3 oil pump working modes: continuous, second interval and cycle counting interval, could select and set the value.
	4.6 lines of yearn length counting, 6 lines of independent step length setting.
	5.Built-in site date memory on power-off and power lost.
	6.Indicate 64 levels of frequency conversion, accurate and stable frequency control.
	7.Cloth cycles counting, shift memory and output counting, convenient check.
Application	Round knitting machine

Dimension:

Style No.	Outside Dimension ( mm )	Installation Dimension ( mm )
SC2200-M(-Y)	270 * 210	256 * 196
SC2200-L(-Y)	310 * 230	296 * 216

Packaging & Shipping

Single by buffers and single small carton, but lots of goods by bigger carton and cover PE film .
the cartons have three sizes: 460mm*390mm*580mm; 445mm*330mm*655mm;500mm*440mm*615mm;
But more than 22 kw ,they are packed in wooden cases.

Shipping: by sea, or express like UPS, DHL, FedEx...
if we deliver a lots of inverters ,we could use a outer larger carton to pack it ,and cover PE film to protect goods.

Inner package and manual
