Бульдозер Shantui SD16F на 160 л.с. для
- Категория: Bulldozers >>>
- Поставщик: Xuzhou,Focus,Industry,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 83300.53 $* | 87465.7 $* |
| Aug-19-2025 | 82600.89 $* | 86730.57 $* |
| Jul-19-2025 | 69300.96 $* | 72765.30 $* |
| Jun-19-2025 | 81200.25 $* | 85260.22 $* |
| May-19-2025 | 70700.75 $* | 74235.27 $* |
| Apr-19-2025 | 79800.62 $* | 83790.55 $* |
| Mar-19-2025 | 79100.42 $* | 83055.15 $* |
| Feb-19-2025 | 78400.20 $* | 82320.40 $* |
| Jan-19-2025 | 77700.11 $* | 81585.65 $* |
Характеристики

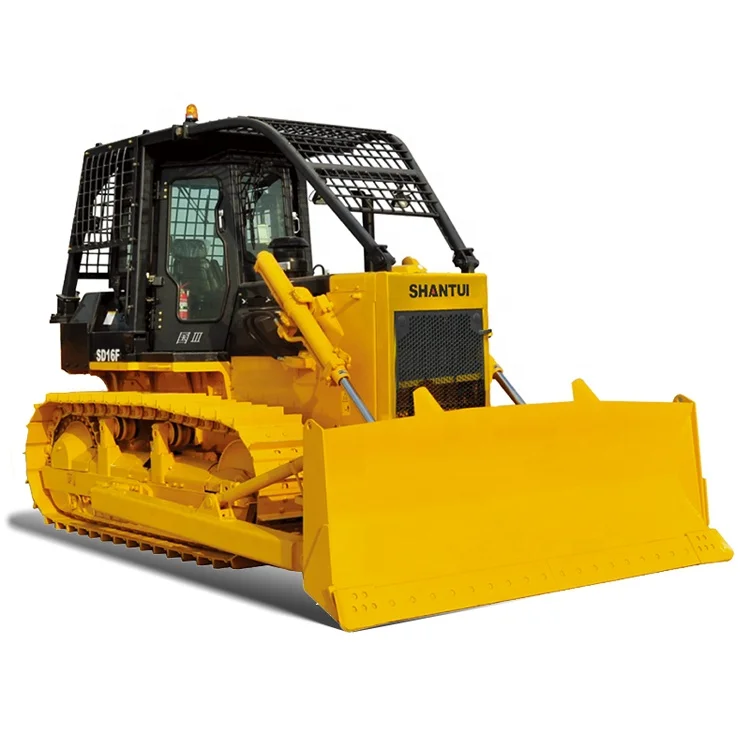

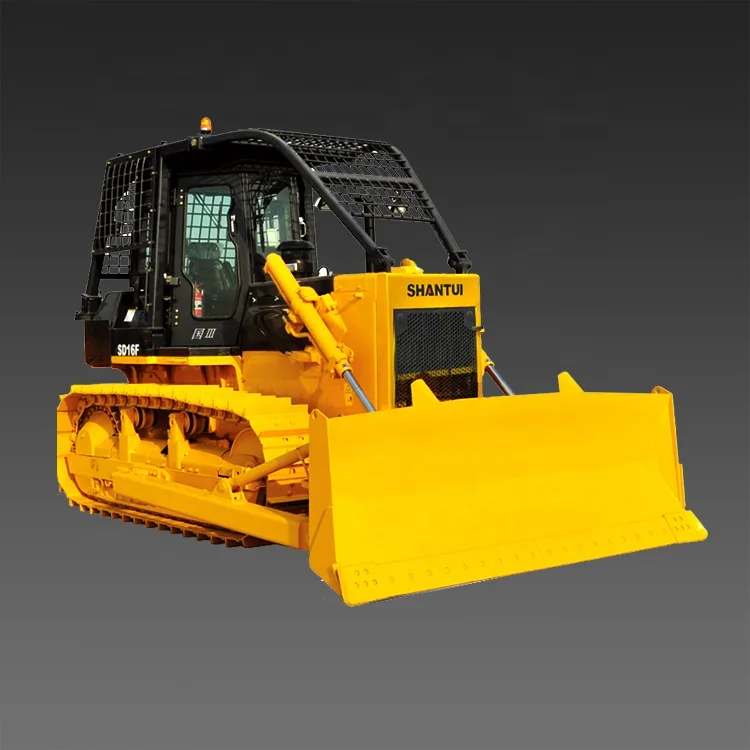

Shantui SD16F 160hp Forest Bull Dozer for sake
Main parameters:
Blade capacity 4.3 CBM
Operating weight:17500kgs
Main configuration
Weichai/Shangchai WD10G178E25/ SC11CB184G2B1engine, 120/1850kw/rpm
SHANTUI SD16F is the most popular model of China bulldozer. The product adopts hydraulic transmission and hydraulic control technology,porrect anti-rolling roll protect machine effectively.SD16F has the characteristic of advanced structure and reasonable, stable performance, light and flexible operation.
OUR SERVICE
* Warranty: We supply one year warranty for all the machines we exported, during the warranty, if there is problem caused by machine quality without improper operation, we will supply the replace genuine parts by DHL to clients freely to keep the machine in high efficiency work.

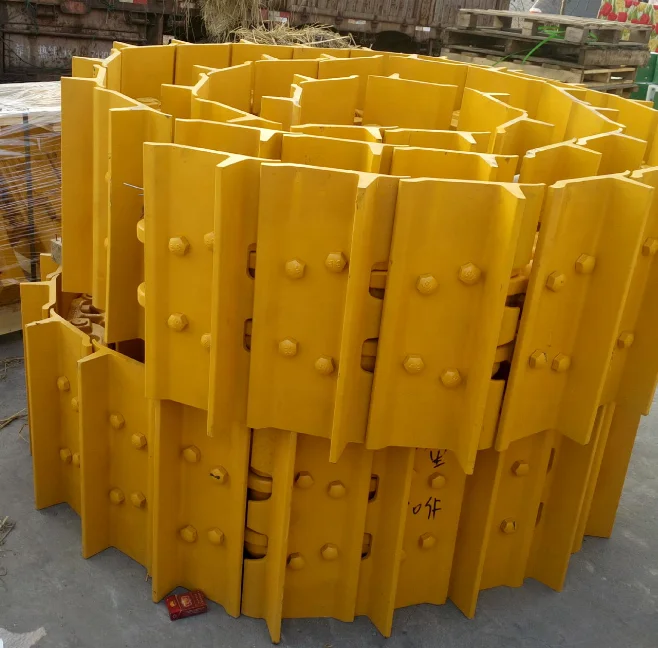

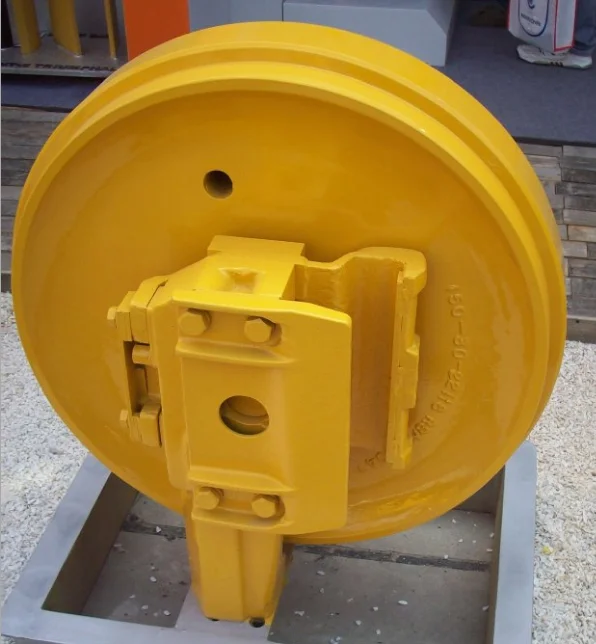

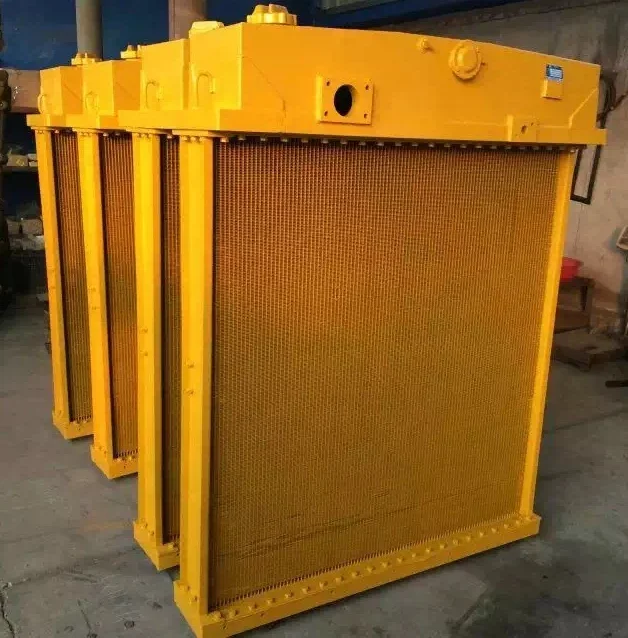

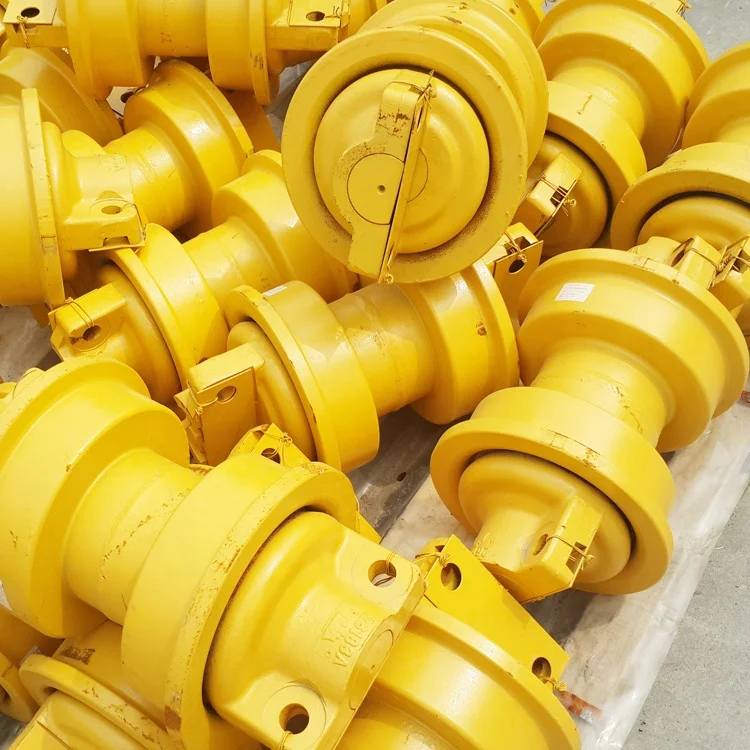

* Spare Parts: We have 7years experience on machine and spare parts supplying, we are efforts to supply Genuine spare parts with good prices, quick response and professional service.
ITEM | UNIT | SD16F |
L×W×H (Ripper not included) | mm | 5140×3388×3180 |
Operating weight (Ripper not included) | t | 17.5 |
Engine | - | Weichai/Shangchai WD10G178E25/ SC11CB184G2B1 |
Rated power | kW/rpm | 120/1850 |
Gradeability | ° | 30 |
Blade type | - | U blade |
Blade width | mm | 3970×1149 |
Dozing capacity | m3 | 5 |
Ma× drop below ground of blade | mm | 540 |
Lift height of blade | mm | 1095 |
Ripper type | - | Three-shank ripper |
Ripping depth of ripper | mm | 572 |
Lifting height of ripper | mm | 592 |
Number of carriers (each side) | - | 2 |
Number of rack rollerst (each side) | - | 7 |
Number of track shoes (each side) | - | 37 |
Width of track shoe | mm | 610 |
Track gauge | mm | 1880 |
Ground length and ground pressure | mm/MPa | 2430-0.058 |
Pitch | mm | 203.2 |
Forward speed | km/h | 0–3.29 |
0–5.28 | ||
0–9.63 | ||
Reverse speed | km/h | 0–4.28 |
0–7.59 | ||
0–12.53 |
Shantui SD16F 160hp Forest Bull Dozer for sake
