Высококачественный люминесцентный фосфор с сертификатом ISO и
- Категория: Metals & Metal Products >>>
- Поставщик: Zhejiang,Jingneng,Phosphor,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.56 $* | 0.26 $* |
| Aug-16-2025 | 0.64 $* | 0.97 $* |
| Jul-16-2025 | 0.77 $* | 0.30 $* |
| Jun-16-2025 | 0.33 $* | 0.55 $* |
| May-16-2025 | 0.15 $* | 0.3 $* |
| Apr-16-2025 | 0.60 $* | 0.10 $* |
| Mar-16-2025 | 0.72 $* | 0.88 $* |
| Feb-16-2025 | 0.86 $* | 0.73 $* |
| Jan-16-2025 | 0.66 $* | 0.91 $* |
Характеристики
Product Description
| Product Name | Halo Phosphor 3000K |
Product Code | JN-40(Warm White) | |
Material | Ca10(PO4)6F/Cl:Sb:Mn | |

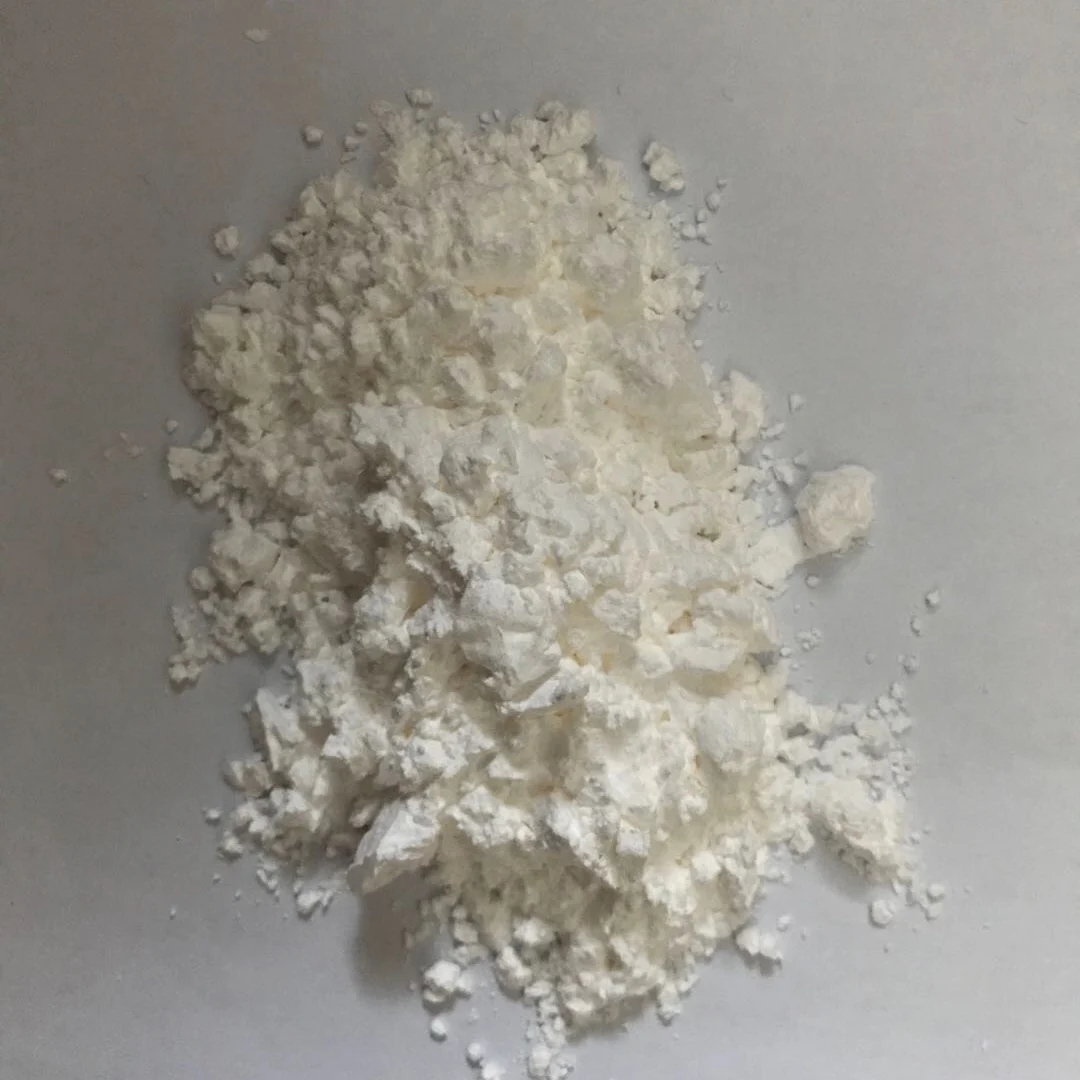

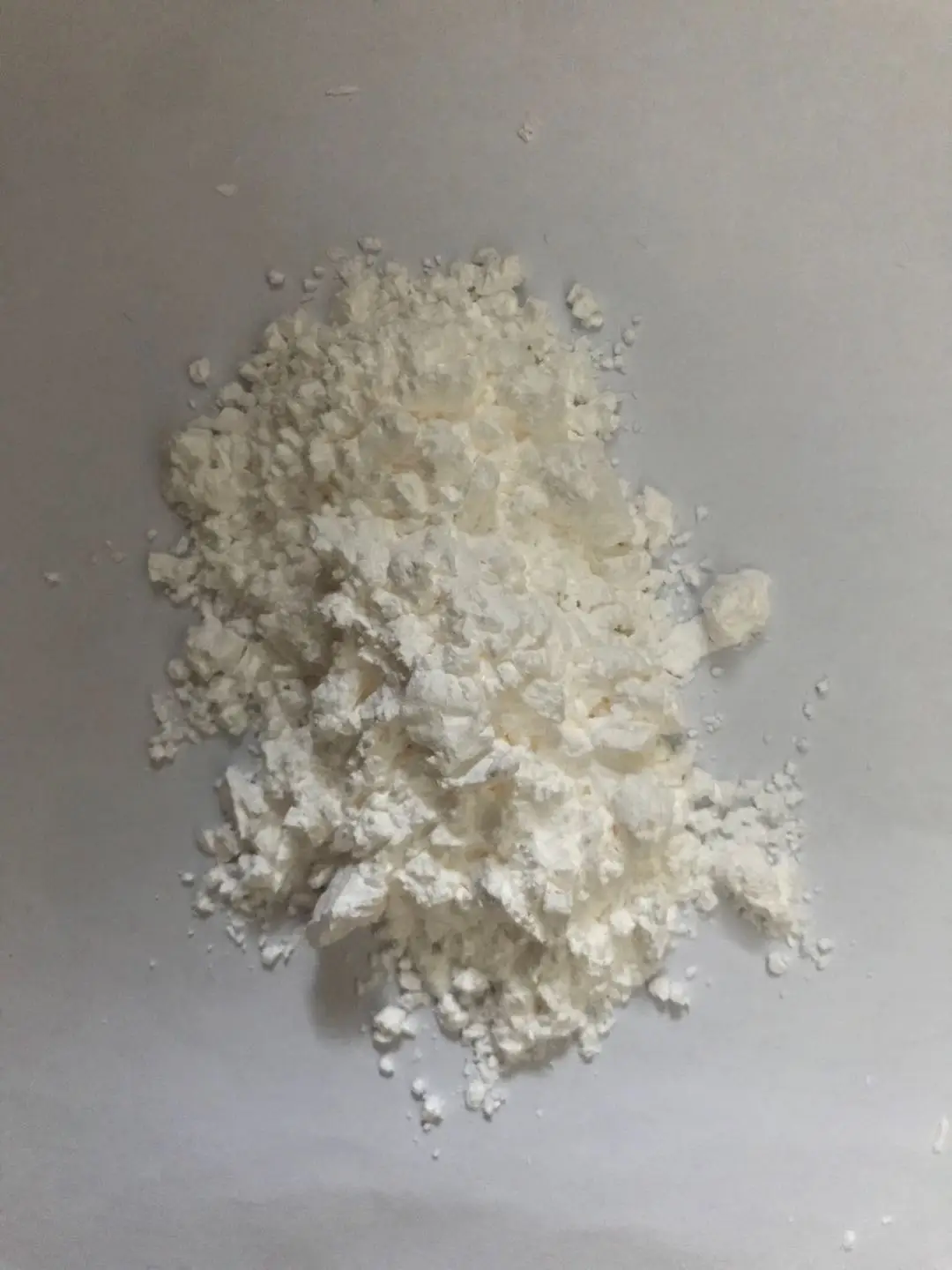

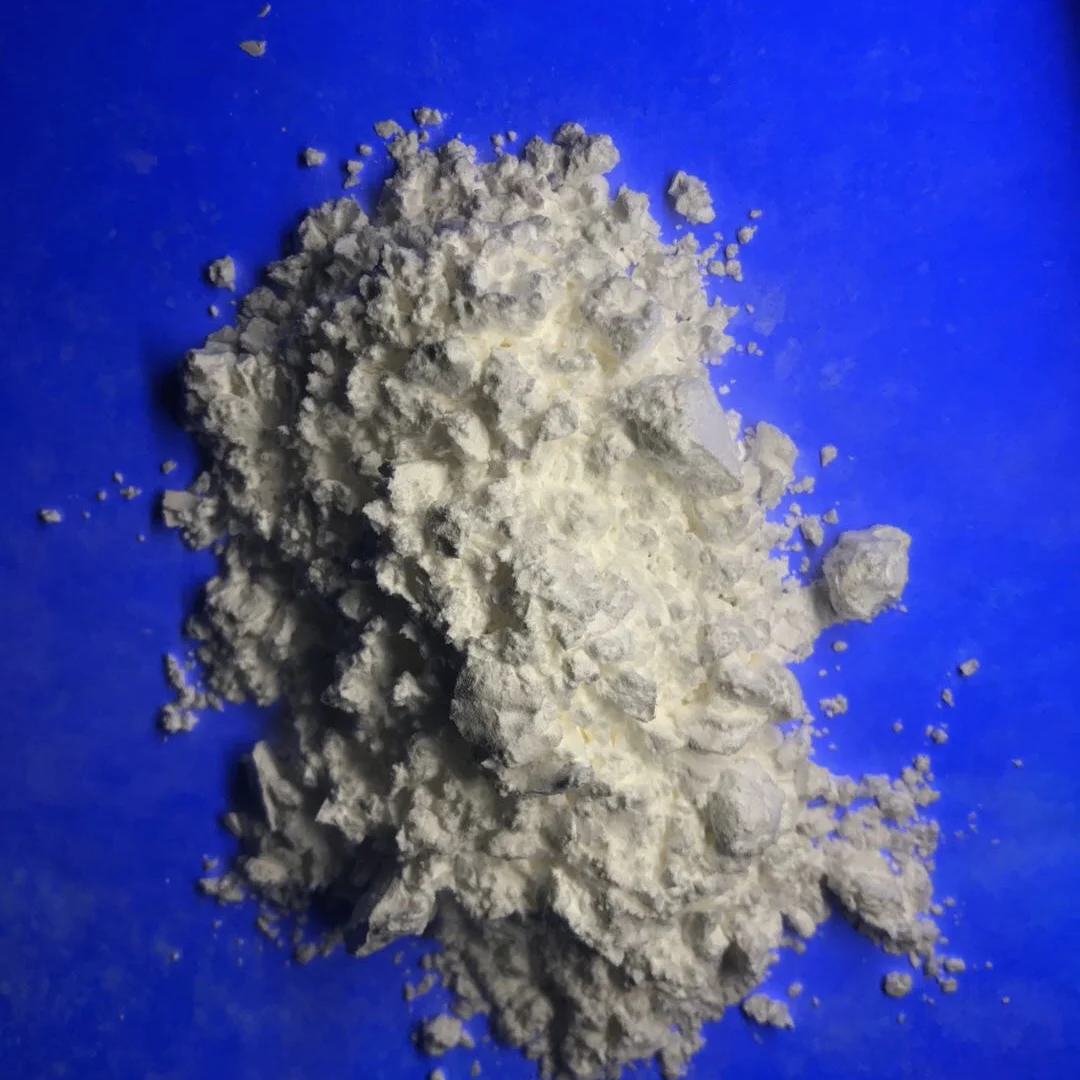

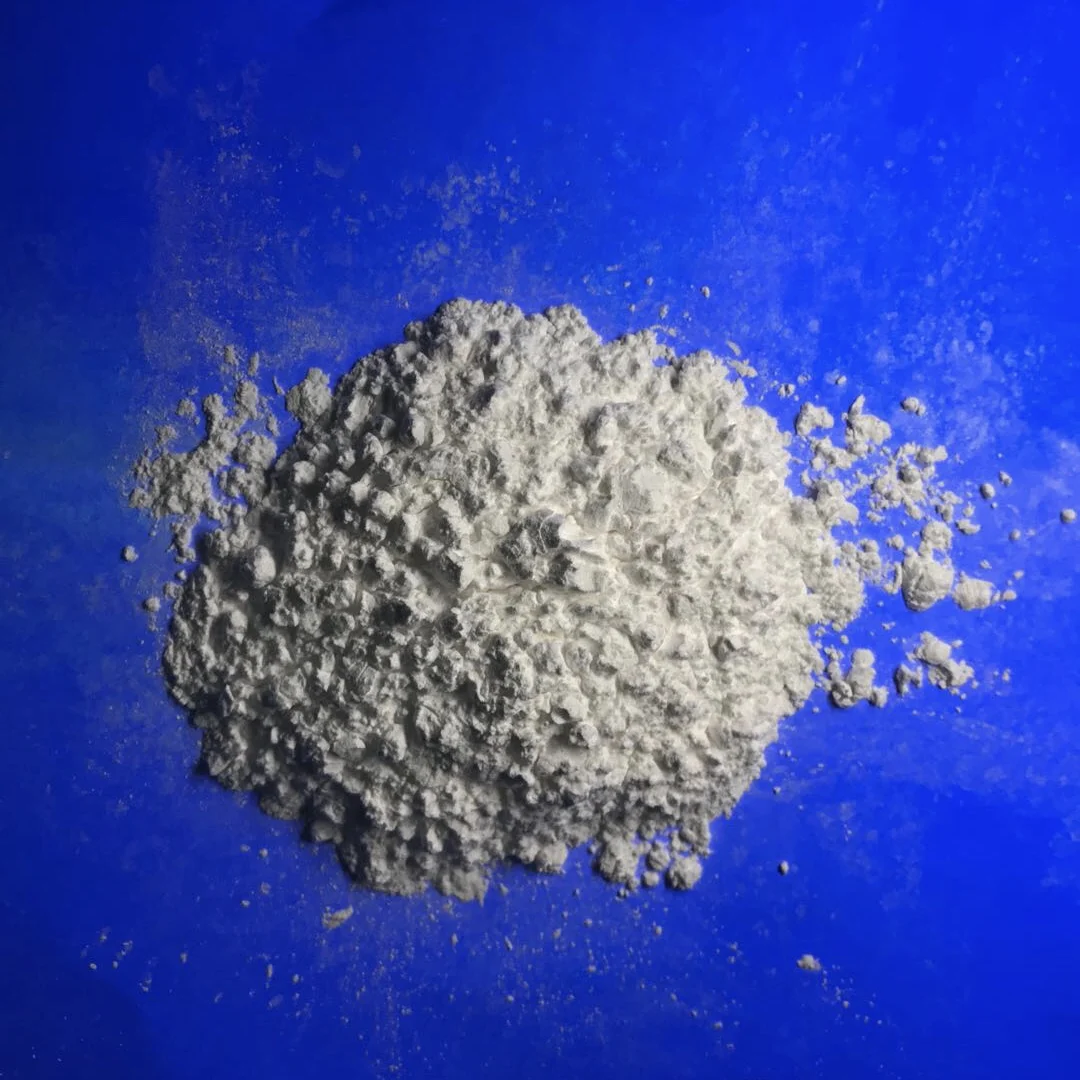

Appearance | White Powder | |
CIE(X, Y) | (X=0.480.Y=0.430)±0.003 | |
Emission Peak | 584±2nm | |
Particle Size | D10: 5±1μm | |
D50: 9.5±1μm | ||
D90: 16±2μm | ||
Color Temperature | 2580±100K | |
Brightness | 98.0% |
Our halo phosphor is released by Philips, Panasonic, Toshiba, and can show same performance same Nichia product.
The Chemical Formula is Ca10(PO4)6FCl:Sb. Mn
Our halo phosphor was introduced the advanced technology from Netherlands and Japan. The quality is good and relased by Philips, Panasonic, Toshiba and so on. The lamp performance of our product is same of Nicha product.
The advatange of our product application:
1. Lower coating weight with high lumen output: 2.6-2.8g for T8-36W tube with high lumen output;
2. Lower depreciation after the lamp worked for 100hrs (less than 5%), 2000hrs (less than 12%);
3. Lower mercury consumpution for 2000hrs: 0.3-0.15mg/tube with 2mg Hg capsule.
4. Narrow particle size distribution.
5. We may produce the product based on your technical requirement (such as color point, PSD D50).
Packaging & Shipping
1. Packaging: 25kg halo phosphor packaged in one bags and put 40 bags on one pallet.
2. Shipping: we may ship the cargo from Shanghai port by sea or air.
Our cooperate
Certifications
Company Information
JN is an integrated global lighting material supplier who R&D, manufacturing and salesphosphors & chemical materials both for lamps and LEDs, and we also provides
professional technical services for our customer.
We are the Director Unit of China Association of Lighting Industry (CALI) & Vice Chairman of Materials Branch, Innovation Company of China, one of ‘Technology Innovation Enterprise of China lighting Industry’ by CALI (2009), member of Zhejiang Institute of
LED lighting.
Our core business covers halo phosphors, triband phosphors, UV phosphors, special phosphors, chemicals (alumina oxide, CaHPO4, CaCO3), LED phosphors, LED glass tobe coating materials, LED lighting source and smart lighting.
We have the technology and production line both from Panasonic and Philips.
FAQ
Q1. Can I have a sample order for led light
A: Yes, we welcome sample order to test and check quality. Mixed samples are
acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 35 days to arrive.
Airline and sca shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdiy customer confirms the samples and places deposit for farmal order.FourthlyWe arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please Inform us formally before our productlon and confirm the design
firstly based on our sample.
