Автоматический гибочный станок DW38CNC для чемоданов и алюминиевых рамок на

Цена:16 000,00 $ - 16 500,00 $*

Количество:

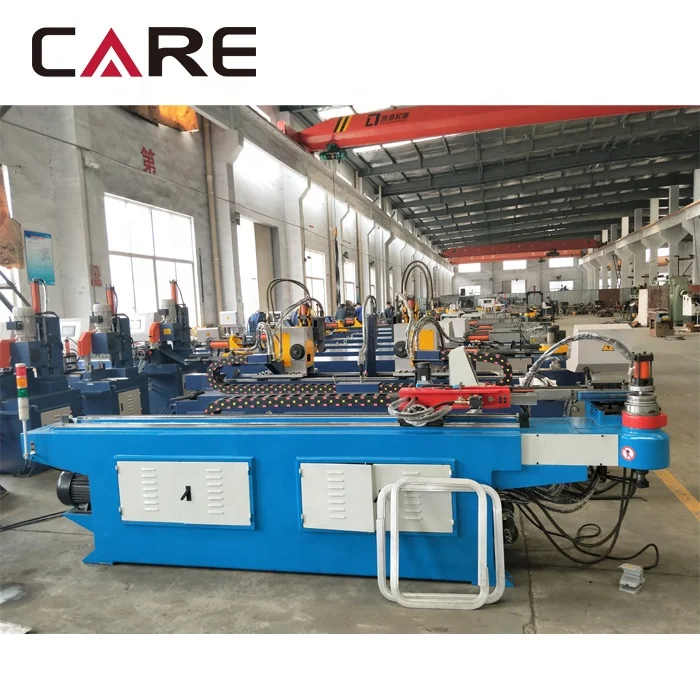

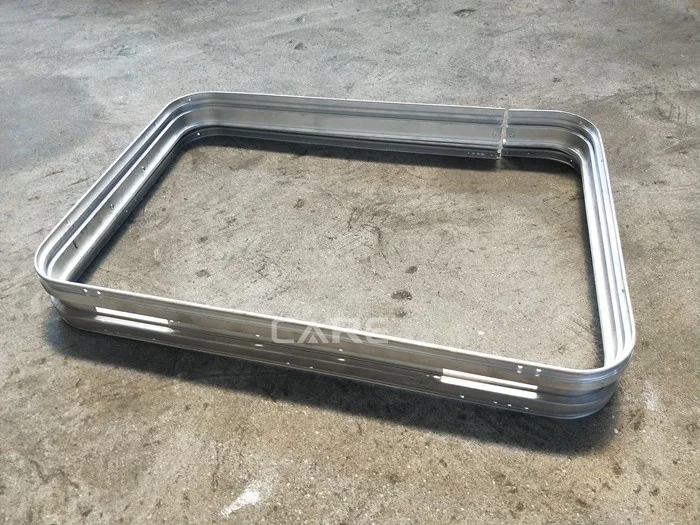

DW38CNC Automatic cnc suitcase aluminum frame bending machine for sale

Product Description

Main specification

1. Interactive PLC touch screen offers easy access to auto and manual operating modes.

2. System diagnostics and multiple language capability.

3. Standard clockwise bending direction.

4. Fully hydraulic clamping on clamp die and pressure die.

5. Drop-way hydraulic clamping.

6. Direct acting hydraulic pressure die with adjustable speed valve.

7. Maximum 500 sets of program storage,Maximum 32 bends for each program.

8. With Independent programmable speeds Y, B, and C axes.

9. Programmable material spring back settings for each bend angle.

10. Automatic release of tube prior to final bend.

11. Bending Axis-Driven by Cylinder,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor.

12. Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.

13. Foot Pedal Cycle start.

14. With Air Cooling System.

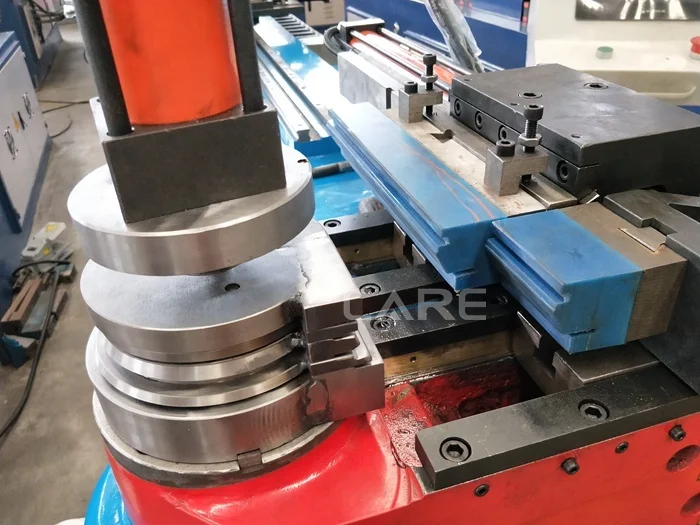

15. One set of Tooling for Draw Bending.

16. Wiper die Bracket.

17. 1 Mandrel Rod.

18. Operation and Maintenance Manual.

19. Tool Box with Adjusted Tools.

20. Electric: As required

Technical paramete

Program	DW38CNC
Max bending capacity	60mm profile
Max R for bending	R150
Max angle for bending	185°
Max feeding stroke	2000mm-3000mm(Can made according to requirement)
Bending speed	138 deg/sec
Bending accuracy	±0.15 degree
Feeding speed	200-1200 mm/sec
Feeding accuracy	±0.15 degree
Total power	8 Kw
Hydraulic pressure	12 Mpa
Weight of machine	1500kg
Size L W H(MM)	4100×900×1200
Remark: The Max length of mandrel of pipe bending machine can according to customers requirement.
