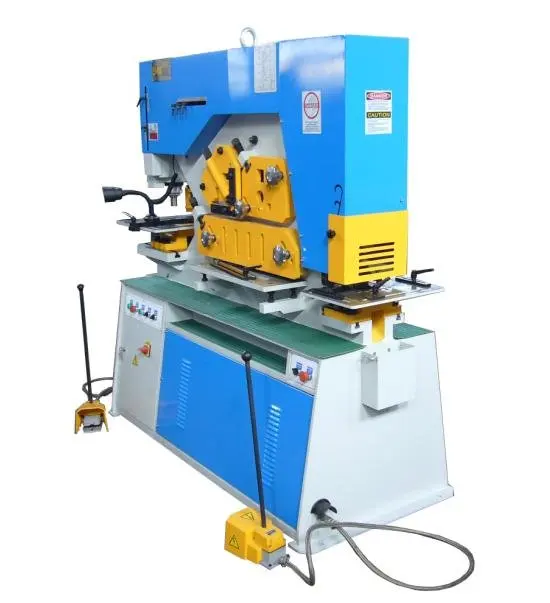

Q35Y-25 combined ironworker machine



A hydraulic ironworker can be used for punching, shearing, notching, bending and other metal fabricating functions. EMM’s special tooling department can design any special tool you need for your metal fabricating needs.



The Ironworker is the most used and most versatile machine a person can have in their manufacturing or fabrication shop, maintenance department or vocational school. Ironworkers save time, increase productivity, eliminate waste and create clean smooth cut.  EMM’s universal multi – function Ironworker machine for production purposes with maximum efficiency and minimum deformation.



The universal machines are supplied with standard tooling include repetition support table at punching, shearing and notching stations and with easily adjust hold down at five stations to safely and control the operations, comprehensive safety guards are fitted as standard on all working stations.



Free standing on suitable floor, the ironworker machines just require electrical connection to be ready for work. For two operator utilization, the hydraulic system is activated by two shielded for switch control , one operating the punching end cylinder, the other operating shearing end cylinder, the shear cylinder provides the power to three shearing stations and notching station.



The system gives precision accurate power inching at all give five works stations and allows the ironworker machine to be stop at any position giving safe and accurate tool setting and working positioning. Limit switches at both ends of the machine control stroke length at all stations.Centralized lubrication is meter by one – Shot system, being only one feature of the low maintenance requirement.



Machine includes 1 movable magnetic base low volts halogen light, 1meter long touch and cut rule length stop back gauge. Fine adjustment facility to punch stroke and measuring scale in the notching table.

Specification	Q35Y-25

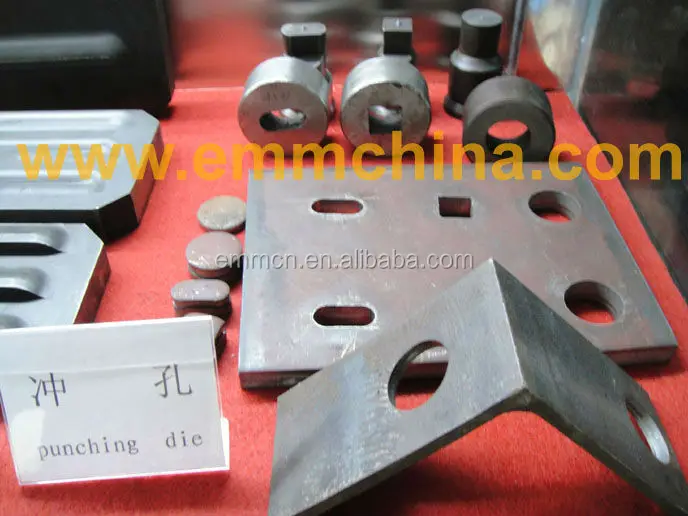

Punching station
Punching maximum capacity	35x25
Stroke Ram length	80
Deep Throat Standard	400(optional 600)
Punching Largest hole (Optional)	160
Working height	1142
Shearing
Flat Plate Shearing Maximum	330x25
Flat Plate Shearing Maximum	600x16
Blade length	620
Angle Flange Trim Maximum 45°	100x14
Working Height	851
Angle Cutting Station
90°  Miter (True Interior /Exterior )	160x15
45°  Miter (True Interior /Exterior )	80x10
Working Height	1220
Section Cutting Station
Round Bars/ Square Bars Maximum Diameter	60/55
Channel /I Beams ( Optional )	200x75
Tee ( Optional )	90x12

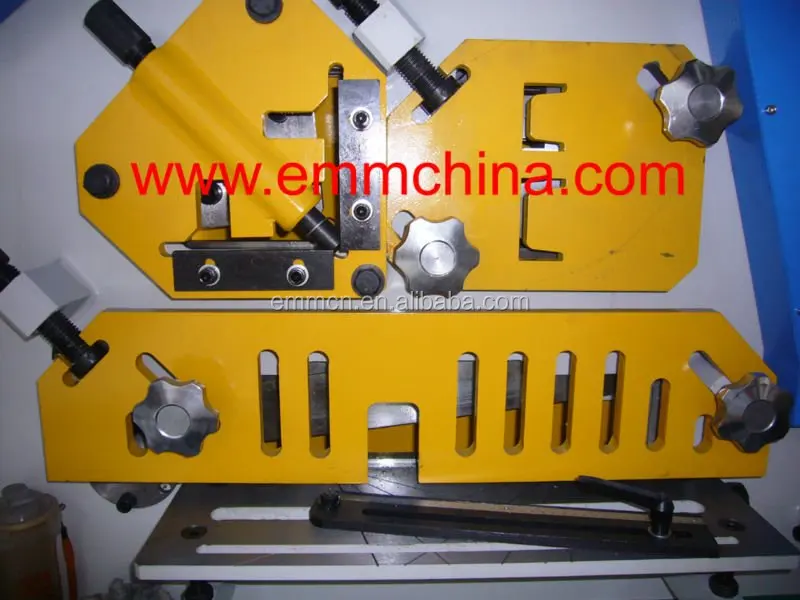

Notching Station
Material thickness	14
Width - Rectangle	57
Depth - Rectangle	60-90
Angle Flange – Maximum Profile	100x14
Working Height	900

  Shipping: FOB shanghai by sea



Presale Service

We assist customers in well understanding the product information like features, functions and applications and so on. As for the detailed procuring information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers. We also provide free samples if necessary.



Service during the Sale

1. We are manned with professional salesmen and technicians to provide the information, technical support and the optimal solutions with high cost performance.



2. Based on the specific requirements of customers and the lead time, we will formulate a rigorous operation process. Through the close cooperation of Commodity Department, Sales Department, Technical Department and the Ocean Shipping Department, we are devoted to timely supplying customers with superior machines.



3. Generally, certain quantity of quick-wear parts will be delivered with the goods. The delivery deadline depends on the specific order, which is usually within 1 to 3 months.



After-Sale Service

1. One year warranty is provided.

2. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by misoperation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the

warranty, we only charge for the basic costs of parts.

3. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.

EMM’s is a comprehensive enterprise dealing economic and technology cooperation that specializes in manufacturing for metal fabrications and distributing of all types of machinery tools Including Industrial Equipment, fabricating equipment, sheet metal equipment and production line machinery.
We are not only trading with customers from domestic and oversea but also providing customers with technical, commutation and after sales support.
Our dedication to the highest quality products and services have establish excellent trade relations with customers from all over the world. EMM’s team memebers includes qualified sales specialists and highly trained technical professional to help provide quick service and the best quality of work in order to meet our customer needs.

1. What does the low pressure polyurethane foam injection machine  can produce ?

Re: Our machine can used for making insulating layer, making memory foam, toys, Imitation wood and some other foam products.



2. What is the payment terms?

Re:

1. 100% by T/T;
2. 30% deposit by T/T,the balance paid by T/T before commodity inspection and before shipment.
3. 30% deposit by T/T, the balance paid by L/C at sight;
4. 100% by L/C at sight;
