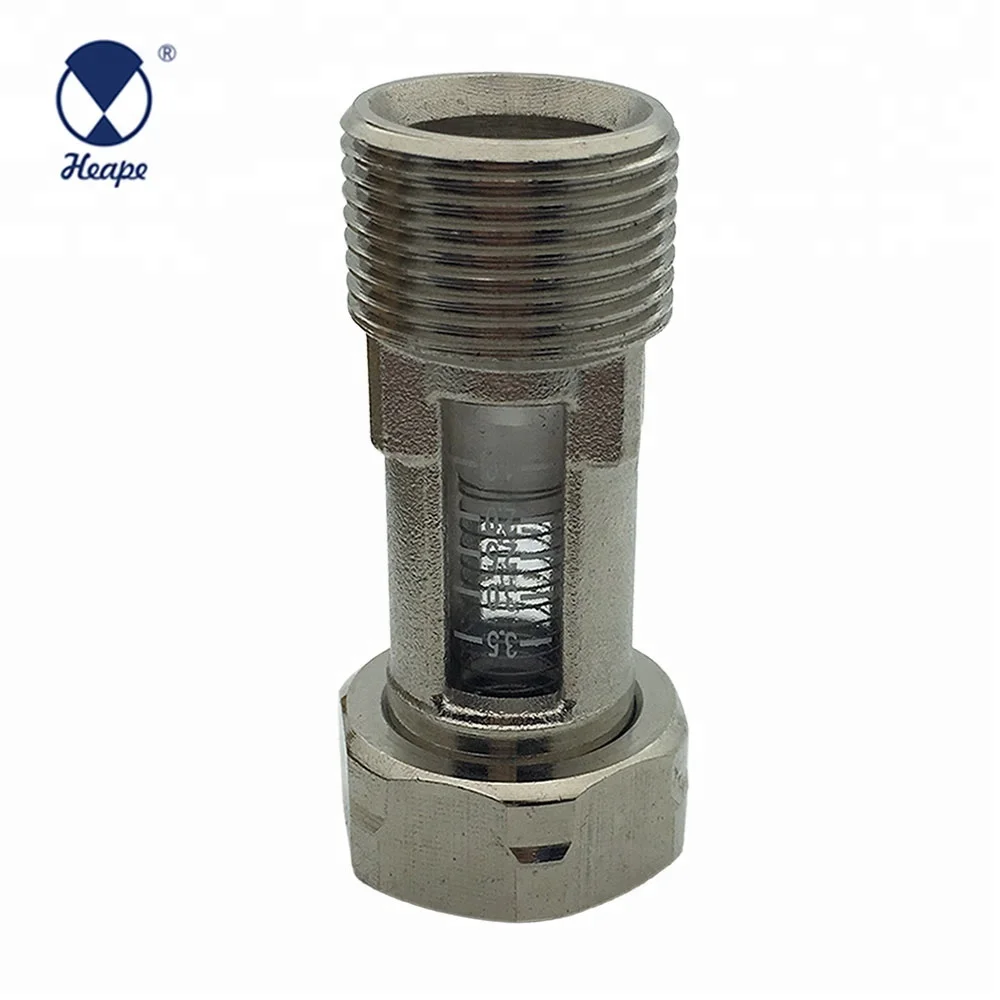

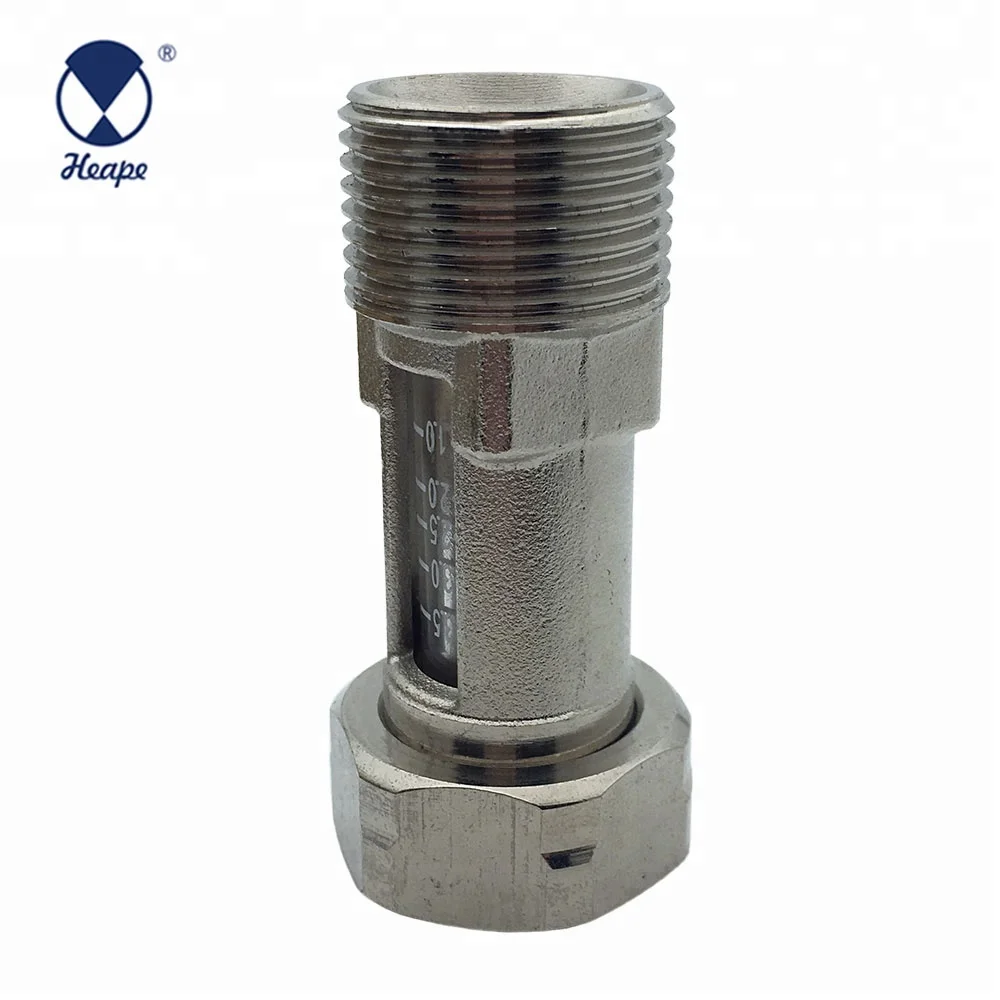

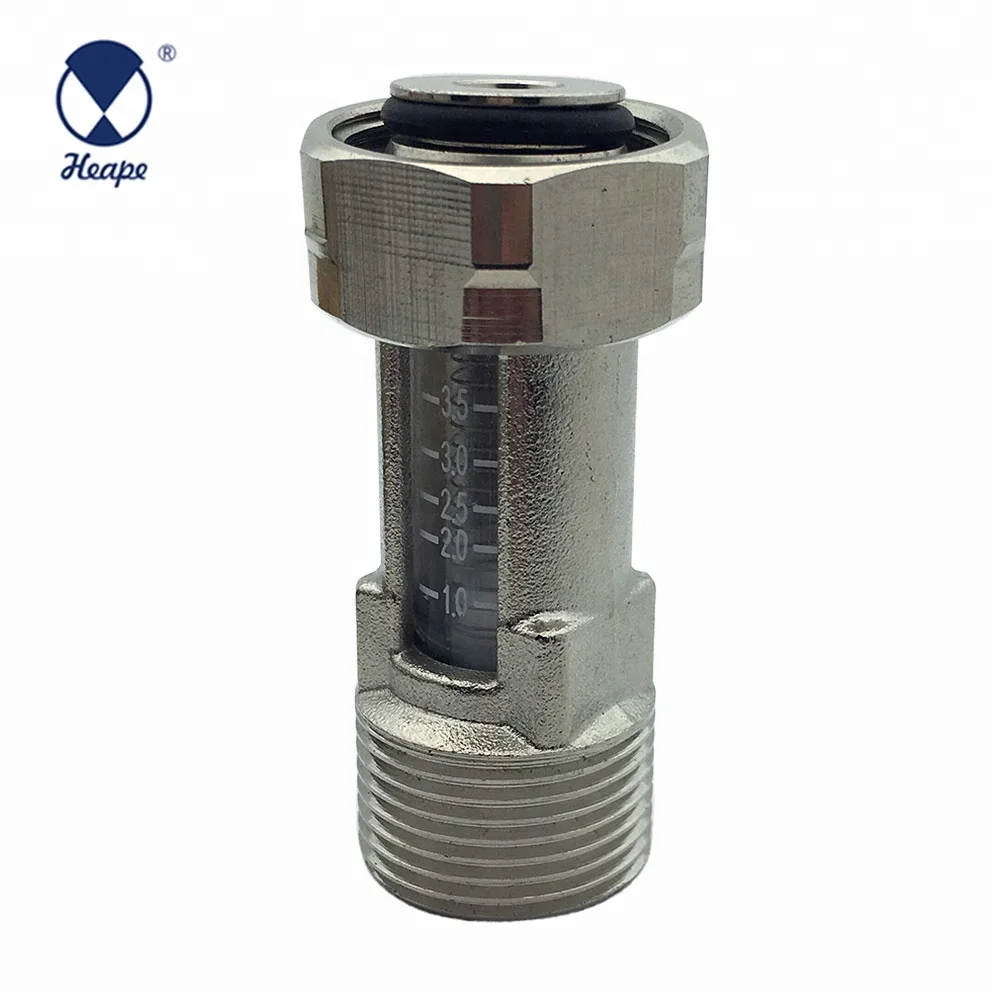

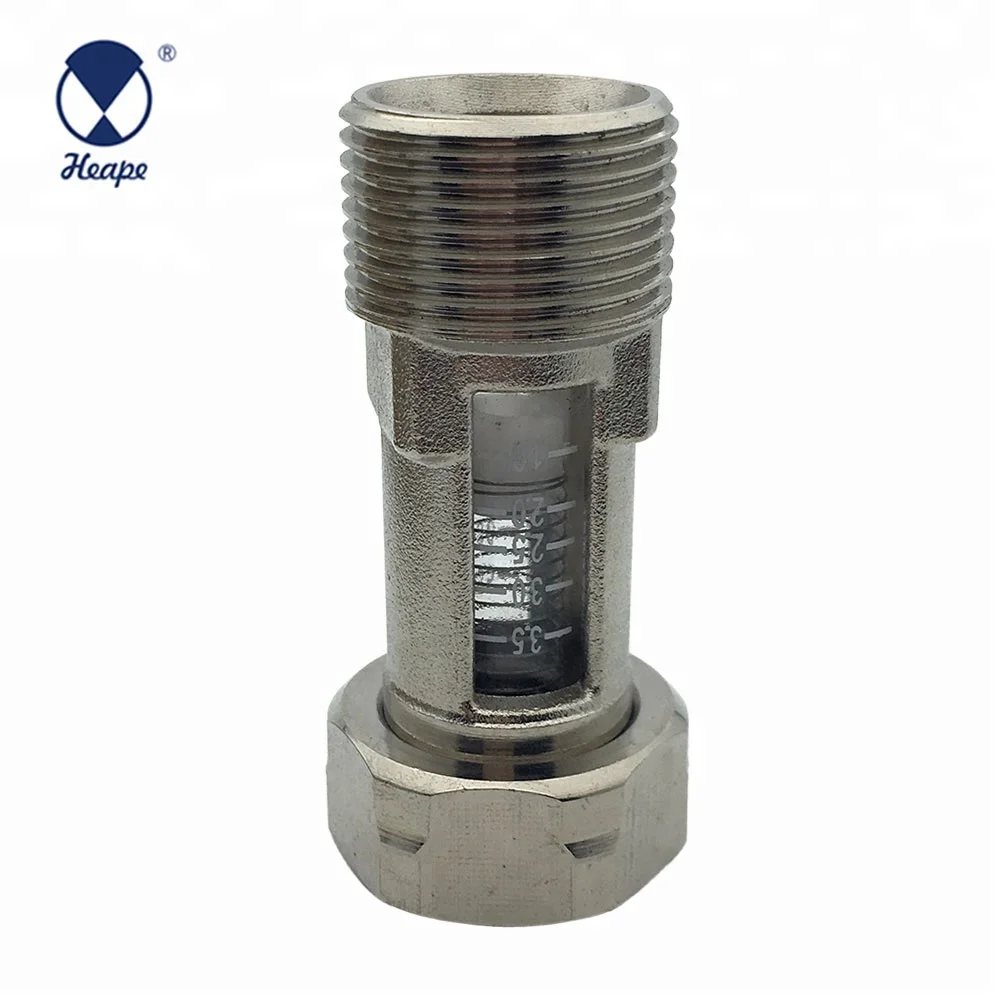

Пружинный латунный расходомер HEAPE стандартный гидравлический клапан среднего давления для горячей и холодной

Описание и отзывы

Трекер стоимости

Характеристики

• Standard or Nonstandard: Standard
• Structure: Balancing Valve
• Pressure: Medium Pressure
• Power: Hydraulic
• Material: Brass, Brass
• Temperature of Media: Medium Temperature
• Media: Water,Oil,Gas
• Port Size: 3/4"M*3/4"M
• Place of Origin: China (Mainland)
• Model Number: Z-011
• Brand Name: HEAPE
• Application: General, Hot and cold water
• Product name: Spring Bras Balancing Valve
• Max pressure: 10 Bar
• Max Water Temperature: 115°C
• Floating Ball: Ethylene-propylene
• Size: Custom Made
• Color: Customer's Request
• Certificate: ISO9001:2008 CE
• Service: OEM and ODM











Packaging Details	1.We will use standard export package if no special requirments,  2.but it is availible to provide colourful package according to your design or we make design fou your brand if required.
Delivery Time	Shipped in 30 days after payment





Flow meter offers a quick, easy and accurate method of adjusting the flow rates.The advantages are as follows:



1. Accurate and quick balancing without diagrams, tables or measuring devices

2. The flow rate is displayed directly in l /min

3. Regulating valve with adjustment scale

4. Regulating valve with isolating facility

5. Can be installed in any position

6. Additional types are also available as make resistant to dezincification.



Technical parameter

1. G×Rp:  3/4"M× 3/4"M

2. Measurement rang: 1-3.5(l/min)

3. Max. input working pressure: 10 bar

4. Max. water temperature: 115°C

5. Valve housing and cover: Brass P-CuZn40PB2

6. Material: Brass or Brass with chromate treatment

7. Floating ball: Ethylene-propylene

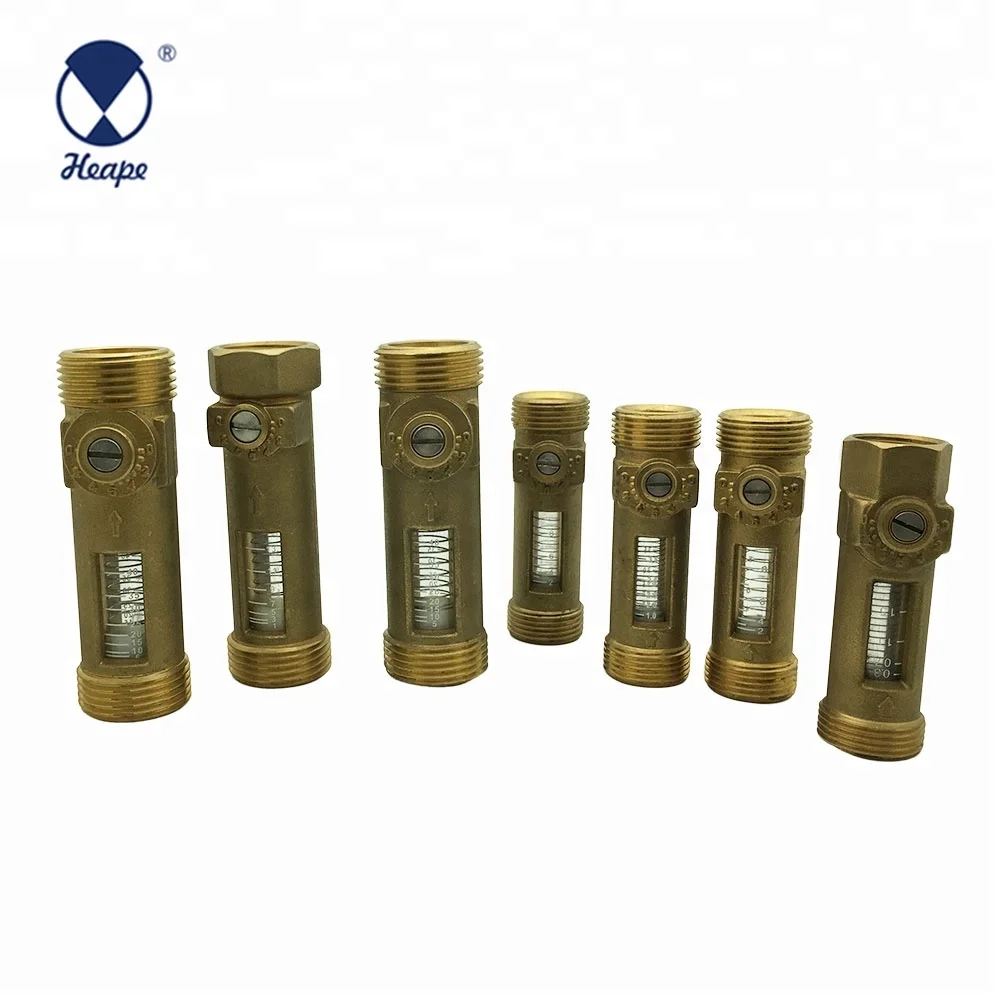

Item	Thread	Flow Range
1	1/2''F*3/4''M	0.3-1.5L/M
		0.6-2.4L/M
		1-3.5L/M
2	3/4''F*3/4''M	1-3.5L/M
		2-8L/M
		3-12L/M
3	3/4''F*1''M	1-13L/M
		5-40L/M
		8-30L/M
4	1''M*1''M	1-13L/M
		5-40L/M
		8-30L/M
