Больничная диагностическая портативная рентгеновская машина

Описание и отзывы

Трекер стоимости

Характеристики

The x ray machine is High frequency with100mA and power supplied by rechargeable battery for outdoor application especially for Field hospital

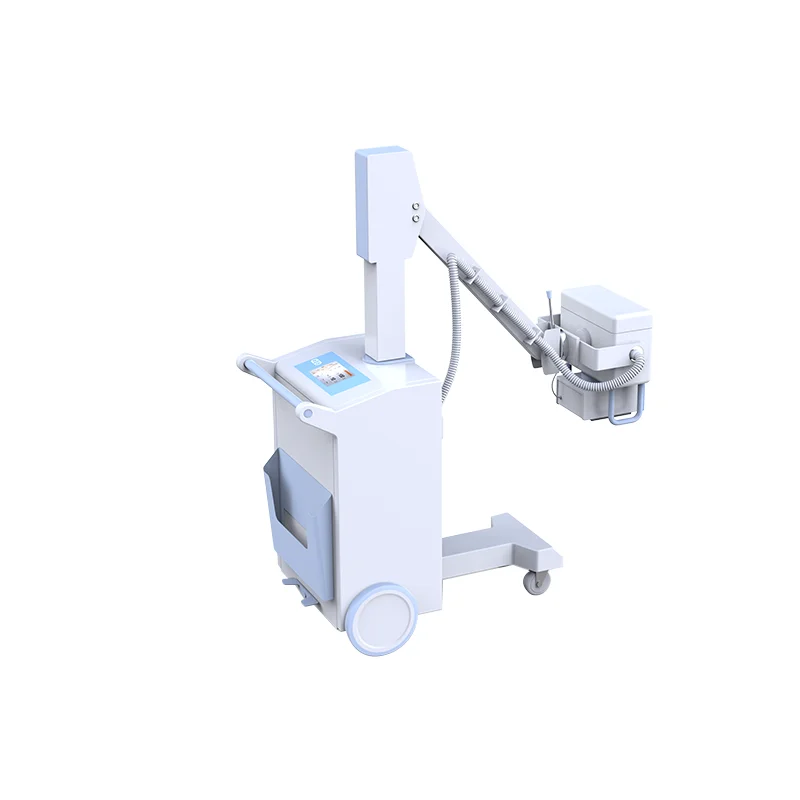

PLX101D is mobile medical x-ray equipment .

Application of mobile medical X-ray equipment 100mA



Mobile medical X-ray equipment 100mA  is combined with high-frequency X-ray photography diagnostic equipment, which is used in radiology, orthopedics, wards, emergency rooms, operating rooms, and ICU, etc. This mobile x ray machine is a mobile diagnostic equipment which can make radiography on human body, such as head, limbs, chest and spine. The mobile x ray device is especially suitable for photography without power supply, such as the special outdoor environment and emergent incidents.







Technical parameters of mobile x ray machine



Power Output	5.0KW
x ray machine Main Inverter frequency	40 KHz
X-ray Tube of radiography machine	fixed anode focus: 1.5 (X-ray tube for high frequency)
Power Supply	220V±10%   50Hz   Inner-resistance ≤1.0Ω
Operation Method	Wire/wireless control





Features of mobile x ray machine





1.With new design of compact appearance and flexible movement, it owns all the advantages of high frequency mobile x-ray photography machine.

2. It adopts the patent technology of automatic and single-arm support. The appearance is more beautiful and operate  more conveniently.

3. With high frequency inverter to emit high quality X-ray and low dose on skin, and ensure excellent definition and contrast of pictures.

4. With techniques of KV analog closed loop control, mAs digital closed loop control and micro-processing real-time control to ensure precision and repeatability of the dose.

5. With kV, mAs two buttons adjustment, LCD display, multifunction of safety guard.

6. With 50 preset exposure programs, and can be modified and stored by the user for convenient operation.

7. With a high-quality knockdown x-ray generator to reduce irradiation, it is much safer to environment and operator.

8. With fault automatic protection setting and fault alarming display

9. The system can keep parameters automatic, in case losing data.

10. With a rotating beam limiting device to adjust the X-ray field and angle, so it can ensure accurate radiography results.

11. With high kV function, it has wide using range and good effect of photography.

12. The rocker can whirl to left and right in ±90°, so photography polarization is convenient and swift.

13. With high-performance and high-capacity chargeable battery, it can take 200 films without power supply for once charging. The machine is especially suitable for photography without power supply, such as special outdoor environment and emergent incidents.

14. Manual control and remote control are used to expose. Wireless remote exposure control can penetrate barriers, which makes operation more convenient.

15.With a built-in battery.
