Yw27 Series Customized 4 Column Hydraulic Press Machine
- Категория: Другие гибочные станки >>>
- Поставщик: Shanghai,Yingxin,World,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 2831139.11 $* | 2887762.27 $* |
| Jul-18-2025 | 2296120.36 $* | 2342042.30 $* |
| Jun-18-2025 | 2786554.75 $* | 2842285.72 $* |
| May-18-2025 | 2764261.56 $* | 2819546.7 $* |
| Apr-18-2025 | 2206951.93 $* | 2251090.15 $* |
| Mar-18-2025 | 2719676.97 $* | 2774070.49 $* |
| Feb-18-2025 | 2697384.22 $* | 2751332.98 $* |
| Jan-18-2025 | 2675092.62 $* | 2728594.12 $* |
Характеристики

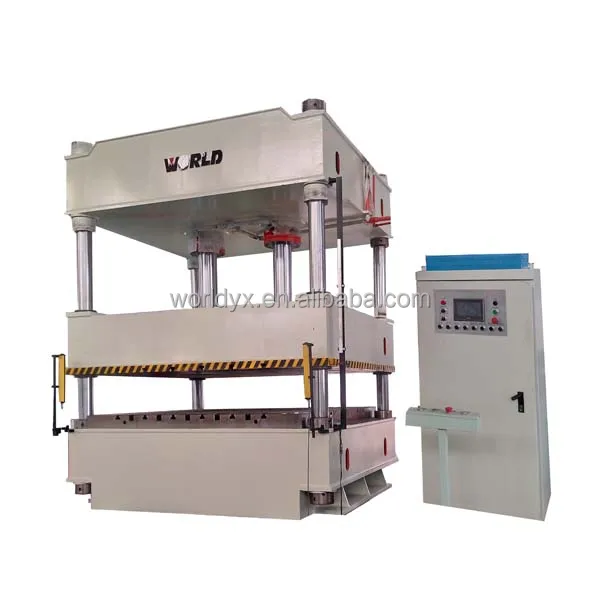

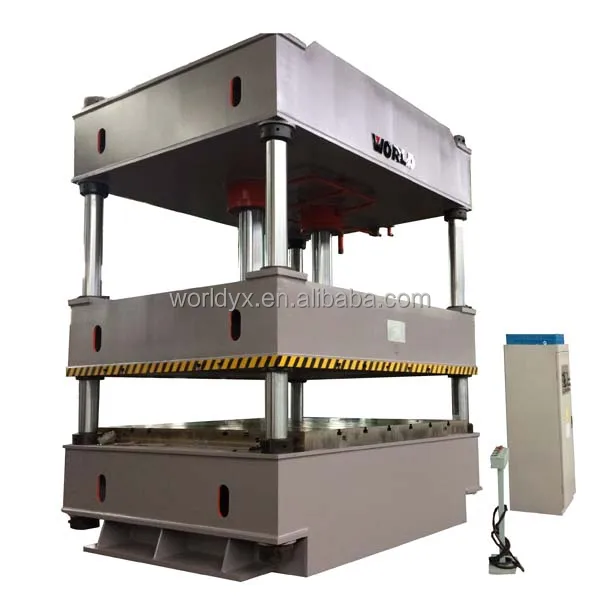

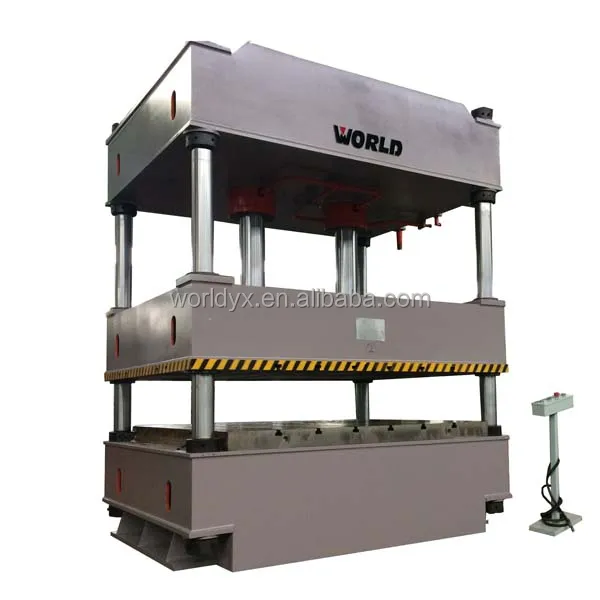

YW27 series Customized 4 column hydraulic press machine 200ton
Pictures
|
|
Technical Data
| YW27-200 | YW27-315 | YW27-400 | YW27-400A | YW27-400B | YW27-500 | YW27-630 | |||
| Capacity | kN | 2000 | 3150 | 2000 | 4000 | 4000 | 5000 | 6300 | |
| Hydraulic cushion capacity | kN | 1200 | 1500 | 1500 | 2000 | 1000 | 1500 | 2000 | |
| Slide Stroke | mm | 800 | 1000 | 1000 | 1200 | 500 | 1000 | 1500 | |
| Hydraulic cushion Stroke | mm | 260 | 300 | 350 | 350 | 200 | 300 | 400 | |
| Max. Shut Height | mm | 1200 | 1600 | 1500 | 2000 | 1100 | 1400 | 2000 | |
| Bolster movement distance | mm | 2000 | 2400 | 1600 | 2700 | ||||
| Slide Speed | Idle Stroke | mm/s | 220 | 200 | 200 | 250 | 180 | 220 | 200 |
| Pressing | mm/s | 15-25 | 10-15 | 9-15 | 10-25 | 10-25 | 8-20 | 6-15 | |
| Return | mm/s | 160 | 150 | 150 | 150 | 120 | 160 | 150 | |
| Ejecting Speed | Eject | mm/s | 60 | 60 | 60 | 60 | 60 | 80 | 80 |
| Return | mm/s | 100 | 100 | 100 | 80 | 80 | 120 | 100 | |
| Bolster Size | LR | mm | 1000 | 2500 | 2700 | 3000 | 1700 | 2000 | 4500 |
| FB | mm | 1000 | 1600 | 1500 | 2000 | 1400 | 1400 | 2500 | |
| Main Motor Power | kW | 15 | 22 | 44 | 44 | 44 | 44 | 67 | |
| MODEL | YW27-630A | YW27-630B | YW27-630C | YW27-800A | YW27-800B | YW27-800C | YW27-1000 | ||
| Capacity | kN | 6300 | 6300 | 6300 | 8000 | 8000 | 8000 | 10000 | |
| Hydraulic cushion capacity | kN | 2500 | 2000 | 2500 | 2000 | 2500 | 2000 | 3500 | |
| Slide Stroke | mm | 1000 | 1200 | 1500 | 1500 | 850 | 1200 | 1600 | |
| Hydraulic cushion Stroke | mm | 350 | 350 | 400 | 400 | 300 | 300 | 400 | |
| Max. Shut Height | mm | 1600 | 2000 | 2200 | 2200 | 1450 | 1700 | 2000 | |
| Bolster movement distance | mm | 2000 | 2400 | 2400 | 2700 | 2200 | 1800 | 2700 | |
| Slide Speed | Idle Stroke | mm/s | 250 | 220 | 220 | 200 | 280 | 220 | 220 |
| Pressing | mm/s | 10-25 | 10-25 | 10-25 | 6-15 | 12-25 | 15-23 | 15-23 | |
| Return | mm/s | 150 | 120 | 120 | 140 | 220 | 120 | 120 | |
| Ejecting Speed | Eject | mm/s | 60 | 80 | 80 | 60 | 60 | 60 | 60 |
| Return | mm/s | 80 | 100 | 100 | 80 | 80 | 100 | 100 | |
| Bolster Size | LR | mm | 3000 | 3000 | 4500 | 4500 | 3200 | 2500 | 3800 |
| FB | mm | 1800 | 2000 | 2500 | 2500 | 2000 | 1600 | 2500 | |
| Main Motor Power | kW | 90 | 90 | 60 | 90 | 165 | 90 | 110 | |
Description
Our Workshop
Packaging & Shipping
Our Customers
Our Certificates
Shanghai Yingxin World Machinery Co., Ltd
12F, 432 Huaihai Road West, Shanghai, China
Contact person;Tommy Lei
