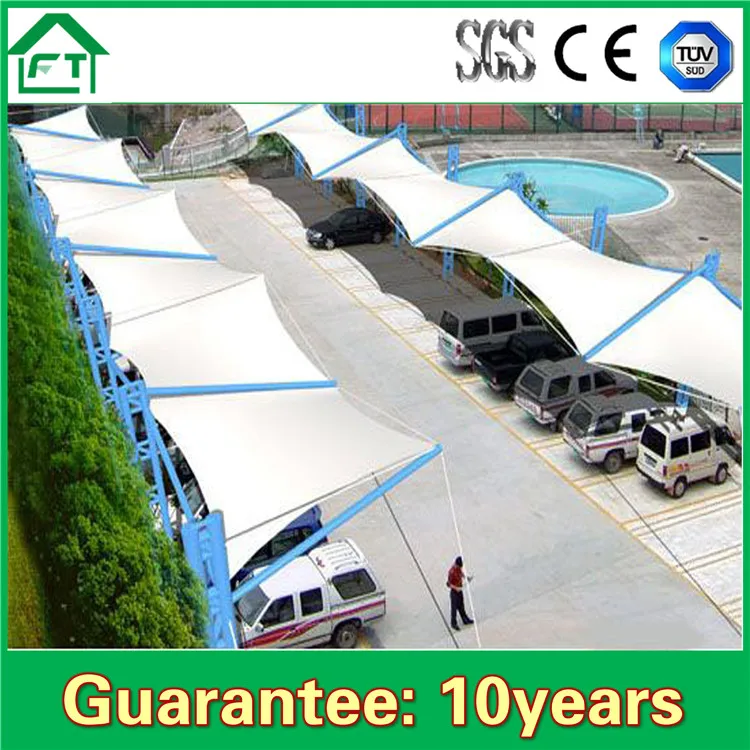

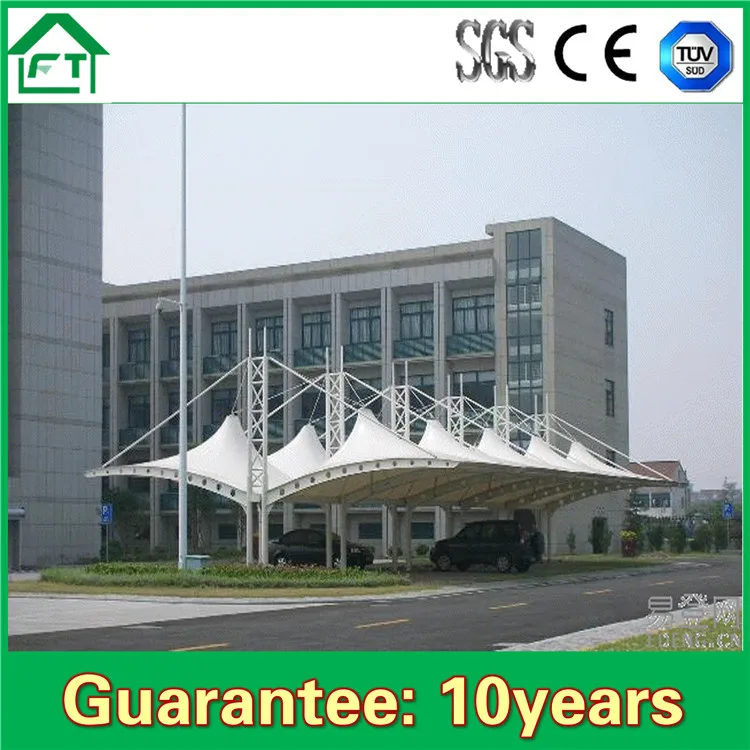

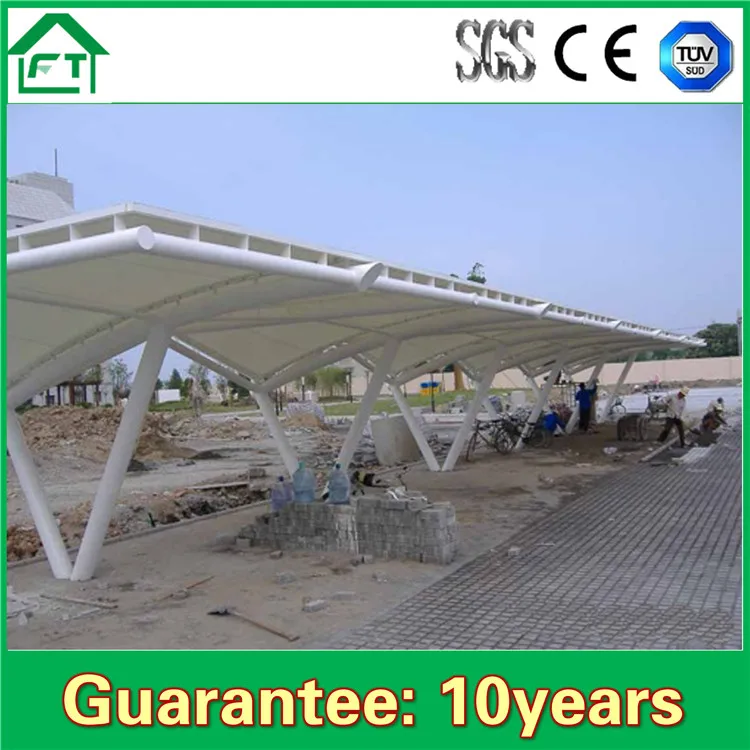

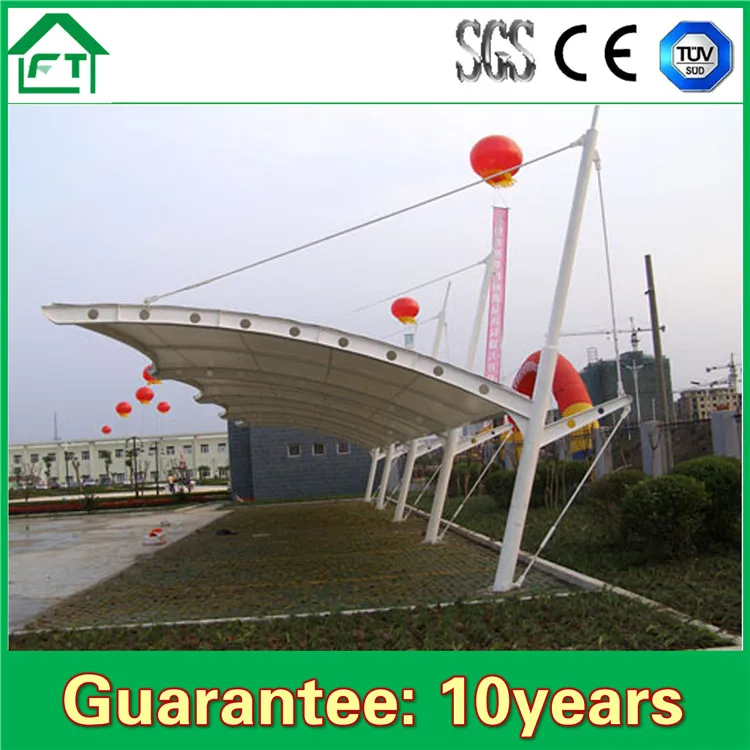

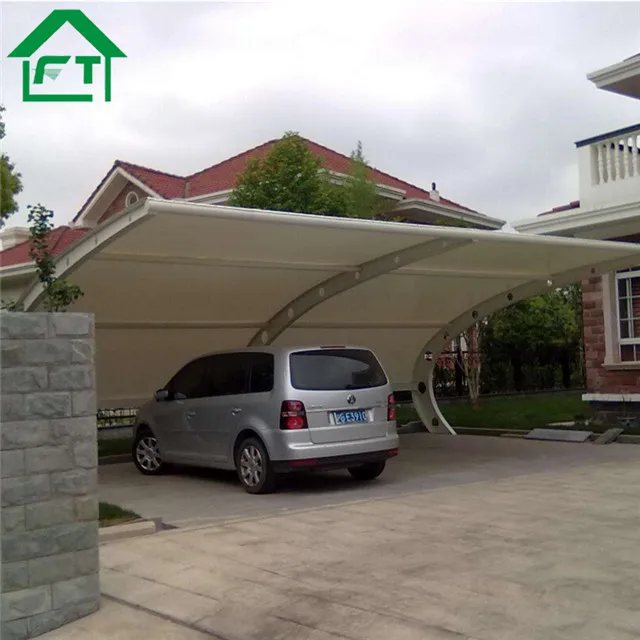

Tensile Membrane Structure Car Parking Cover Canopy
Sun Island Hotel Platform For International Exchange Of Membrane Structure Projects
Membrane structure which called tensioned Membrane structure, is a new kind of building structure. It through the steel frame, Steel column or waire make the Membrane material produce a certain tension, in order to form a certain space shape, composition can bear a certain tension stability catenary system. Membrane structure of the Membrane material should be made concave and convex space curved surface to ensure its stability, so the Membrane structure is called space Membrane structure as well.
Membrane structure is simple, crisp and dynamic appearance and a strong body sculpture, and firmness with gentleness, strength and beauty the perfect combination, not only it can fully demonstrate the humanistic spirit of the building, but also very modern.
Material:
Q235 Steel Frame
Inspection standard: GB/T3091-2008
Steel code
Size
(mm)
Cemical composition
Yield Point
Tensile Strength
Elongation
C
Si
Mn
P
S
Mpa
Mpa
δ
Q235B
114*3
0.15
0.15
0.37
0.016
0.018
290
390
26
Q235B
89*3
0.13
0.14
0.37
0.022
0.024
295
375
27
Q235B
140*5
0.14
0.15
0.41
0.022
0.022
285
380
28
Q235B
219*7
0.16
0.12
0.36
0.018
0.024
285
385
25
Q235B
87*4
0.13
0.16
0.36
0.018
0.022
290
385
26
Q235B
60*3
0.12
0.16
0.42
0.018
0.020
280
380
27
PVDF Cover
Technical profile
Technical
Technical Date
Executive Standard
Base Fabric
High Strength Low Yarn polyester Yarn
DIN EN 60001
Yarn count(yarn/cn)
1100dtex
DIN ISO 2060
Weave Style
12/12/yarn/cm
DIN EN 1049-2
Weight of Base Fabric (G/SQM)
Dyeing Cloth
Total Weight (G/SQM)
1000G/SQM
Total thickness(mm)
0.8mm
Tensile Stregth(N/5cm)
4400/4200N/5cm
DIN EN 1421
Tear Strength(N)
600/550N
DIN 53363
Adhesion(N/5cm)
>120N/5cm
IVK 3.13
Threshold Temperature
(-30)℃---(+70)℃
DIN EN1876-1
Light Transmission
5%
Acoustical Weakening Index
15dBA
Surface Treatment
Double layer PVC ,clean by itsself
Flame Retardancy
DIN 4102B1 GB8624 B1
Quality Management
DINEN ISO9001
Advantages
A. Cost efficiency Tensioned membrane architecture offers both the structure and the roofing shell in one. Depending upon the requirements, shaped fabrics under tension can span large areas at dramatically reduced costs compared with conventional roofing systems. They are also erected more efficiently reducing costs even further.
B. Design Freedom Being a flexible and highly formable systems, tensile fabric membranes are able to be formed into breathtakingly spectacular designs. This allows architect to do things unthinkable with conventional construction materials. A well designed tensile structure instantly adds to a buildings aesthetics, giving it notoriety whilst improving its functionality.
C. Noise pollution Fabric roofing structures provide not only the benefit of reducing climatic noise from rain, hail and wind, but also the curved construction diffuses both internal and external sounds, whilst absorbing them at the same time. This dramatically improves noise pollution.
D. Lower energy costs Tensioned fabric structures have high sun reflecting properties and low absorbency of sunlight. This greatly reduces the solar energy and heat that enters the structure, whilst still maintaining constant internal temperatures. Translucent materials provide a comfortable and natural light source, removing the need for artificial lighting during the daytime reducing energy cost even further.
E. Increased branding Adding corporate identity to the fabric membrane provides a perfect opportunity to improve notability and visual marketing of your company or promotional brand. Illuminated correctly, they also enhance your branding at night and enforce your market positioning. Tensioned fabric architecture offers the ability to exploit underutilised space whilst increasing marketing presence at the same time.
F. Semi-permanent nature Tension membrane structures ‘historically’ have been closely tied to major events such as exhibitions, where shelters are needed for short periods of time. Tension Fabric structures can be easily designed for rapid relocation and re-erection; making them perfect for high impact event structures. Not only does this help with practicality it also helps with planning permission for fixed term structures as they are classed by most authorities as semi-permanent structures.
There are many more benefits which tension membrane structures provide. Contact us directly to discover more reasons as to why you should be looking at tensile fabric architecture.
Application:

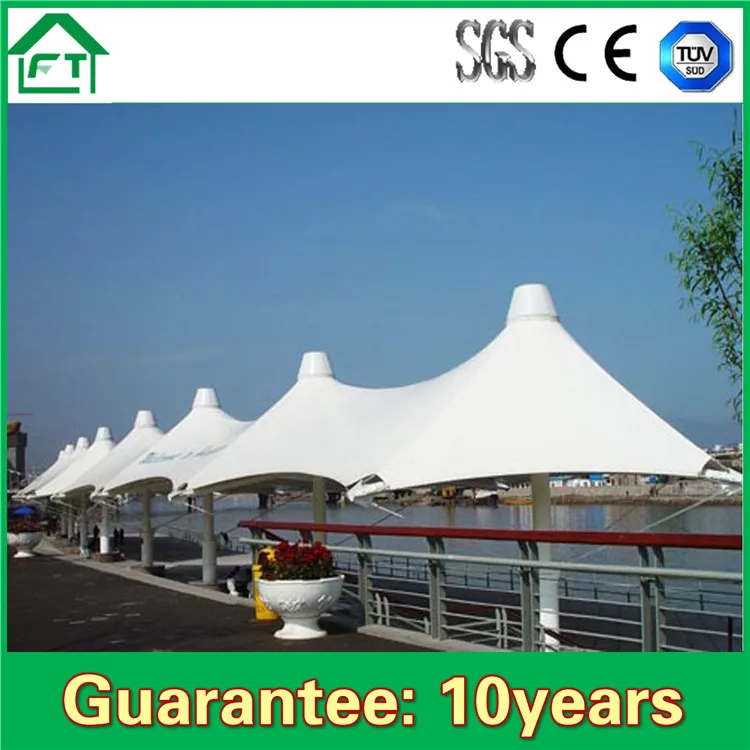

This kind of Tension membrane structures can be widely used in seasonal or permanent structuresfor indoor sports and recreational facilities as gymnasiums, stadiums, swimming pools,
cafeterias and food courts, exhibition and conventional centers, canopies
and vehicle parkings, etc
Architecture Design
Creating a tensile fabric structures which combine style, form, functionality, practicality, durability and cost efficiency is never easy; however, these are the challenges our designers and architects have been excelling at for over 15-years. Utilising the latest fabric technology and protective coating systems, we provide structures which not only look beautiful, but structures which complement their surroundings for years to come.
Working with your main contracted architect firm or independently, our in-house architects are able to create stunning modern architecture design concepts to enhance any building or landscape functionality.
With a broad spectrum of architectural materials, both in fabric and framing system at our disposal, we are able to help our clients fulfill their design aspirations.
Features:
1,High strength and intensity but light weight 2,Waterproof, UV resistance, heat insulation,anti-aging, Transmittance ect. 3,Moisture proof, smoke proof, soundproof self-cleaning, beautiful view 4,Modern design, Easy to install 5, used in seasonal or permanent structures for indoor sports and recreational facilities as gymnasiums, stadiums, swimming pools, cafeterias and food courts, exhibition and conventional centers, canopies and vehicle parkings, etc
Company Information
Guangzhou FT Tent Decoration Co.,Ltd is a professional tent manufacturer engaged in design, production, sale, service. The company has set up a head office and factory in Guangzhou. It covers in an area of more than 9000 square meters. Our company philosophy is "quality first, brave in exploitation, forge ahead, continuous innovation, work integrity", this is constant belief in FT Tent! Good quality and perfect service is leading the company to maintain the foundation! Base on fact, FT Tent professional products and high quality service is worthy of trust.
FAQ
Q1: Is this the factory price?
Yes. All the price we quote are base on the factory price.
Q2: Can you paint LOGO on the tent?
Yes. We can paint logo on the tent according to your request.
Q3: How to get a tent from your factory?
1. Please send the 30% deposit money to our company bank acountant
2. Then we start to produce the tent
3. Please send us the 70% balacne when we finish the tent before the delivery
4. We will arrange the shipping delivery the tent for you.
Q4: How to install after I get the tent?
We can ask engineer to your place to instruct installing.
