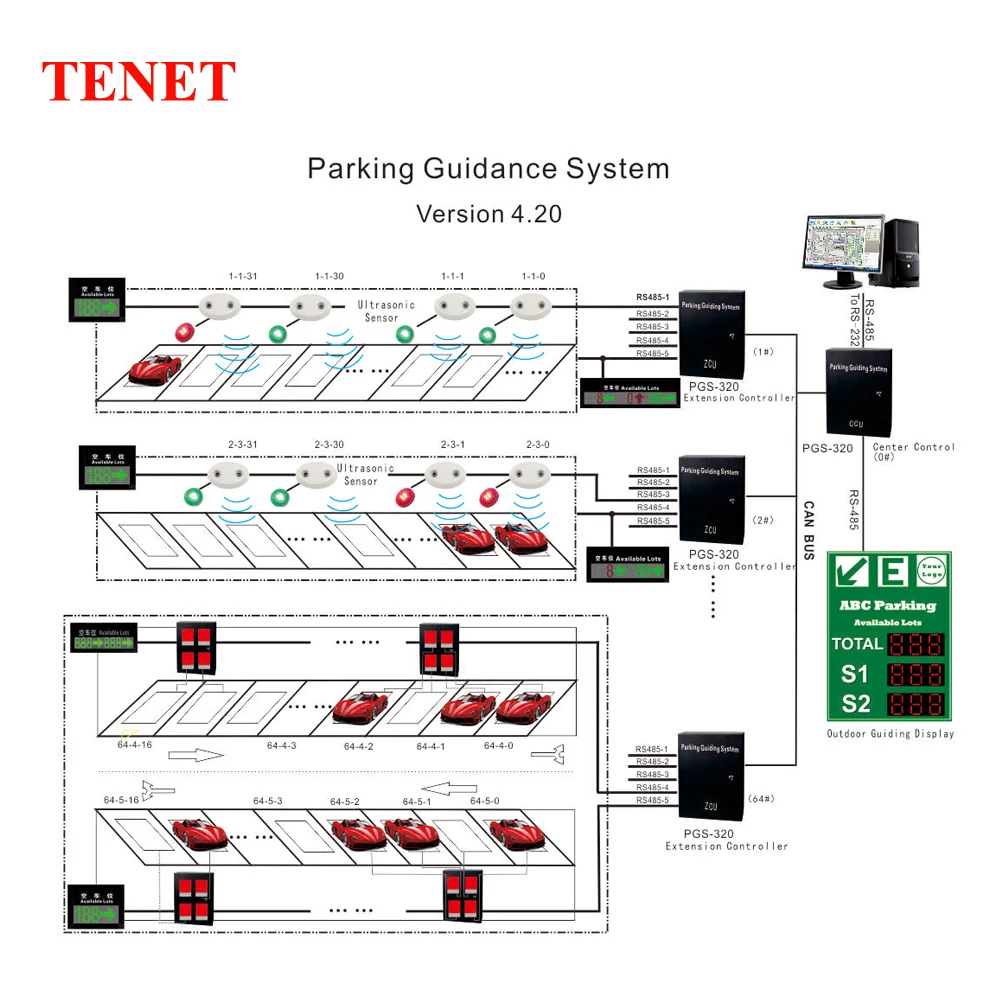

RS485 Ultrasonic sensor 3.5m distance detection/Parking Slots Occupancy Sensors For vehicle Parking Space Guidance System(PGS)



Estelle Zhou                        Skype:live:2355271221

                                                Whatsapp:+8613510326491

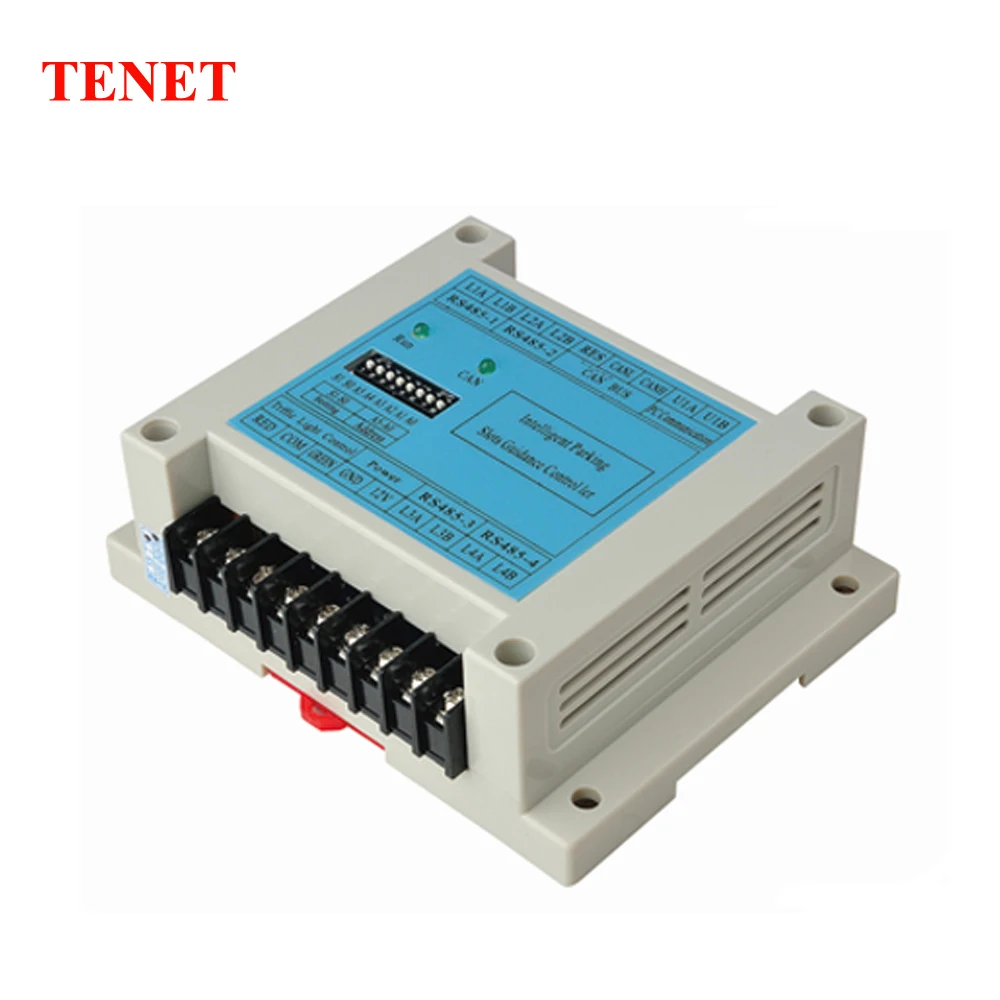

1 PGS controller

Technical Parameters

l  Power Supply: DC12V/1A

l  CAN bus network can be up to 3000 meters

l  58 zones and 62 extensions set can be managed by1 host

l  32 parking lots and 8pcs parking guiding display can managed by each RS485 bus

l  Off-line records can be stored up to 60 days



Main Features

l  Industrial grade 32bits ARM microprocessor

l  Embedded real-time operating system (RTOS)

l  CAN bus network

l  Integrating 5 lines high-speed real-time RS-485 bus port

l  Off-line work, can be cut off from computer and work independently

l  Parking lots data is collected and issued in real time

l  GPRS-DTU module can be connected to Central Control Unit (CCU)

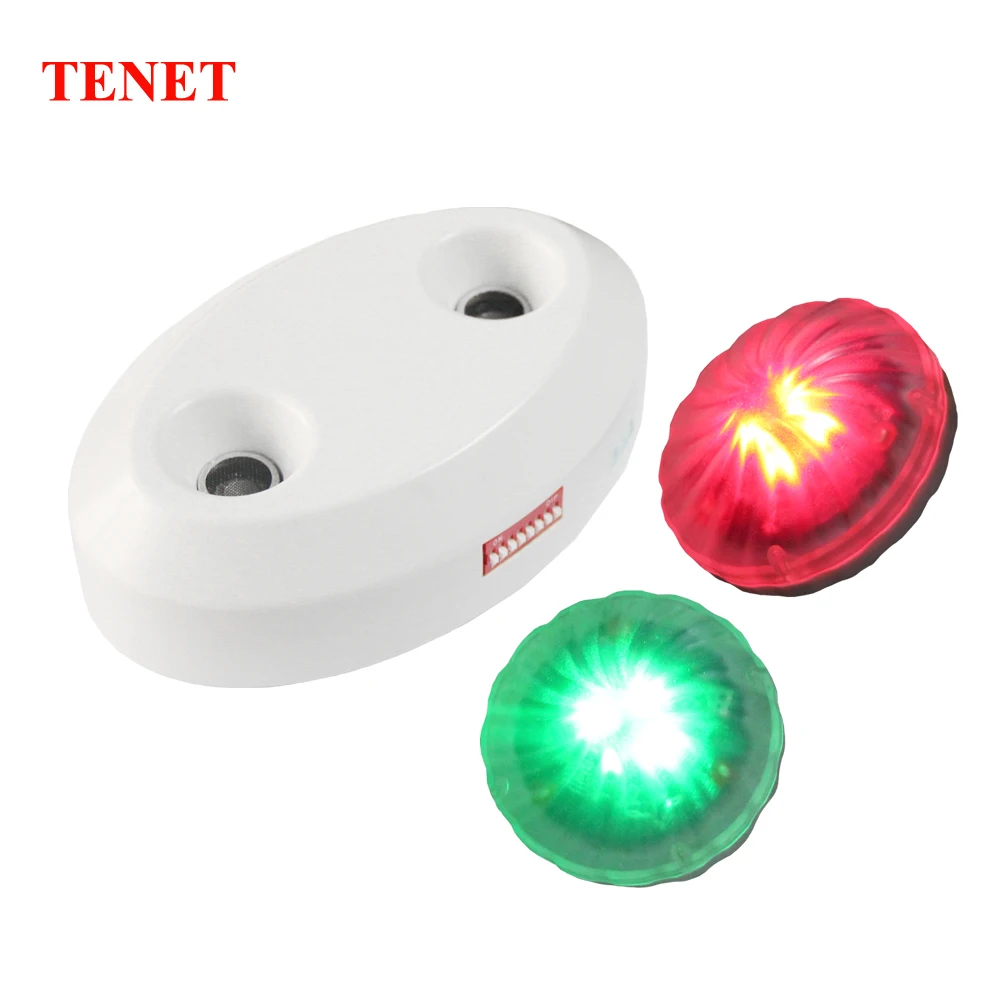

2.ULTRASONIC SNESOR WITH INSTALLATION



Technical Parameters



l Operating Voltage DC12V/24V ,max not over26V



l Operating Temp   -20 to 50 degree



l Storage Temp   -40 to 85 degree



l Operating humidity   30 to 90 percent



l Sensitive distance  Range 1.0 to 3.5m







Main features



l Industrial standard design, adapt to all kinds of environment



l For parking lot space vehicle real-time detection



l Use RS485 communication bus, 32 pcs ultrasonic sensor maxment



l Can not connect the controller to wor independently.
