Характеристики
Overview
i.MX6Quad SoM Core Board with 1G DDR3 RAM and 8G eMMC
FETMX6Q SoM is a quad core Cortex-A9 Core board designed based on Freescale Cortex-A9 featuring i.MX6Quad processor, we kindly provide this system on module with supporting of embedded Android and Linux system and with opening driver and source code.
the i.MX6Q CPU based FETMX6Q ARM CPU board is integrated with minimum system
SoM with minimum system and with LCD interface, which is very convenient for usres to do incoming quality control and aging by running the system just with connection of a 4.2V power input but no need support of the carrier board.
Product Description
FETMX6Q ARM Core Board | ||||||
CPU | Freescal i.MX6Quad | IIC | 3-ch | |||
Architecture | A9 | SPI | 2-ch | |||
Main Frequency | 1GHz | CAN | 2-ch | |||
RAM | 1GB DDR3 (2G optional) | USB Host | 1-ch, USB2.0 | |||
Flash | 8GB eMMC, (4G optional) | USB Device | 1-ch, USB2.0 | |||
Input Voltage | 4.2V | SD/MMC/SDIO | 2-ch, SD/MMC | |||
2D/3D | supported | Ethernet | 1-ch, Gigabit Ethernet | |||
GPU | IIS interface | Mini-PCIE | 1-ch | |||
PMU | MMPF0100NPEP | UART/IrDA | 5-ch, (1 debug port) | |||
Dimensions | 60mm*60mm | EINT/GPIO | supported | |||
Connection Type | CPU module soldered on carrier board | Video Codec | hardware codec | |||
OS | Android4.4/Linux3.0.35/ LinuxQT4.8.5 | HDMI1.4 | 1-ch | |||
LCD | RGB888 (2-ch LVDS with 8-bit) | Camera | 1-ch, 5MP parallel camera | |||
Audio | IIS | SATA | 1-ch, SATA-II | |||
Android 4.4 | ||||
U-boot | U-boot 2009.08-dirty | |||
Kernel Version | Linux 3.0.35 | |||
NIC (1000M/100M) | RTC | |||
LED | Audio | |||
LCD | SPI | |||
USB to serial interface | serial interface (3) | |||
PWM (back light) | user key | |||
SATA2 | BT | |||
eMMC | watchdog | |||
Ext4 file system | WIFI | |||
SD card | RS485 | |||
LCD FrameBuffer | CAN | |||
precise touching driver (capacitive) | ||||
Linux Console/ Linux QT4.8.5 | ||||
Cross-compiler | arm-fsl-linux-gnueabi-gcc-4.6.2 | ARMv7 instruction set, supports hard floating operation | ||
OS image flashing | supports USB download flashing | USB brushing | ||
supports file (s) one-key flashing | ||||
supports EXT4 file system flashing | ||||
flashing tool MFG Tools are available in WindowsXP/Vist/Windows7 | ||||
Uboot | boot mode selection (eMMC/USB OTG) | |||
RAM | ||||
Uboot booting logo (not provided) | ||||
version: Linux-3.0.35 | LCD back light driver, 255-class adjustable | |||
files system: EXT4/NFS/FAT32/NTFS | LCD (7'' capacitive LCD) | |||
eMMC (4G/8G) | USB host: U-disk, USB hub, USB keyboard and USB mouse | |||
watchdog | USB device | |||
RTC | TF/SD/MMC card driver, up to 32GB | |||
IO | serial interface | |||
user key | WM 8962 audio: recording and playing, ALSA interface, supports D amplifier, speaker and earphone output | |||
SPI | Ethernet (AR8031, 1000M/100M/10M | |||
IIC | 3G | |||
camera OV5640 | USB to serial interface | |||
PWM | SATA hard disk | |||
capacitive touching | LVDS single/dual channel (single channel up to 1366 x 768, dual-channel up to 1920 x 1080 | |||
Utility APP | WIFI configuration tool | 3G network | ||
telnet testing | USB camera | |||
RTC testing | audio recording and playing | |||
SPI to CAN MCP 2515 | IIC | |||
Flexcan | GPU | |||
IP/MAC | IPU | |||
Sqllite | VPU | |||
sleeping waking up | speaker | |||
TTL to RS232 | RGB back light | |||
RS485 | 1080P video and mp3 file playing | |||
audio recording/playing | watchdog | |||
GPRS network | MMC/TF/SD card, U-disk, and ext4 hard disk auto mounting and uninstalling | |||
GPS | FTP network | |||
SPI | Boa web server | |||

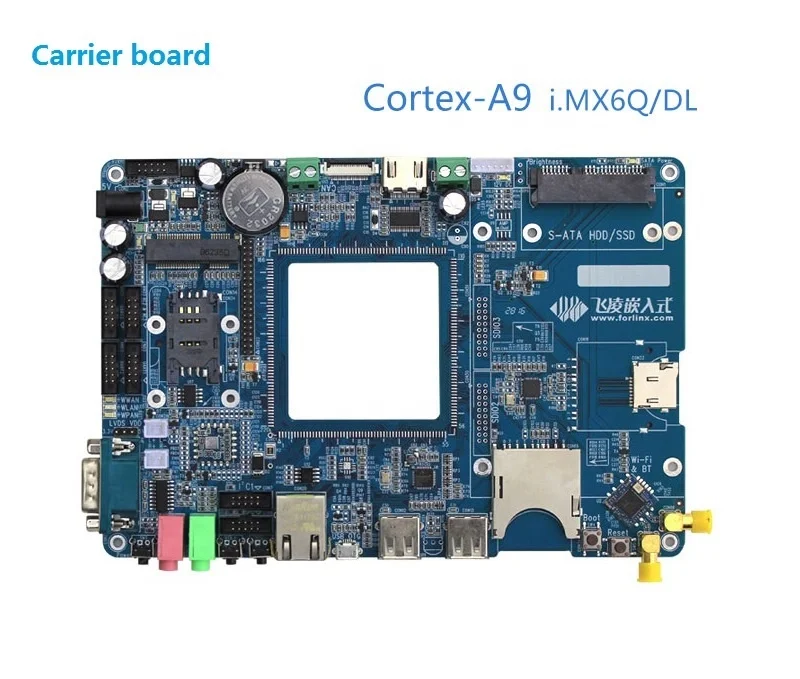

Click here to link to the matched single board computer or development board OKMX6Q-S2
Application:
Automotive infotainment, digital signage, HMI, in-flight entertainment, intelligent industrial control system, IP phones, IPTV, portable medical, tablets.
Plenary product information for reference
Detailed Images

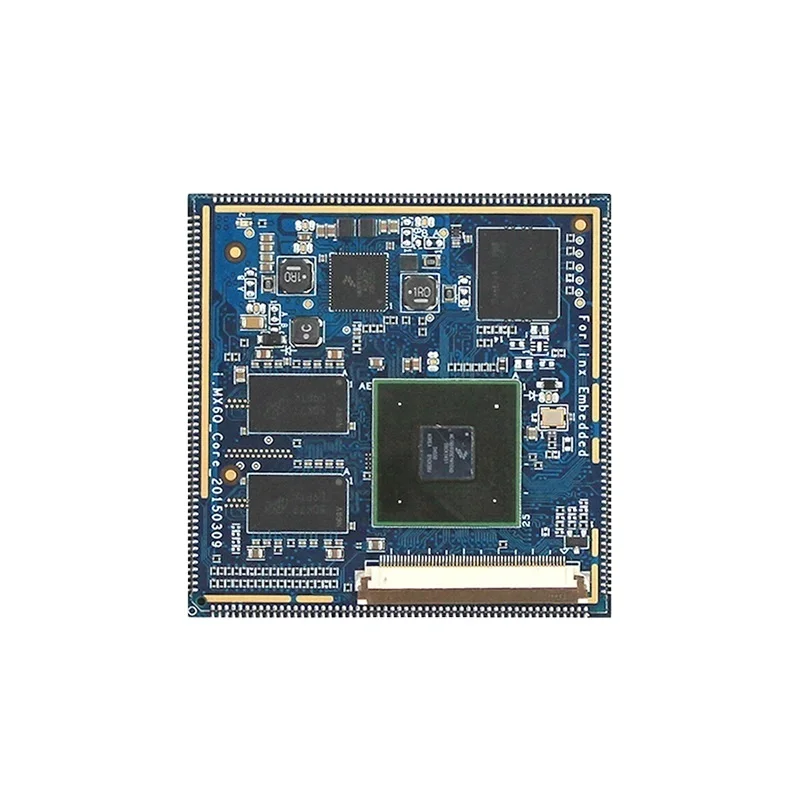

Structure dimensions: 60mm x 60mm
Artcraft: 8-layer PCB
Packing & Delivery
Generally the SoM could be packed 50pcs/box (24*19*10cm), the parcel(s) could be sent out by express/air within 3~5 working days after receipt of full payment.
Application
Automotive infotainment, digital signage, HMI, in-flight entertainment, intelligent industrial control system, IP phones, IPTV, portable medical, tablets.
