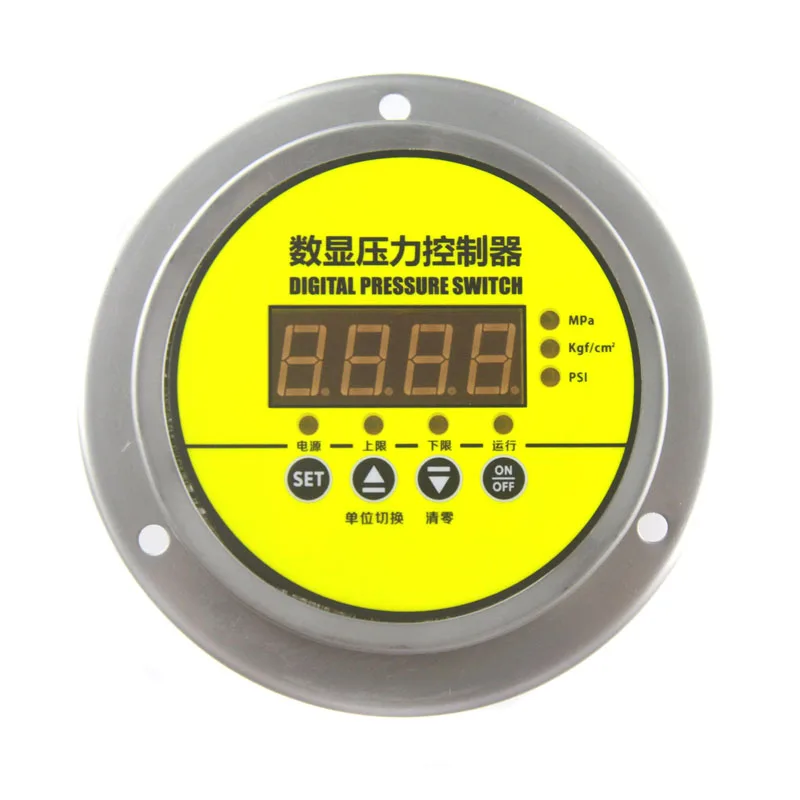

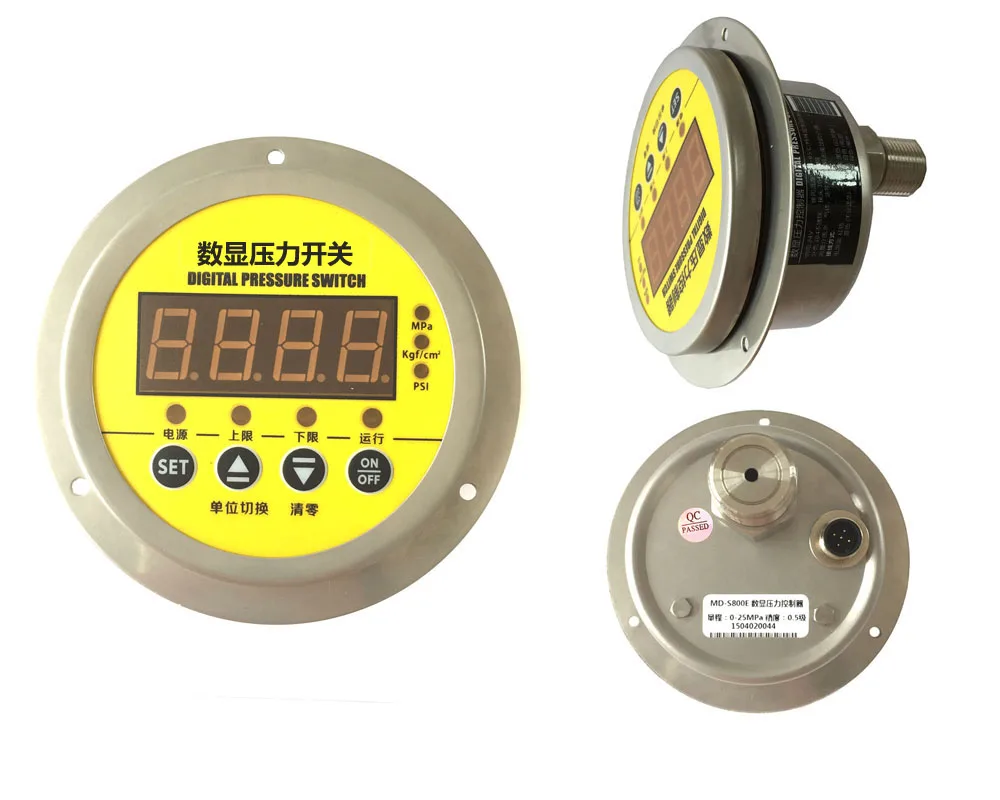

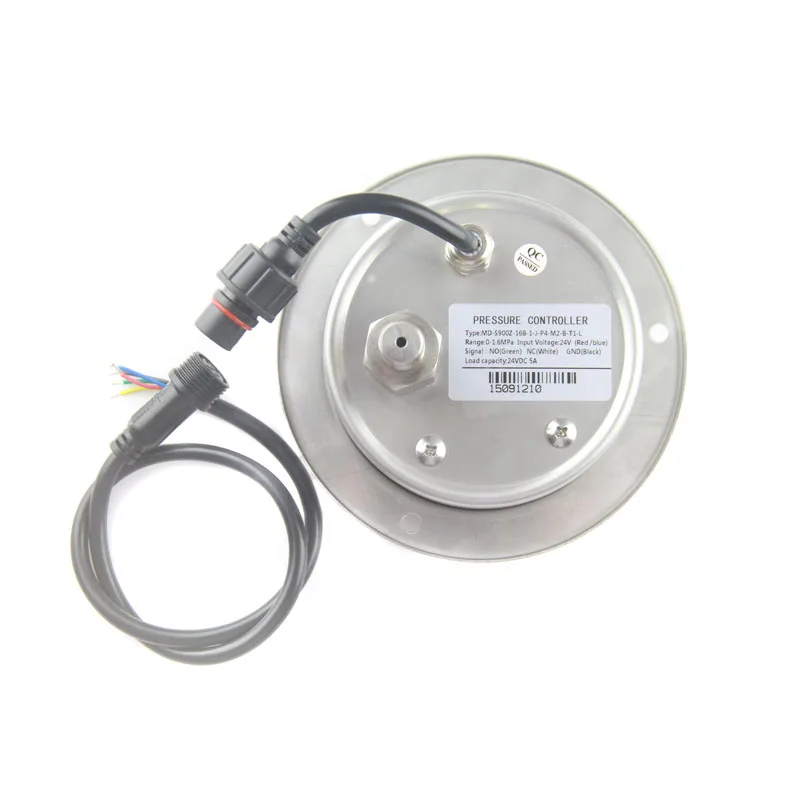

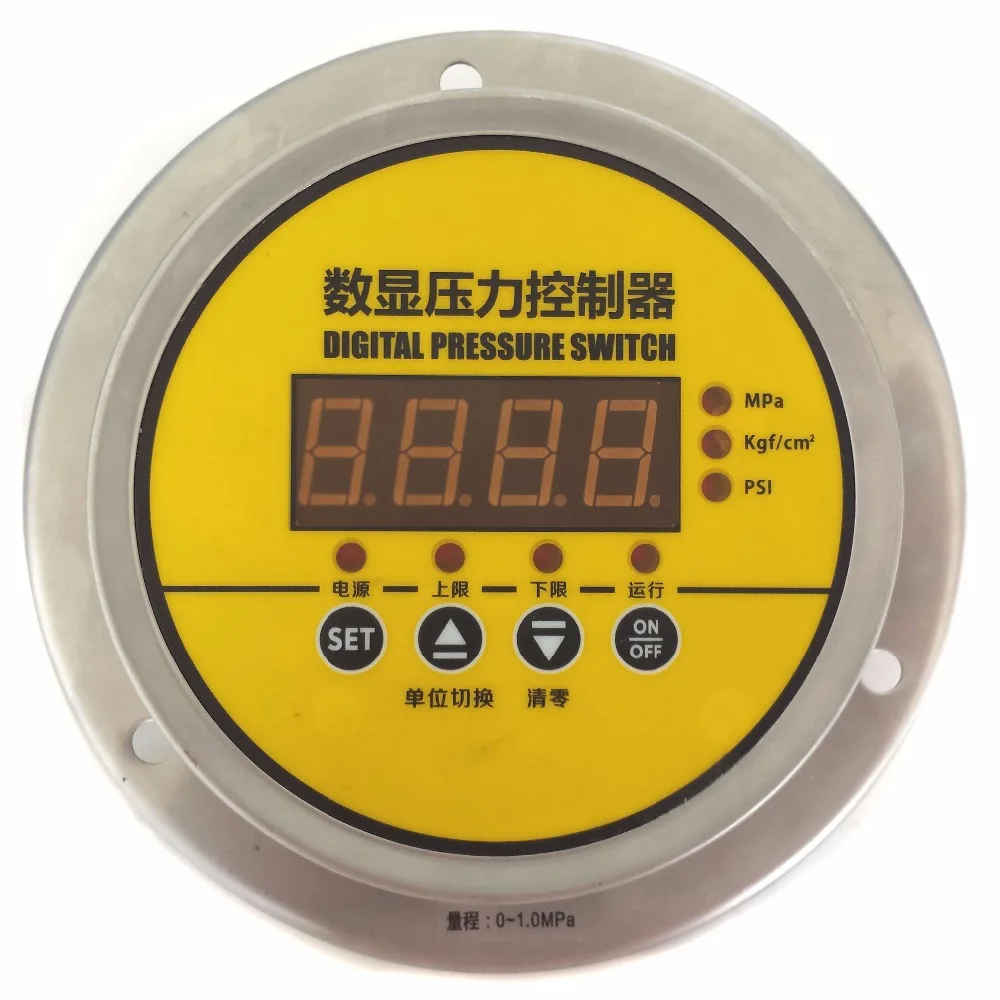

       MD-S828Z is a smart digital display pressure switch with an 80mm shaft to install the stainless steel case, and a digital display pressure switch with pressure measurement, display and control. This series of pressure switch can be set up two way normally open normally closed emergency alarm, also can realize two road, high and low voltage control is another key reset, three kinds of display switch unit and other functions.

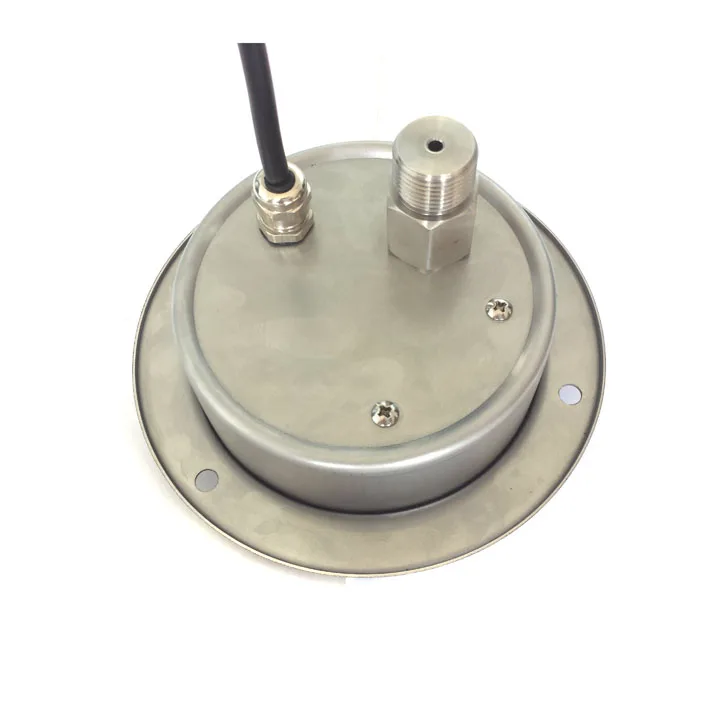

       The design of the circuit focuses on stability, and fully considers the actual situation of the automation scene, which has strong anti-drying magnetic interference, protection against wave surge protection, anti-anti protection and so on. The operation method of this pressure switch is simple and intuitive, and the two sets of relays can be set independently. According to the customer site, only one group of control can be used. The product adopts the food grade 304 stainless steel connector, 304 stainless steel shell, providing the shaft orientation and radial different installation mode.

Range	0-0.2…1.0…1.6…5…10…25…40…60…100…160MPa 0-5…10…25…40…60…100kPa
Over Pressure	≤10MPa 200% , >10MPa 150%
Accuracy grade	0.5%FS    0.25%FS
Power supply	12VDC  24VDC  110VAC  220VAC  380VAC
Output type	Relay output, often open often
Output relay capacity	220V AC 5A
Thread interface	M20*1.5  G1/4  G1/2
Measurement medium	Measuring the non-corrosive gases and liquids of the medium water, air and oil
Interface material	304 stainless steel
Shell	The shell is made of high-strength ABS plastic
Use the temperature	- 20 ~ 80 ℃
Authentication mode	CE authentication
Setting range	The range full range can set up the control points and prevent the fluctuation.
Diameter	80mm
