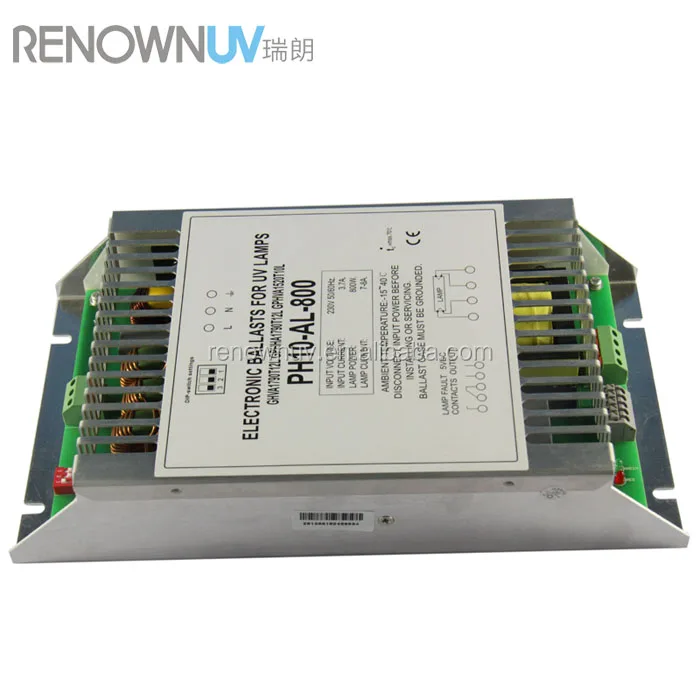

600 Вт затемняющий электронный балласт T6 УФ

UV Lamp Electronic Ballast Main Technical Data

PS10-AL-2/320 UV lamp electronic ballast Application UV Lamp Types

2*Lamp Types:2*GPHA1554T6  GPHHA1554T6L  TUV325WXPT NNI300

Wiring Diagram: B

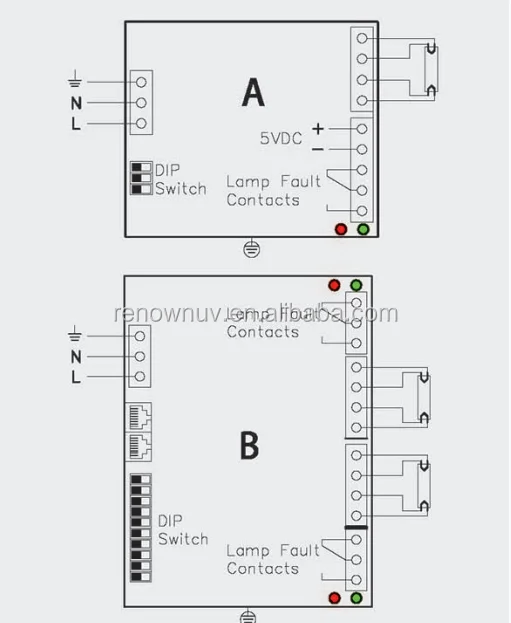

Electronic Ballast Wiring Diagram

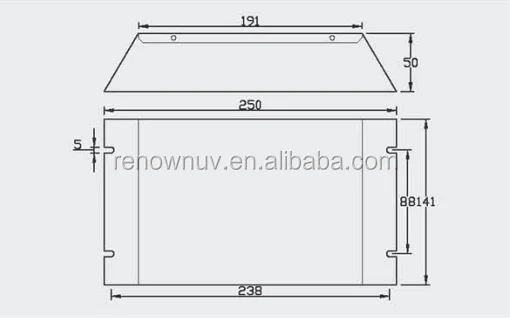

Electronic Ballast Dimension

l Technical specifications

Mains Voltage:220-277VAC±10%

Mains Frequency:50/60Hz

Power Factor: >0.98

Efficiency: >91%

Operating Frequency: 28-80KHz

Starting:Preheat

Dimensions:250*141*50mm

l Lamp status indication via LED indication

Green LED:Lamp on

Red LED:Lamp fault

l Lamp status forwarding

Potential free relay contacts for lamp on/lamp fault.

l Installation requirement

Wire Gauge:0.5-1.5mm²

Max.cable length between ballasts and lamp:5m

Relay contacts:potential free,load:50…500mA at 24…230V AC;

              50…500mA at 5…60V DC

l Mounting restrictions

Disconnect Input Power Before Installing or Servicing.

Ballast Case Must Be Grounded.

Don’t short any two wires of the four outputs.

l Features

RS485 dimmable unction:The lamp power can be adjusted from 60% to 100%.

RENOWNUV, a professional brand established in 1996, is focused on offering complete proposals for air and water UV disinfection treatment. RENOWNUV has advanced purification compounding technology of photochemical reaction and photophysics process and design capability from Europe.

As a professional designer and manufacturer of electronic ballast, RENOWNUV is delicated to develop high-quality electronic ballasts. Products are widely used in the fieds of sewage treatment, water purification, air purification, waste gas treatment, medical, priting and soon. RENOWNUV owns a professional and 10+ years experienced R & D team. Aiming to be “top China electronic ballast expert”, and insisting on meeting the customers requirement as the aim of researching and developing product. RENOWNU owns production line with annual production capacity reach 20 million pieces.

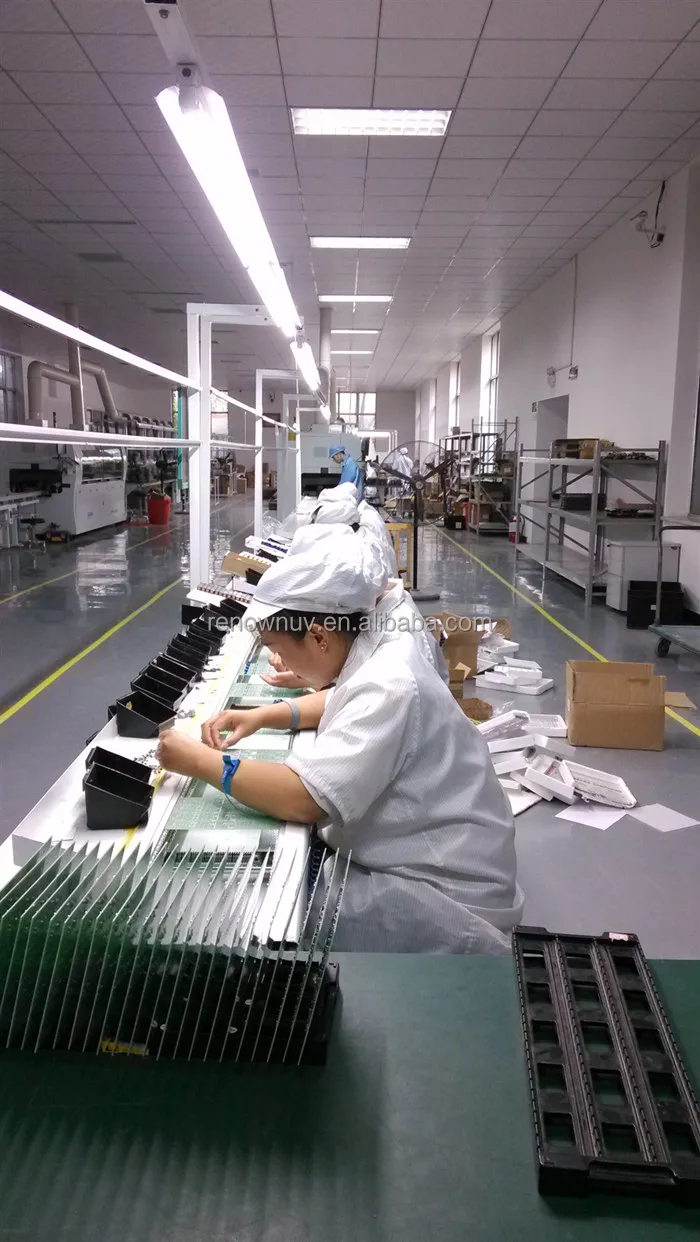

RENOWNUV owns full set of advanced production machines, like full automatic drying machine, automatic printing machine, high speed chip machine, automatic washing machine, off-line AOI visual inspection machine, automatic chain plug-in line and lead-free automatic wave soldering ect.

After years development, we gaind cooperation with many valueable customers by applying them different international certificates to meet different market needs. Till now, we have models of electronic ballast CE, UL, SAA etc certified.

Customers all around the world are welcome to consult us for special electronic ballast design, and certification application.

Our UV lamp electronic ballasts are well packed with cartons. Pallet will be used for large volume goods delivery. We offer multi delivery choices, like express, air shipping and sea shipping, for customers convenience.
