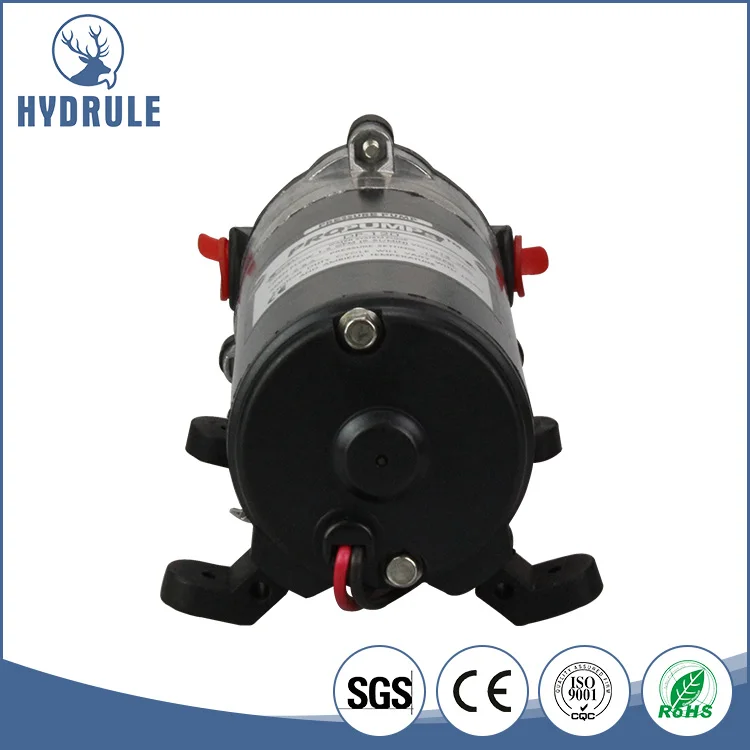

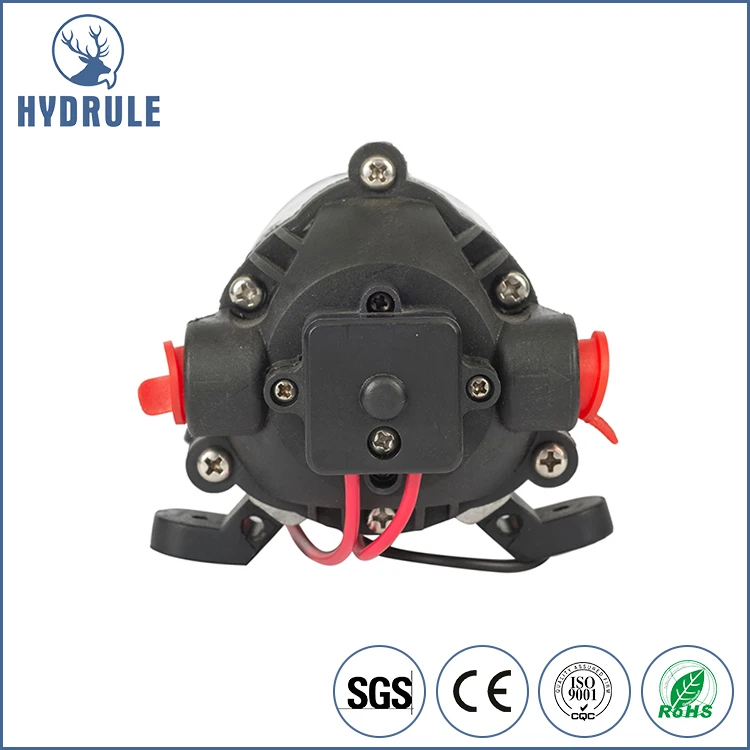

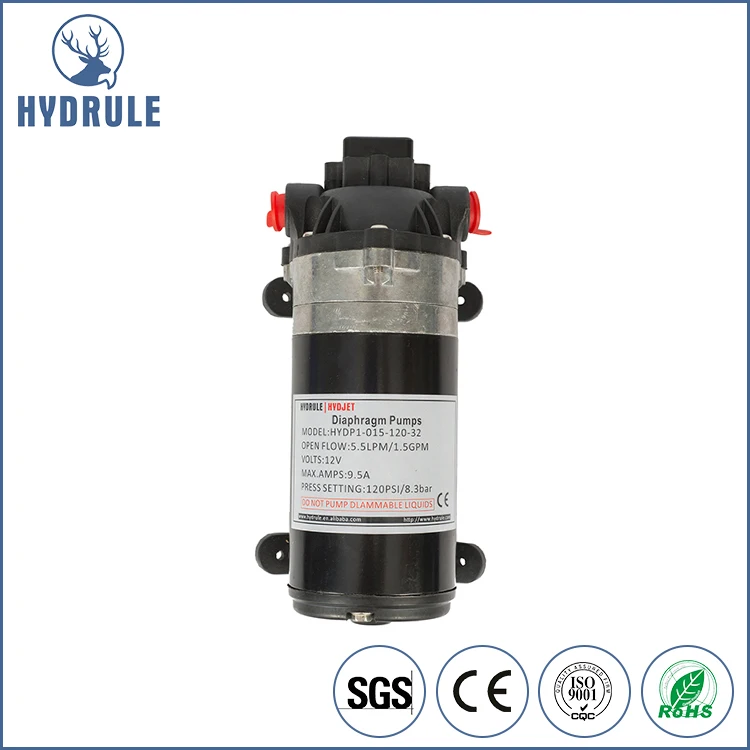

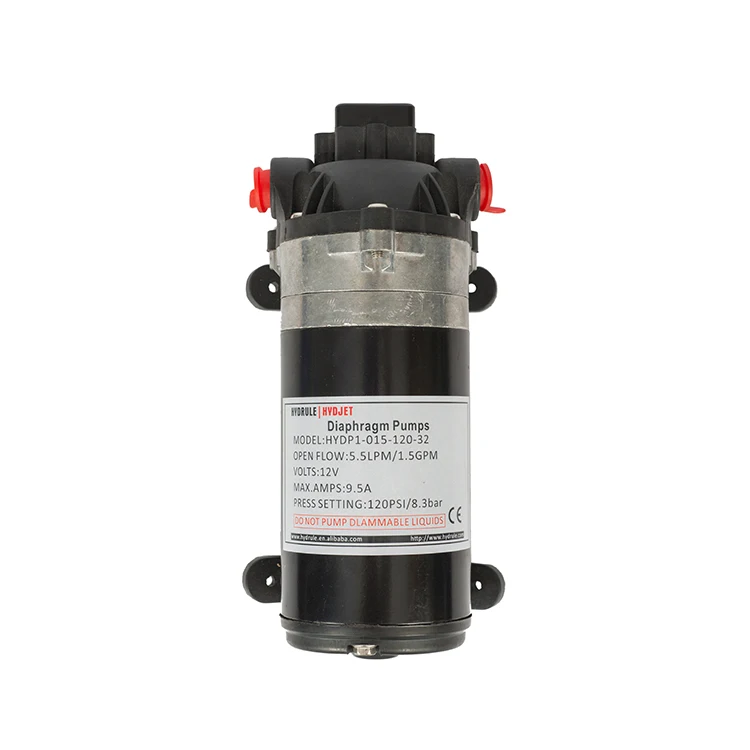

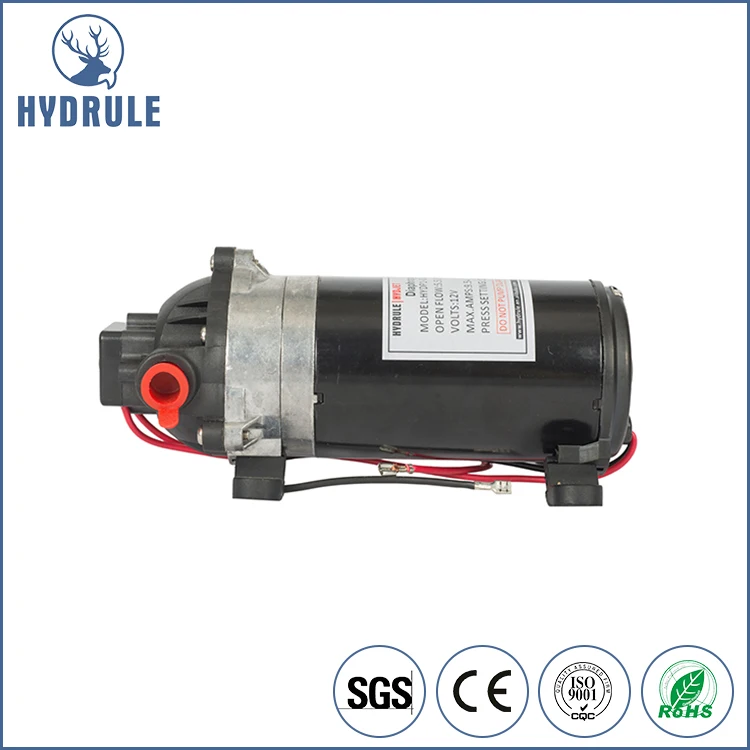

HYDRULE 12v electrical dc high pressure diaphragm water pump



Features & Benefits

Positive displacement pump

Can run dry

Quiet operation

Demand Pump

Industry standard mount pattern



Typical Applications

Water Treatment/Ro

Beverage/Food Service

Distillation Equipment

Agricultural Spraying

General Industrial

Automotive

Marine/RV



PUMP

Type

3 Chamber positive displacement diaphragm pump, self priming, capable of being run dry



Mode

Demand

Liquid Temperature

140°F (60°C) Max.

Priming Capabilities

6 feet (1.8 m) suction lift

Max Pressure

160 PSI (11 bar)



Inlet/Outlet Ports

3/8"-18 FNPT

Weight

5.7 lbs (2.6 kg)



MOTOR

Duty Cycle

Continuous



Leads

DC: 16 AWG, 4.5" long with

2-Pin connector/Leads



Voltage

DC12v/DC24v



STANDARD PUMP CONFIGURATIONS :

Model	Volts	Flow rate	Max pressure	Amps	Ports
	V	LPM/GPM	PSI/KG	A
HYDP1-015-120-32	12	1.5/5.5	120/8.3	10	3/8"-18FNPT
HYDP2-015-120-32	24	1.5/5.5	120/8.3	5	3/8"-18FNPT
HYDP1-018-120-32	12	1.8/7.0	120/8.3	12	3/8"-18FNPT
HYDP2-018-120-32	24	1.8/7.0	120/8.3	6	3/8"-18FNPT
HYDPA1-015-120-32	12	1.5/5.5	120/8.3	1	3/8"-18FNPT
HYDPA1-015-120-32	24	1.5/5.5	120/8.3	1	3/8"-18FNPT
