Description

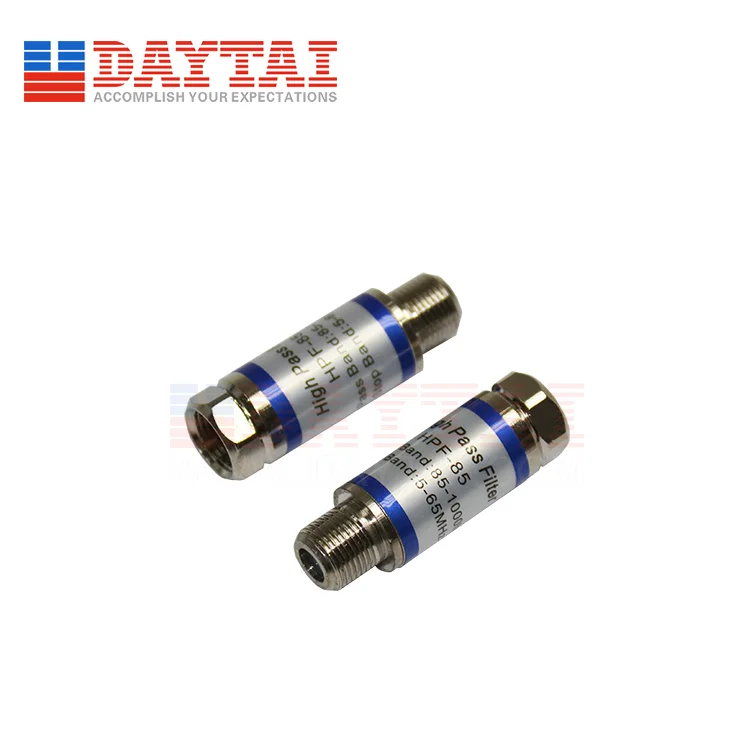

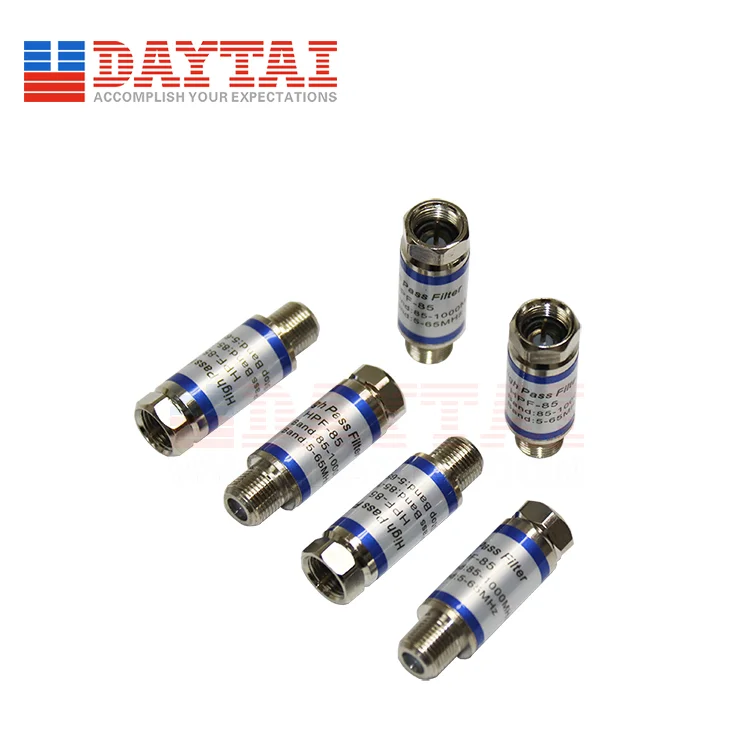

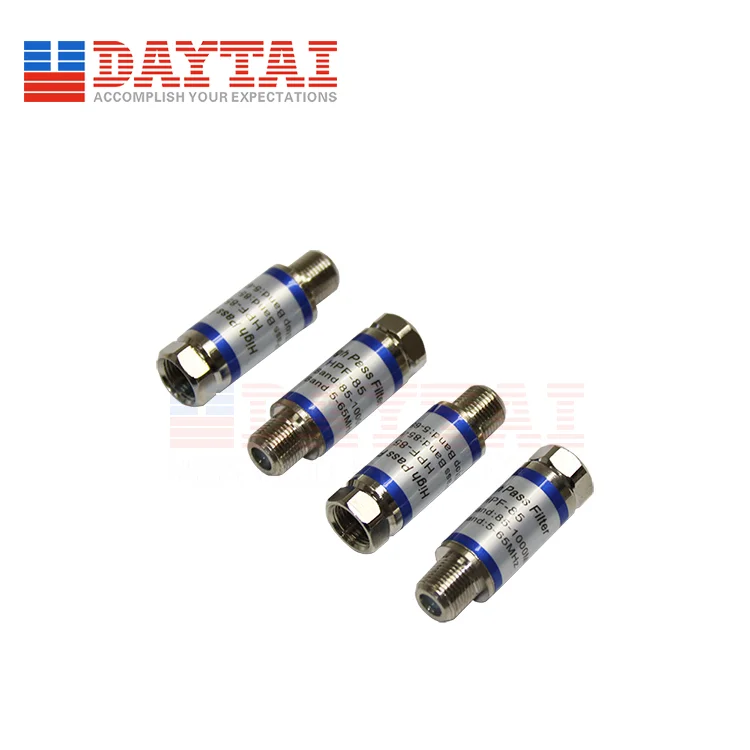

CATV High Pass Filter, HPF-85 High Pass Filter,Fmale to Ffemale,  with pass band 85-860MHz.Suitable for indoor or Outdoor Water-proof is optional.



Features

*Low insertion loss.

*High return loss and isolation.

*Class A RFI Shielding.

*Brass body plated with nickel for corrosion resis.

*Suitable for CATV, MoCA and other communication systems.



Specification

PARAMETER	BANDWIDTH	SPECIFICATIONS
Insertion loss	85-1000MHz	≤1.0 dB
Return Loss	85-1000MHz	18dB(typ)/16dB (max)
Stop Band	5-65MHz
Rejection Band Loss	5-65MHz	≥45dB
Impedance	75 ohm
F Connector Type	FL-10  Male to Female
Dimensions	13(Φ)×41(L)mm
Weight	16g



Ordering Information

ITEMS
Model	Pass Band	Remark
HPF-30-A	30-1000 MHz	We can according to customer’s  requirements provide.
HPF-40-A	40-1000 MHz
HPF-43-A	43-1000 MHz
HPF-47-A	47-1000 MHz
HPF-50-A	50-1000 MHz
HPF-54-A	54-1000 MHz
HPF-65-A	65-1000 MHz
HPF-85-A	85-1000 MHz



Q1:What's the delivery time?
Re:The lead time is 15-20days after order confirmed.



Q2:Can you send me a free sample?
Re: We are willing to send you free sample,if you would like to pay the shipping costs.

Q3:What's your payment terms?
Re: 30% in advance, and 70% before shipment.

Q4:What's the payent method?
Re: We accpet T/T, Western Union, Paypal.

Q5:How to ship the items to me?
Re: Courier (DHL , TNT , FEDEX , UPS , EMS ) , By Air, By Sea are available.
